Truma C44 (4052816038339)

Truma C44 Portable Refrigerator/Freezer User Manual

Model: C44 (4052816038339) | Brand: Truma

Introducció

The Truma C44 Portable Refrigerator/Freezer is a versatile and robust appliance designed for mobile use, offering reliable cooling and freezing capabilities for various applications such as camping, travel, and events. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your Truma C44 unit.

Truma C44 Portable Refrigerator/Freezer

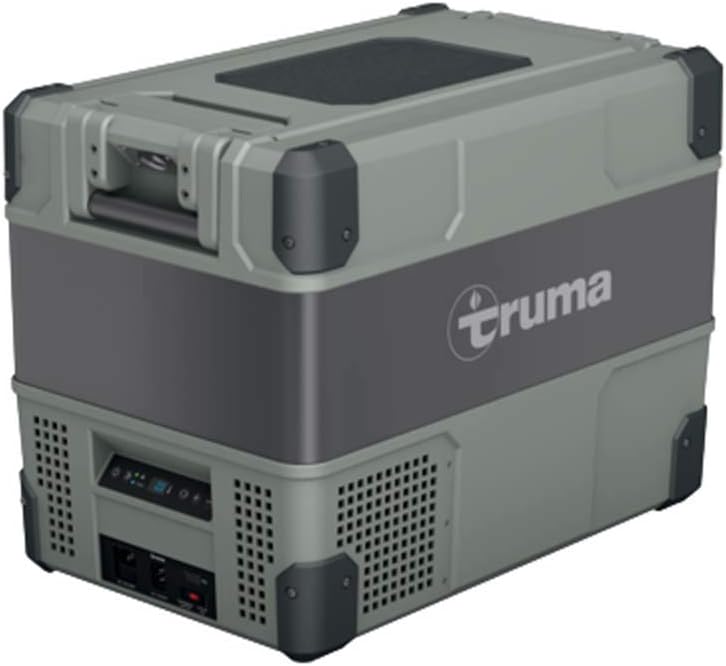

Figure 1: Truma C44 Portable Refrigerator/Freezer. This image shows the main unit in a closed position, highlighting its compact and durable design.

Informació de seguretat

Please read all safety instructions carefully before operating the Truma C44. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Configuració

Desembalatge i col·locació

Carefully remove the Truma C44 from its packaging. Place the unit in a well-ventilated area, ensuring at least 6 inches of clearance around all sides for proper airflow. The unit measures approximately 26 x 16 x 19 inches (L x W x H).

Truma C44 Dimensions
Figure 2: Truma C44 Dimensions. This image illustrates the physical dimensions of the cooler, showing its length, width, and height.

Connexió d'alimentació

The Truma C44 supports both 12/24V DC and 110V AC power inputs. Connect the appropriate power cable to the unit and then to a compatible power source.

Truma C44 Control Panel and Ports
Figure 3: Control Panel and Power Ports. This close-up shows the digital display, control buttons, AC 100-240V input, DC 12V/24V input, and USB port.
Truma C44 DC Power Connection
Figure 4: DC 12V/24V Power Connection. This image shows the DC power input port, typically used for vehicle power.

Instruccions de funcionament

Funcionament bàsic

Once powered on, the digital display will show the current internal temperature. Use the control buttons to adjust the desired temperature. The unit can cool or freeze down to -8°F (-22°C).

Truma C44 Features
Figure 5: Key Features of the Truma C44. This image highlights the intuitive digital display, integrated bottle openers, flush handles, 110V AC connection, 12V DC connections, and versatile USB port.

App Control (Bluetooth)

The Truma C44 can be controlled via a Bluetooth-enabled smartphone app. Download the official Truma Cooler app from your device's app store. Follow the in-app instructions to pair your device with the cooler for remote temperature monitoring and adjustment.

Organització Interna

The cooler features a versatile removable basket insert for easy organization of contents. The lid is also easily reversible for convenience.

Truma C44 Internal Organization
Figure 6: Removable Basket for Organization. This image shows the interior of the cooler with a removable basket, allowing for flexible storage of various items.

Característiques integrades

Video 1: Exploring the Ultimate Power and Features of Truma Coolers. This video demonstrates the robust design, space-saving handles, powerful cooling, flexible storage connections, USB charging, and app control features of the Truma Cooler.
Video 2: Experience the Truma Cooler Portable Fridge/Freezer. This video showcases the smart features including space-saving handles, reversible lid, USB port, 110V/12V/24V connections, LED light, built-in bottle openers, and reversible removable basket inserts, highlighting its efficiency and robust construction.

Manteniment

Neteja

Regular cleaning ensures optimal performance and hygiene. Always disconnect the power before cleaning.

Emmagatzematge

When storing the unit for extended periods, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight. For improved energy efficiency and reduced power consumption, an optional insulated cover is available.

Truma C44 with Insulated Cover
Figure 7: Truma C44 with Optional Insulated Cover. This image shows the cooler fitted with an insulated cover, which helps improve energy efficiency.

Resolució de problemes

ProblemaCausa possibleSolució
La unitat no s'encén.No power supply; faulty cable; power outlet issue.Check power connections. Ensure outlet is functional. Try a different cable if available.
Not cooling effectively.Blocked ventilation; ambient temperature too high; door not sealed properly; overfilled.Ensure clear ventilation. Move to a cooler area. Check lid seal. Do not overfill.
Soroll inusual.Unitat no anivellada; obstrucció del ventilador.Place on a level surface. Check for debris near the fan.
La visualització de la temperatura no és precisa.Sensor issue; extreme external conditions.Allow unit to stabilize. If problem persists, contact customer support.

Especificacions

CaracterísticaDetall
MarcaTruma
Número de model4052816038339
Capacitat11.5 galons / 44 litres
Interval de temperatura-8 °F a 50 °F (-22 °C a 10 °C)
Entrada de potència12/24V DC & 110V AC
Pes de l'article51.9 lliures
Dimensions del producte (L x A x A)26 x 16 x 19 polzades
Tipus de materialPolycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS)
Sistema de descongelacióAutomàtic
Característiques especialsPortable, Digital Display, App Control, USB Port, Integrated Bottle Openers, LED Interior Light

Garantia i Suport

Truma products are designed for durability and reliability. For specific warranty details and to register your product, please refer to the warranty card included with your purchase or visit the official Truma website. For technical support, troubleshooting assistance beyond this manual, or spare parts, please contact Truma customer service.

You can visit the Truma Store on Amazon for more information: Truma Store
