Introducció
This manual provides comprehensive instructions for the safe and effective use of your Aputure LS 300X LED Video Light. Please read this manual thoroughly before operating the device and retain it for future reference.
Característiques clau
- Bi-Color Output: Adjustable color temperature from 2700K to 6500K.
- Alta precisió del color: CRI & TLCI scores of 95+, Tungsten SSI: 85; D55 SSI: 74.
- Bowens-S Mount: Compatible with various optical modifiers like Fresnel 2X and Spotlight.
- Múltiples opcions de control: Control wheel, 2.4Ghz Aputure Wireless remote, and Sidus Link App via Bluetooth mesh network.
- Built-in Lighting Effects: 9 customizable FX including Paparazzi, Strobe, Lightning, Faulty Bulb, TV, Pulsing, Fireworks, Explosion, and Fire.
- DMX512 Compatibility: Professional control integration.
- Funcionament silenciós: Ultra-quiet dual-fan cooling system at 18dB.
- Potència flexible: Supports single/dual V-mount batteries (12-16.8V, ≥15A) or AC power (100-240V).
Què hi ha a la caixa
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
Image: Diagram showing the contents of the Aputure LS 300X package, numbered for easy identification.
- Caixa de transport x1
- LS 300X Lamp x1
- Caixa de control x1
- Standard Cover x1
- Cl de desbloqueig ràpidamp x1
- Remote Control (VA-remote RC1+) x1
- Power Cable (Neutrik power CON cable) x1
- Connect Cable (5-pin male-to-female XLR) x1
- Cross Back Strap x1
- Coin Cell Battery x1
- Hanging Wire Post x1
Image: The Aputure LS 300X light kit neatly packed inside its carrying case, showing the main light unit, control box, and cables.
Configuració
1. Muntatge de la llum
- Attach the Quick-Release Clamp to a light stand or appropriate support.
- Secure the Control Box to the Quick-Release Clamp.
- Mount the LS 300X Lamp onto the light stand via its yoke.
Image: The Aputure LS 300X control box securely attached to a light stand using the quick-release clamp.
Image: Close-up of the Aputure LS 300X light's yoke, illustrating its 360-degree rotation capability for flexible positioning.
2. Potència de connexió
The LS 300X supports multiple power options:
- Alimentació CA: Connect the Neutrik power CON cable to the control box and a standard AC outlet (100-240V).
- Dual Lithium Battery Power: Insert two V-mount batteries (12-16.8V, ≥15A) into the battery plates on the control box. Ensure batteries are within the specified voltage and current requirements to prevent damage.
- Single Lithium Battery Power: For single battery operation, use the right-side battery interface on the control box. Note that output power will be approximately half compared to dual battery or AC power. The left-side interface does not support single battery power.
Image: Visual guide demonstrating the three power supply methods for the Aputure LS 300X: single V-mount battery, dual V-mount batteries, and AC power connection.
Image: Close-up showing the AC power input port and battery plates on the Aputure LS 300X control box.
3. Attaching Modifiers
The LS 300X features a Bowens-S mount for attaching light modifiers. Align the modifier with the mount and twist to secure it.
Instruccions de funcionament
1. Encendre/apagar
Locate the power switch on the control box and toggle it to turn the light on or off.
2. Mètodes de control
The Aputure LS 300X offers multiple ways to control its settings:
- Caixa de control: Use the integrated control wheel and buttons on the control box for direct adjustments.
- 2.4Ghz Aputure Wireless Remote (RC1+): The included remote allows for wireless control of various functions.
- Aplicació Sidus Link: Download the Sidus Link App to your smartphone or tablet to control the light via Bluetooth mesh network. This provides advanced control options and scene programming.
- DMX512: For professional lighting setups, the LS 300X is DMX512 compatible.
Image: The Aputure LS 300X control box display, showing options for remote control, app control via Sidus Link, and DMX integration.
Image: A visual representation of the three primary control methods: Sidus Link App interface, the physical remote control, and a DMX lighting console.
Image: A hand operating the control wheel and buttons on the Aputure LS 300X control box to adjust settings.
3. Adjusting Color Temperature (CCT) and Brightness
Use the control wheel or corresponding buttons on the remote/app to adjust the color temperature from 2700K (warm) to 6500K (cool) and the light intensity (brightness).
The light includes preset buttons for common CCT values: 2700K, 3200K, 4300K, 5500K, and 6500K.
Image: The Aputure LS 300X light unit positioned against a background of various color swatches, illustrating its bi-color capabilities.
Image: The Aputure LS 300X light emitting a warm, golden glow, illuminating a room with a mirror.
4. Corbes d'atenuació
The LS 300X features four dimming curves for precise control over light transitions:
- Lineal
- Exponencial
- Logarítmica
- S-Corba
5. Special Effects (FX)
Access the 9 built-in lighting effects via the control box, remote, or Sidus Link App. These effects can often be customized with CCT control.
- Paparazzi
- Strobe
- Llamp
- Bombeta defectuosa
- TV
- Pulsant
- Focs artificials
- Explosió
- Foc
Image: The Aputure LS 300X light with an overlay illustrating the 9 built-in lighting effects, each with an icon and name (Paparazzi, Lightning, Explosion, Strobe, Fireworks, Faulty Bulb, Pulse, TV, Fire).
Manteniment
1. Neteja
- Assegureu-vos que el dispositiu estigui apagat i desconnectat abans de netejar-lo.
- Feu servir un drap suau i sec per netejar les superfícies exteriors.
- No utilitzeu productes químics agressius, dissolvents ni netejadors abrasius.
- Mantingueu les obertures de ventilació netes de pols i deixalles.
2. Emmagatzematge
- Store the light in its original carrying case or a protective bag when not in use.
- Mantingueu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Traieu les piles si les guardeu durant períodes prolongats per evitar fuites.

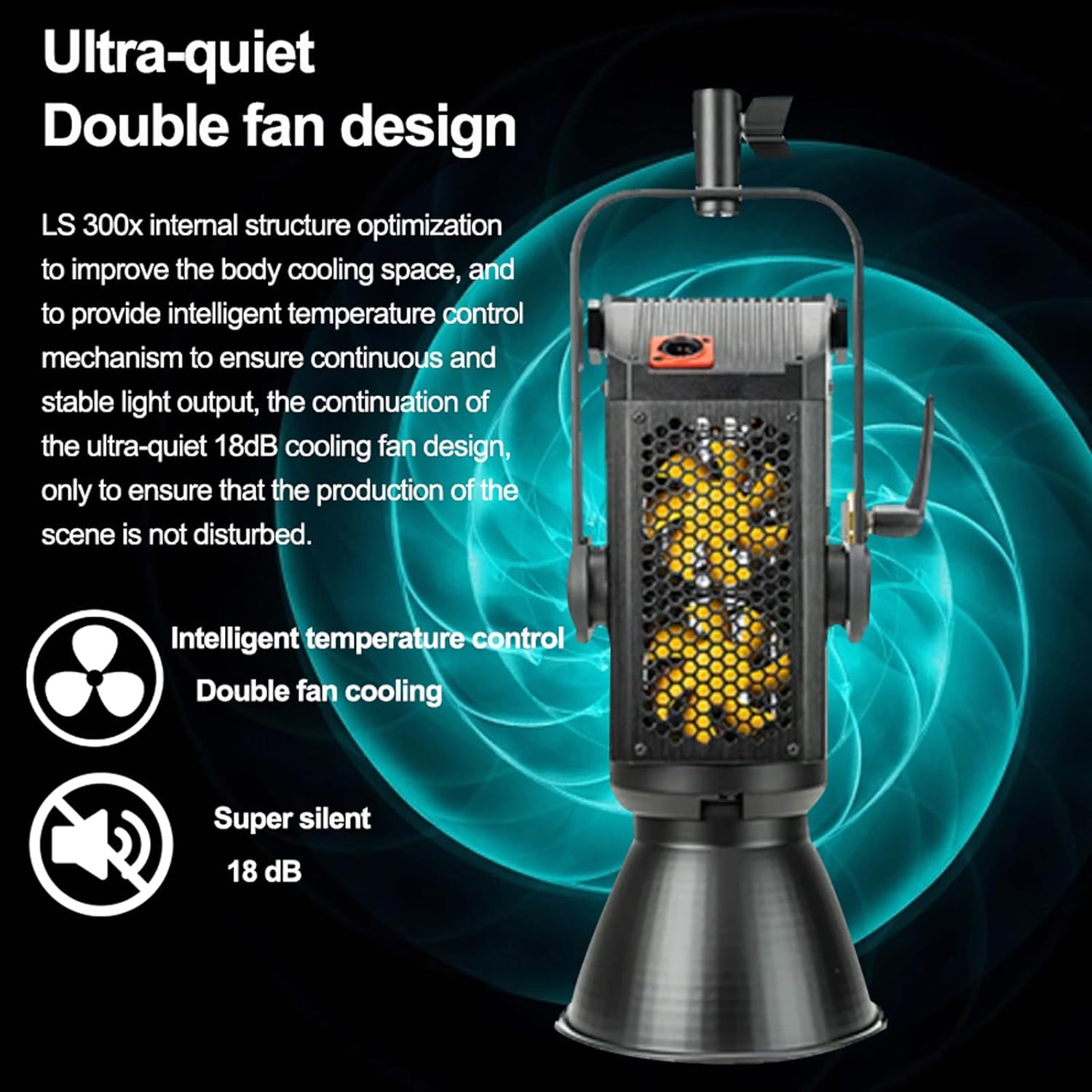

Image: The Aputure LS 300X control box, highlighting its internal structure optimization and ultra-quiet 18dB dual-fan cooling system for intelligent temperature control.
Image: A graphic illustrating the dual-fan, ultra-silent (18 dB) cooling system of the Aputure LS 300X.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El llum no s'encén. | No power, loose cable, depleted battery. | Comproveu la connexió de corrent altern o la càrrega de la bateria. Assegureu-vos que tots els cables estiguin connectats correctament. |
| El comandament a distància no respon. | Remote battery depleted, out of range, interference. | Replace remote battery. Ensure remote is within operating range. Minimize obstructions. |
| Sidus Link App cannot connect. | Bluetooth off, app not updated, device too far. | Ensure Bluetooth is enabled on your device. Update the app. Move closer to the light. |
| La producció de llum és inferior a l'esperada. | Single battery power, incorrect battery specifications. | Ensure dual batteries are used or AC power is connected for full output. Verify batteries meet 12-16.8V, ≥15A requirements. |
Especificacions
| Característica | Detall |
|---|---|
| Número de model | LS 300X |
| Temperatura de color | 2700K-6500K |
| CRI i TLCI | 95+ |
| Tungsten SSI | 85 |
| D55 SSI | 74 |
| Tipus de muntatge | Bowens-S Mount |
| Mètodes de control | Control Wheel, 2.4Ghz Remote, Sidus Link App (Bluetooth), DMX512 |
| Font d'alimentació | AC 100-240V, Dual V-Mount Batteries (12-16.8V, ≥15A) |
| Dimensions del producte | 11.42 x 25.2 x 12.99 polzades |
| Pes de l'article | 25 lliures |
Garantia i Suport
For warranty information, technical support, or service inquiries, please refer to the official Aputure weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
Oficial Weblloc: www.aputure.com
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
