EasySMX 2.4G Wireless Controller User Manual

Producte acabatview

The EasySMX 2.4G Wireless Controller is designed for a versatile gaming experience across multiple platforms. It features vibration feedback, precise controls, and a TURBO function for enhanced gameplay.

Imatge: Frontal view of the EasySMX 2.4G Wireless Controller, showcasing its white body with colorful splatter design and illuminated central button.

Image: The EasySMX 2.4G Wireless Controller displayed alongside its compact USB receiver, highlighting the wireless connectivity component.

Contingut del paquet

• EasySMX 2.4G Wireless Controller
• Receptor USB
• Manual d'usuari (aquest document)

Disseny del controlador

Image: Detailed diagram of the EasySMX 2.4G Wireless Controller, labeling all buttons and components including analog sticks, D-pad, action buttons (X, Y, B, A), shoulder buttons (LB, RB), triggers (LT, RT), Home, Start, Back, TURBO, LED, and Player Indicators.

Familiaritzeu-vos amb els botons del controlador i les seves funcions:

• Left Analog Stick & L3: Used for movement and camera control. Press down for L3.
• Right Analog Stick & R3: Used for camera control or specific in-game actions. Press down for R3.
• D-pad: Coixinet direccional per a una entrada direccional precisa.
• Botons A/B/X/Y: Botons d'acció per a ordres dins del joc.
• LB/RB Buttons: Left and Right Bumper buttons.
• LT/RT Triggers: Left and Right Analog Triggers for pressure-sensitive input.
• Botó d'inici: Central button, typically for system menus or returning to home screen.
• Botó d'inici: Used to pause games or access menus.
• Botó enrere: Used for various functions depending on the game or system.
• Botó TURBO: Activates rapid fire for assigned buttons.
• LED/Player Indicators: Lights indicating connection status or player number.

Imatge: Primer pla view highlighting the D-pad, A/B/X/Y buttons, and analog joysticks, emphasizing their high sensitivity and accuracy. Text indicates D-pad is pressure sensitive, A/B/X/Y are action buttons, and joysticks offer 360-degree movement without dead zones.

Guia de configuració

1. Alimentació del controlador

The controller is powered by batteries. To install or replace batteries:

1. Localitza el compartiment de la bateria a la part posterior del controlador.
2. Press the button on the battery compartment and push backwards to open the cover.
3. Introduïu les piles, assegurant-vos la polaritat correcta.
4. Tanqueu bé la tapa del compartiment de la bateria.

Image: Diagram showing the location of the battery compartment button and the action required to push the cover backwards to open it, with an inset showing the open compartment and battery insertion.

2. Connexió del controlador

The EasySMX 2.4G Wireless Controller connects via a USB receiver.

1. Insert the USB receiver into an available USB port on your PC, PS3, Android TV Box, or Android device (OTG cable required for Android phones).
2. Turn on the controller. The controller should automatically pair with the receiver.
3. The player indicator LEDs on the controller will illuminate to show successful connection and player number.

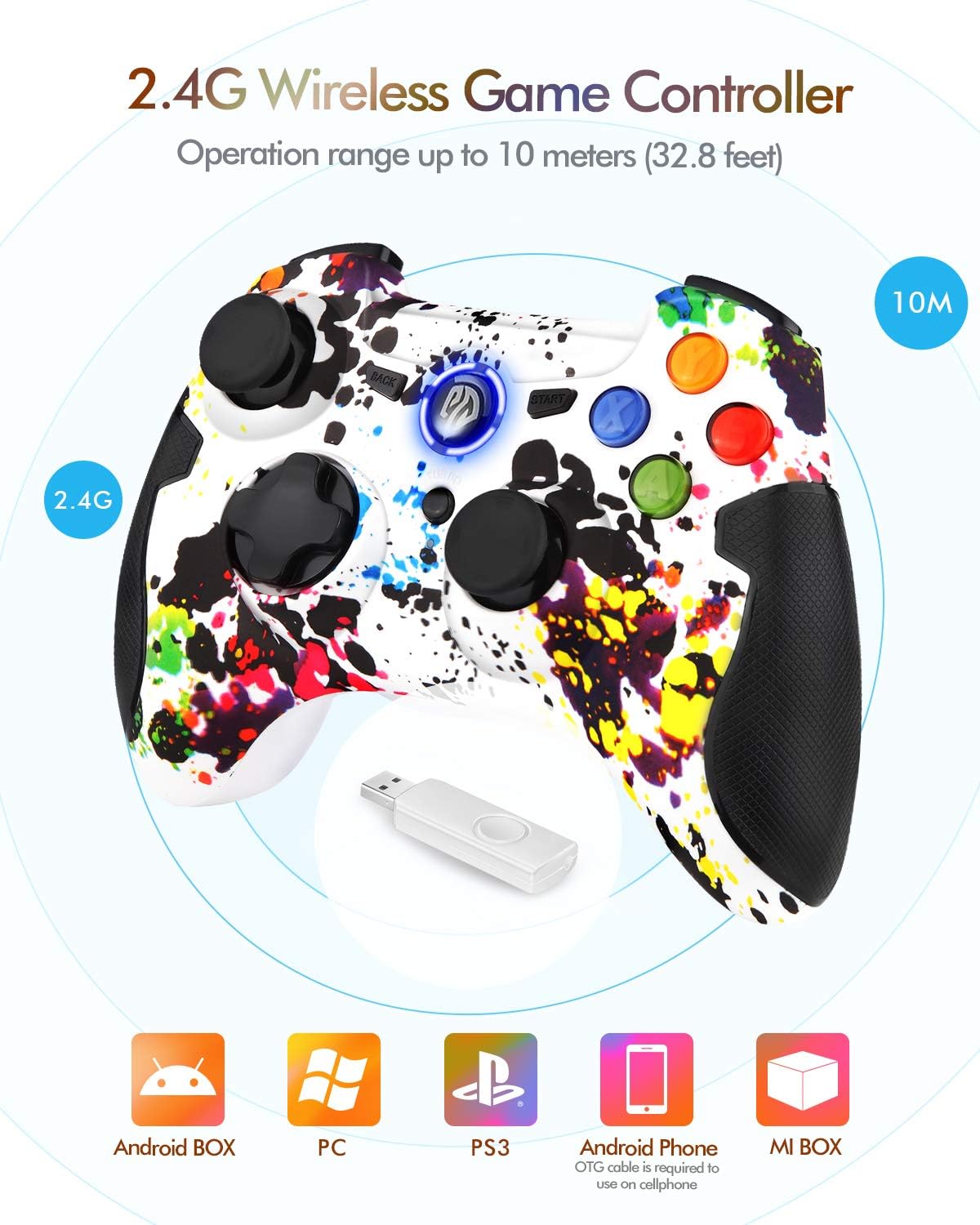

Image: Illustration demonstrating the 2.4G wireless range of up to 10 meters and compatibility icons for Android BOX, PC, PS3, Android Phone (with OTG cable), and MI BOX, indicating the controller's broad platform support.

Notes de compatibilitat:

• PC: Compatible with Windows XP / 7 / 8 / 8.1 / 10 / Steam. Games should support Xinput / DirectInput mode. Some games may require button mapping.
• Android: Version 4.0 or above, device must fully support OTG function. Games should support Android. Some games may require button mapping.
• PlayStation 3: Funcionalitat Plug and Play.
• Dispositius no compatibles: This device does not support Xbox 360 / Xbox One / PS4 / MAC OS.

Instruccions de funcionament

Funcionament bàsic

Once connected, the controller functions as a standard gamepad. Use the analog sticks for movement and camera control, the D-pad for directional input, and the A/B/X/Y buttons for actions.

Funció TURBO

The TURBO function allows for rapid firing of a selected button without repeated presses.

1. Hold down the button you wish to set for rapid fire (e.g., A button).
2. While holding the action button, press the TURBO botó una vegada.
3. Release both buttons. The selected button will now fire rapidly when held down.
4. To cancel the TURBO function for that button, hold the same action button and press the TURBO botó de nou.

Feedback de vibracions

The controller provides vibration feedback for an immersive gaming experience. This feature is automatically enabled when supported by the game.

Manteniment

• Keep the controller and USB receiver clean and dry.
• Wipe with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Eviteu exposar el controlador a temperatures extremes o a la llum solar directa.
• Guardeu el controlador en un lloc segur quan no l'utilitzeu per evitar danys.
• Traieu les piles si no heu d'utilitzar el controlador durant un període prolongat per evitar fuites.

Resolució de problemes

Controller Disconnection Issues

If your controller frequently disconnects:

• Comproveu l'estat de la bateria: Ensure the controller has sufficient battery power. Replace batteries if low.
• Interferència sense fils: Check for other wireless devices operating nearby that might cause interference. Try moving closer to the USB receiver.
• Re-plug USB Receiver: Disconnect and re-insert the USB receiver into the port.

Controller Not Powering On

If you are unable to power on the controller:

• Orientació de la bateria: Verify that the batteries are inserted with the correct polarity (not upside down).
• Battery Contact: Gently lift the battery metal contact pieces slightly to ensure good contact with the batteries.
• Rechargeable Models: If your model is rechargeable, ensure it is fully charged.

Controller Not Recognized on PC

If the controller is not recognized or functioning correctly on Windows systems:

• Try installing the latest version of the Microsoft Xbox 360 Controller gamepad driver. This driver often provides compatibility for various PC gamepads.

Especificacions

Garantia i Suport

For product support or warranty inquiries, please contact EasySMX customer service. Refer to your purchase documentation for specific warranty terms and contact information.

If the product has any use problems, please inform the seller in advance.

You can also visit the official EasySMX store for more information: EasySMX Store
