Xaralyn Albany ECO ABN15E Electric Fireplace Insert Instruction Manual

1. Introducció

Thank you for choosing the Xaralyn Albany ECO ABN15E Electric Fireplace Insert. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new electric fireplace. Please read all instructions carefully before use and retain this manual for future reference.

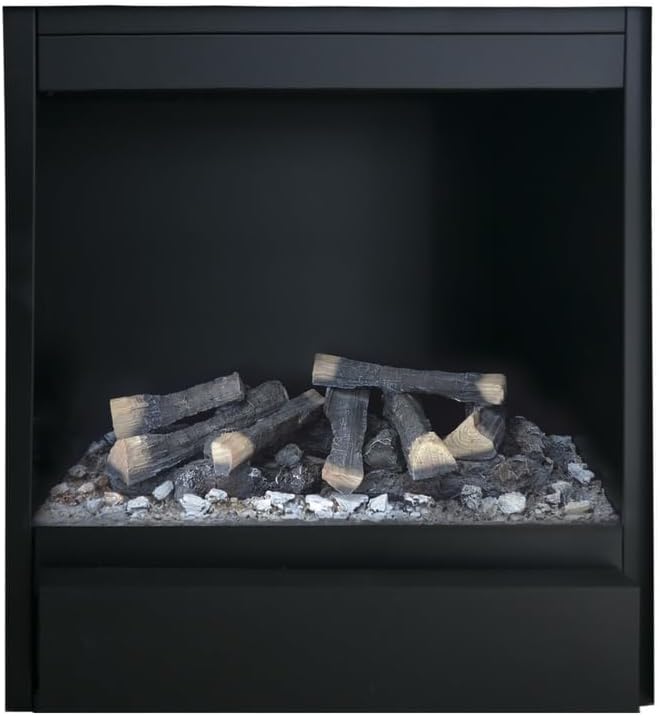

Figura 1: Frontal view of the Xaralyn Albany ECO ABN15E Electric Fireplace Insert, showcasing the flame effect and decorative logs.

2. Informació de seguretat

Respecteu sempre les següents precaucions de seguretat per evitar lesions o danys:

• Assegureu-vos que la font d'alimentació coincideixi amb el voltage especificat a l'etiqueta del producte.
• No feu funcionar la xemeneia amb un cable o un endoll danyats.
• Keep combustible materials at least 1 meter (3 feet) away from the front and sides of the fireplace.
• Do not block air vents or exhaust openings.
• Desendolleu la unitat abans de netejar-la o realitzar qualsevol manteniment.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents en desembalar-lo:

• Xaralyn Albany ECO ABN15E Electric Fireplace Insert
• Control remot
• Decorative Log Set and Ember Bed
• Manual d'instruccions

4. Configuració i instal·lació

The Xaralyn Albany ECO ABN15E is designed for freestanding installation or integration into a suitable mantel or furniture unit. Ensure adequate clearance around the unit for proper ventilation.

4.1 Consideracions de col·locació

• Choose a stable, level surface capable of supporting the unit's weight (32 kg).
• Ensure the location has access to a grounded electrical outlet.
• Maintain minimum clearances from walls and other objects as specified in the safety section.

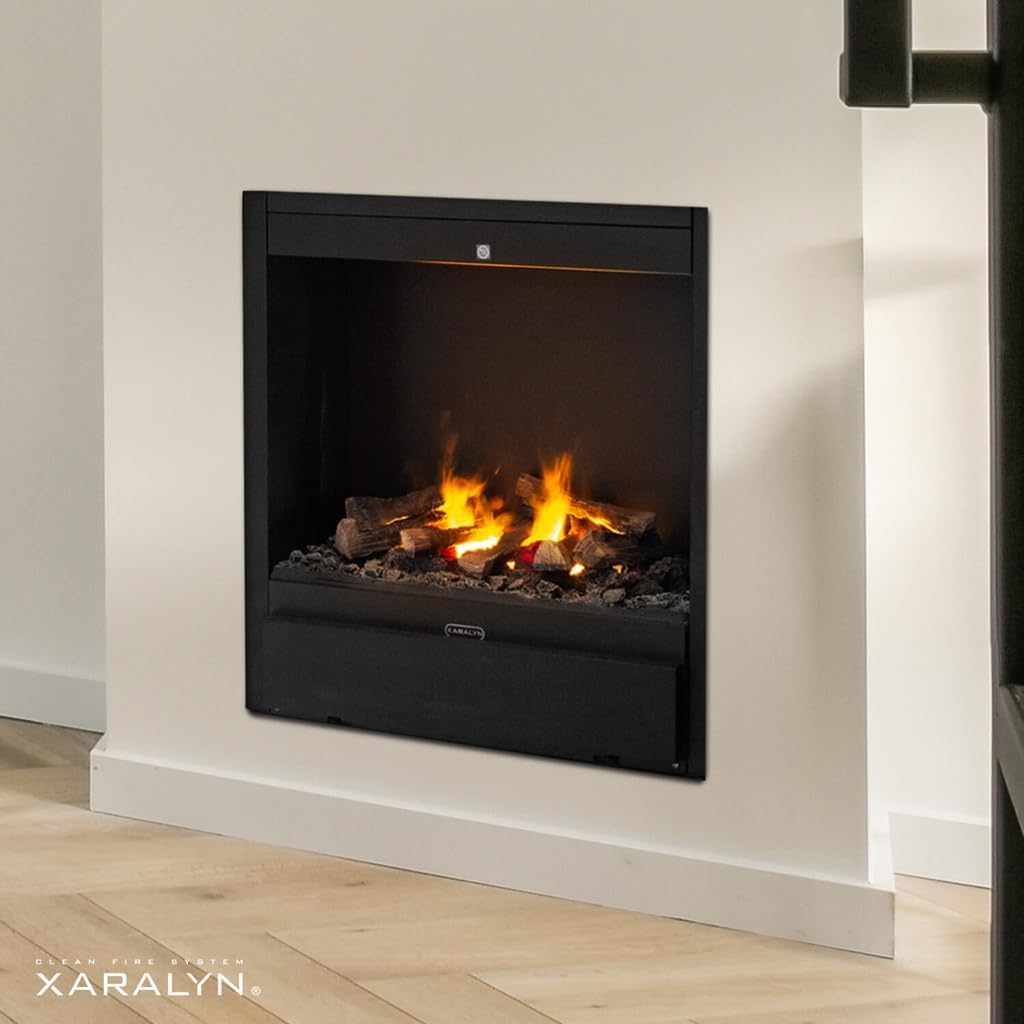

Figura 2: Example of the fireplace insert installed within a wall niche, demonstrating integrated placement.

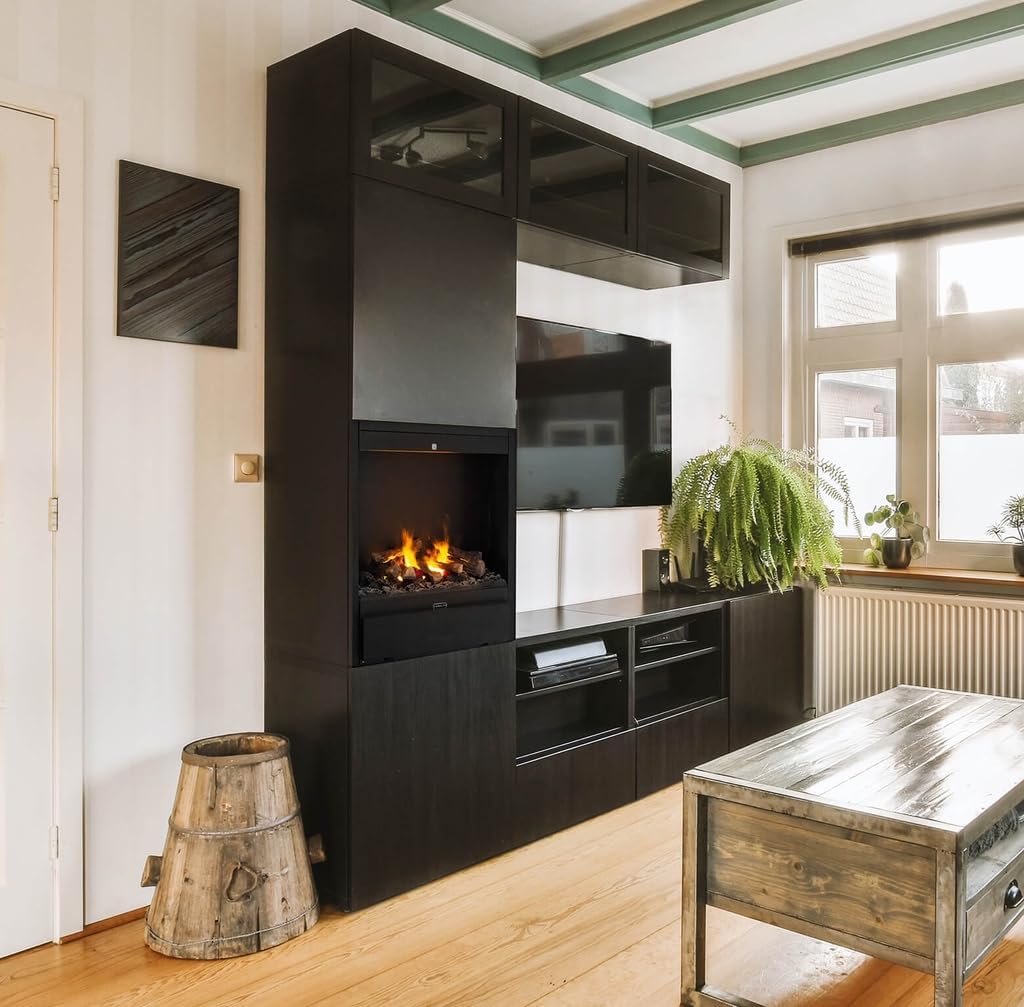

Figure 3: The fireplace insert integrated into a contemporary black cabinet, showcasing a furniture-style installation.

4.2 Connexió elèctrica

Plug the power cord directly into a grounded 230V AC outlet. Do not use extension cords or power strips.

Figura 4: Pro lateralfile of the fireplace insert, illustrating its compact depth and rear ventilation features.

5. Instruccions de funcionament

The Albany ECO ABN15E can be operated using the control panel on the unit or the included remote control.

5.1 Funcions de control remot

The remote control provides full functionality for the fireplace. Ensure batteries are correctly inserted.

Figure 5: Detailed diagram of the remote control, indicating the display, back button, menu button, advance button, up/down arrows, and enter button.

1. Visualització: Shows current settings (temperature, flame intensity, etc.).
2. 'back' button: Returns to the previous menu or setting.
3. 'Menu' button: Accesses the main menu for settings adjustments.
4. 'Advance button: Moves forward through menu options or settings.
5. 'Up and down arrows: Adjusts values (e.g., temperature, flame brightness).
6. 'Enter' button: Confirma les seleccions.

5.2 Encès/Apagat

Press the power button on the unit or the remote control to turn the fireplace on or off.

5.3 Funció d'escalfament

The fireplace features a 1500 Watt heating element. Use the remote control to activate and adjust the heat output. The heating function can be used independently of the flame effect.

5.4 Efecte de flama

Adjust the intensity and brightness of the flame effect using the remote control. The flame effect can operate independently of the heating function.

5.5 Water Vapor Function

This model utilizes water vapor to create a realistic flame effect. The water tank provides approximately 7-8 hours of operation. Ensure the water tank is filled for optimal flame realism.

Figure 6: Visual representation of key features: remote control operation, heating capability, water vapor flame effect, and plug-and-play installation.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la vostra xemeneia elèctrica.

6.1 Neteja

• Desconnecteu sempre la unitat abans de netejar-la.
• Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Gently dust the log set and ember bed.

6.2 Reompliment del dipòsit d'aigua

The water tank needs periodic refilling for the flame effect. Access the water tank as shown in Figure 7.

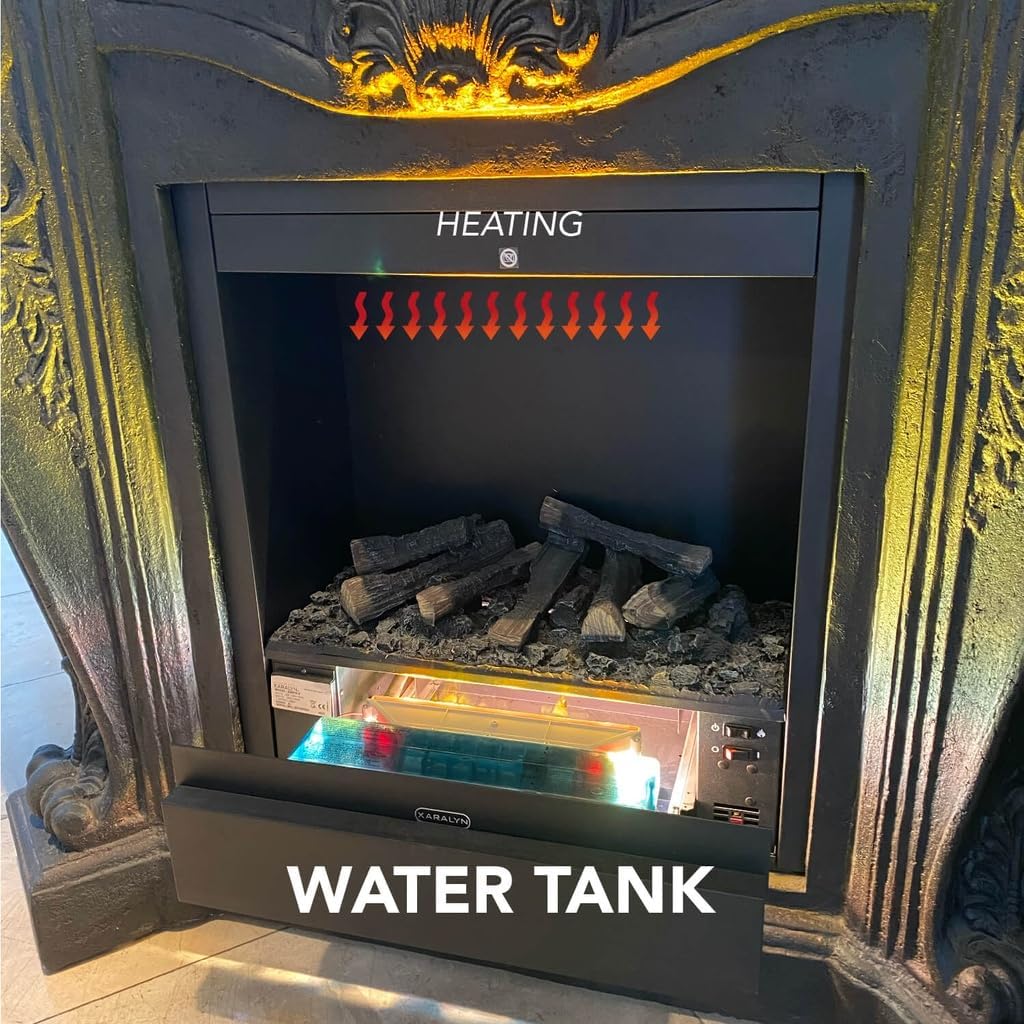

Figure 7: The fireplace insert with the lower panel open, revealing the water tank for refilling and indicating the heating element location.

• Carefully remove the water tank.
• Fill with distilled water to prevent mineral buildup.
• Torneu a col·locar el dipòsit d'aigua de manera segura.

7. Solució De Problemes

Consulteu aquesta secció per conèixer els problemes comuns i les seves solucions.

8. Especificacions

9. Garantia i Suport

For warranty information or technical support, please refer to the warranty card included with your product or contact Xaralyn customer service directly. Keep your purchase receipt as proof of purchase.
