Westinghouse WKRM293 8-Inch Tortilla and Roti Maker Instruction Manual

Instruccions importants de seguretat

Si us plau, llegiu atentament totes les instruccions abans d'utilitzar aquest aparell. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions personals greus.

• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-vos dels perills elèctrics, no submergeu el cable, els endolls o l’aparell en aigua o en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces i abans de netejar l'aparell.
• No feu funcionar cap aparell amb el cable o l'endoll danyats, o després que l'aparell no funcioni correctament o s'hagi danyat de qualsevol manera. Poseu-vos en contacte amb el servei d'atenció al client per a la seva revisió, reparació o ajust.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.

Producte acabatview

The Westinghouse WKRM293 is an 8-inch electric appliance designed for making tortillas, rotis, chapattis, pitas, and other flatbreads. It features non-stick cooking plates for easy release and cleaning, a thermostat for temperature control, and a durable stainless steel housing.

Image 1: The Westinghouse WKRM293 8-Inch Tortilla and Roti Maker, showcasinpel seu disseny compacte i acabat en acer inoxidable.

Característiques principals:

• 8-Inch Non-Stick Cooking Plates: Designed for easy release of flatbreads and simple cleaning.
• Termostat ajustable: Allows control over the cooking plate temperature.
• Power and Ready Light Indicators: A red light indicates power, and a green light indicates when the machine has reached the set temperature.
• Mànec Cool-Touch: Facilitates safe operation when pressing dough.
• Carcassa d'acer inoxidable: Provides durability and resistance to external damage.
• Funcionament a 110 volts: Suitable for use in the USA.

Configuració

1. Desembalar: Carefully remove the appliance from its packaging. Retain packaging for future storage or transport.
2. Inspeccionar: Comproveu si l'aparell presenta algun signe de danys. No l'utilitzeu si està danyat.
3. Neteja: Abans del primer ús, netegeu les plaques de cocció antiadherents amb un adamp cloth. Do not use abrasive cleaners. Ensure the appliance is completely dry before plugging in.
4. Col·locació: Place the Tortilla and Roti Maker on a stable, heat-resistant, and dry surface, away from flammable materials. Ensure adequate ventilation around the appliance.
5. Connexió d'alimentació: Plug the power cord into a standard 110-volt electrical outlet. The red power indicator light will illuminate.

Instruccions de funcionament

Follow these steps to prepare your flatbreads:

1. Preescalfament: Close the Tortilla and Roti Maker and turn the thermostat dial to your desired heat setting. The green 'Ready' indicator light will illuminate once the appliance reaches the set temperature. This may take a few minutes.
2. Preparar la massa: While the appliance preheats, prepare your dough balls (approximately 1-2 inches in diameter, depending on desired flatbread thickness).
3. Place Dough: Once the green light is on, open the appliance using the cool-touch handle. Carefully place one dough ball in the center of the bottom cooking plate.
4. Press Dough: Gently close the top plate using the handle to flatten the dough. Apply even pressure for a few seconds to achieve the desired thickness. Avoid excessive force.
5. cuiner: Allow the flatbread to cook. The cooking time will vary based on the dough type, thickness, and desired crispness. Monitor the flatbread to prevent overcooking.
6. Flip (Optional): For some recipes, you may wish to open the appliance and flip the flatbread to ensure even cooking on both sides.
7. Eliminar: Once cooked, carefully remove the flatbread using a non-metallic utensil (e.g., a wooden or silicone spatula) to avoid damaging the non-stick coating.
8. Repetiu: Close the appliance to maintain heat and repeat the process for additional flatbreads.
9. Apagar: When finished, turn the thermostat dial to the 'Min' or 'Off' position and unplug the appliance from the wall outlet.

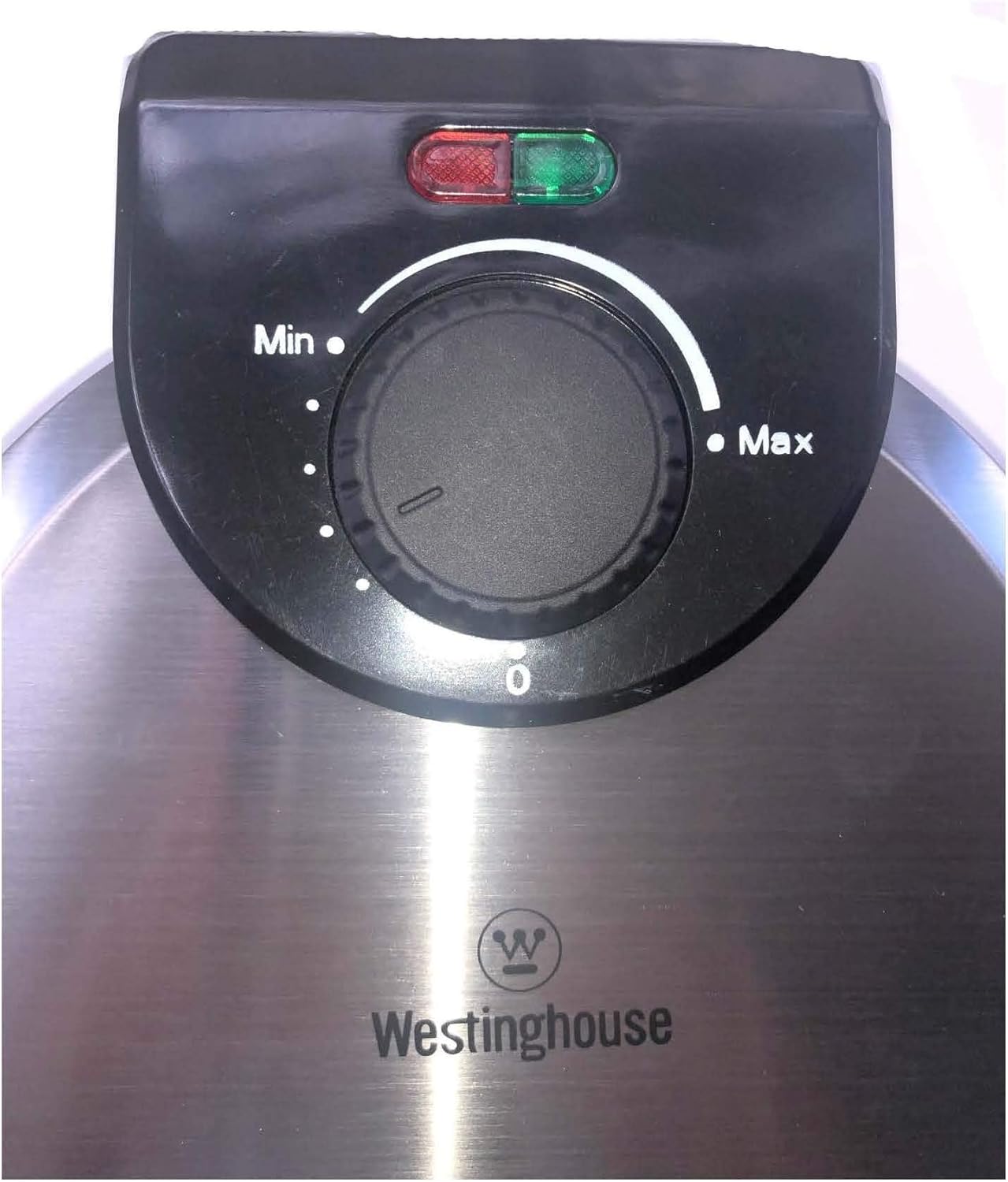

Image 2: Close-up of the control dial, showing 'Min' and 'Max' temperature settings, and the red (Power) and green (Ready) indicator lights.

Neteja i Manteniment

Proper cleaning and maintenance ensure the longevity and optimal performance of your Tortilla and Roti Maker.

• Desconnecta sempre: Before cleaning, ensure the appliance is unplugged from the power outlet and has completely cooled down.
• Wipe Cooking Plates: The non-stick cooking plates should be cleaned with a slightly damp cloth. For stubborn residue, use a soft sponge with a small amount of mild dish soap, then wipe clean with a damp cloth. Do not use abrasive pads, metal utensils, or harsh chemicals, as these can damage the non-stick coating.
• Exterior net: Netegeu la carcassa exterior d'acer inoxidable amb un damp tela. Assecar bé.
• No submergir: No submergiu mai l'aparell, el cable d'alimentació o l'endoll en aigua o cap altre líquid.
• Emmagatzematge: Once clean and dry, store the appliance in a cool, dry place. The compact design allows for easy storage.

Resolució de problemes

If you encounter issues with your Tortilla and Roti Maker, refer to the following common problems and solutions:

• Appliance does not heat up:
  • Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent de 110 volts que funcioni.
  • Check if the thermostat dial is set to a heat setting above 'Min'.
  • Verify that the red power indicator light is on.
• Flatbreads are not cooking evenly or sticking:
  • Ensure the appliance is fully preheated (green 'Ready' light is on) before placing dough.
  • Adjust the thermostat to a higher setting if flatbreads are undercooked.
  • Ensure the non-stick plates are clean and free of residue.
  • Avoid using metal utensils that can scratch the non-stick coating.
• Dough slides out when pressing:
  • Ensure the dough ball is centered on the lower plate.
  • Apply gentle, even pressure when closing the top plate. Excessive force can cause the dough to shift.
  • The consistency of the dough can affect this; ensure your dough is not too wet or too dry.
• Handle becomes loose or damaged:
  • Avoid dropping the appliance or applying excessive force to the handle.
  • If the handle is damaged, discontinue use and contact customer support for assistance.

Especificacions

Garantia i Suport

This Westinghouse WKRM293 Tortilla and Roti Maker comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact Westinghouse customer service.

For technical support, troubleshooting assistance, or warranty claims, please contact Westinghouse customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (WKRM293) and proof of purchase available.
