1. Instruccions de seguretat
Llegiu atentament aquestes instruccions de seguretat abans de la instal·lació i el funcionament. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.
- Assegureu-vos que el subministrament elèctric estigui desconnectat abans de qualsevol instal·lació, manteniment o neteja.
- La instal·lació l'ha de dur a terme un electricista qualificat d'acord amb les normatives locals de cablejat.
- No modifiqueu el producte de cap manera. Les modificacions no autoritzades poden anul·lar la garantia i plantejar riscos per a la seguretat.
- The floodlight is rated IP66, and the motion sensor is IP65, making them suitable for outdoor use in various weather conditions. However, avoid submerging the product in water.
- The wiring thickness is 1mm², designed for enhanced safety. Ensure all connections are secure.
- No mireu directament a la font de llum LED quan estigui encesa, ja que això pot causar fatiga o danys oculars.
- Mantenir els materials d'embalatge fora de l'abast dels nens.
2. Producte acabatview
The MEIKEE FLB050 50W LED Floodlight with Motion Sensor is designed for efficient and reliable outdoor lighting. It features advanced SMD technology for high brightness and energy efficiency, combined with a sensitive motion sensor for automated operation.
Característiques principals:
- High Brightness & Energy Saving: 50W LED with 56 SMD LEDs producing up to 4300 lumens, replacing traditional 400W halogen bulbs and saving over 85% energy.
- Enhanced Motion Sensor: Detects movement up to 12 meters with a 180° detection range. Features a key switch for adjusting lighting duration (10s, 45s, 120s, 600s) and operating mode (24 hours or night-only).
- Durador i resistent a la intempèrie: IP66 rated floodlight and IP65 rated sensor, suitable for rain, sleet, and snow. Constructed with advanced nanomaterials for impact, drop, and scratch resistance.
- Disseny segur: Insulated lamp body with high-quality materials and 1mm² thick wiring for improved safety.
- Fàcil instal·lació: Adjustable bracket allows for 180° floodlight rotation and 360° horizontal / 180° vertical sensor adjustment. Can be securely mounted on walls without specialized tools.
Diagrama de components:
This diagram illustrates the internal and external components of the floodlight, highlighting the Nano Front Cover, 56-LED SMD, Aluminum Frame, Metal Bracket, and PIR Motion Sensor, all designed for durability and performance.
3. Especificacions
| Característica | Especificació |
|---|---|
| Marca | MEIKEE |
| Número de model | FLB050 |
| Poder | 50W |
| Flux lluminós | 4300 lm |
| Temperatura de color | 6500K (blanc fred) |
| Material | Metall |
| Dimensions del producte (L x A x A) | 18 x 2.1 x 18.5 cm |
| Pes de l'article | 1.43 kg |
| Classificació impermeable | Floodlight: IP66, Sensor: IP65 |
| Característiques especials | Motion Detector, Energy Efficient, IP66 Waterproof |
| Tipus de font de llum | LED |
| Angle del feix | 120° |
| Rang de detecció del sensor de moviment | Fins a 12 metres (39 peus) |
| Angle de detecció del sensor de moviment | 180° |
| Adjustable Lighting Duration | 10s, 45s, 120s, 600s |
| Font d'alimentació | AC |
4. Configuració i instal·lació
Follow these steps for proper installation of your MEIKEE LED Floodlight.
4.1 Ubicació de muntatge
- Choose a stable mounting surface, such as a wall or ceiling.
- The ideal mounting height for optimal motion detection is between 5 to 7 meters (16 to 23 feet).
- Ensure the chosen location allows for the desired beam angle (120°) and motion sensor coverage (180° detection angle, up to 12m range).

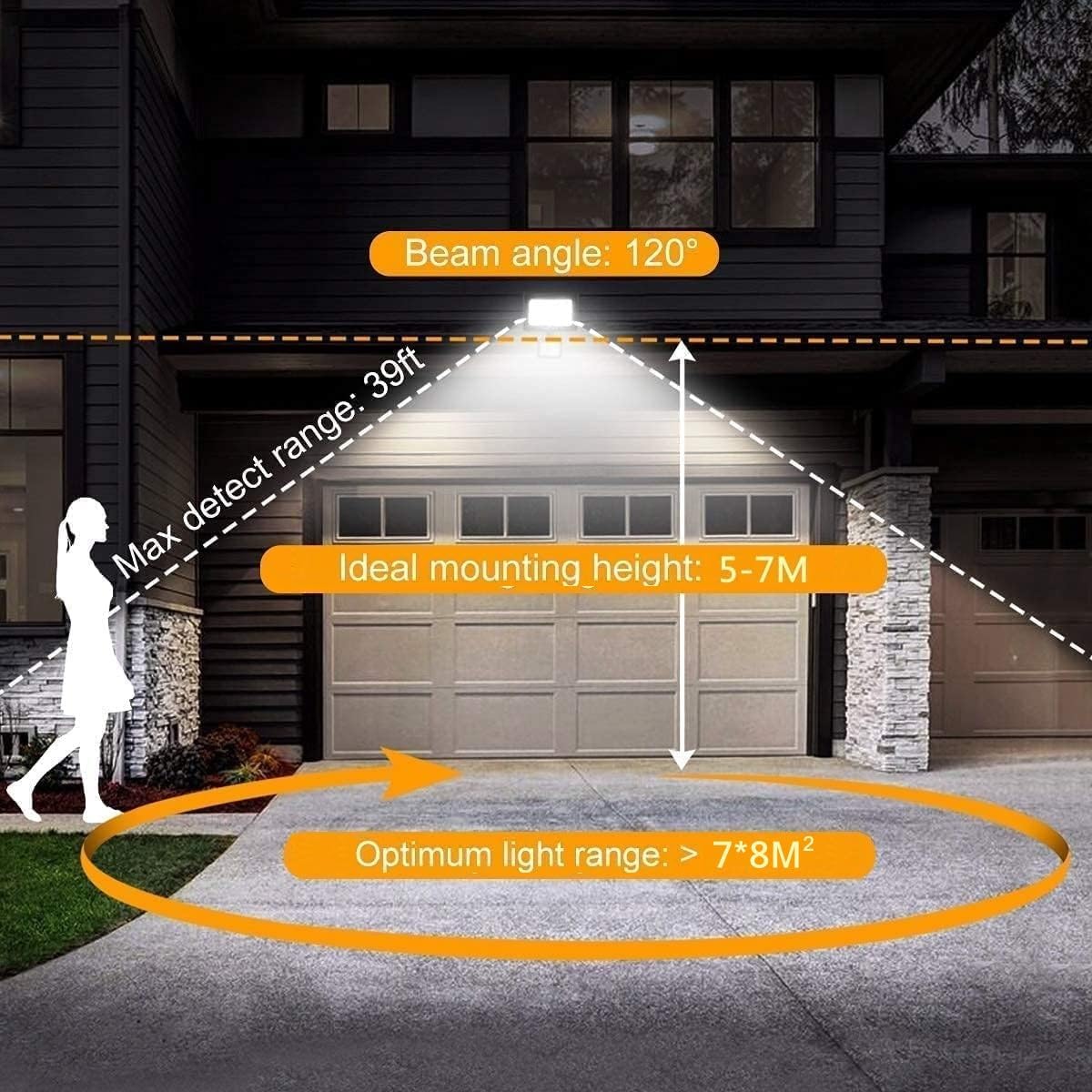

This image shows the recommended mounting height, maximum detection range, and beam angle for effective lighting coverage.
4.2 Passos d'instal·lació
- Marca els punts de perforació: Use the mounting bracket to mark the desired drilling points on the wall or ceiling.
- Forats: Drill holes at the marked points. Insert the provided wall plugs if necessary.
- Suport segur: Attach the mounting bracket to the surface using the screws.
- Ajust d'angle: The floodlight can be adjusted 180° vertically. The motion sensor can be adjusted 360° horizontally and 180° vertically to achieve the desired coverage.
This image illustrates the simple three-step process for mounting the floodlight securely.
The integrated back design promotes efficient heat dissipation, contributing to the longevity of the LED floodlight.
4.3 Connexió elèctrica
Connect the floodlight to your main power supply. Ensure the power is OFF at the circuit breaker before making any electrical connections. The floodlight comes with a pre-wired cable. Connect the wires according to standard electrical codes:
- Live (Brown/Black)
- Neutre (blau)
- Terra (verd/groc) - Note: The product is designed with double insulation and may not require an earth wire connection in some regions, but always follow local regulations.
5. Instruccions de funcionament
The MEIKEE FLB050 features an adjustable motion sensor with TIME and LUX settings.
This image displays the TIME and LUX adjustment dials on the motion sensor.
5.1 Configuració HORA
The TIME dial controls how long the light remains on after motion is detected and no further motion is sensed. Use the key switch to select the desired duration:
- 10S: Light stays on for approximately 10 seconds.
- 45S: Light stays on for approximately 45 seconds.
- 120S: Light stays on for approximately 120 seconds (2 minutes).
- 600S: Light stays on for approximately 600 seconds (10 minutes).
5.2 LUX Setting
The LUX dial determines the ambient light level at which the motion sensor becomes active. This allows you to choose whether the light operates during the day, at night, or both.
- Sun Icon (Daylight): The sensor will activate the light regardless of ambient light levels (day and night operation).
- Moon Icon (Night-only): The sensor will only activate the light when the ambient light level is low (dusk to dawn operation), saving energy.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga durada del vostre focus.
- Neteja: Periodically clean the floodlight and sensor lens with a soft, damp drap. No utilitzeu productes de neteja abrasius ni dissolvents. Assegureu-vos que l'aparell estigui desconnectat abans de netejar-lo.
- Inspecció: Regularly inspect the power cable and housing for any signs of damage. If any damage is found, disconnect the power immediately and consult a qualified electrician for repair or replacement.
- Factors ambientals: While the product is IP66/IP65 rated, extreme weather conditions over prolonged periods may affect performance. Ensure proper drainage around the installation area.
7. Solució De Problemes
If you encounter issues with your MEIKEE LED Floodlight, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power supply. Incorrect LUX setting. Faulty sensor. | Check power connection and circuit breaker. Adjust LUX setting to 'Sun' icon for testing. Ensure sensor is not obstructed. |
| La llum es manté encesa contínuament. | Continuous motion detected. TIME setting too long. LUX setting too high. | Check for constant movement in the detection area. Reduce TIME setting. Adjust LUX setting to 'Moon' icon if only night operation is desired. |
| La llum parpelleja o parpelleja. | Unstable power supply. Loose wiring. | Check power source stability. Ensure all electrical connections are secure. Consult a qualified electrician if problem persists. |
| El sensor de moviment no detecta. | Sensor obstructed. Incorrect LUX setting. Detection range/angle issues. | Clear any obstructions from the sensor. Adjust LUX setting. Reposition sensor for optimal coverage. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client o amb un electricista qualificat.
8. Garantia i Suport
MEIKEE products are covered by a 2 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.
If you have any questions, require technical assistance, or need to make a warranty claim, please contact MEIKEE customer support. Provide your product model number (FLB050) and proof of purchase for faster service.
For further information or support, please visit the official MEIKEE weblloc o poseu-vos en contacte amb el vostre distribuïdor.
9. Product Application Examples
The MEIKEE FLB050 LED Floodlight is versatile and suitable for various outdoor lighting needs.

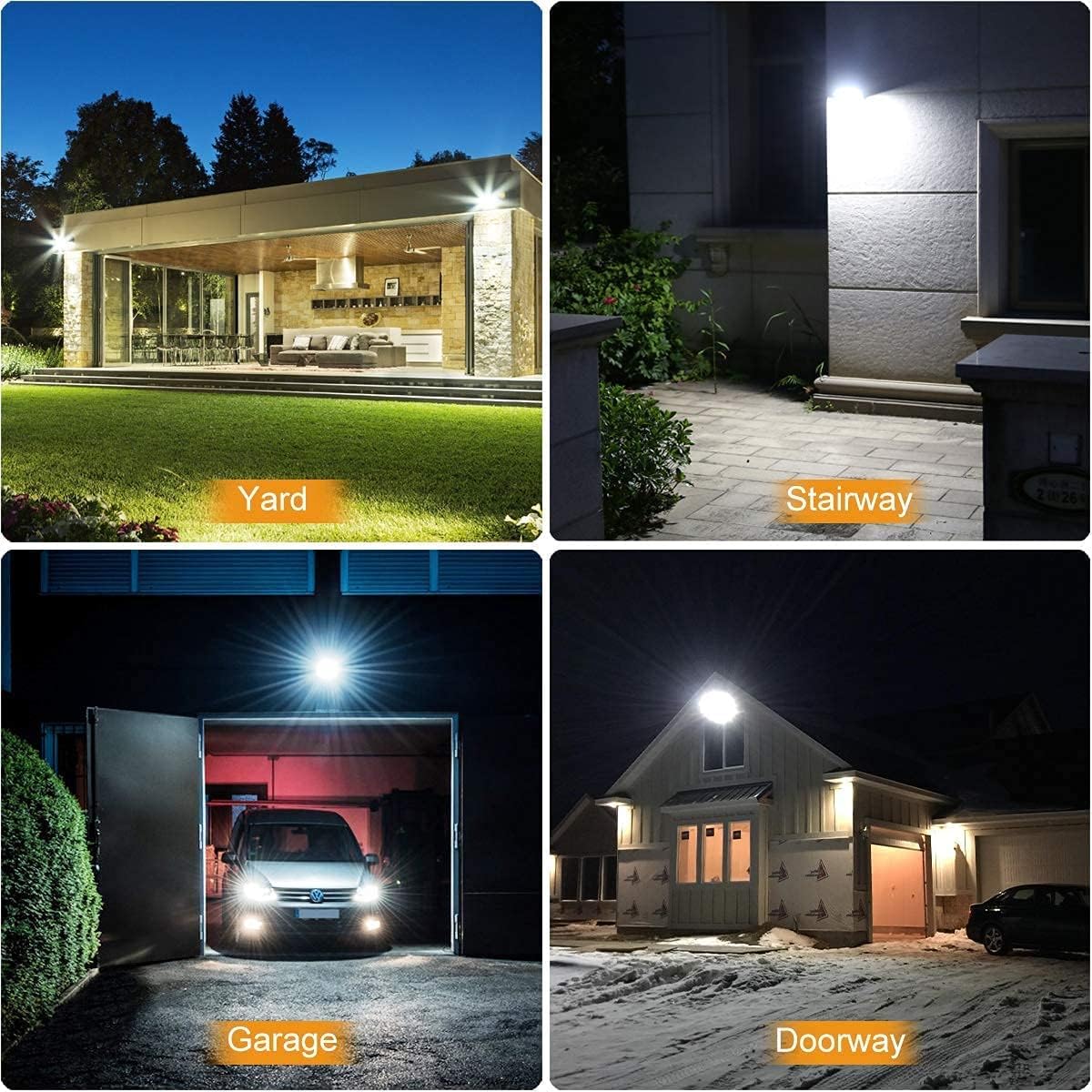

This image illustrates typical application scenarios for the floodlight, including yards, stairways, garages, and doorways.
The floodlight's IP66 rating ensures reliable operation in diverse weather conditions, from rain to extreme temperatures.
