Einhell GC-BC 36-4 S Petrol Sense Brush Cutter

1. Instruccions de seguretat

Read all safety warnings and instructions carefully before operating the device. Failure to follow the warnings and instructions may result in serious injury.

• Always wear appropriate safety gear, including eye protection, hearing protection, and sturdy footwear.
• Keep bystanders, children, and pets at a safe distance (at least 15 meters) from the operating area.
• Do not operate the device if the engine is not running to prevent accidental cutting.
• Inspect the work area for objects that could be thrown or entangled in the cutting tool.
• Ensure all guards and handles are properly installed before use.
• Never operate the brush cutter when tired, ill, or under the influence of alcohol or medication.
• Handle fuel with care. Refuel outdoors and do not smoke while refueling.
• Apagueu el motor i desconnecteu la bugia abans de fer qualsevol manteniment o eliminar obstruccions.

2. Producte acabatview

The Einhell GC-BC 36-4 S Petrol Sense is a powerful brush cutter designed for managing stubborn growth in hard-to-reach garden areas. It features a high-quality, low-vibration four-stroke engine for reliable performance.

Figura 2.1: Mésview of the Einhell GC-BC 36-4 S Petrol Sense Brush Cutter.

Característiques principals:

• Powerful 4-stroke engine for efficient cutting.
• Universally adjustable aluminum two-hand handle (bike handle design) for comfortable and precise guidance.
• Quick start system with easily accessible primer for convenient start-up.
• Equipped with both a 3-tooth blade and a double-thread spool with automatic tap.
• Sturdy aluminum tube guide rail for durability.
• Centrifugal coupling ensures safety by disengaging the cutting tool at idle.
• Split shaft design for easy transport and space-saving storage.
• Comfort carrying strap for reduced fatigue during extended use.

3. Muntatge i muntatge

Muntatge de 3.1 nanses

Attach the two-hand bike handle to the main shaft. Ensure all bolts are securely tightened for safe operation. Adjust the handle position for comfortable use.

Figure 3.1: Securely attach the bike handle and control unit.

3.2 Harness Attachment

Connect the comfort carrying strap to the brush cutter. Adjust the strap length to distribute the weight evenly and comfortably across your shoulders and back, ensuring the cutting head is at the correct working height.

Figure 3.2: Proper adjustment of the comfort carrying strap.

3.3 Cutting Tool Installation

The GC-BC 36-4 S can be used with either a 3-tooth blade or a double-thread spool. Always ensure the engine is off and the spark plug cap is removed before changing cutting tools.

3.3.1 Instal·lació de la fulla

Carefully align the 3-tooth blade onto the drive shaft. Secure it with the provided washer and nut, ensuring it is tightened firmly. Always use the blade guard.

Figure 3.3: Attaching the 3-tooth cutting blade.

3.3.2 Thread Spool Installation

Attach the double-thread spool to the drive shaft. Ensure it is correctly seated and secured according to the instructions in the full manual. The spool features an automatic tap for line advancement.

Figure 3.4: Attaching the double-thread cutting spool.

3.4 Combustible i petroli

This is a 4-stroke engine. Fill the fuel tank with unleaded gasoline and the oil reservoir with appropriate 4-stroke engine oil (e.g., 5W-40 synthetic). Do not mix fuel and oil in the same tank. Refer to the engine manual for specific oil type and capacity.

4. Funcionament

4.1 Arrencada del motor

1. Col·loqueu la desbrossadora sobre una superfície plana i estable.
2. Premeu la bombeta d'encebament diverses vegades fins que el combustible sigui visible.
3. Set the choke lever to the 'START' position (cold engine).
4. Estireu fermament el cordó d'arrencada fins que el motor arrenqui.
5. Un cop el motor s'hagi engegat, moveu gradualment la palanca de l'estrangulador a la posició "RUN".
6. Deixeu que el motor s'escalfi durant uns minuts abans de començar a funcionar.

4.2 Controls operatius

All controls, including the throttle and stop switch, are conveniently located on the bike handle for easy access and precise control during operation.

4.3 Tècniques de tall

When operating, maintain a firm grip on the handles and keep the cutting head parallel to the ground. Use a sweeping motion to cut vegetation. For dense growth, use the blade attachment. For lighter trimming, the thread spool is suitable. Always be aware of your surroundings and potential hazards.

Figure 4.1: Operating the brush cutter with the blade attachment.

5. Manteniment

Regular maintenance ensures the longevity and safe operation of your brush cutter. Always turn off the engine and remove the spark plug cap before performing any maintenance.

5.1 Neteja

After each use, clean the cutting head, guard, and engine housing to remove grass, dirt, and debris. Use a brush or compressed air. Do not use water directly on the engine.

5.2 bugia

Inspect and clean the spark plug periodically. Replace it if the electrodes are worn or fouled. Refer to the engine manual for the correct spark plug type and gap.

5.3 Filtre d'aire

Clean the air filter regularly, especially in dusty conditions. A clogged air filter can reduce engine performance and increase fuel consumption. Replace if damaged.

5.4 Cutting Tool Care

Inspect the blade for sharpness and damage before each use. Sharpen or replace as necessary. For the thread spool, ensure the line is properly wound and replace it when it runs out.

5.5 Emmagatzematge

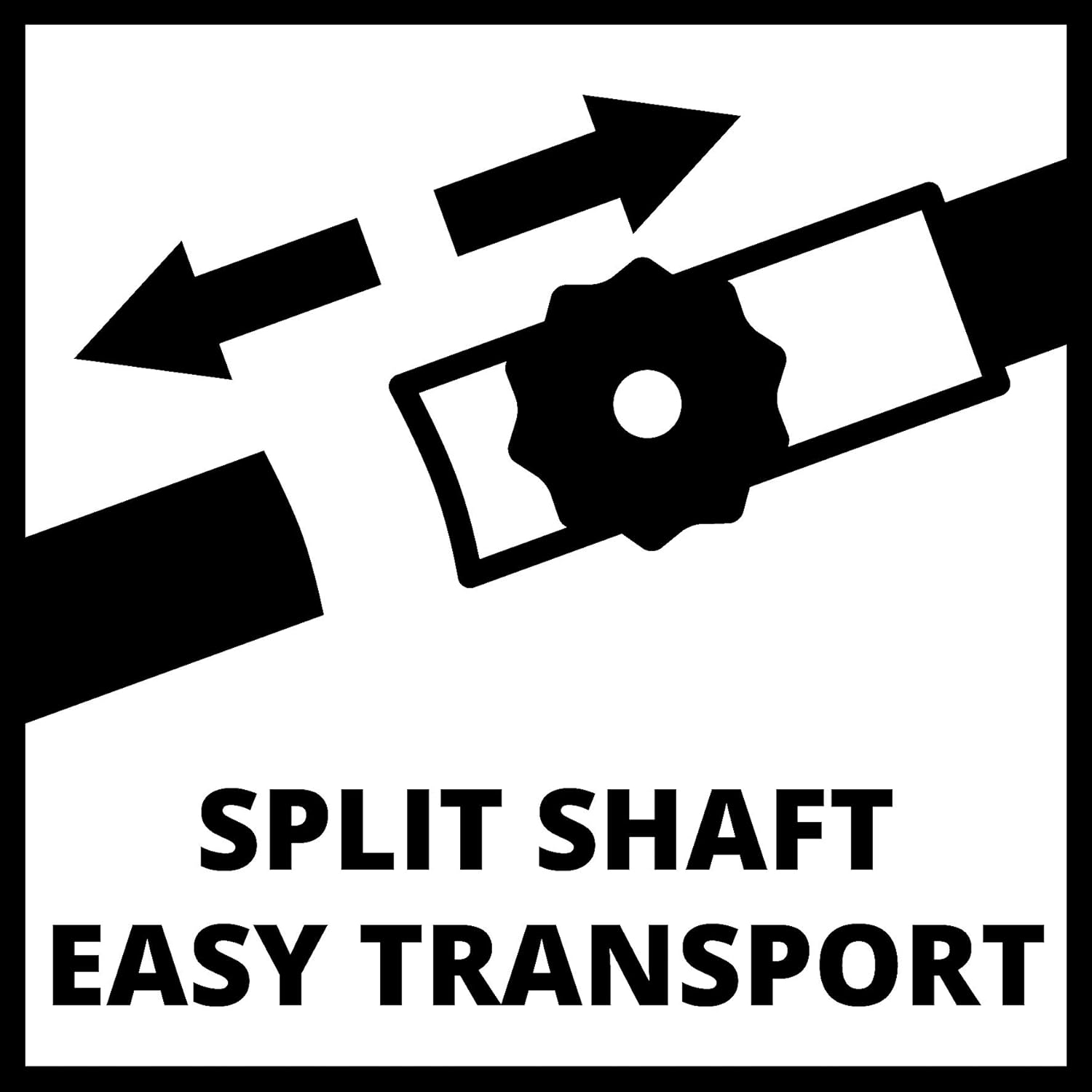

For easy transport and space-saving storage, the brush cutter can be dismantled into two parts thanks to its split shaft design. Clean the unit thoroughly before long-term storage. Drain the fuel tank or use a fuel stabilizer.

Figure 5.1: The split shaft allows for compact storage.

6. Solució De Problemes

Aquesta secció proporciona solucions a problemes operatius comuns. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

8. Garantia i Suport

This Einhell product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact your authorized Einhell dealer or visit the official Einhell weblloc per obtenir informació de contacte.
