1. Introducció
This manual provides essential information for the safe assembly, operation, and maintenance of your vidaXL Outdoor Parasol, Model 47336. This parasol is designed to provide shade and protection from the sun's UV rays in outdoor settings such as gardens and patios.
The parasol features a UV-protective and anti-fade polyester cover, strong aluminum poles for stability, and a 360-degree rotation capability for optimal sun protection. Please read this manual thoroughly before use and retain it for future reference.
Image 1.1: The vidaXL Outdoor Parasol providing shade over a patio area.
2. Informació de seguretat
Si us plau, observeu les següents precaucions de seguretat per evitar lesions o danys al producte:
- Always ensure the parasol is securely anchored in a stable base (not included) before use.
- Close the parasol during strong winds, heavy rain, or other severe weather conditions to prevent damage or injury.
- Do not use the parasol near open flames or heat sources.
- Keep children and pets away from the parasol during assembly and operation.
- Regularly inspect all parts for wear and tear. Replace damaged components immediately.
- Do not attempt to modify the parasol structure or components.
3. Contingut del paquet
Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support.
- Parasol Canopy (Polyester fabric)
- Upper Aluminum Pole
- Lower Aluminum Pole
- Connecting Mechanism (for 360-degree rotation and tilt)
- Crank Handle (for manual lift)
Image 3.1: Main components of the parasol, including the canopy and pole.
4. Instruccions de configuració
Assembly of the vidaXL Outdoor Parasol is straightforward. Follow these steps:
- Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i plana.
- Connectar els pals: Insert the upper aluminum pole into the lower aluminum pole. Ensure they are securely connected and the locking mechanism (if present) is engaged.
- Inserir a la base: Place the assembled pole into a suitable, heavy parasol base (no inclòs). Ensure the base is stable and heavy enough to support the parasol.
- Secure Parasol: Tighten any securing screws or knobs on the parasol base to firmly hold the pole in place.

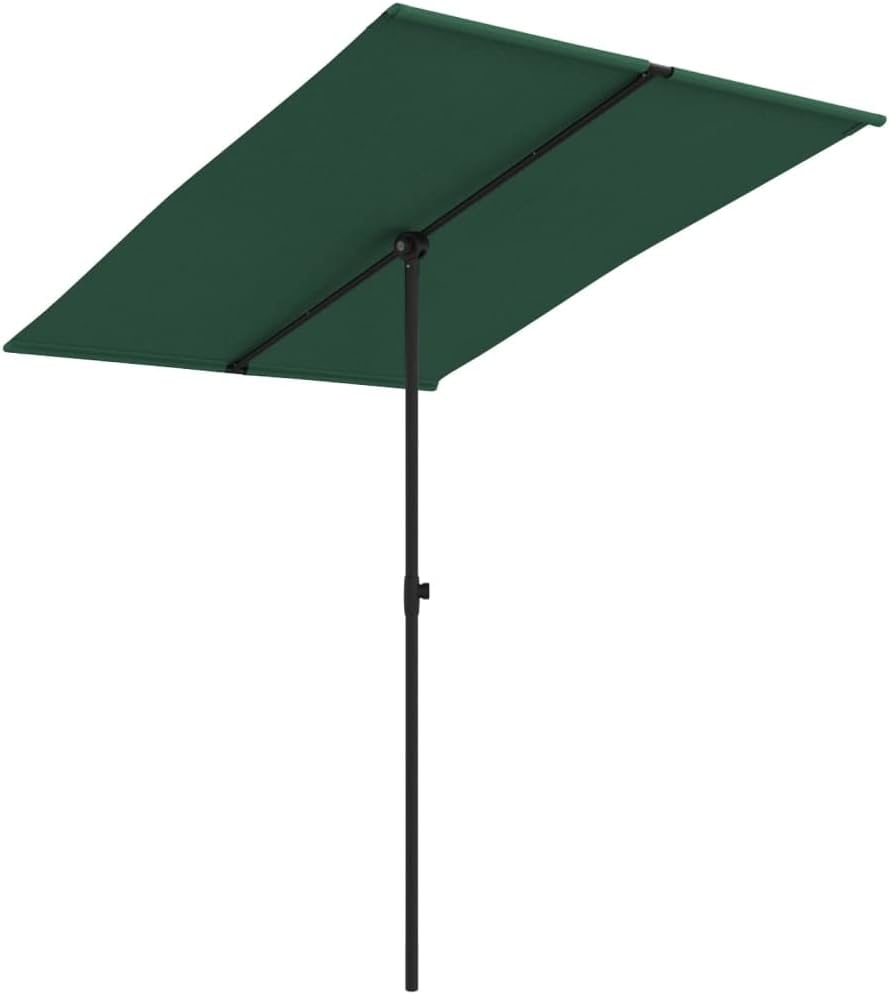

Image 4.1: Fully assembled parasol, ready for use.
5. Instruccions de funcionament
To operate your vidaXL Outdoor Parasol:
- Opening the Parasol: Use the manual lift crank handle to slowly open the parasol canopy until it is fully extended. Do not force the mechanism.
- Ajust de l'alçada: The parasol features height adjustment. Locate the adjustment collar on the pole and loosen it. Adjust the pole to the desired height, then tighten the collar securely.
Image 5.1: Height adjustment mechanism.
- Inclinant la coberta: To tilt the parasol canopy, locate the tilt knob or lever on the pole. Adjust it to achieve the desired angle for optimal shade.
Image 5.2: Canopy tilting mechanism.

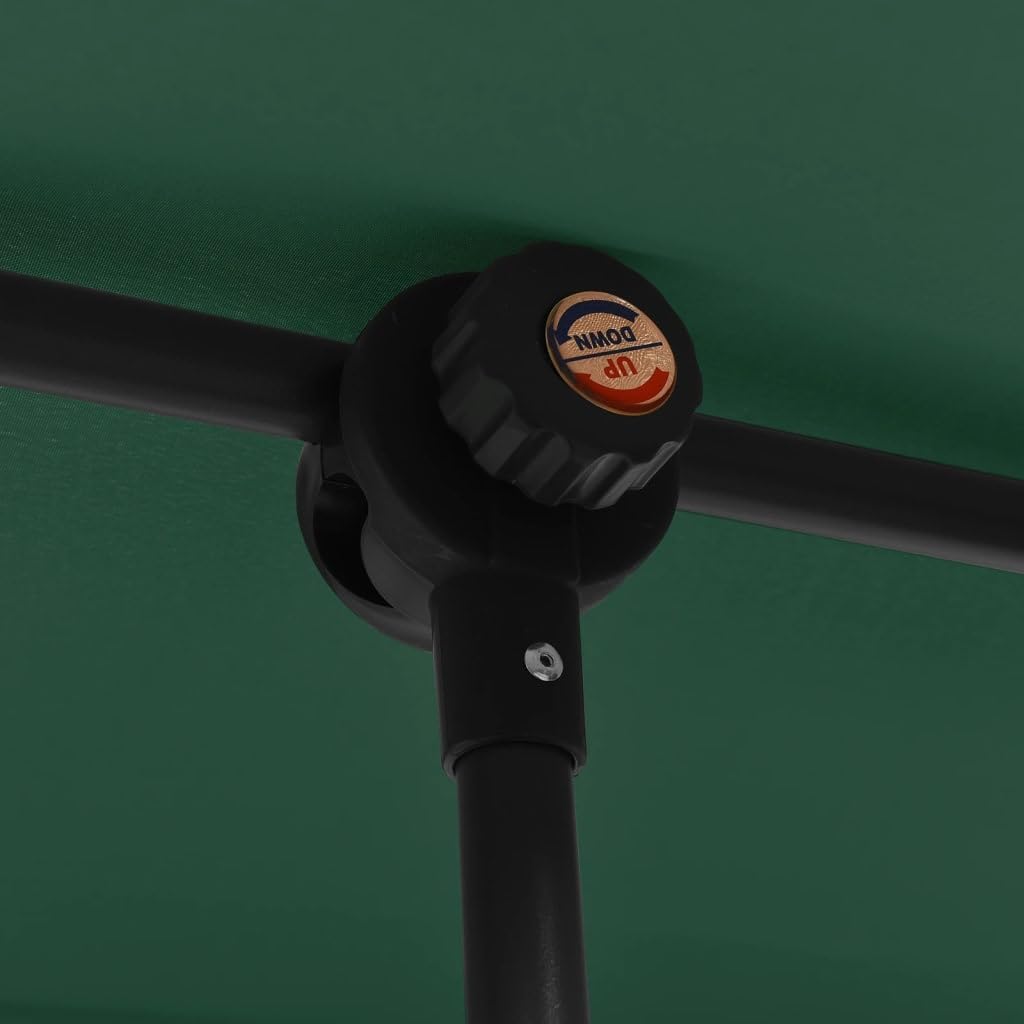

Image 5.3: Detail of the tilt adjustment knob.
- Rotació de 360 graus: The parasol can rotate 360 degrees. To adjust the rotation, loosen the locking mechanism (if any) at the base of the pole or the main joint, rotate the parasol to the desired position, and then secure the locking mechanism.
- Closing the Parasol: Use the manual lift crank handle to slowly retract the canopy until it is fully closed. Secure it with any provided straps or ties to prevent it from opening unexpectedly.
6. Cura i Manteniment
Proper care will extend the life of your parasol:
- Neteja de la capota: The polyester canopy is easy to clean. Use a mild soap solution and a soft brush or cloth to remove dirt and stains. Rinse thoroughly with clean water and allow it to air dry completely before closing or storing.
- Impermeabilització: If the parasol is frequently exposed to heavy rainfall, it is recommended to treat the fabric with a waterproofing spray to maintain its water-repellent properties.
- Pole Maintenance: Wipe aluminum poles with a damp cloth to remove dirt. Avoid abrasive cleaners.
- Emmagatzematge: When not in use for extended periods or during off-season, close the parasol, secure it, and store it in a dry, protected area to prevent damage from weather elements. A protective cover (not included) is recommended.
- Instruccions de cura: The fabric is specified as "Dry Clean Only" for deep cleaning, but spot cleaning with mild soap and water is suitable for general maintenance.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Parasol is unstable. | Base is too light or not properly secured. | Ensure a heavy, stable base is used and the pole is securely tightened within it. |
| Canopy does not open/close smoothly. | El mecanisme està rígid o obstruït. | Check for obstructions. Apply a silicone-based lubricant to moving parts if necessary. Do not force. |
| Parasol tilts unexpectedly. | Tilt knob/lever is not tightened. | Ensure the tilt adjustment knob or lever is securely tightened after setting the desired angle. |
| Water leaks through canopy. | Waterproofing has worn off. | Treat the canopy fabric with a suitable waterproofing spray. |
8. Especificacions
| Número de model | 47336 |
| Marca | vidaXL |
| Material (canopy) | 100% polièster |
| Material (Pole) | Alumini |
| Dimensions generals | 78.7" x 59.1" x (47.2"-84.6") (L x W x H) |
| Dimensions del producte (mètriques) | 200 x 150 x 215 cm |
| Pes de l'article | 3.2 kg |
| Característiques | UV Blocking, 360-degree Rotation, Height Adjustable |
| Mecanisme d'obertura | Ascensor manual |
| Instruccions de cura | Dry Clean Only (for deep cleaning), Spot clean with mild soap. |
| Color | Fresh Green (as per product listing, other colors may vary by model) |
9. Garantia i assistència
For warranty information and customer support, please refer to the retailer's policy or contact vidaXL directly through their official weblloc web o canals d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
