The hansgrohe Talis M54 Kitchen Tap, Model 72808670, in matt black finish.
1. Introducció
This instruction manual provides important information for the safe installation, operation, and maintenance of your hansgrohe Talis M54 Kitchen Tap with Pull-Out Spray, Model 72808670. Please read this manual thoroughly before installation and use, and keep it for future reference.
The hansgrohe Talis M54 is a single-lever kitchen mixer tap featuring a pull-out spray, a swivel spout, and a matt black finish, designed for kitchen sink applications.
2. Informació de seguretat
- Ensure all installation work is performed by a qualified professional in accordance with local plumbing and building codes.
- Before installation, turn off the main water supply.
- Protect the product from frost. Do not install in areas where freezing temperatures may occur.
- Use only genuine hansgrohe spare parts for repairs or maintenance.
- Avoid using abrasive cleaners, scouring pads, or solvents on the tap's surface, as these can damage the finish.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- hansgrohe Talis M54 Kitchen Tap (Model 72808670)
- Pull-out spray hose
- Maquinari de muntatge
- Flexible connection hoses (G ⅜ / DN15)
- Manual d'instruccions (aquest document)
4. Configuració i instal·lació
Eines necessàries: Adjustable wrench, screwdriver, sealant tape (optional).
- Preparar la pica: Ensure the mounting hole on your sink or countertop is clean and appropriately sized for a single-hole installation.
- Muntar l'aixeta:
Insert the tap body into the mounting hole. Secure it from underneath the sink using the provided mounting hardware (washer and nut). Ensure the tap is oriented correctly.
This image illustrates the "Easy installation" process, showing the tap being secured to the sink. The brass threaded rod and connection hoses are visible below the countertop, while the tap body is positioned above.
- Connectar el subministrament d'aigua:
Connect the flexible hot and cold water supply hoses from the tap to your angle valves. Use an adjustable wrench to tighten connections, but do not overtighten. Ensure the hot water line is connected to the left and the cold water line to the right, as typically indicated by markings on the hoses or tap.
- Install Pull-Out Spray Hose:
Feed the pull-out spray hose through the tap body and connect it to the designated outlet. Attach the counterweight to the hose below the sink to ensure smooth retraction of the spray head.
- Prova de fuites:
Slowly turn on the main water supply. Check all connections for leaks. If leaks occur, tighten connections slightly until they stop.
- Netegeu el sistema:
Run both hot and cold water through the tap for several minutes to flush out any debris from the water lines.
5. Instruccions de funcionament
5.1 Control del cabal i la temperatura de l'aigua
The single lever handle controls both water flow and temperature. Lift the handle to increase water flow. Move the handle to the left for hot water and to the right for cold water.
5.2 Pull-Out Spray Function
Gently pull the spray head from the spout to extend the hose. The spray head will retract automatically into the spout via the MagFit magnetic bracket when released.
5.3 Swivel Spout Function
The spout can be swiveled to various positions for increased flexibility. The swivel range can be adjusted to 60°, 110°, 150°, or 360° during installation or by a qualified technician.
6. Manteniment
6.1 Cleaning the Tap
To maintain the finish of your hansgrohe tap, clean it regularly with a soft cloth and a mild, non-abrasive cleaning agent. Rinse thoroughly with clean water and dry with a soft cloth. Avoid cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid.
6.2 QuickClean Function (Limescale Removal)
The aerator on the spout is equipped with hansgrohe's QuickClean technology. Limescale deposits can be easily removed by gently rubbing the silicone nozzles with your finger. This should be done regularly to maintain optimal spray performance.

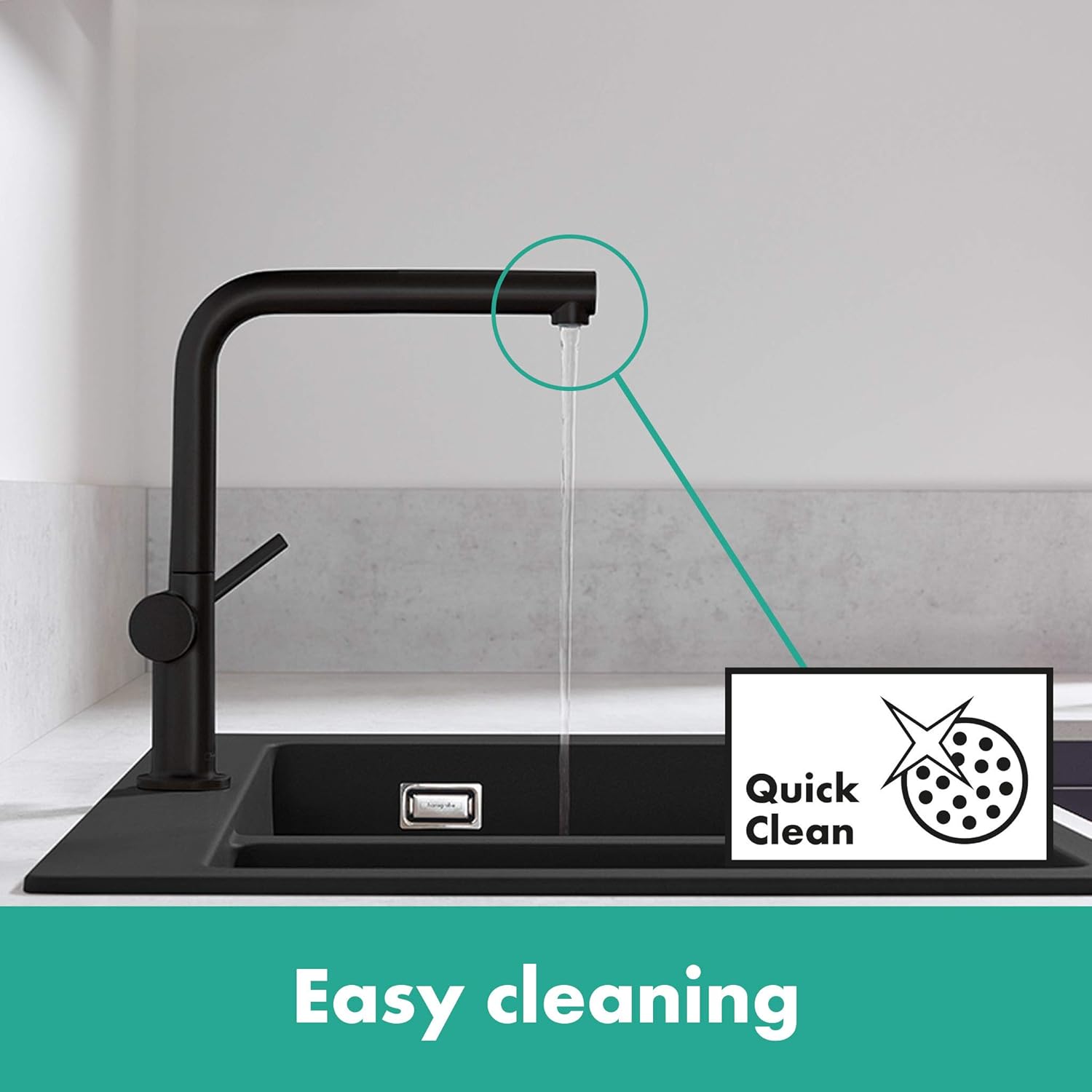

This image highlights the QuickClean feature, illustrating how limescale can be easily wiped away from the silicone nozzles of the tap's aerator.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Airejador obstruït; vàlvules de tancament parcialment tancades; residus a les canonades d'aigua. | Clean the aerator using the QuickClean function. Ensure shut-off valves are fully open. Flush water lines. |
| Leaking at connections | Connexions soltes; segells danyats. | Tighten connections carefully. Check and replace seals if damaged. |
| Temperatura de l'aigua inconsistent | Issue with water heater; cartridge malfunction. | Check water heater settings. If problem persists, contact a qualified plumber to inspect or replace the ceramic cartridge. |
| Pull-out spray does not retract smoothly | Hose obstruction; incorrect counterweight position. | Check under the sink for any obstructions to the hose. Ensure the counterweight is positioned correctly on the hose. |
8. Especificacions
| Marca: | hansgrohe |
| Nom del model: | hansgrohe Talis M54 Kitchen Tap 270 with pull-out spout, single spray mode |
| Número de model: | 72808670 |
| Material: | Llautó |
| Tipus d'acabat: | Negre mat |
| Tipus de muntatge: | Forat únic |
| Nombre de nanses: | 1 (Palanca) |
| Característica especial: | Pull Out Sprayer, Swivel Spout (60°, 110°, 150°, 360° adjustable) |
| Caudal: | Up to 7 Liters Per Minute |
| Alçada del broc: | 265 mil·límetres |
| Abast del bec: | 50 Centimeters (Pull-out hose length) |
| Longitud de la mànega: | 50 centímetres |
| Pes de l'article: | 8.5 Grams (Note: This seems unusually low for a faucet, likely a data entry error in the source. Please refer to product packaging for accurate weight.) |
| Disponibilitat de recanvis a la UE: | Up to 15 years after range discontinuation |
This diagram provides detailed technical dimensions for the hansgrohe Talis M54 kitchen tap, including height, reach, and connection specifications, crucial for planning installation.
9. Garantia i Suport
hansgrohe products are manufactured to high quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official hansgrohe weblloc.
For technical support, spare parts, or service inquiries, please contact hansgrohe customer service or your local hansgrohe dealer. Contact information can typically be found on the hansgrohe weblloc o a l'embalatge del producte.
Disponibilitat de recanvis a la UE: Spare parts for this product are guaranteed to be available for up to 15 years after the range has been discontinued.
