Xiaomi Mi Electric Scooter Essential FR User Manual

Introducció

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Xiaomi Mi Electric Scooter Essential FR. Please read this manual thoroughly before using the scooter to ensure proper handling and to prevent damage or injury.

The Xiaomi Mi Electric Scooter Essential FR is designed for fast, safe, and stylish transportation over shorter distances, offering an impressive range of up to 20 km. Its lightweight and foldable design makes it convenient for urban commuting.

Informació de seguretat

La vostra seguretat és primordial. Seguiu sempre les directrius següents:

• Porteu sempre casc i altres elements de protecció (genolleres, colzeres) quan aneu en bicicleta.
• No circuleu en condicions humides, amb pluja intensa o per bassals.
• Avoid riding on slippery surfaces, uneven terrain, or over obstacles.
• Mantingueu una velocitat i una distància de seguretat amb altres vehicles i vianants.
• Do not allow children under the age of 16 to ride the scooter. This scooter is intended for adult use.
• Do not carry passengers or heavy loads. The maximum weight capacity is 12.85 kg (Note: This value is listed in specifications, but typically refers to product weight. Please consult official product documentation for rider weight limits).
• Familiaritzeu-vos amb les lleis i regulacions locals sobre l'ús de patinets elèctrics.
• Perform a pre-ride check: ensure tires are properly inflated, brakes are functional, and all parts are secure.

Contingut del paquet

En desempaquetar, comproveu que hi hagi tots els elements següents:

• Patinet elèctric
• Carregador
• Tool for screws
• Adapter for tires
• Manual d'usuari (aquest document)

Producte acabatview

The Xiaomi Mi Electric Scooter Essential FR features a robust aluminum frame and an intuitive design for ease of use and portability.

Figure 1: The Xiaomi Mi Electric Scooter Essential FR in its fully unfolded, ready-to-ride configuration. Note the sleek black design and 8.5-inch wheels.

Figura 2: Detall view of the scooter's handlebar, showing the integrated display, brake lever, and throttle control. The display provides essential riding information.

Figure 3: An illustrative cross-section revealing the internal lithium-ion battery cells housed within the scooter's deck, providing its power source.

Configuració

Assemblea

The scooter comes largely pre-assembled. You will primarily need to attach the handlebar to the main stem. Use the provided tool for screws to secure it firmly. Ensure all connections are tight before first use.

Plegat i desplegament

The Mi Electric Scooter Essential FR is designed for easy portability, folding in approximately 3 seconds.

• Per plegar: Locate the folding mechanism near the base of the stem. Release the latch and carefully fold the stem downwards until it clicks into place, securing it to the rear fender.
• Per desplegar: Release the stem from the rear fender. Lift the stem upwards until it locks securely into its upright position. Ensure the locking mechanism is fully engaged before riding.

Figure 4: The scooter in its compact, folded state, demonstrating its portability for storage or transport.

Carregant la bateria

Before first use, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The charging indicator will change when fully charged. A full charge provides a range of up to 20 km.

Connexió a l'aplicació

For enhanced features and settings, download the official Xiaomi Home app. Follow the in-app instructions to pair your scooter via Bluetooth. The app allows for firmware updates, ride statistics, and custom settings.

Instruccions de funcionament

Engegant el Scooter

1. Premeu el botó d'encesa per encendre el scooter.
2. Col·loca un peu fermament a la plataforma i empeny amb l'altre peu per guanyar impuls inicial.
3. Once moving, gently press the throttle lever to engage the motor.

Equitació

The scooter has a maximum speed of 20 km/h. Maintain a balanced posture and keep both hands on the handlebars while riding. The 8.5-inch non-slip tires and shock absorbers contribute to a stable ride.

Figure 5: Riders demonstrating the use of the Xiaomi Mi Electric Scooter Essential FR in an outdoor setting.

Frenatge

The scooter is equipped with both rear and front brakes for effective stopping power. To brake, gently squeeze the brake lever on the handlebar. For emergency stops, apply both brakes firmly. The scooter also features energy recovery braking, which can be adjusted via the app.

Manteniment

Cura dels pneumàtics

Regularly check the tire pressure of the 8.5-inch pneumatic tires. Proper inflation is crucial for ride comfort, range, and preventing punctures. Use the provided adapter for tires when inflating.

Neteja i emmagatzematge

• Netejar el patinet amb l’anunciamp drap. No utilitzeu raigs d'aigua a alta pressió ni productes de neteja corrosius.
• Guardeu el patinet en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• If storing for an extended period, ensure the battery is charged to approximately 50-70% to prolong its lifespan. Recharge every 30-60 days.

Resolució de problemes

This section addresses common issues you might encounter with your Xiaomi Mi Electric Scooter Essential FR.

• El patinet no s'encén: Ensure the battery is charged. Check the power button for any damage.
• Abast o potència reduïts: This could indicate low tire pressure, an aging battery, or riding in challenging conditions (uphill, strong headwind). Ensure tires are properly inflated and the battery is fully charged.
• Sorolls inusuals: Inspect wheels, brakes, and folding mechanism for loose parts or debris.
• Frens no efectius: Check brake cable tension and brake pad wear. Adjust or replace as necessary.
• Problemes de connectivitat de l'aplicació: Ensure Bluetooth is enabled on your device and the scooter is powered on. Try restarting both the scooter and your device.

For persistent issues not covered here, please contact Xiaomi customer support.

Especificacions

Detailed technical specifications for the Xiaomi Mi Electric Scooter Essential FR:

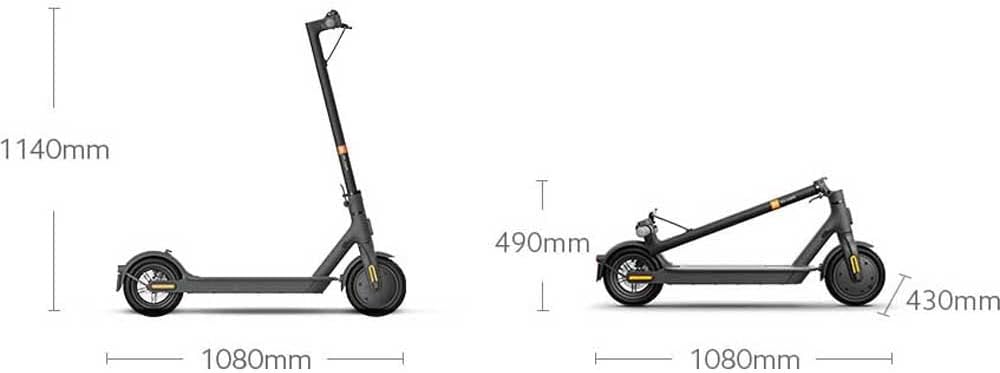

Figure 6: Dimensional diagram illustrating the scooter's measurements in both unfolded and folded states.

Garantia i Suport

Xiaomi products typically come with a limited warranty. Please refer to the warranty card included with your purchase or visit the official Xiaomi weblloc web per obtenir informació detallada sobre els termes i condicions de garantia específics de la vostra regió.

For technical support, service, or spare parts, please contact Xiaomi customer service through their official channels. Keep your purchase receipt and product serial number handy when seeking support.
