Introducció
Welcome to the user manual for your Xiaomi Mi Pro 2 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.
Figure 1: Xiaomi Mi Pro 2 Electric Scooter
This image shows the Xiaomi Mi Pro 2 Electric Scooter from a front-side angle, highlighting its sleek black design, handlebars, deck, and wheels. The scooter is unfolded and ready for use.
Advertències de seguretat
WARNING: It is illegal to use an electric scooter on public roads or any other prohibited areas (e.g., roads, sidewalks, cycle paths) in some regions. Electric scooters should only be used on private land with the owner's permission. For more information, please refer to your local Department of Transportation instructions regarding electric transporters. Children must always be supervised by a competent adult, and appropriate protective equipment must be worn.
- Porteu sempre casc i altres elements de protecció (genolleres, colzeres) quan aneu en bicicleta.
- Do not ride in heavy rain or through puddles deeper than 2 cm.
- Avoid riding on slippery surfaces, loose gravel, or steep inclines.
- Mantingueu una distància de seguretat amb altres vehicles i vianants.
- No feu acrobàcies ni maniobres brusques.
- Ensure all screws and quick releases are tightened before each ride.
- No supereu la capacitat de càrrega màxima de 100 kg.
Configuració
1. Unboxing i Inspecció Inicial
Carefully remove all components from the packaging. Check for any visible damage or missing parts. The package should include the scooter, charger, and user manual.
2. Muntatge del manillar
- Lift the stem of the scooter until it locks into the upright position.
- Attach the handlebar to the stem, ensuring the cables are not pinched.
- Secure the handlebar with the provided screws using the hex wrench.

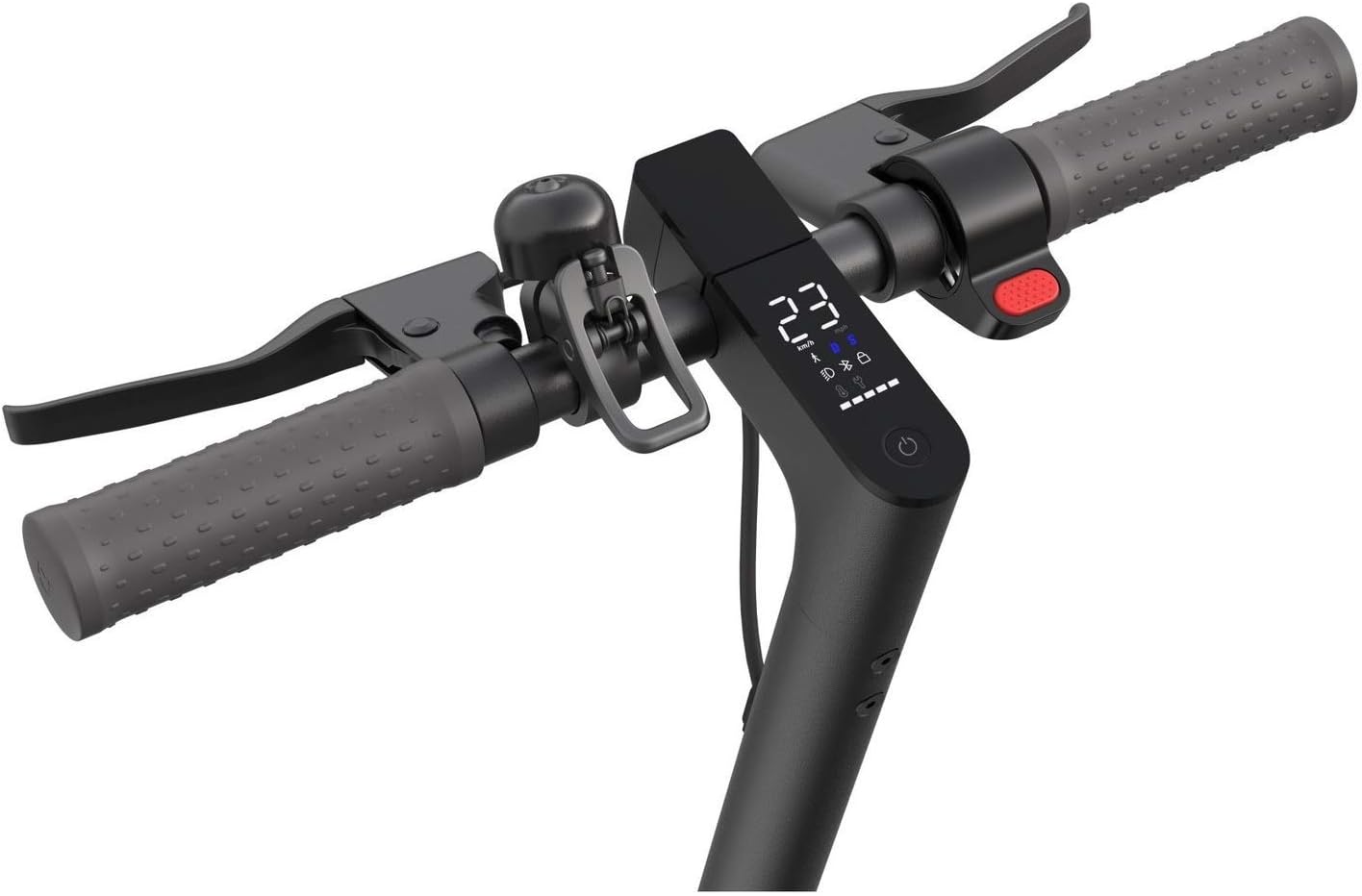

Figure 2: Handlebar and Display
Aquesta imatge ofereix un primer pla view of the scooter's handlebar, showing the grips, brake levers, bell, and the central display unit. This is where the user will interact with the scooter's controls.
3. Càrrega inicial
Before first use, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The indicator light on the charger will change when charging is complete.
The scooter is equipped with a 183Wh Li-ion battery.
Instruccions de funcionament
1. Encendre/apagar
Premeu i manteniu premut el botó d'engegada a la pantalla per encendre o apagar el patinet.
Figure 3: Integrated Display
Aquesta imatge mostra un detall view of the scooter's integrated display, which provides real-time information such as speed, battery level, distance traveled, and riding mode indicators.
2. Modes de conducció
The Mi Pro 2 features multiple riding modes. Press the power button briefly to switch between modes (e.g., Eco, Standard, Sport). The display will indicate the current mode.
- Mode Eco: For maximum range and energy efficiency.
- Mode estàndard: Balanced performance for daily commuting.
- Mode esportiu: For maximum speed and acceleration (up to 25 km/h).
3. Starting to Ride
To start, kick off with one foot while simultaneously pressing the accelerator lever. The motor will engage once a certain speed is reached.
4. Frenatge
The scooter is equipped with a dual braking system. Use the brake lever on the handlebar to engage the rear disc brake and the E-ABS regenerative anti-lock braking system on the front wheel. Apply brakes gently and gradually.

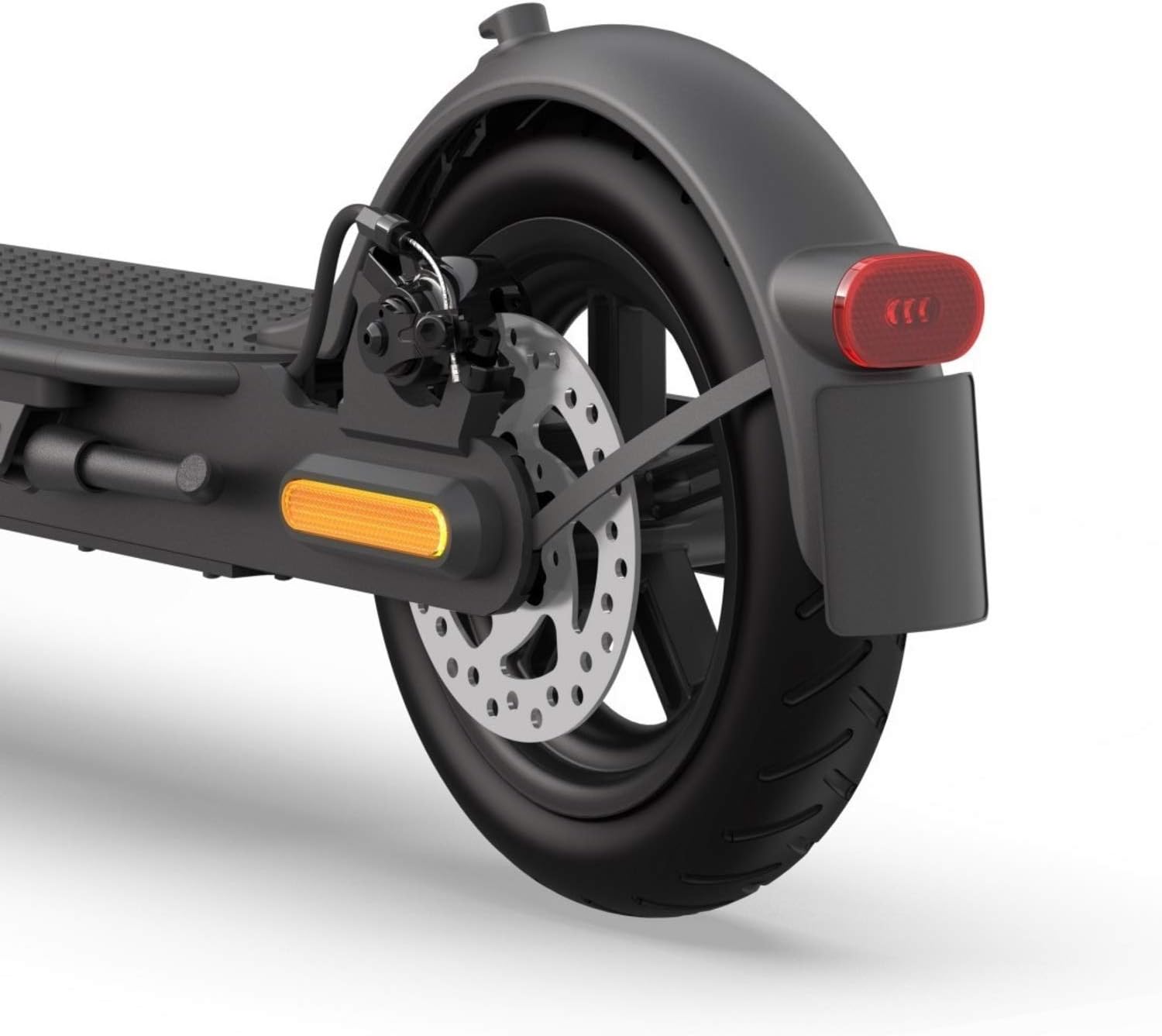

Figure 4: Rear Wheel and Disc Brake
This image focuses on the rear wheel of the scooter, clearly showing the disc brake mechanism and the rear fender with its integrated taillight and reflector.
5. Cruise Control and KERS
- Control de creuer: Maintain a consistent speed for a few seconds, and the scooter will automatically activate cruise control. Press the brake or accelerator to disengage.
- Kinetic Energy Recovery System (KERS): This system converts kinetic energy from braking and coasting into electrical energy, extending battery life.
6. Plegat i transport
To fold the scooter, release the folding mechanism near the base of the stem and fold the stem down until it latches onto the rear fender. This makes the scooter compact and easy to carry.
Figure 5: Scooter Folded for Portability
This image shows a person carrying the Xiaomi Mi Pro 2 Electric Scooter in its folded state, demonstrating its portability and compact design for easy transport.
Manteniment
1. Pressió dels pneumàtics
Regularly check and maintain the tire pressure of your 8.5-inch pneumatic tires. Proper tire pressure (typically around 50 PSI or as indicated on the tire sidewall) is crucial for ride comfort, range, and tire longevity. Use a suitable air compressor for inflation.
Figure 6: Front Wheel Detail
Aquesta imatge ofereix un primer pla view of the scooter's front wheel, highlighting the pneumatic tire and the integrated reflector on the fork.
2. Cura de la bateria
- Eviteu esgotar completament la bateria abans de tornar-la a carregar.
- Store the scooter in a cool, dry place when not in use, ideally with the battery charged to 50-70%.
- Charge the battery at least once every three months, even if not in use, to prevent deep discharge.
3. Neteja
Netegeu el patinet amb anuncisamp drap. No utilitzeu raigs d'aigua a alta pressió ni productes de neteja corrosius. Assegureu-vos que la tapa del port de càrrega estigui ben tancada abans de netejar-lo.
4. Ajust del fre
Periodically check the brake effectiveness. If the brakes feel loose or too tight, they may need adjustment. Consult a qualified technician or refer to online tutorials for detailed instructions.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El patinet no s'encén. | Bateria baixa; connexions fluixes. | Carregueu la bateria; comproveu totes les connexions dels cables. |
| Velocitat o autonomia reduïdes. | Low tire pressure; battery degradation; riding uphill frequently. | Inflate tires to recommended pressure; ensure proper battery charging habits. |
| Els frens es noten febles. | Pastilles de fre desgastades; cable fluix. | Inspect brake pads and cable; adjust brake tension or replace pads. |
| Sorolls inusuals durant el funcionament. | Components solts; objecte estrany. | Check all screws and moving parts; inspect for debris. |
| "Diagnostic test" leads to slow speed. | Incorrect "hard reset" procedure. | Avoid performing unofficial "diagnostic tests" that involve specific button combinations (e.g., gas+brake+power). If affected, contact customer support. |
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Mi Electric Scooter Pro2 |
| Número de model | FBC4025GL |
| Marca | Xiaomi |
| Potència del motor | 250 W |
| Velocitat màxima | 25 km/h (aprox. 15.5 mph) |
| Interval màxim | Up to 45 km (approx. 28 miles) |
| Tipus de bateria | 18650 Li-ion cells, 183Wh capacity |
| Mida del pneumàtic | 8.5 inches (pneumatic) |
| Capacitat de càrrega màxima | 100 kg (aprox. 220 lliures) |
| Pes net | 14.2 kg (aprox. 31.3 lliures) |
| Dimensions (L x A x A) | 112 x 43 x 113 cm (desplegat) |
| Sistema de frenada | Dual braking system (rear disc brake, front E-ABS) |
| Característiques especials | Foldable, Lightweight, Cruise Control, KERS |
Garantia i Suport
Per obtenir informació sobre la garantia i l'atenció al client, consulteu la pàgina oficial de Xiaomi. weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat local. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
Per a més ajuda, podeu visitar el Pàgina d'assistència global de Xiaomi.
