XIAOMI Mi Electric Shaver S500 User Manual

1. Informació important de seguretat

Please read all instructions carefully before using the Mi Electric Shaver S500. Keep this manual for future reference.

• Eviteu el contacte amb els ulls.
• Do not use on irritated or broken skin.
• Mantenir fora de l'abast dels nens.
• Do not use while charging or near water.
• Always unplug the shaver and allow it to cool before cleaning.
• Seguiu sempre les instruccions que s'inclouen amb el producte.

2. Producte acabatview

The Mi Electric Shaver S500 is designed for efficient and comfortable shaving. Familiarize yourself with its main components.

Figura 2.1: Davant view of the Mi Electric Shaver S500, showing the rotary shaving head and digital display.

Components:

• Capçal d'afaitar rotatiu: Features three floating blades for a close shave.
• Botó d'encesa: Turns the shaver on/off and activates travel lock.
• Pantalla digital: Mostra el percentatge de bateriatage, travel lock indicator, and cleaning reminder.
• Port de càrrega: USB-C port located at the bottom for charging.

Figura 2.2: Internal structure of the shaver head, highlighting the three rotary blades.

3. Configuració i càrrega

3.1 Càrrec inicial

Before first use, fully charge the shaver. The digital display will show the battery percentage.

1. Locate the USB-C charging port at the bottom of the shaver.
2. Connect the provided USB-C cable to the shaver and a compatible USB power adapter (not included).
3. The display will show the charging progress. A full charge typically takes approximately 1.5 hours.
4. Un cop carregada completament, desconnecteu l'afaitadora de la font d'alimentació.

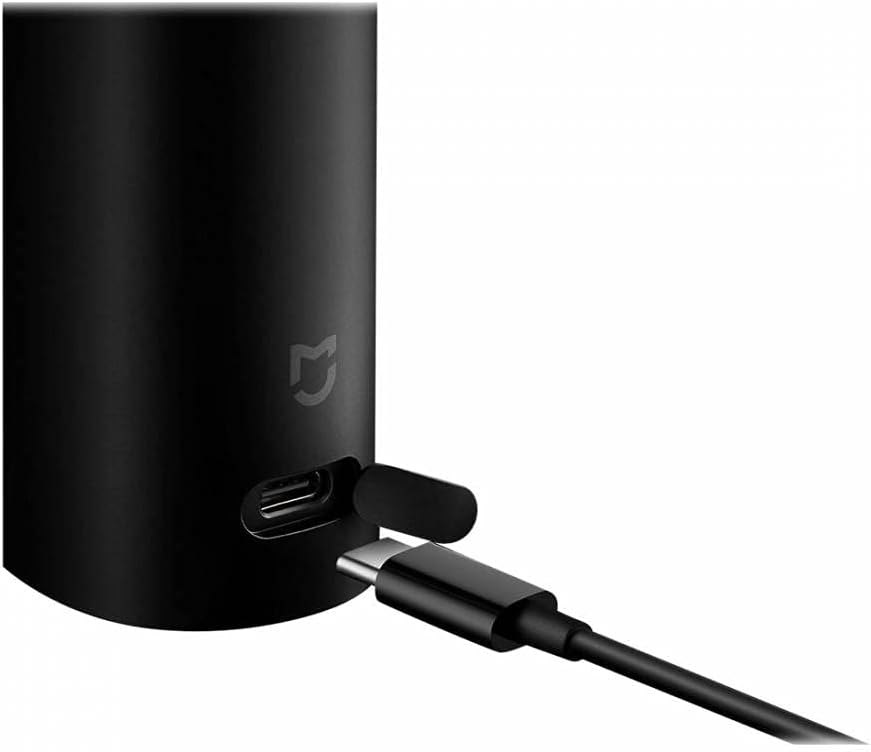

Figura 3.1: Connecting the USB-C charging cable to the shaver.

3.2 Bloqueig de viatge

To prevent accidental activation during travel, the shaver features a travel lock.

• Per activar: Press and hold the power button for 3 seconds. A lock icon will appear on the display.
• Per desactivar: Press and hold the power button for 3 seconds again. The lock icon will disappear.

Figura 3.2: Shaver display indicating travel lock activation.

4. Funcionament de l'afaitadora

4.1 Tècniques d'afaitat

Per obtenir resultats òptims, seguiu aquestes directrius:

• Afaitat en sec: Ensure your face is clean and dry. Move the shaver in small, circular motions against the direction of hair growth. Apply gentle pressure.
• Afaitat humit: The shaver is IPX7 waterproof and can be used with shaving foam or gel. Apply foam/gel to your face, then shave in circular motions. Rinse the shaver head under running water during and after shaving.

Figura 4.1: The shaver is designed for both wet and dry shaving.

4.2 Encès/Apagat

• Premeu el botó d'engegada una vegada per engegar l'afaitadora.
• Premeu el botó d'engegada de nou per apagar l'afaitadora.

5. Manteniment i Neteja

Una neteja regular garanteix un rendiment òptim i allarga la vida útil de la teva afaitadora.

5.1 Neteja diària

1. Després de cada ús, apagueu l'afaitadora.
2. Open the shaving head by gently pulling it upwards.
3. Rinse the shaving head and the hair chamber under running water to remove hair clippings and residue.
4. Shake off excess water and allow the head to air dry before closing.

Figura 5.1: Detachable shaving head for easy cleaning.

5.2 Neteja profunda (mensual)

For a more thorough clean, disassemble the blade assembly.

1. Remove the shaving head as described in daily cleaning.
2. Carefully remove each rotary blade and its corresponding guard.
3. Clean all parts with the provided cleaning brush or rinse thoroughly under water.
4. Assegureu-vos que totes les peces estiguin completament seques abans de tornar a muntar.

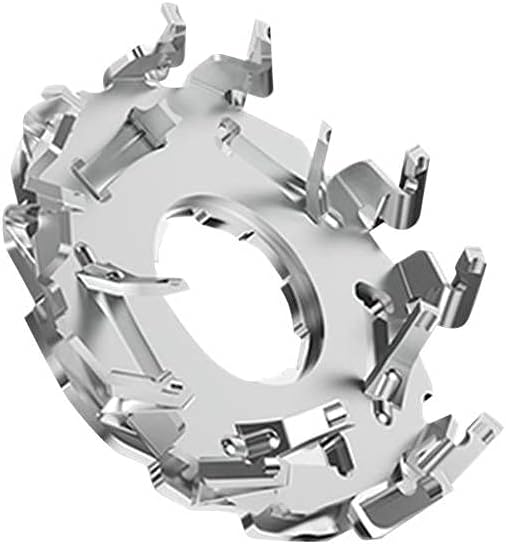

Figura 5.2: Individual rotary blade for detailed cleaning.

5.3 Recanvi de fulla

For optimal shaving performance, it is recommended to replace the shaving blades every 12 months, or sooner if you notice a decrease in shaving efficiency.

• Replacement heads can be purchased from authorized XIAOMI retailers.
• Follow the instructions provided with the replacement head for installation.

6. Solució De Problemes

If you encounter issues with your Mi Electric Shaver S500, refer to the following common solutions:

7. Especificacions

8. Garantia i Suport

For warranty information or technical support, please refer to the warranty card included with your product or visit the official XIAOMI weblloc web. Conserveu el rebut de compra com a comprovant de compra.

Oficial de XIAOMI Weblloc: www.mi.com
