Apex Medical Domus 4 8" Low Air Loss Alternating Pressure Mattress with Quiet Digital Pump

1. Introducció

The Apex Medical Domus 4 is an advanced 8-inch low air loss alternating pressure mattress system designed for individuals at medium to high risk of pressure injuries. It features a quiet digital pump and multiple therapy modes to provide optimal pressure redistribution and patient comfort. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Domus 4 system.

2. Informació de seguretat

Please read all safety warnings and instructions carefully before using the Domus 4 system. Failure to do so may result in injury or damage to the product.

Always ensure the mattress is properly secured to the bed frame to prevent shifting.
Mantingueu la unitat de la bomba allunyada de l'aigua o de la humitat excessiva.
Do not attempt to repair the pump or mattress yourself. Contact authorized service personnel for any repairs.
Ensure all connections are secure before operating the system.
In case of emergency, utilize the CPR tags to rapidly deflate the mattress.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al vostre paquet:

Domus 4 Alternating Pressure Mattress
Digital Pump Unit
Nylon/PU Cover (pre-installed)
Cable d'alimentació
Manual d'usuari

4. Configuració

Follow these steps for proper installation of your Domus 4 system:

Install the Mattress: Place the Domus 4 mattress on the bed frame. Ensure the mattress is centered and aligned with the bed.
Assegurar el matalàs: Use the integrated fastening straps to secure the mattress to the bed frame. This prevents the mattress from sliding during use.
Hang the Pump Unit: Hang the digital pump unit onto the bed-end panel. Adjust the hooks to ensure the pump is securely positioned.
Connect the Quick Connector: Connect the quick connector hose from the mattress to the corresponding port on the pump unit. Ensure a firm and secure connection.
Gestiona el cable d'alimentació: Pull any extra length of the power cord through the cable management loops on the mattress cover to keep it tidy and prevent tripping hazards.
Connecteu-vos a l'alimentació: Plug the power cord into a standard mains power socket.
Enceneu l'alimentació: Locate the power switch on the pump unit and turn it ON. The system will begin initial inflation.

Apex Medical Domus 4 mattress and pump on a hospital bed — Figure 4.1: The Apex Medical Domus 4 mattress system installed on a bed frame, showing the mattress and the digital pump unit.

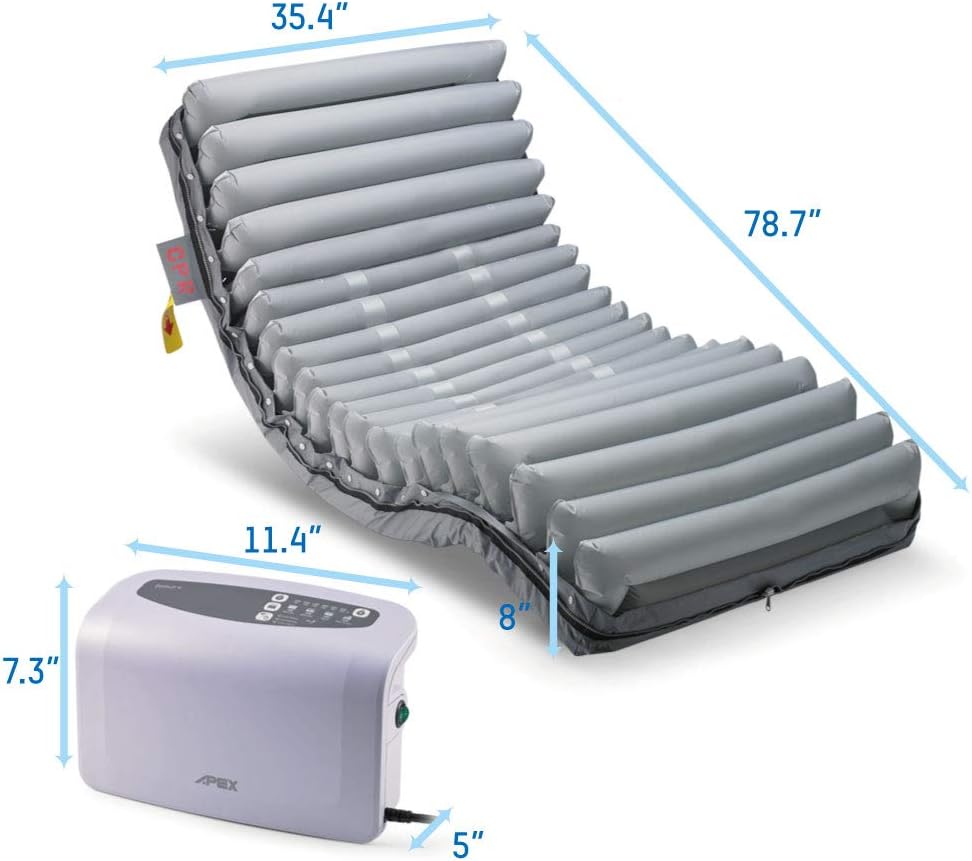

Dimensions of the Domus 4 mattress and pump — Figure 4.2: Detailed dimensions of the Domus 4 mattress (78.7" L x 35.4" W x 8" H) and pump unit (11.4" L x 7.3" H x 5" D), providing a clear understanding of its size and fit.

Guia de vídeo de configuració

This video provides a comprehensive guide to the installation and initial operation of the Domus 4 system, demonstrating how to secure the mattress, connect the pump, and power on the unit.

5. Operating the Domus 4 System

The Domus 4 pump unit features an intuitive digital control panel. After initial inflation, the pump will automatically switch to Alternating Mode. To adjust settings, you may need to unlock the panel.

Domus 4 digital pump control panel — Figure 5.1: The digital control panel of the Domus 4 pump, showing indicators for weight settings, therapy modes, and alarm status.

5.1. Adjusting Air Pressure (Patient Weight)

Press the weight adjustment buttons (+/-) on the control panel to set the appropriate air pressure based on the patient's weight. Refer to the weight indicators on the panel for guidance (e.g., 40-250 kg / 85-550 lb).

5.2. Modes de teràpia

The Domus 4 offers five therapy modes to suit various patient needs:

Mode alternatiu: For relieving pressure exerted to the patient's body tissue periodically (10-minute cycle). This mode continuously redistributes pressure by inflating and deflating alternating air cells.
Static (CLP) Mode: The air cells are equally inflated with lower pressure constantly to increase the contact area and thus redistribute the pressure through a better immersion and envelopment. This provides a stable surface with continuous low pressure.
Alternating + Seat Inflate: For supporting the patient in an upright position without bottoming out while relieving the pressure exerted to patient's body tissue periodically (10-minute cycle). This mode combines alternating pressure with increased inflation in the sacral area.
Static + Seat Inflate: For supporting the patient in an upright position without bottoming out while the air cells are equally inflated with lower pressure constantly. This mode provides a stable surface with increased inflation in the sacral area.
Max Firm Mode: For caregiver to conduct nursing activities. This mode inflates all air cells to maximum firmness, providing a stable surface for patient care. It will return to the previous setting after 20 minutes.

Diagram illustrating the essentials of pressure injury preventative homecare — Figure 5.2: This diagram highlights the core benefits of the Domus 4 system: Intuitive User Experience, Improved Patient Outcome, Enhanced Patient Safety, and Ultimate Patient Comfort, all contributing to effective pressure injury prevention.

Diagram showing features for improved patient recovery and health outcome — Figure 5.3: Features designed to improve patient recovery and health outcome, including customizable pressure relief (alternating, CLP, seat inflation) and heel relief to reduce pressure injury risk.

Close-up of mattress showing low air loss feature — Figura 5.4: Un primer pla view of the mattress cells, illustrating the low air loss feature which helps prevent skin maceration by wicking away moisture and heat.

Diagram of cell-on-cell design to prevent bottoming out — Figure 5.5: An illustration demonstrating the alternative pressure redistribution system with a cell-on-cell design, which prevents the patient from bottoming out even in the event of a power failure.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your Domus 4 system.

Neteja: The Nylon/PU cover is water-resistant and vapor permeable. Clean the cover regularly with a mild disinfectant solution and a soft cloth. Do not use abrasive cleaners.
Inspecció: Periodically inspect the mattress and pump for any signs of wear, damage, or loose connections.
Emmagatzematge: If storing the system, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.

Zipper-all-around cover and water-resistant Nylon/PU cover — Figure 6.1: The mattress features a zipper-all-around cover for easy removal and cleaning, and is made from a water-resistant Nylon/PU material for durability and hygiene.

7. Solució De Problemes

If you encounter any issues with your Domus 4 system, refer to the following troubleshooting guide:

Problema	Indicator/Alarm	Causa possible	Solució
Mal funcionament del sistema	Service Alarm indicator is ON (wrench icon)	Internal technical issue.	Contact the place of purchase or authorized distributor for repair.
Mattress not inflating properly / Low pressure	Low Pressure Alarm indicator is ON (yellow light)	RCP tags pulled off, loose tubing connections, or internal leak.	Check if CPR tags are pulled off. Check if connections along the tubing inside the mattress are secured. Ensure the quick connector to the pump is secure.
Sense energia per bombejar	Power Failure Alarm indicator is ON (blue light)	Power cord disconnected or power outage.	Check if the plug is disconnected from the mains power socket. Verify power supply.

7.1. Emergency CPR Operation

In an emergency requiring rapid mattress deflation, pull the yellow CPR tags located on the side of the mattress. This will quickly release air from the mattress cells.

8. Especificacions

Característica	Detall
Dimensions del producte	78.7 x 35.4 x 8 polzades
Pes del producte	20.3 lliures
Capacitat de pes	450 lliures
Interval de pressió	15-40 mmHg
Tipus de tela	Niló/PU
Característiques especials	Quilted, Water Resistant, Low Air Loss, Cell-on-Cell Design
Nivell de soroll de la bomba	≤ 26 dB(A)
Fabricant	Àpex Medical

9. Garantia i Suport

The Apex Medical Domus 4 system comes with a 1 anys de garantia on both the mattress and the pump unit. For technical support, repairs, or warranty claims, please contact the place of purchase or an authorized Apex Medical distributor. Do not attempt to service the unit yourself.
