Manual d'usuari del cotxet LIONELO Julie One

1. Informació de seguretat

Please read this manual carefully before using the LIONELO Julie One stroller. Keep this manual for future reference.

WARNING: This product is not suitable for running or skating. The stroller is designed for children up to 4 years old or 22 kg (whichever comes first).

• Always use the 5-point safety harness.
• Assegureu-vos que tots els dispositius de bloqueig estiguin enganxats abans d'utilitzar-los.
• No deixeu el nen sense vigilància al cotxet.
• Do not overload the storage basket.
• This product is compliant with European safety standards EN 1888-1:2018 and EN 1888-2:2018.

2. Producte acabatview

The LIONELO Julie One is a lightweight and compact stroller designed for comfort and convenience, suitable for children from birth up to 22 kg (approximately 48 months). Its features make it ideal for daily use and travel.

Figura 2.1: global view of the LIONELO Julie One stroller, highlighting its compact design and suitability for travel.

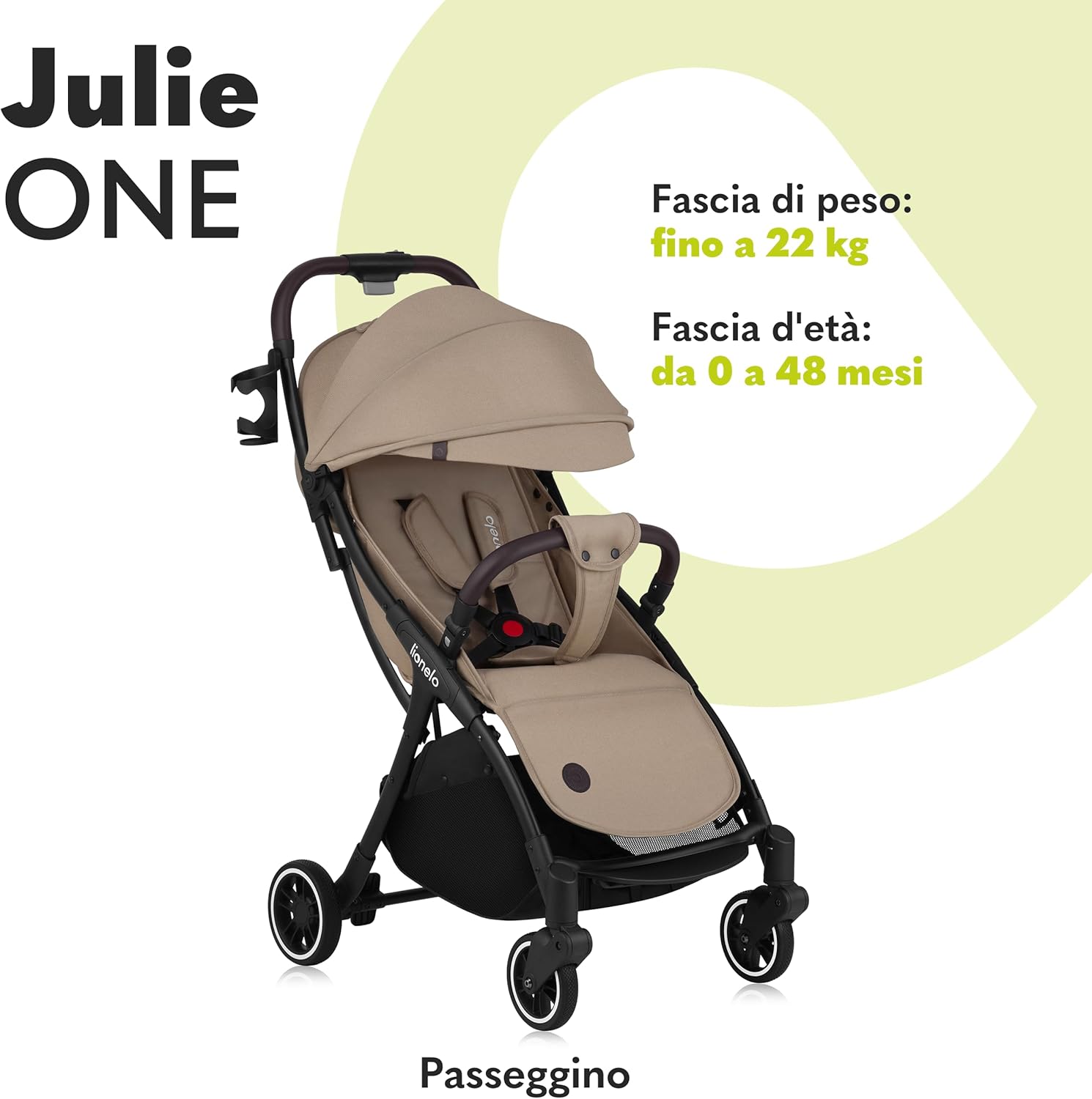

Figure 2.2: The Julie One stroller is designed for children from 0 to 48 months, supporting a maximum weight of 22 kg.

Característiques principals:

• Compact Folding System: Allows the stroller to be folded quickly to compact dimensions, making it easy for travel. Includes a carrying bag.
• Adjustable Backrest and Footrest: The backrest can be smoothly adjusted from a sitting to a lying position, and the footrest is also adjustable, ensuring comfort in all situations.
• Deep Canopy with Window: Provides protection from sunlight, rain, and wind, with a window for ventilation and easy monitoring of the child.
• Shock-Absorbing Rubber Wheels: Front wheels allow for easy maneuvering. Shock absorbers on all wheels significantly reduce bumps when driving on uneven surfaces.
• 5-Point Adjustable Safety Harness: Ensures driving safety. The safety bar can be quickly detached from either side and rotated laterally for easy access.
• Ventilation Panel: The base features an openable ventilation panel for excellent air circulation.
• Spacious Basket: Accommodates all necessary care accessories, favorite toys, and is ideal for shopping.

3. Què hi ha a la caixa

En desembalar, assegureu-vos que tots els components estiguin presents i no estiguin danyats:

• LIONELO Julie One Stroller Frame with Seat Unit
• Mosquitera
• Portavasos
• Leg Warmer
• Bossa de transport
• Manual d'usuari (aquest document)

Figure 3.1: Included accessories: mosquito net, leg warmer, and cup holder.

4. Configuració

The LIONELO Julie One stroller arrives mostly assembled. Follow these steps to prepare it for use:

1. Desplegant el cotxet:

   Locate the folding mechanism, typically on the handle or side of the frame. Release the safety latch and gently pull the handle upwards until the frame locks into place. Ensure both sides are securely locked. You should hear an audible click.



   Figure 4.1: Demonstrating the easy one-hand unfolding process.

2. Muntatge de les rodes:

   If the wheels are not pre-attached, insert the wheel axles into the designated slots on the stroller frame until they click securely into place. Pull gently on the wheels to ensure they are firmly attached.

3. Attaching the Safety Bar:

   Align the safety bar with the attachment points on the side of the seat unit and push until it clicks into place. Ensure it is securely fastened before placing the child in the stroller.
4. Accessoris de fixació:

   Attach the cup holder to the designated slot on the handle. The mosquito net and leg warmer can be placed over the stroller as needed.

5. Instruccions de funcionament

5.1. Ajust del respatller i del reposapeus

The backrest and footrest can be adjusted to provide optimal comfort for your child, from an upright sitting position to a full recline for naps.

1. Ajust del respatller: Locate the adjustment mechanism at the back of the seat. Depending on the model, this may be a strap with a buckle or a lever. Release the mechanism to recline the backrest or pull the strap/push the lever to raise it to the desired position.
2. Ajust del reposapeus: Press the buttons or levers on either side of the footrest to adjust its angle. Ensure it clicks into place at the desired height.

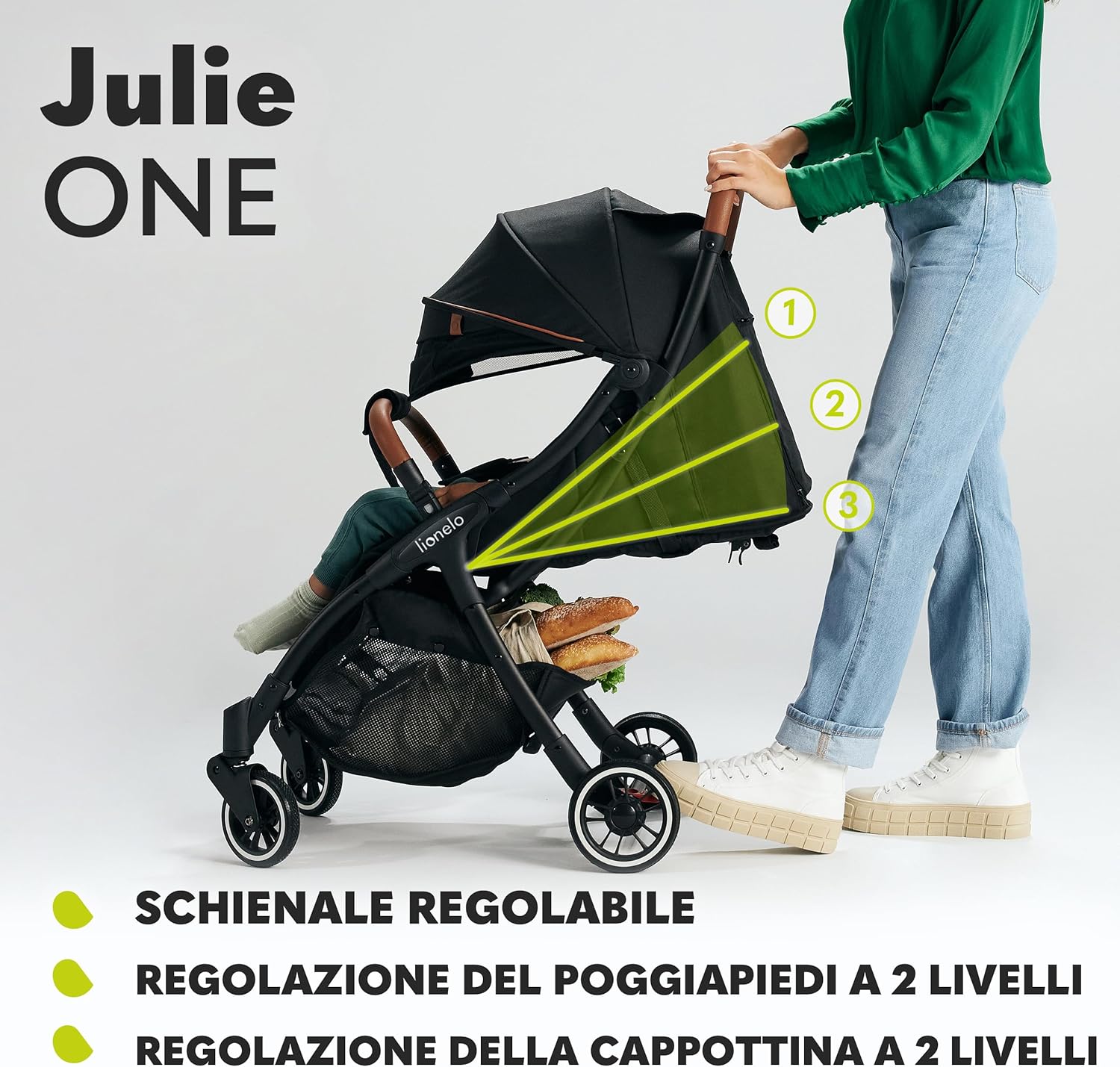

Figure 5.1: Illustration of adjustable backrest and 2-level footrest adjustment.

5.2. Using the 5-Point Safety Harness and Safety Bar

Always secure your child with the 5-point safety harness when they are in the stroller.

1. Securing the Harness: Place the child in the seat. Bring the shoulder straps over the child's shoulders and the waist straps around their hips. Insert the buckles from the shoulder and waist straps into the central buckle until they click.
2. Ajust de l'arnès: Pull the adjustment straps to tighten or loosen the harness for a snug and secure fit. Ensure the harness is not twisted.
3. Releasing the Harness: Press the button on the central buckle to release all straps.
4. Barra de seguretat: The safety bar provides additional security. It can be opened from either side by pressing the release buttons, allowing for easy placement and removal of the child.

Figura 5.2: Detallada view of the 5-point adjustable safety harness.

5.3. Sistema de frens

The stroller is equipped with a convenient foot-operated brake on the rear wheels.

1. Engaging the Brake: Press down firmly on the brake pedal located near the rear wheels until it locks into place. Always engage the brake when parking the stroller.
2. Releasing the Brake: Lift the brake pedal upwards until it disengages.

Figure 5.3: Rear wheel brake and shock absorption system.

5.4. Plegar el cotxet

The quick folding system allows for compact storage and transport.

1. Ensure the backrest is in an upright position and the canopy is folded back.
2. Locate the folding release mechanism (usually a button or lever on the handle or frame).
3. Activate the mechanism and push the handle forward or down, following the stroller's natural folding motion until it locks into its compact folded state.
4. Use the included carrying bag for easy transport.

Figure 5.4: The stroller features a lightweight structure (6.6 kg) and can be folded with one hand.

6. Manteniment

Regular maintenance will prolong the life and ensure the safety of your LIONELO Julie One stroller.

• Neteja del teixit: The fabric cover is removable and can be hand washed at a maximum of 30°C. Do not bleach, tumble dry, iron, or dry clean.
• Neteja del marc: Netegeu les parts metàl·liques i de plàstic del marc amb anuncisamp drap i sabó suau. Assecar bé.
• Manteniment de rodes: Regularly check the wheels for debris and clean them. The PU wheels are maintenance-free.
• Lubricació: Periodically lubricate moving parts (e.g., folding mechanism, wheel axles) with a silicone-based lubricant to ensure smooth operation.
• Emmagatzematge: Guardeu el cotxet en un lloc sec, allunyat de la llum solar directa i de temperatures extremes.

7. Solució De Problemes

If you encounter any issues with your LIONELO Julie One stroller, please refer to the following common solutions:

If the problem persists after attempting these solutions, please contact LIONELO customer support for further assistance.

8. Especificacions

Figure 8.1: Detailed dimensions of the LIONELO Julie One stroller in unfolded and folded states.

9. Garantia i Suport

For warranty information, product registration, or technical support, please visit the official LIONELO weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

Assistència en línia: www.lionelo.com

Informació de contacte: Refer to the contact details provided on the product packaging or the official weblloc per a la vostra regió.
