Zephyr Presrv 15 Inch Single Zone Wine Cooler

1. Informació de seguretat

Llegiu totes les instruccions abans d'utilitzar aquest aparell per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Seguretat elèctrica: Ensure the appliance is properly grounded. Do not operate with a damaged cord or plug.
• Ventilació: Maintain proper ventilation around the unit. Do not block any ventilation openings.
• Porta de vidre: Handle the glass door with care. Avoid slamming or excessive force.
• Nens: Superviseu els nens per assegurar-vos que no juguin amb l'aparell.
• Materials inflamables: No emmagatzemeu substàncies explosives ni materials inflamables dins de l'aparell.

2. Producte acabatview

The Zephyr Presrv 15 Inch Single Zone Wine Cooler is designed for optimal wine storage with advanced features and a sleek design.

Característiques principals:

• Capacitat: Stores up to 27 standard 750ml wine bottles.
• Interval de temperatura: Single zone operation with a temperature range of 40°F - 65°F.
• PreciseTemp™: Multiple internal sensors maintain accurate temperatures.
• Tecnologia de refrigeració activa: An on-board computer controls an active cooling fan for temperature stability and even cooling.
• Vibració Dampsistema d'elaboració: Reduces noise and vibration to minimize wine disturbance.
• Il·luminació LED: 3-Color LED lighting (Cloud White, Deep Blue, Amber) with 4 light levels.
• Prestatges: Six full-extension, black wood racks with stainless steel trim.
• Porta: Zero-Clearance Door Hinge, Dual-Pane, Low-e Argon-Filled Glass, Reversible Door Hinges, Door Open Alarm.
• Controls: Electronic Capacitive Touch Controls.
• Filtració d'aire: Carbon Filter Air Filtration.

Imatge: Més deview of Zephyr Presrv Wine Cooler features including Active Cooling Technology, PreciseTemp, and Low Noise operation.

Image: Detailed dimensions and bottle capacity (27 x 750ml bottles) for the Zephyr Presrv 15 Inch Wine Cooler.

3. Configuració i instal·lació

Una instal·lació correcta és crucial per al rendiment i la longevitat de la vostra vinoteca.

Requisits d'ubicació:

• This unit is designed for either freestanding or undercounter installation.
• Ensure adequate ventilation space around the unit, especially at the front grille.
• Eviteu la llum solar directa o fonts de calor.
• The unit requires a dedicated 115 Volt, 60 Hz, 15 Amp presa de corrent elèctrica a terra.

Reversibilitat de la porta:

The door hinges are reversible, allowing the door to open from either the left or right side. Refer to the detailed diagram in the full manual for instructions on reversing the door swing.

Nivell:

Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. This prevents vibration and ensures proper door sealing.

4. Instruccions de funcionament

Your wine cooler features intuitive electronic capacitive touch controls for easy management of temperature and lighting.

Tauler de control:

The control panel is located at the top interior of the unit. It includes buttons for power, temperature adjustment, and lighting.

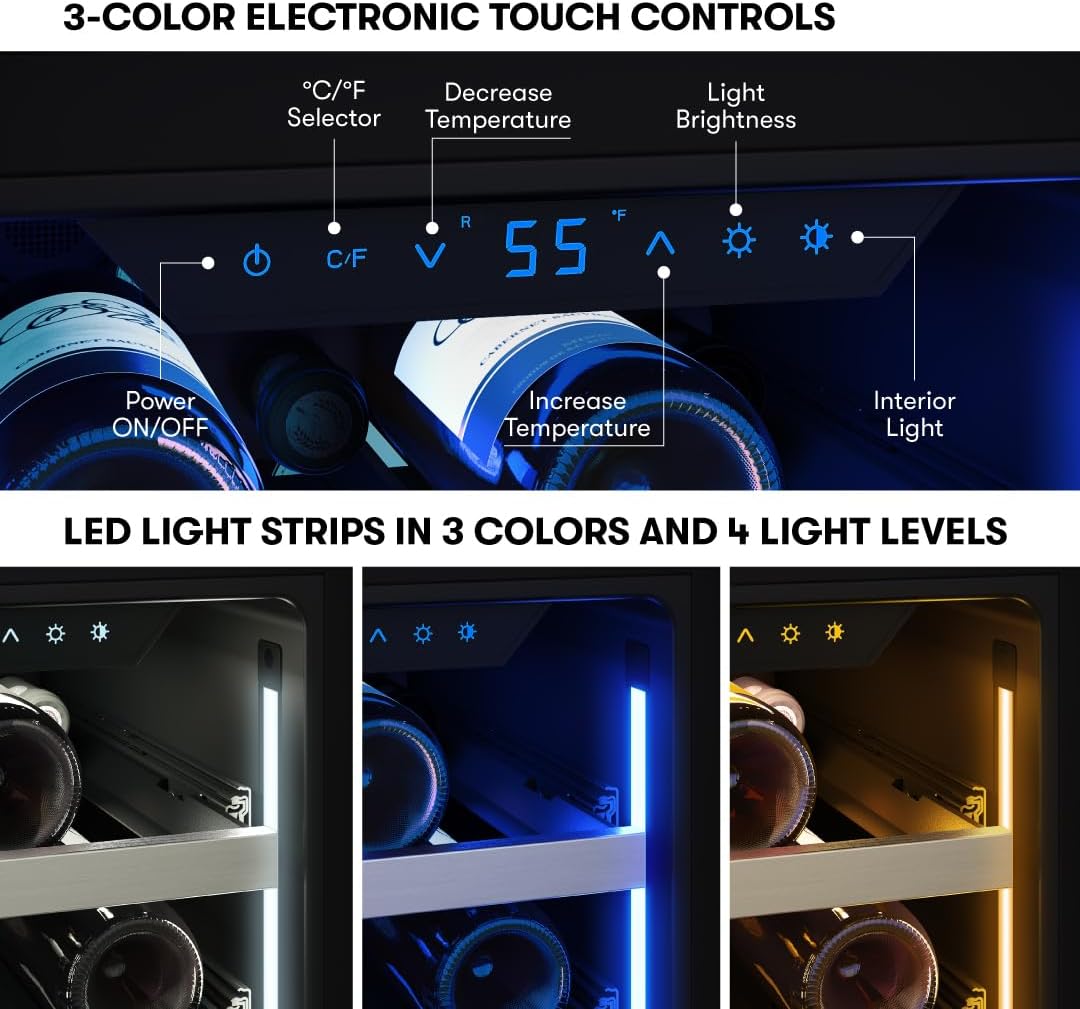

Image: Close-up of the 3-Color Electronic Touch Controls and LED Light Strips in Cloud White, Deep Blue, and Amber.

Configuració de la temperatura:

• Use the up/down arrows on the touch control panel to set your desired temperature between 40°F and 65°F.
• The display will show the set temperature. The PreciseTemp™ system will then work to maintain this setting.

Il·luminació LED:

• Press the light button on the control panel to cycle through the 3 available colors: Cloud White, Deep Blue, and Amber.
• Hold the light button to adjust between 4 different light levels.

Alarma de porta oberta:

An audible alarm will sound if the door is left open for an extended period, helping to maintain internal temperature and energy efficiency.

Loading & Capacity:

The cooler is equipped with six full-extension wood racks designed to hold up to 27 standard 750ml wine bottles. The racks slide smoothly for easy access.

Image: Zephyr Presrv Wine Cooler showcasing its full-extension wood racks, suitable for various bottle sizes.

Vídeo oficial del producte:

5. Manteniment i cura

Regular maintenance ensures your wine cooler operates efficiently and extends its lifespan.

Neteja:

• Interior: Netegeu l'interior amb un detergent suau i aigua tèbia. Eviteu els netejadors abrasius.
• Exterior: Wipe stainless steel surfaces with a soft cloth and a stainless steel cleaner. Clean the glass door with a glass cleaner.
• Junta de la porta: Netegeu regularment la junta de la porta per assegurar-ne un segellat hermètic.

Filtre de carbó:

The unit includes a carbon filter for air filtration. Replace the carbon filter periodically (typically every 3-6 months) to maintain optimal air quality and prevent odors.

Potència Outage:

En cas d'una potènciatage, minimize opening the door to preserve the internal temperature. The unit will resume normal operation once power is restored.

6. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:

7. Especificacions

8. Garantia i assistència

Garantia del fabricant:

Your Zephyr Presrv Wine Cooler is covered by a manufacturer's warranty:

• 2 anys parts
• Compressor de 5 anys
• 1 year labor

For warranty claims or technical support, please refer to the contact information provided in your product packaging or visit the official Zephyr weblloc.
