BWT P'URE AQUACALCIUM Reverse Osmosis System

1. Introducció

Thank you for choosing the BWT P'URE AQUACALCIUM Reverse Osmosis System. This system is designed to provide high-quality filtered water for domestic use, incorporating a remineralizing cartridge to enhance water properties. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance of your system.

2. Informació de seguretat

• Assegureu-vos que totes les connexions estiguin ben fixades per evitar fuites.
• Do not expose the system to freezing temperatures.
• Use only genuine BWT replacement cartridges.
• Disconnect water supply before performing any maintenance.
• Si no esteu segurs sobre algun dels passos d'instal·lació, consulteu un lampista qualificat.

3. Producte acabatview

The BWT P'URE AQUACALCIUM system utilizes reverse osmosis technology to purify water, followed by a remineralization stage. Key components include the filtration unit, a storage tank, and a dedicated faucet.

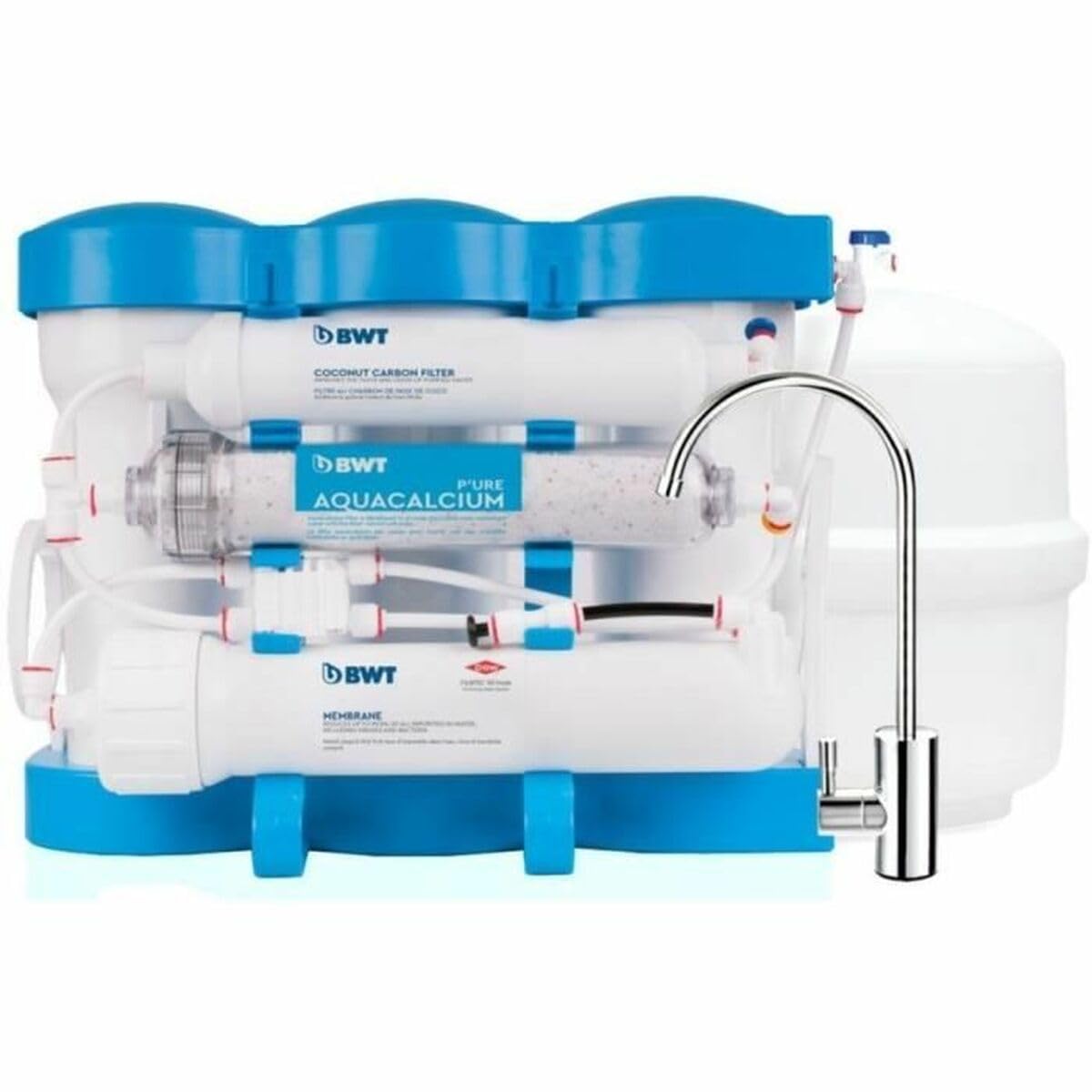

This image displays the complete BWT P'URE AQUACALCIUM reverse osmosis system. It includes the main filtration unit with multiple cartridges (Coconut Carbon Filter, AquaCalcium, PURE Membrane), a chrome faucet, and a white pressure tank for purified water storage. The system is designed for under-sink installation.

Components inclosos:

• Reverse Osmosis Filtration Unit
• Aixeta
• Storage Tank (11 liters capacity)
• Remineralizing Cartridge
• Installation Kit (tubing, connectors, saddle valve)

4. Configuració i instal·lació

The BWT P'URE AQUACALCIUM system is designed for under-sink installation. Follow these general steps for setup:

1. Preparació: Turn off the cold water supply to your sink. Clear the area under the sink for installation.
2. Instal·lació de l'aixeta: Drill a hole in your sink or countertop (if not already present) for the dedicated faucet. Secure the faucet according to its specific instructions.
3. Connexió al subministrament d'aigua: Install the saddle valve onto the cold water line and connect it to the RO system's inlet.
4. Connexió de drenatge: Install the drain saddle onto the sink's drainpipe and connect it to the RO system's drain line.
5. Connexió del tanc: Connect the storage tank to the RO system.
6. Neteja del sistema: After all connections are made, slowly turn on the cold water supply. Allow the system to fill and flush for several hours (refer to detailed instructions for specific flushing times) to remove air and carbon fines.
7. Comprovació de fuites: Carefully inspect all connections for leaks.

Nota: Refer to the detailed installation guide provided in the product packaging for specific diagrams and step-by-step instructions.

5. Instruccions de funcionament

Once installed and flushed, your BWT P'URE AQUACALCIUM system operates automatically. The system purifies water using reverse osmosis and stores it in the pressure tank. When you open the dedicated faucet, purified water is dispensed.

• Primer ús: After initial flushing, the first tank of water should be drained completely to ensure optimal taste and performance.
• Daily Filtration Capacity: The system can filter up to 280 liters per day, depending on water pressure and temperature.
• Distribució d'aigua: Open the dedicated faucet to draw purified water. The flow rate will decrease as the tank empties.
• Reompliment del dipòsit: The system will automatically refill the storage tank once water is drawn.

6. Manteniment

Regular maintenance is crucial for the optimal performance and longevity of your BWT P'URE AQUACALCIUM system.

Substitució del cartutx:

The system does not feature an automatic cartridge wear indicator. Therefore, it is essential to adhere to a regular replacement schedule for the pre-filters, RO membrane, and remineralizing cartridge.

• Pre-filters (Sediment and Carbon): Replace every 6-12 months, depending on water quality and usage.
• Membrana RO: Replace every 2-3 years, or when water production significantly decreases.
• Remineralizing Cartridge: Replace annually to ensure continued remineralization and optimal taste.

Procediment de substitució:

1. Turn off the water supply to the RO system and open the faucet to relieve pressure.
2. Carefully remove the old cartridges.
3. Insert new, genuine BWT replacement cartridges, ensuring proper orientation.
4. Turn on the water supply slowly and check for leaks.
5. Flush the system as per initial setup instructions to prepare new cartridges for use.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

For warranty information and technical support, please refer to the documentation included with your product or contact BWT customer service. Keep your proof of purchase for warranty claims.

La informació sobre la disponibilitat de peces de recanvi no està disponible actualment.
