HENEX Mini Bluetooth Barcode Reader User Manual

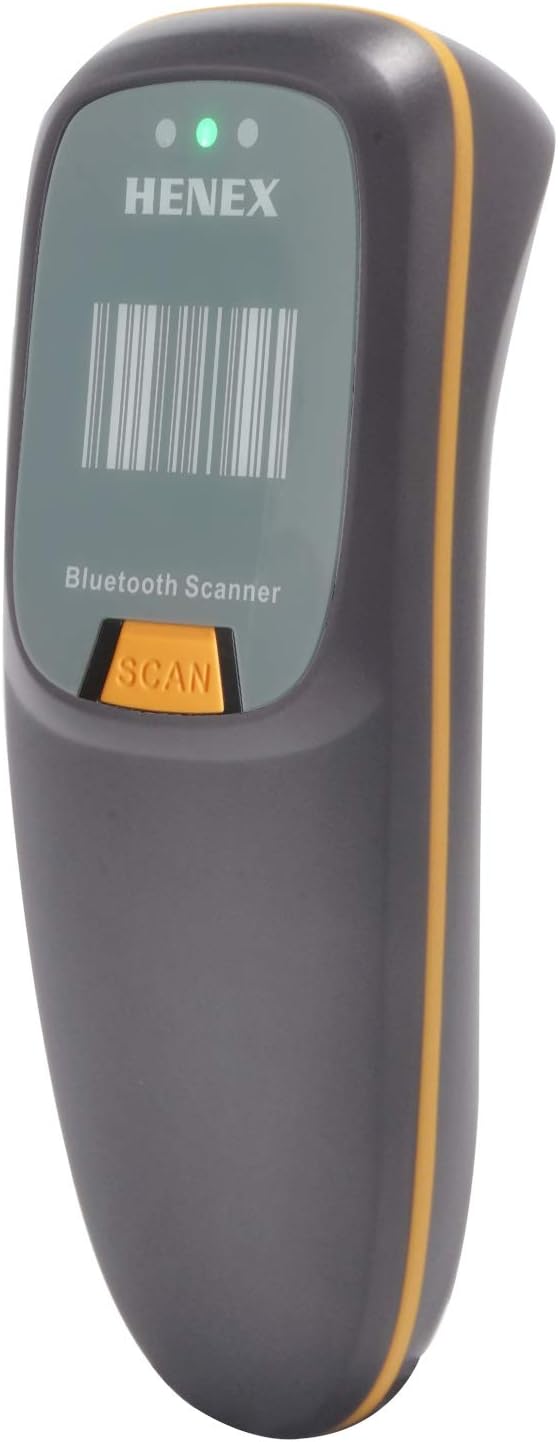

HENEX Mini Bluetooth Barcode Reader, front view — Image: The HENEX Mini Bluetooth Barcode Reader, showcasing its compact design and scan button.

1. Introducció

This manual provides comprehensive instructions for the HENEX Mini Bluetooth Barcode Reader (Model: HC-300R). This versatile 3-in-1 barcode scanner supports Bluetooth, 2.4G wireless, and wired USB connections, making it compatible with a wide range of devices and operating systems including Windows, Mac OS, Linux, and Android.

The device is designed for efficient scanning of both 1D and 2D QR codes from various surfaces, including paper and digital screens. Its compact and lightweight design ensures portability and ease of use in diverse environments.

2. Característiques del producte

3-in-1 Connection Design: Supports Bluetooth, 2.4G Wireless (with USB adapter), and Wired USB connections for broad compatibility with laptops, PCs, POS systems, smartphones, and tablets.
Instant Upload & Offline Storage: Equipped with 16MB memory, capable of storing up to 12,500 barcodes. Users can choose between immediate data upload or storing barcodes for later transmission. Features a Type-C USB cable for efficient data transfer and charging.
Mini disseny portàtil: Small and lightweight (approximately 130g), designed for comfortable long-term handheld use and easy portability. Includes tactile vibration feedback for successful scans, alongside a buzzer and LED indicators. The buzzer can be muted for quiet environments.
Advanced Decoding Ability: Capable of scanning a wide range of 1D and 2D barcodes, including PDF417, Data Matrix (ECC200, ECC000, etc.), QR Code, UPC, EAN, Code128, Code39, Code11, Interleaved 2 of 5, and Codabar.
Llarga vida útil de la bateria: Features a 1200mAh battery for extended continuous use and standby time.
Super Long Transmission Distance: Offers significant wireless range, up to 50m/164ft in barrier-free environments for Bluetooth 4.1 and up to 100m/328ft for 2.4GHz wireless.
Construcció duradora: Designed with anti-shock properties for enhanced durability.

Image showing the HENEX barcode scanner in a hand and in a jeans pocket, highlighting its portability and light weight of 130g — Image: The scanner's compact size and light weight (130g) are demonstrated by showing it held in a hand and easily fitting into a pocket.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

HENEX Mini Bluetooth Barcode Reader (Model: HC-300R)
USB Type-C Charging/Data Cable
2.4G Wireless USB Adapter (Dongle)
Manual d'usuari (aquest document)

HENEX Mini Bluetooth Barcode Reader with USB cable and 2.4G wireless dongle — Image: The barcode scanner shown alongside its included USB Type-C cable and 2.4G wireless USB adapter.

4. Configuració i connexió

4.1 Càrrega de l'escàner

Before first use, fully charge the scanner. Connect the provided USB Type-C cable to the scanner's charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The LED indicator will show charging status.

Diagram showing the 1200mAh battery capacity of the HENEX barcode scanner compared to a 500mAh battery — Image: Visual representation of the scanner's 1200mAh battery, highlighting its longer continuous use and standby time compared to a typical 500mAh battery.

4.2 Modes de connexió

The scanner supports three connection modes:

Connexió Bluetooth: For wireless connection to Bluetooth-enabled devices like smartphones, tablets, and some laptops.
Connexió sense fil 2.4G: Uses the included USB adapter for wireless connection to computers without built-in Bluetooth or for a dedicated wireless link.
Connexió per cable: Connects directly via the USB cable, allowing scanning while charging.

Diagram illustrating the three connection modes: Bluetooth, 2.4GHz Wireless, and USB 2.0 Wired — Image: A visual guide to the scanner's three connectivity options: Bluetooth, 2.4GHz wireless via dongle, and direct USB wired connection.

Hand holding scanner with icons for Bluetooth, Wifi, Windows, Android, iPhone compatibility — Image: The scanner being held, surrounded by icons indicating compatibility with Bluetooth, Wi-Fi, Windows, Android, and iPhone devices.

Scanner compatible with Windows 10, 7, 8.1, Mac, Linux, Android — Image: The scanner displayed with logos of compatible operating systems: Windows (10, 7, 8.1), Mac, Linux, and Android.

4.3 Instruccions d'emparellament

Emparellament Bluetooth:

Enceneu l'escàner.
Scan the "Bluetooth Pairing" barcode (usually found in a separate quick start guide or on a configuration sheet). The scanner will enter pairing mode.
On your host device (smartphone, tablet, PC), enable Bluetooth and search for available devices.
Select "HENEX Barcode Scanner" (or similar name) from the list of found devices.
Once paired, the scanner will emit a confirmation tone, and the Bluetooth indicator light will stabilize.

Connexió sense fil 2.4G:

Plug the 2.4G USB adapter into an available USB port on your computer.
Turn on the scanner. It should automatically connect to the adapter.
A confirmation tone will indicate a successful connection.

Connexió per cable:

Connect the USB Type-C cable to the scanner and the standard USB-A end to your computer's USB port.
The scanner will function as a wired scanner and also charge simultaneously.

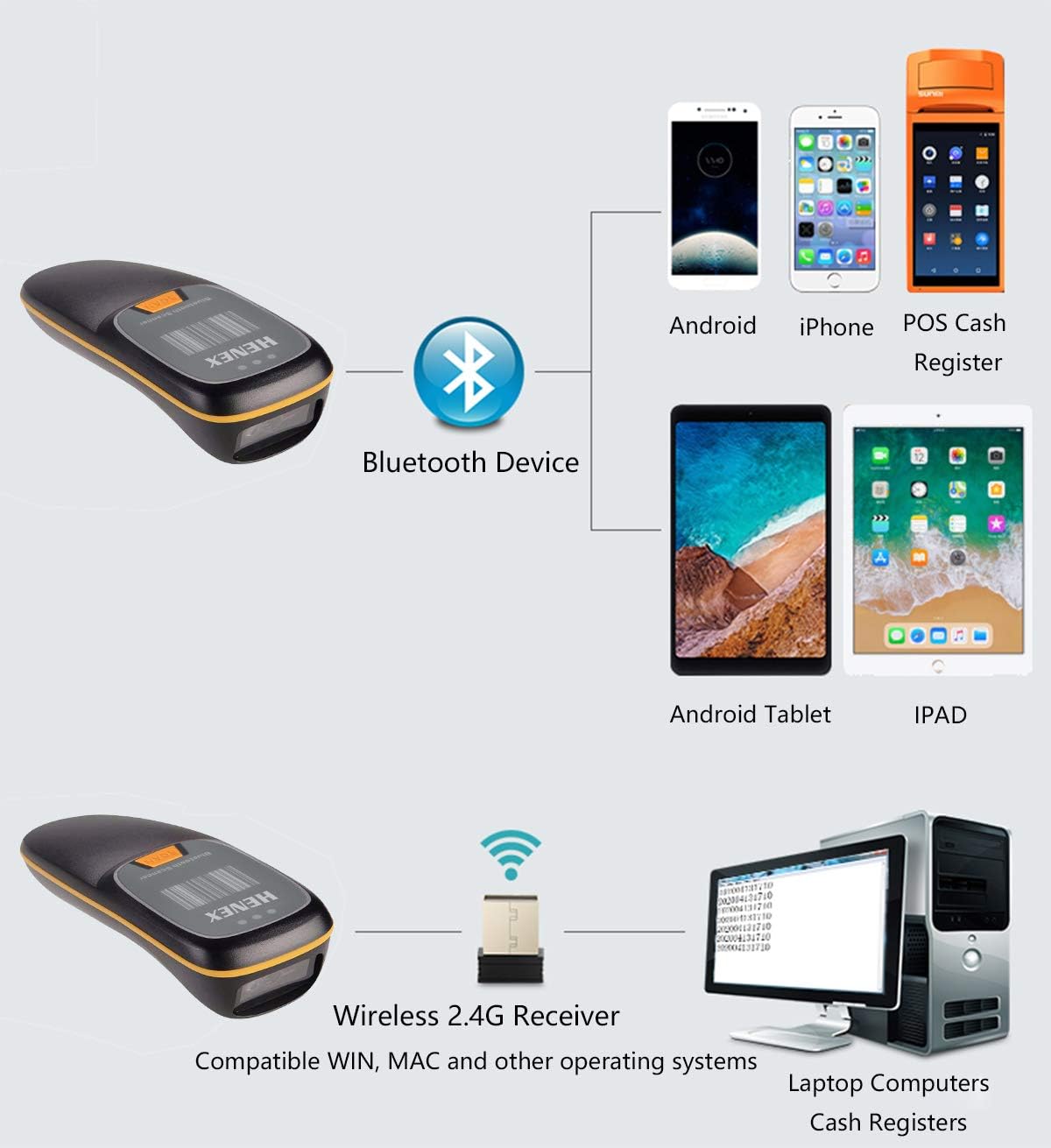

Diagram showing Bluetooth and 2.4G Wireless connectivity options for the scanner with various devices — Image: An illustration detailing how the scanner connects via Bluetooth to mobile devices (Android, iPhone, POS cash registers) and via a 2.4G wireless receiver to laptops, computers, and cash registers.

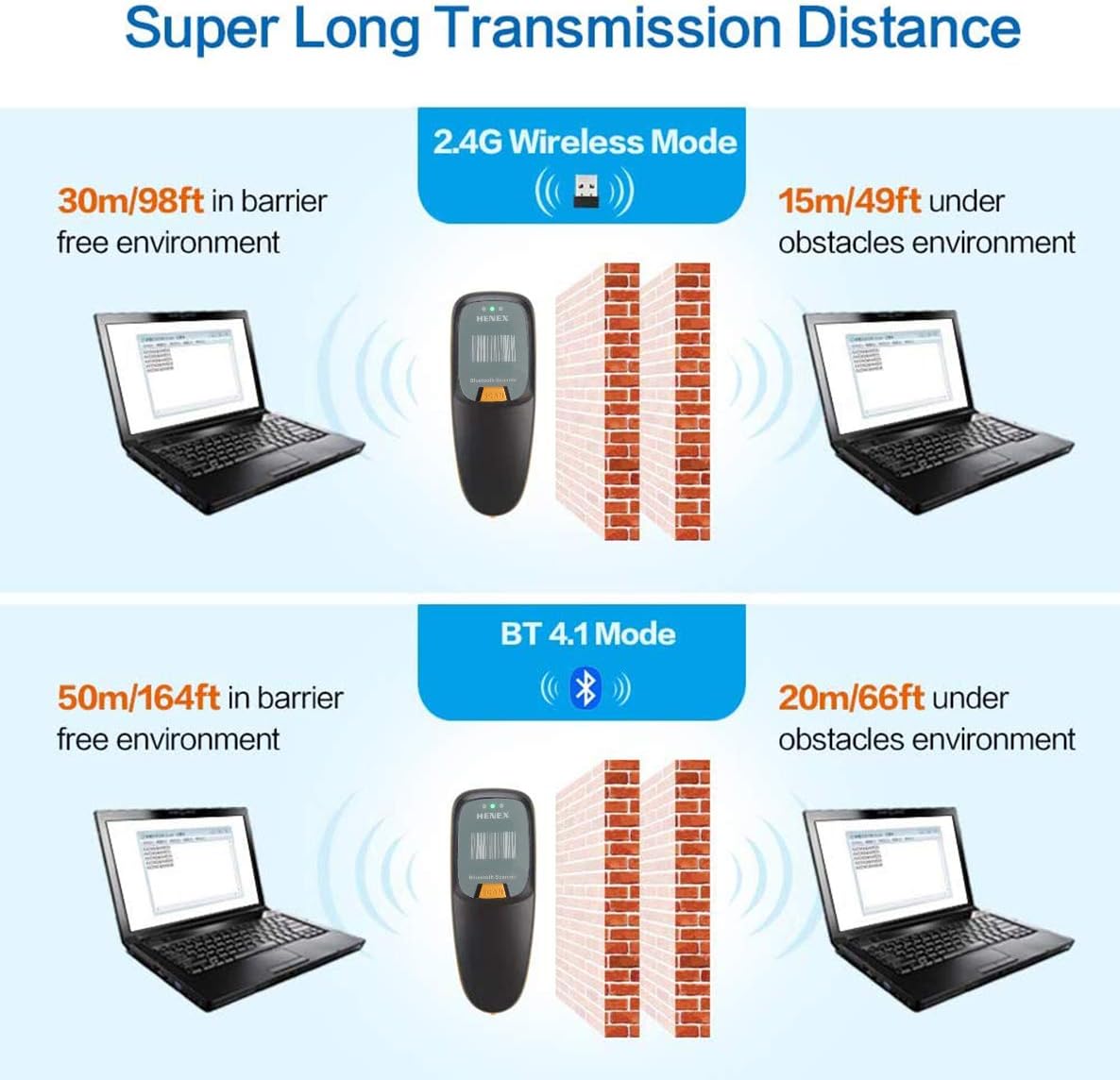

Diagram showing transmission distances for 2.4G Wireless and Bluetooth 4.1 modes in barrier-free and obstructed environments — Image: A comparison of wireless transmission distances for the scanner in 2.4G Wireless mode (up to 98ft barrier-free, 49ft with obstacles) and Bluetooth 4.1 mode (up to 164ft barrier-free, 66ft with obstacles).

5. Instruccions de funcionament

5.1 Escaneig bàsic

Point the scanner's window at the barcode you wish to scan and press the "SCAN" button. A successful scan will be indicated by a beep, a flash of the LED, and a slight vibration (if enabled).

Diagram showing the scanner's ability to decode various 1D and 2D QR codes, including incomplete and deformed codes — Image: An illustration demonstrating the scanner's decoding capabilities for various 1D barcodes (one-dimensional, incomplete, high density, deformation) and 2D codes (QR code, DataMatrix, PDF417).

5.2 Instant Upload vs. Offline Storage

The scanner supports two data transmission modes:

Mode de càrrega instantània: Scanned barcodes are immediately transmitted to the connected device. This is the default mode when connected.
Offline Storage Mode: If the scanner is out of range or not connected, scanned barcodes are stored in the internal 16MB memory (up to 12,500 barcodes). To upload stored data, reconnect the scanner to your device and scan the "Upload Data" barcode (refer to your quick start guide for specific configuration barcodes).

Image showing the scanner's built-in offline storage mode, capable of storing up to 1,500,000 barcode information — Image: The scanner demonstrating its offline storage capability, showing it can store a large volume of barcode information, including POS system codes, phone screen codes, WeChat Pay, Alipay, and 1D/2D QR codes.

5.3 Esborrar les dades emmagatzemades

To clear all stored barcode data from the scanner's memory, scan the "Clear Data" barcode (refer to your quick start guide for specific configuration barcodes). Ensure all necessary data has been uploaded before clearing.

5.4 Sound and Vibration Settings

The scanner provides audible beeps and tactile vibrations for scan confirmations. Refer to your quick start guide or configuration sheet for barcodes to enable/disable the buzzer or vibration feedback.

5.5 Escenaris d'aplicació

The HENEX Mini Bluetooth Barcode Reader is suitable for a wide range of applications across various industries due to its versatility and decoding capabilities.

Barcode scanner in various scenarios: supermarket, restaurant, costume store, pharmacy, warehouse, logistics, and supported barcode types — Image: The scanner is depicted in various operational environments such as supermarkets, restaurants, costume stores, pharmacies, warehouses, and logistics centers. It also illustrates the range of 1D and 2D barcode types it can support, including QR Code, Data Matrix, PDF417, Codabar, damaged, colorful, and reflective barcodes.

Application industries for the barcode scanner: Supermarkets, Catering Snacks, Specialty Stores, Libraries — Imatge: Visual examples of industries where the scanner can be applied, including supermarkets, catering/snack businesses, specialty stores, and libraries.

6. Manteniment

Neteja: Use a soft, dry cloth to clean the scanner's exterior. For the scanning window, use a lens cleaning cloth or a soft cloth lightly dampEsbandiu amb aigua o un netejador suau i no abrasiu. No utilitzeu productes químics agressius ni materials abrasius.
Cura de la bateria: To prolong battery life, avoid fully discharging the battery frequently. Store the scanner in a cool, dry place when not in use for extended periods.
Emmagatzematge: Store the scanner in a safe place, away from extreme temperatures, direct sunlight, and excessive moisture.

Image showing the scanner falling onto a cracked surface, illustrating its sturdy anti-shock design — Image: A visual representation of the scanner's sturdy anti-shock design, depicting it withstanding an impact on a cracked surface.

7. Solució De Problemes

Problema	Causa possible	Solució
Scanner not turning on.	Bateria baixa.	Carregueu l'escàner completament.
No es pot connectar per Bluetooth.	Scanner not in pairing mode; Bluetooth disabled on host device; interference.	Ensure scanner is in pairing mode. Enable Bluetooth on host device. Move closer to host device. Try re-pairing.
Cannot connect via 2.4G Wireless.	USB adapter not properly inserted; scanner not linked to adapter.	Ensure USB adapter is fully inserted. Re-plug the adapter. Turn scanner off and on.
L'escàner no llegeix codis de barres.	Barcode damaged or unclear; incorrect symbology setting; scanner lens dirty.	Ensure barcode is clear and flat. Check if the barcode type is supported. Clean the scanner lens. Try scanning a different, known good barcode.
Les dades escanejades no apareixen al dispositiu.	Not connected; in offline storage mode; application not ready to receive input.	Verify connection status. If in offline mode, upload data. Ensure cursor is in a text field on your device.
L'escàner emet un so però no es transmeten dades.	Likely in offline storage mode.	Scan the "Upload Data" barcode to transmit stored data.

8. Especificacions

Característica	Detall
Número de model	HC-300R
Dimensions del producte	5.31 x 2.05 x 1.57 polzades
Pes de l'article	4.6 unces (aprox. 130 g)
Tecnologia de connectivitat	Bluetooth, 2.4G sense fil, USB per cable
Tipus de bateria	1 bateria de ions de liti (inclosa)
Capacitat de la bateria	1200 mAh
Emmagatzematge fora de línia	16MB (stores up to 12,500 barcodes)
Capacitat de descodificació (1D)	UPC, EAN, Code128, Code39, Code11, Interleaved 2 of 5, Codabar, etc.
Capacitat de descodificació (2D)	PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code, etc.
Sistemes operatius compatibles	Windows XP/7/8/10, Mac OS, Linux, Windows Mobile, Android, iOS
Fabricant	HENEX

9. Garantia i Suport

For warranty information and technical support, please contact HENEX customer service. Refer to the product packaging or the official HENEX weblloc web per obtenir les dades de contacte més actualitzades.

For general inquiries or to find more information about HENEX products, you may visit: http://m.atobo.com.cn/u/winningqd
