Introducció
The Montech X1 Black ATX Mid-Tower Case is designed to provide excellent airflow and aesthetic appeal for your PC build. It features a unique mesh front panel, a tempered glass side panel, and comes pre-installed with four 120mm Autoflow RGB LED fans to ensure optimal cooling and a vibrant look right out of the box. This manual provides essential information for setting up, operating, and maintaining your Montech X1 case.
Imatge: Frontal esquerra view of the Montech X1 Black ATX Mid-Tower Case, showcasing the mesh front panel with three RGB fans and the tempered glass side panel.
Configuració i instal·lació
1. Unpacking and Contents Check
Carefully remove the Montech X1 case from its packaging. Inspect for any signs of damage during transit. Ensure all accessories, such as screws, standoffs, and cable ties, are present.
2. Instal·lació de la placa base
The Montech X1 supports ATX, Micro ATX, and Mini ITX motherboards. Install the necessary standoffs for your motherboard form factor. Carefully place your motherboard into the case, aligning it with the standoffs, and secure it with screws.
Imatge: Interna view of the Montech X1 case, highlighting compatible motherboard sizes (ATX, Micro-ATX, Mini-ITX) and fan mounting locations (Front 120mm*3, Rear 120mm*1, Top 120mm*2), along with SSD drive bay locations.
3. Drive Bay Installation
The case provides 3 x 2.5" drive bays and 1 x 3.5" drive bay. Install your SSDs and HDDs into the designated bays and secure them with the provided screws.
4. Instal·lació de la font d'alimentació (PSU)
The Montech X1 supports bottom-mount ATX power supplies. Slide your PSU into the dedicated compartment at the bottom rear of the case and secure it with screws from the rear of the case.

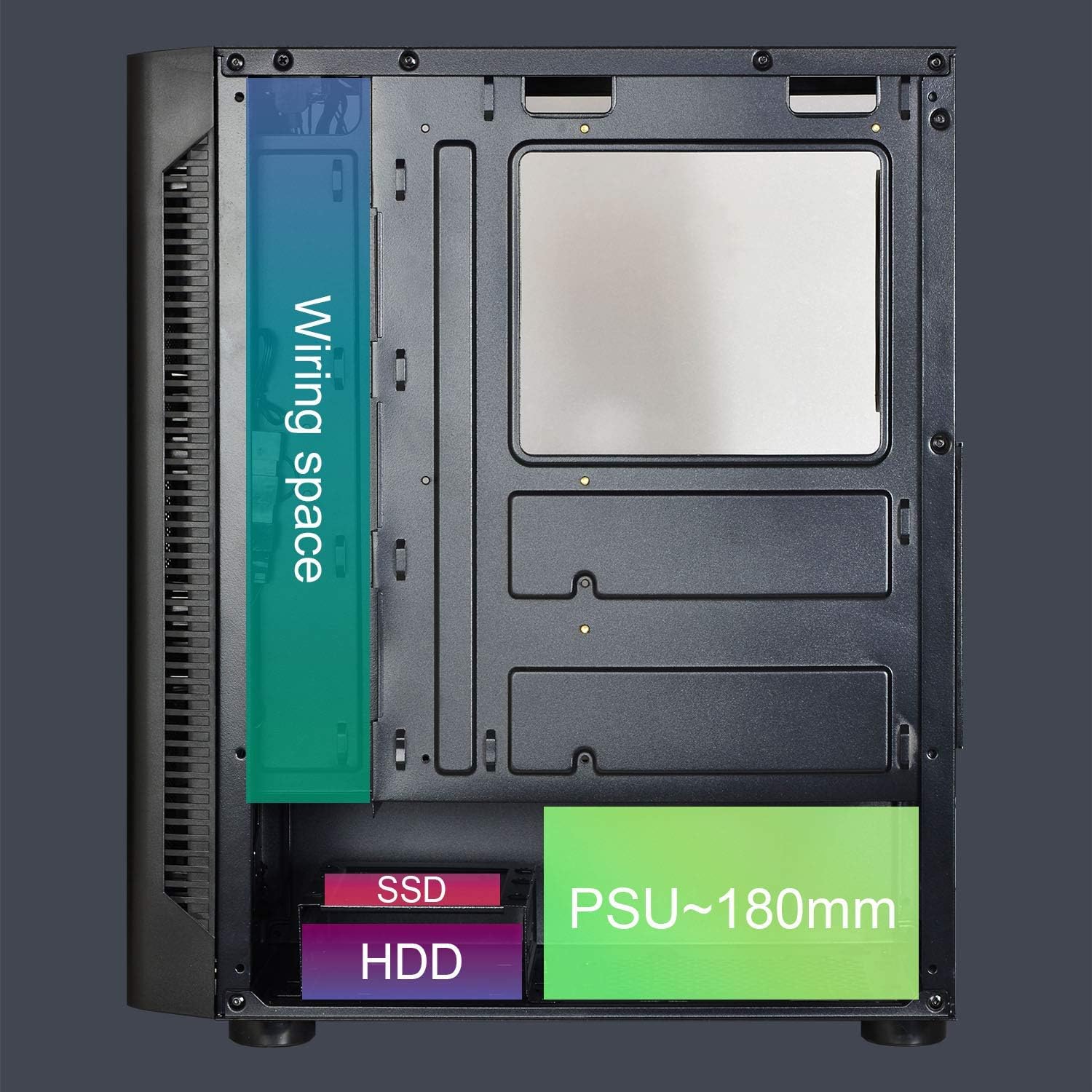

Image: Rear internal view of the Montech X1 case, illustrating the wiring space behind the motherboard tray, and the designated areas for SSD, HDD, and the Power Supply Unit (PSU) with an approximate length of 180mm.
5. Fan Configuration and Airflow
The Montech X1 comes with four 120mm Autoflow RGB fans pre-installed: three at the front and one at the rear. These fans are designed for optimal airflow and provide fixed RGB lighting that is not user-controllable. The mesh front panel and top ventilation further enhance the high airflow design.

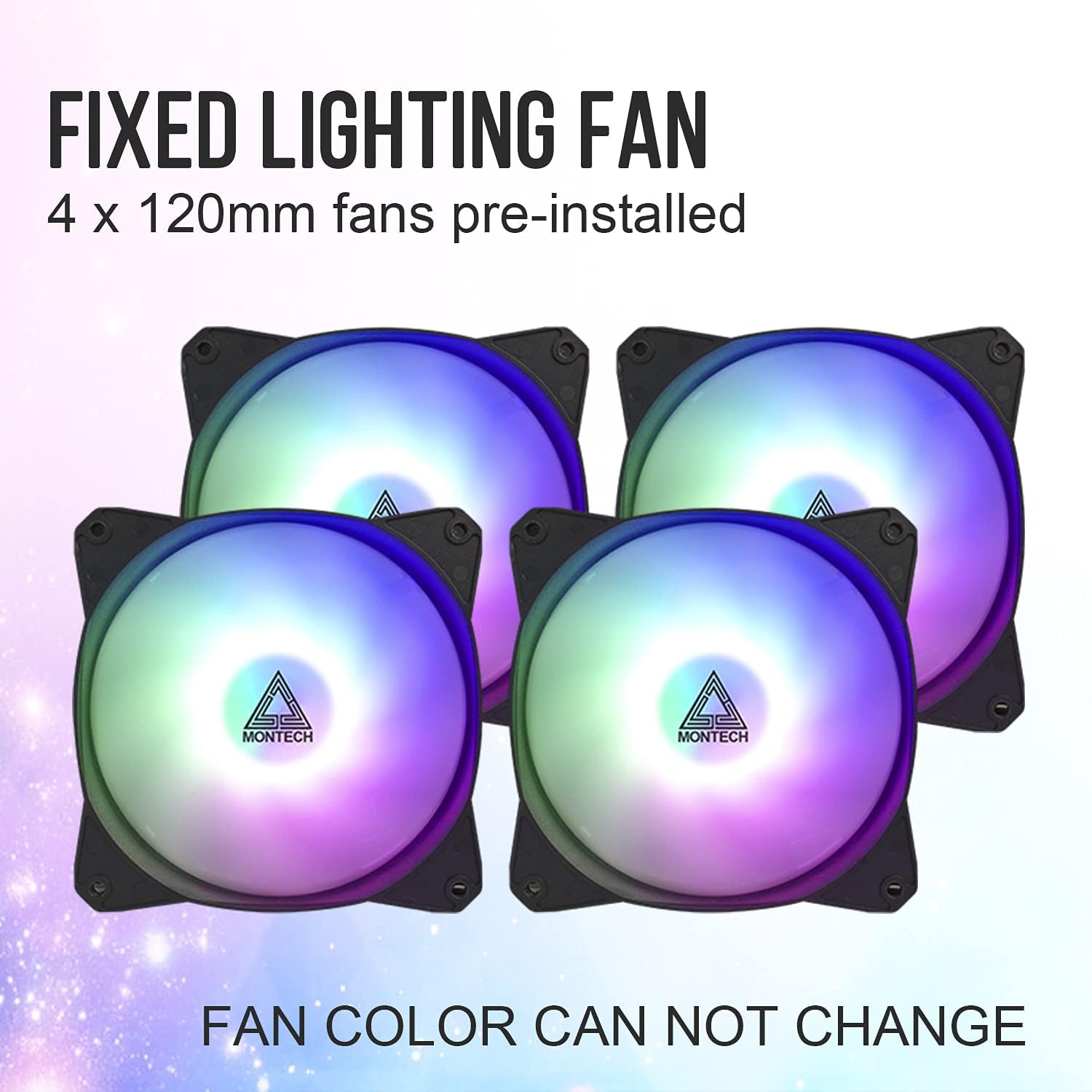

Image: Four individual 120mm Autoflow RGB fans, highlighting that they are pre-installed and have fixed lighting that cannot be changed.

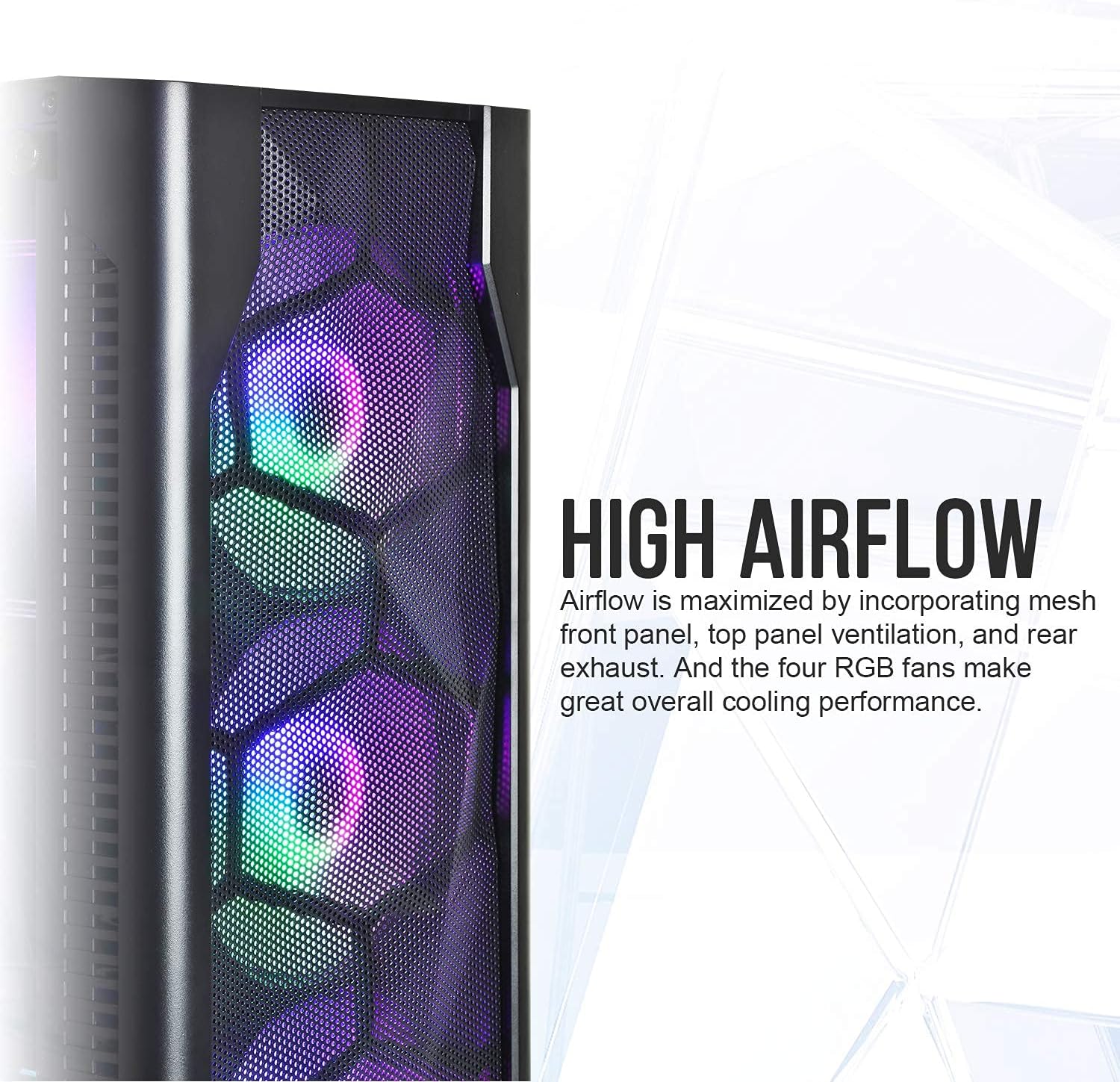

Imatge: Primer pla view of the Montech X1's mesh front panel, emphasizing its high airflow design. The image shows the hexagonal mesh pattern and the RGB lighting of the pre-installed fans behind it.
6. I/O Port Connections
Connect the front panel I/O cables (USB 2.0 x2, USB 3.0 x1, Audio x1, Mic x1) to their respective headers on your motherboard. Ensure correct polarity for power and reset switches, and LED indicators.
Instruccions de funcionament
Once all components are installed and connected, close the tempered glass side panel. The pre-installed Autoflow RGB fans will illuminate automatically upon system power-on, providing consistent cooling and a vibrant display. These fans operate at a fixed speed and lighting pattern and are not controllable via software or external controllers.

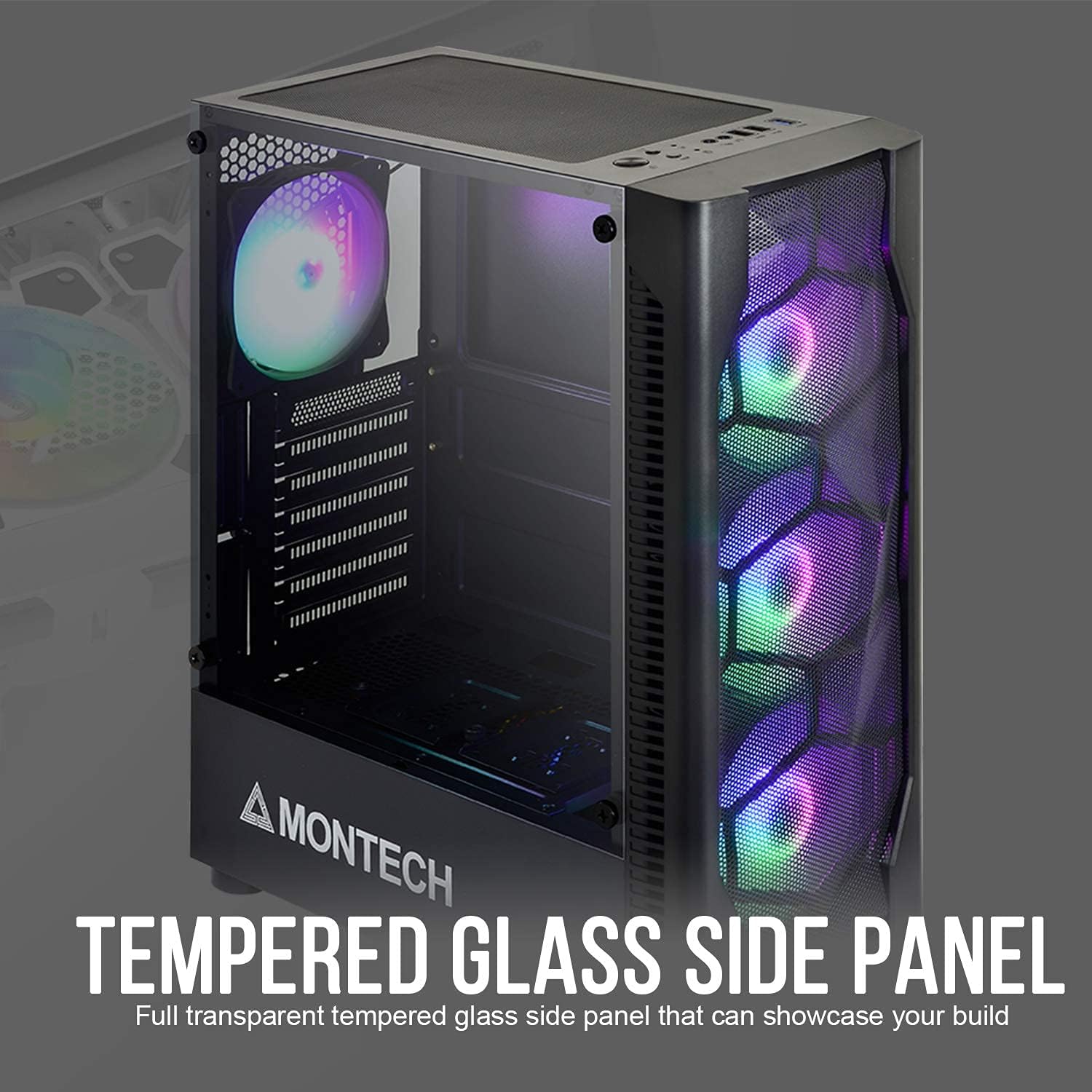

Image: The Montech X1 case with its full transparent tempered glass side panel installed, showcasing the internal components and the illuminated RGB fans.
Manteniment
Un manteniment regular ajuda a garantir un rendiment òptim i una llarga vida útil dels components del teu PC.
- Filtres de pols: The Montech X1 includes dust filters at the top and bottom. Periodically remove and clean these filters to prevent dust buildup inside the case, which can impede airflow and component cooling. Use compressed air or a soft brush to remove dust.
- Neteja general: Use a soft, dry cloth to wipe down the exterior of the case. For the tempered glass panel, use a glass cleaner and a microfiber cloth to avoid streaks.
- Pols interna: Every few months, open the side panel and use compressed air to gently clear dust from internal components like CPU cooler fins, GPU heatsinks, and fan blades.
Resolució de problemes
If you encounter issues with your Montech X1 case, consider the following common troubleshooting steps:
- Fans Not Lighting Up: Ensure all fan power cables are securely connected to the motherboard or power supply. Verify that the system is receiving power. Remember, the fans have fixed RGB lighting and are not controllable.
- Sense alimentació al sistema: Double-check all power connections, including the 24-pin ATX power, 8-pin CPU power, and GPU power cables. Ensure the PSU switch is in the 'ON' position.
- Front Panel I/O Not Working: Verify that the USB, audio, and power/reset switch cables from the front panel are correctly connected to the corresponding headers on your motherboard. Refer to your motherboard manual for correct pinouts.
- Flux d'aire deficient/sobreescalfament: Ensure dust filters are clean and not obstructed. Verify that all pre-installed fans are spinning. Ensure proper cable management to avoid obstructing airflow paths.
Especificacions
| Característica | Detall |
|---|---|
| Nom del producte | X1 |
| Color disponible | Negre |
| Dimensions (LxWxH) | 380 x 190 x 447 mm |
| Suport de la placa base | ATX / Micro ATX / Mini ITX |
| Ranures d'expansió | 7 |
| Drive Bays | 2.5" x 3 / 3.5" x 1 |
| Port d'E/S | USB2.0 x 2, USB3.0 x 1, Audio x 1, Mic x 1 |
| Ventilador(s) preinstal·lat(s) | Front: 120mm x 3 (Fixed Lighting Fan), Rear: 120mm x 1 (Fixed Lighting Fan) |
| Suport dels fans | Front: 120mm x 3, Rear: 120mm x 1, Top: 120mm x 2 |
| VGA Clearance | 305 mm |
| Liquidació del refrigerador de la CPU | 165 mm |
| Filtres de pols | A dalt, a baix |
| Suport d'alimentació | Muntatge inferior, ATX |
| Tipus de material | Vidre temperat |
| Pes de l'article | 1 kg |
Garantia i Suport
Montech products are manufactured to high quality standards. For warranty information and technical support, please refer to the official Montech weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.
Per obtenir més ajuda, visiteu: Montech Official Weblloc
