Oregon 614388 Speedcut Nano 10" .325" Low Profile Conversion Kit Instruction Manual

1. Introducció

This manual provides essential instructions for the proper installation, operation, and maintenance of your Oregon 614388 Speedcut Nano 10" .325" Low Profile Conversion Kit. The SpeedCut Nano system is engineered for maximum efficiency, offering a .325" Low Profile design intended to optimize chainsaw performance for tree care professionals.

This kit is designed to enhance cutting efficiency, provide smooth cuts, and minimize cutting chatter. It is compatible with Husqvarna T435 chainsaws.

2. Informació de seguretat

Always prioritize safety when working with chainsaws and their components. Failure to follow safety instructions can result in serious injury or death.

• Read and understand your chainsaw's original instruction manual before installing or operating this conversion kit.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and protective footwear.
• Ensure the chainsaw is turned off and the spark plug cap is disconnected (for gasoline models) or the battery is removed (for electric models) before performing any installation or maintenance.
• Inspect all components for damage before each use. Do not use damaged parts.
• Keep bystanders and pets away from the work area.

3. Contingut del paquet

The Oregon 614388 Speedcut Nano 10" .325" Low Profile Conversion Kit typically includes the following components:

• 10-inch Speedcut Nano Guide Bar
• Speedcut Nano .325" Low Profile Saw Chain (46 drive links)
• 7-tooth Spur Sprocket

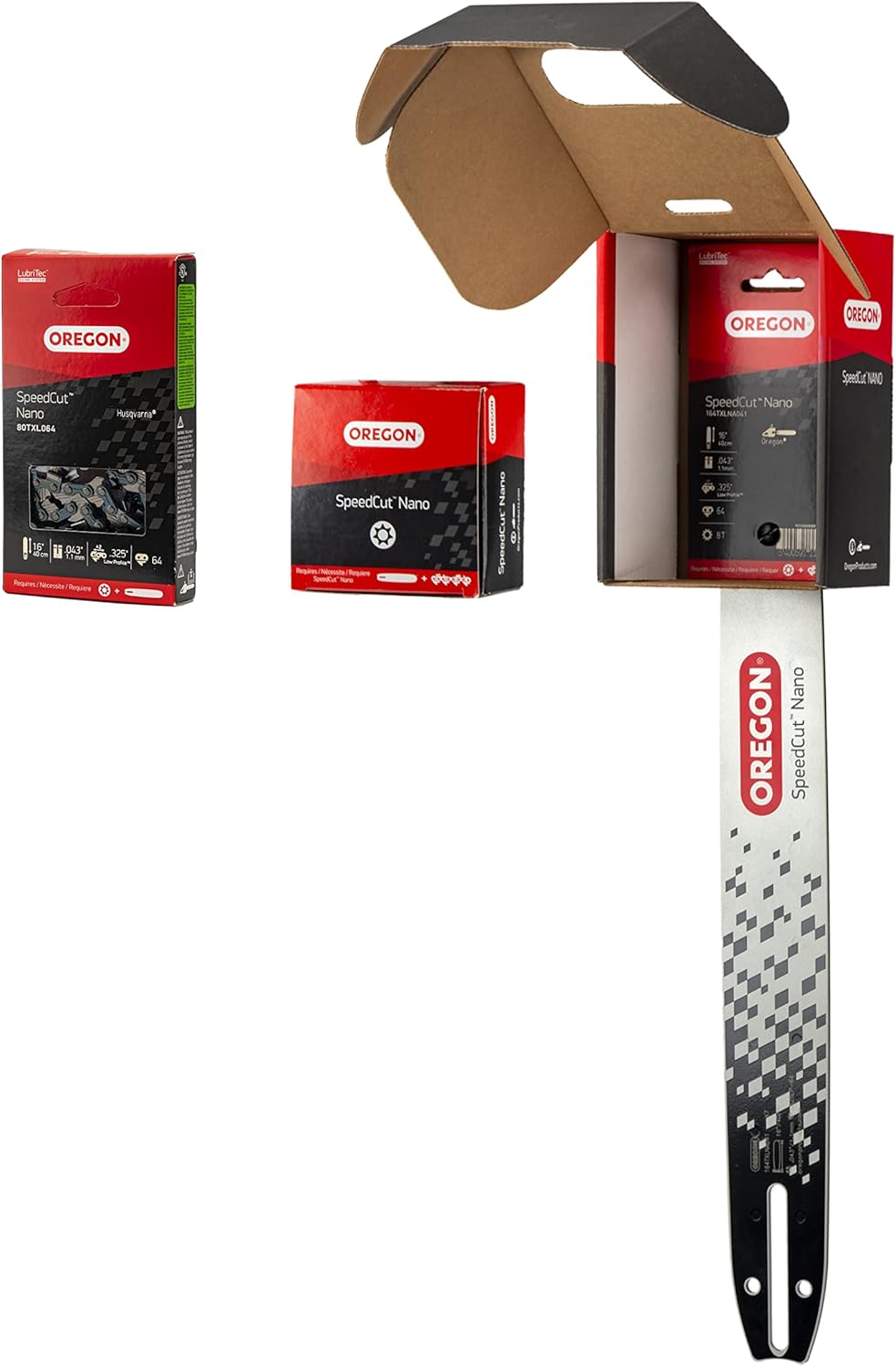

This image displays the Oregon Speedcut Nano 10-inch conversion kit. It includes the guide bar, a box containing the Speedcut Nano chain, and a smaller box likely containing the drive sprocket. The packaging highlights key specifications such as 'SpeedCut Nano' and 'Husqvarna' compatibility.

4. Configuració i instal·lació

Refer to your chainsaw's owner's manual for specific instructions on removing and installing the guide bar, chain, and sprocket. The general steps are as follows:

1. Prepare Chainsaw: Ensure the chainsaw is off, the spark plug cap is disconnected (gas models) or battery removed (electric models), and the chain brake is disengaged.
2. Eliminar components antics: Loosen the bar nuts and remove the clutch cover. Carefully remove the old guide bar, saw chain, and drive sprocket. Clean any sawdust or debris from the clutch area.
3. Install New Sprocket: Place the new 7-tooth spur sprocket onto the clutch drum. Ensure it seats correctly.
4. Install New Guide Bar: Position the new 10-inch Speedcut Nano guide bar over the bar studs.
5. Instal·leu la cadena nova: Carefully place the Speedcut Nano chain around the sprocket and into the guide bar groove. Ensure the cutting edges of the chain are facing the correct direction (refer to the arrows on the chain or your chainsaw manual).
6. Replace Clutch Cover: Reinstall the clutch cover and hand-tighten the bar nuts.
7. Ajustar la tensió de la cadena: Adjust the chain tension according to your chainsaw's manual. The chain should be snug against the bottom of the guide bar, but still able to be pulled freely by hand. It should not sag underneath the bar.
8. Estrenyeu les femelles de la barra: Fully tighten the bar nuts.
9. Comprovació final: Reconnect the spark plug cap or insert the battery. Briefly run the chainsaw at low speed to ensure the chain rotates smoothly and the tension remains correct. Re-check tension after the first few cuts.

5. Directrius de funcionament

Proper operation ensures safety and extends the life of your Speedcut Nano kit.

• Lubricació: Ensure your chainsaw's automatic oiler is functioning correctly and filled with appropriate bar and chain oil. Adequate lubrication is critical for chain and bar life.
• Tècnica de tall: Always use proper cutting techniques as outlined in your chainsaw's manual. Avoid forcing the chain; let the chain do the work.
• Prevenció de contracops: Be aware of potential kickback. Maintain a firm grip on the chainsaw with both hands and avoid cutting with the tip of the guide bar.
• Afilat de la cadena: A sharp chain cuts efficiently and safely. A dull chain will produce sawdust instead of chips and require more force, increasing the risk of kickback.

6. Manteniment

Regular maintenance is crucial for the performance and longevity of your Speedcut Nano conversion kit.

• Afilat de cadena: Sharpen the chain regularly using a 5/32" (4.0 mm) round file. Maintain the correct filing angles as specified by Oregon. A sharp chain is essential for safe and efficient operation.
• Manteniment de la barra guia:
  • Netegeu la ranura de la barra guia regularment per eliminar les serradures i les restes.
  • Remove burrs from the guide bar rails using a flat file.
  • Flip the guide bar periodically to ensure even wear on both sides.
• Inspecció del pinyó: Inspect the drive sprocket for wear. Replace the sprocket if it shows signs of wear, such as pointed or hooked teeth, as a worn sprocket can damage the chain.
• Tensió de la cadena: Check chain tension frequently, especially during initial use and after extended cutting periods. Adjust as needed.

7. Solució De Problemes

Here are common issues and their potential solutions:

8. Especificacions

• Número de model: 614388
• Pitch: .325" Low Profile narrow kerf
• Calibre: .043" (1.1 mm)
• Chain Drive Link Count: 46
• Longitud de la barra: 10 polzades (25 cm)
• Roda dentada: 7-tooth spur
• Dimensions del producte: 12 x 4 x 4 polzades
• Pes de l'article: 1.54 lliures
• Fabricant: Oregon Tool
• Compatibilitat: Fits Husqvarna T435

9. Garantia i Suport

For information regarding warranty coverage or technical support for your Oregon Speedcut Nano conversion kit, please refer to the official Oregon website or contact Oregon customer service directly. Keep your purchase receipt as proof of purchase.

Podeu visitar el Oregon Store on Amazon per obtenir informació i recursos addicionals sobre el producte.
