Introducció
The Bosch EasyDrill 1200 Cordless Drill/Driver is designed for various screwing and drilling tasks. It features two speed settings: the first speed is for screwing, offering 20 torque settings for different screw sizes and diameters. The second speed is for high-speed drilling in wood, metal, and plastic. Bit and drill bit changes are easy with the single-sleeve chuck. This tool is compact, lightweight, powerful, and robust, with a short head ideal for tight spaces. An integrated LED light illuminates the work area, even in dark or poorly lit conditions. The included 12V Home & Garden Bosch battery is compatible with all 12V Bosch Home & Garden system products.
Característiques principals:
- Bosch 'Easy' range tools are practical aids for daily projects.
- Optimal power and speed: powerful screwing and fast drilling thanks to the gear system with 20 torque pre-selection settings.
- Versatile use across various materials: This cordless drill/driver performs screwing and drilling tasks in wood, metal, and plastic.
- Work in low-light conditions: The integrated LED light ensures good visibility, even in dark corners and poorly lit areas.
- Power for ALL 12V: The included battery is compatible with all 12V Bosch Home & Garden system products.
Contingut del paquet
The Bosch EasyDrill 1200 package includes the following items:
- EasyDrill 1200 Cordless Drill/Driver
- 1 bateria de ions de liti de 2.0 Ah
- 1 x Charger (GAL 1210 CV)
- 32-piece Screwdriver Bit Set
- 6-piece Metal Drill Bit Set
- 5-piece Wood Drill Bit Set
- Bossa de transport suau

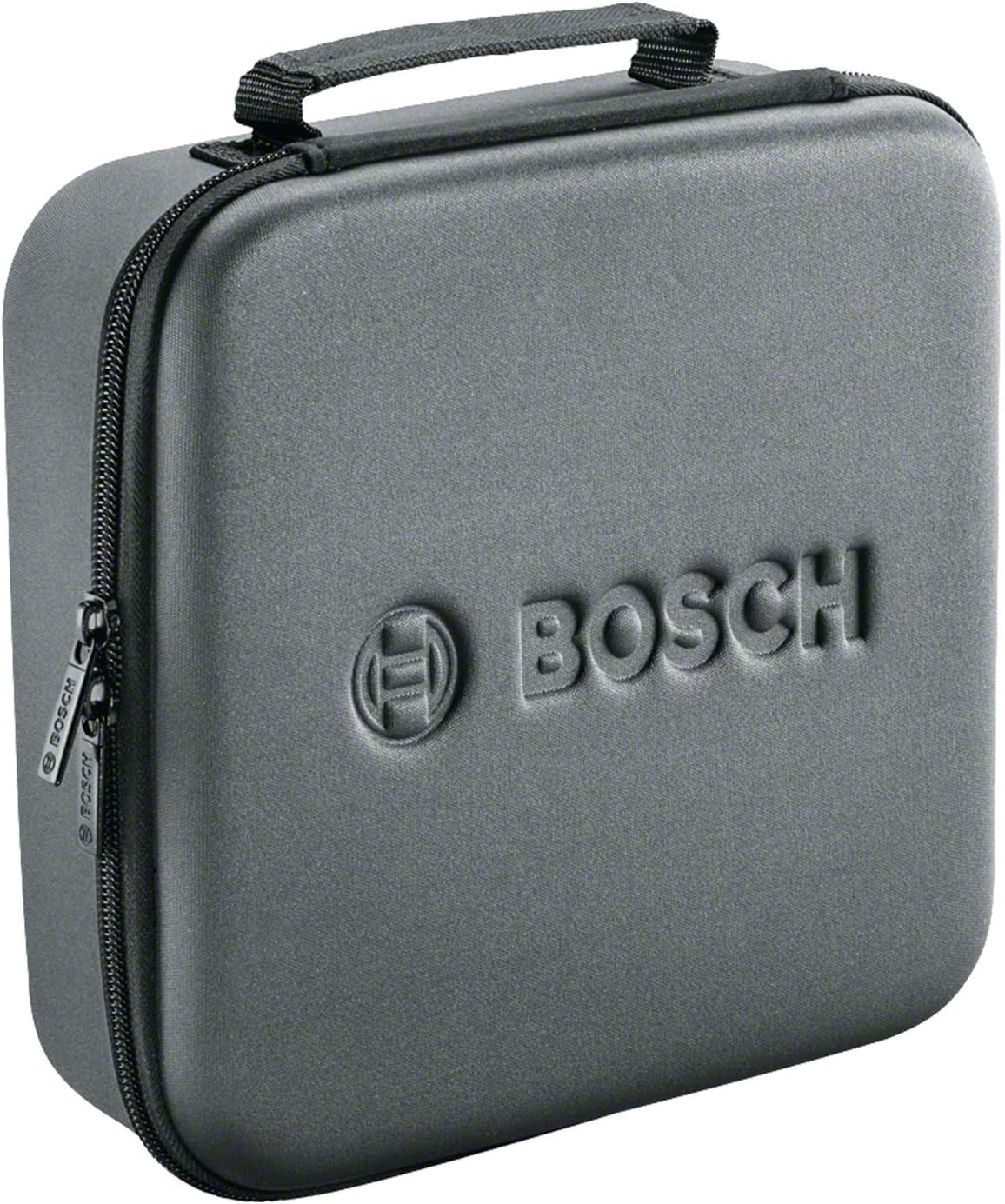

Image: The Bosch EasyDrill 1200 comes with a soft carrying bag, a 12V battery, a charger, a 32-piece screwdriver bit set, a 6-piece metal drill bit set, and a 5-piece wood drill bit set.
Configuració
1. Carregant la bateria
Before first use, fully charge the 12V Lithium-ion battery. Connect the charger (GAL 1210 CV) to a power outlet and insert the battery. The charging indicator will show the charging status. A full charge takes approximately 110 minutes.
2. Col·locació/extracció de la bateria
- To attach: Slide the charged battery into the base of the drill/driver until it clicks securely into place.
- To remove: Press the release button on the battery and slide it out from the tool.
3. Inserting/Changing Bits and Drill Bits
The EasyDrill 1200 features a single-sleeve chuck for quick and easy accessory changes.
- To open the chuck: Rotate the front sleeve of the chuck counter-clockwise until the jaws are wide enough to insert the bit.
- To insert: Place the desired screwdriver bit or drill bit into the chuck. Ensure it is inserted as far as possible.
- To close the chuck: Rotate the front sleeve clockwise until the bit is firmly secured. Do not overtighten.
Imatge: Primer pla view of the drill/driver's chuck and the red speed selector switch.
Instruccions de funcionament
1. Selecting Speed and Torque
The EasyDrill 1200 has two main operating modes, selected via the red switch on top of the tool:
- Speed 1 (Screwing Mode): Use for driving screws. This mode offers 20 torque settings, adjustable by rotating the ring behind the chuck. Select a lower torque setting for smaller screws or softer materials to prevent overtightening or damaging the workpiece. Use higher settings for larger screws or harder materials.
- Speed 2 (Drilling Mode): Use for drilling holes. This mode provides a higher rotation speed for efficient drilling in wood, metal, and plastic.
Image: The red switch on top selects between speed 1 (screwing) and speed 2 (drilling). The numbered ring adjusts torque settings for screwing.
2. Screwing Operations
- Select Speed 1.
- Adjust the torque ring to an appropriate setting for your screw size and material. Start with a lower setting and increase if needed.
- Position the screwdriver bit on the screw head.
- Press the trigger to start driving the screw. The integrated LED light will illuminate the work area.
Image: A user demonstrating screwing with the Bosch EasyDrill 1200 in first speed, showing the tool's compact design.

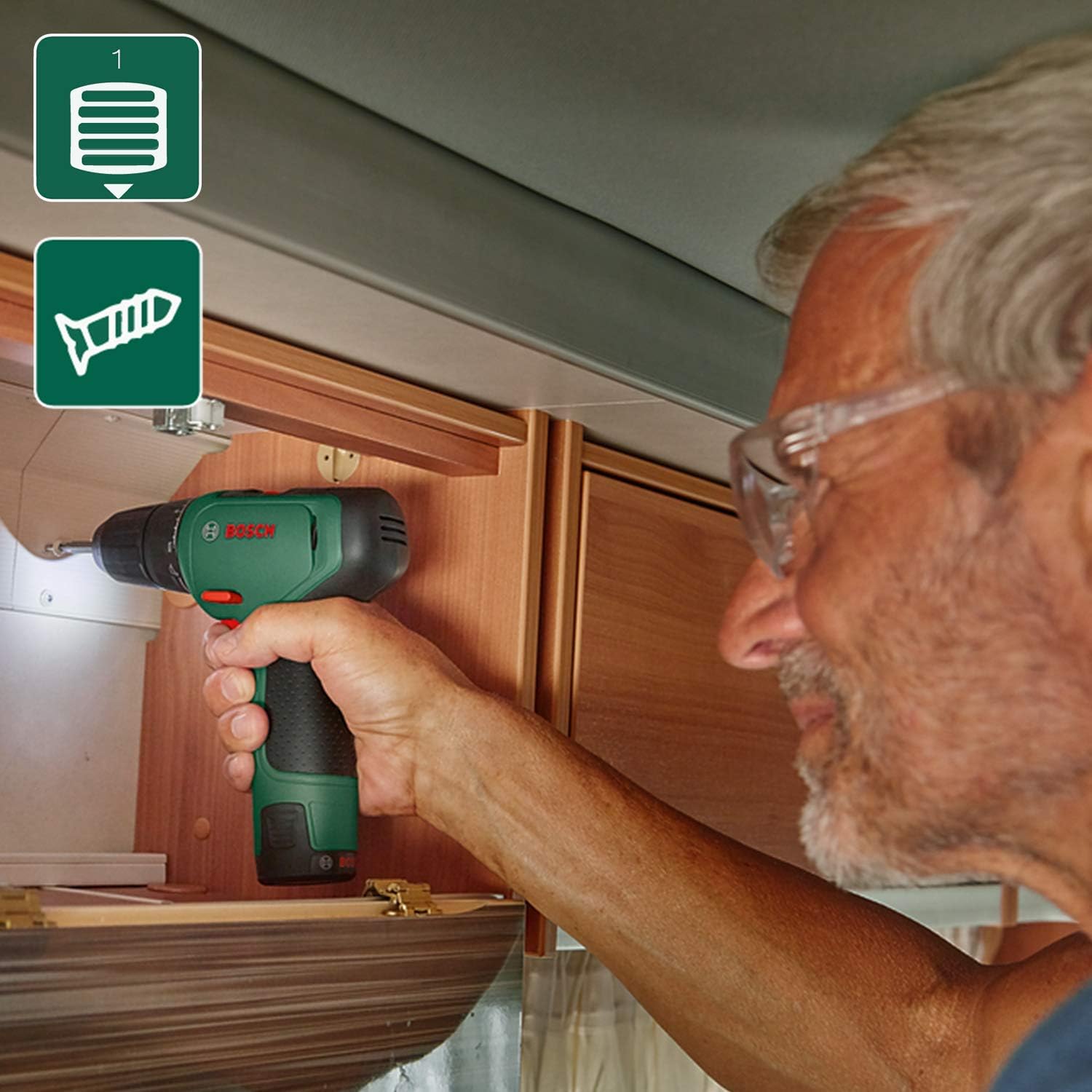

Image: The integrated LED light illuminates the work area, allowing for precise screwing even in confined or poorly lit spaces.
3. Drilling Operations
- Select Speed 2.
- Ensure the appropriate drill bit for the material (wood, metal, plastic) is securely installed.
- Col·loqueu la broca al punt de perforació desitjat.
- Press the trigger to start drilling. Apply steady, even pressure.

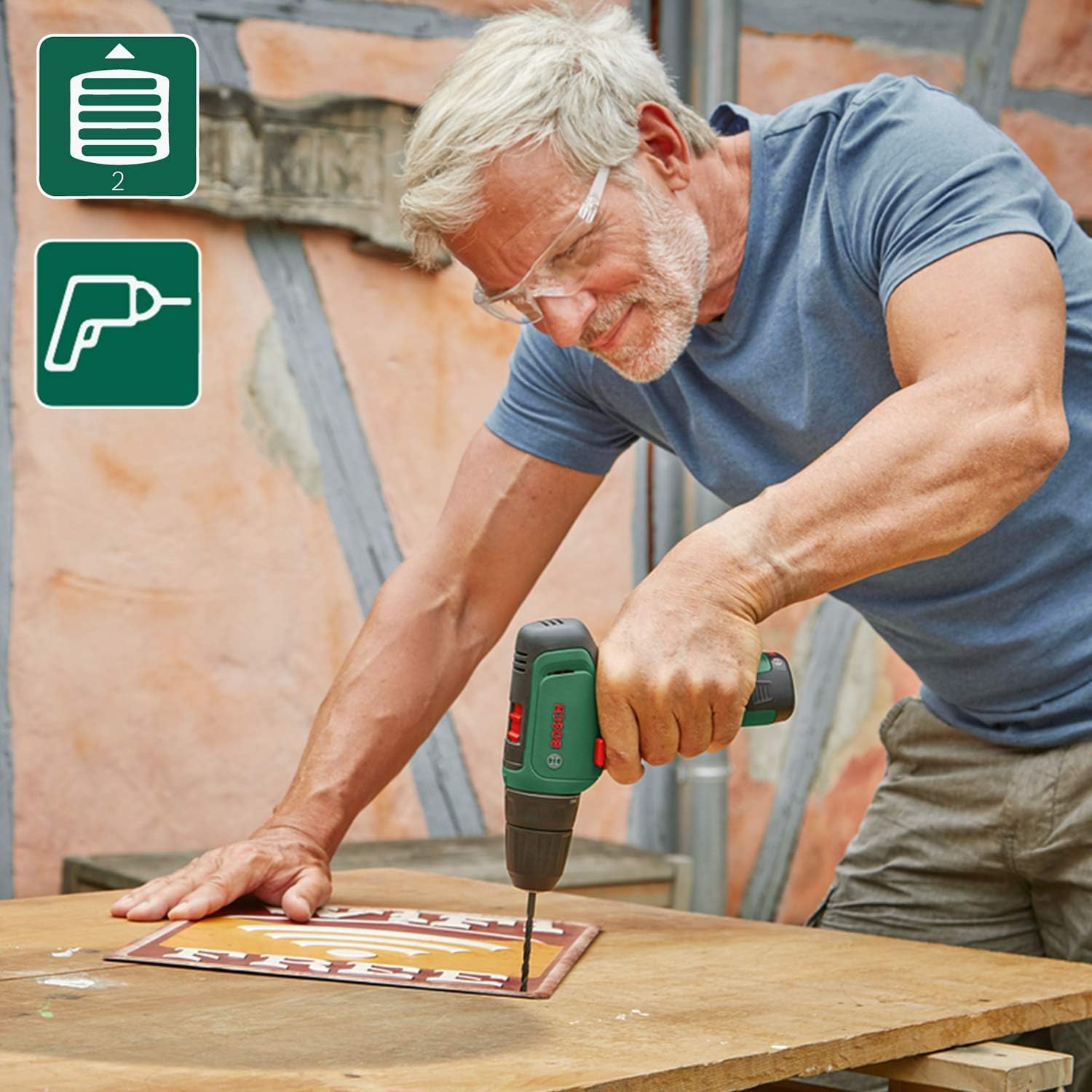

Image: A user demonstrating drilling with the Bosch EasyDrill 1200 in second speed, suitable for various materials.
4. Power for ALL 12V System
The 12V battery included with your EasyDrill 1200 is part of the Bosch Power for ALL 12V system. This means the same battery can be used across a wide range of Bosch Home & Garden 12V tools, offering flexibility and cost savings.
Image: Diagram illustrating the compatibility of the 12V Power for ALL battery with various Bosch Home & Garden tools.
5. General Drill/Driver Operation (Video Demonstration)
Video: This video demonstrates the general operation of a Bosch 12V Cordless Drill/Driver, including bit changes, screwing, and drilling. While featuring a different model (GSR 12V-15), the core functionalities are similar and provide a useful visual guide.
Manteniment
1. Neteja
- Traieu sempre la bateria abans de netejar-la.
- Keep the ventilation slots clean to prevent overheating. Use a soft brush or compressed air.
- Netegeu la carcassa de l'eina amb un drap suau iamp tela. No utilitzeu agents de neteja o dissolvents forts.
- Clean the chuck regularly to ensure smooth operation and secure bit retention.
2. Cura de la bateria
- Guardeu les piles en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Do not store fully discharged batteries for extended periods. Charge them periodically to maintain battery health.
- If the battery is hot after use, allow it to cool down before charging.
3. Emmagatzematge
Store the drill/driver and its accessories in the provided soft carrying bag in a dry, secure location, out of reach of children.
Resolució de problemes
L'eina no s'encén:
- Check if the battery is properly inserted and fully charged.
- Ensure the forward/reverse switch is not in the middle (locked) position.
Reduced Power or Short Battery Life:
- The battery may need recharging.
- Battery performance can decrease in very cold conditions. Allow the battery to warm up.
- Ensure you are using the correct torque setting for the task. High torque demands more power.
Bit/Drill Bit Slipping in Chuck:
- Assegureu-vos que el mandril estigui ben ajustat.
- Check if the bit/drill bit shank is clean and free from debris.
- Verify that the bit/drill bit is compatible with the chuck size.
Soroll o vibració inusual:
- Deixeu d'utilitzar l'eina immediatament.
- Check for any loose parts or damaged accessories.
- If the issue persists, contact Bosch customer support.
Especificacions
| Característica | Especificació |
|---|---|
| Voltage/Capacitat | 12 V / 2.0 Ah |
| No-load Speed (1st gear) | 0–400 RPM |
| No-load Speed (2nd gear) | 0–1500 RPM |
| Max Torque | 30 Nm |
| Max Screwing Torque (soft/hard) | 18 / 30 Nm |
| Drilling Diameter in Steel | 8 mm |
| Drilling Diameter in Wood | 20 mm |
| Max Screwing Diameter | 6 mm |
| Model de carregador | GAL 1210 CV |
| Temps de càrrega | Aprox. 110 min |
| Pes amb bateria | 1.0 kg |
| Dimensions del producte (L x A x A) | 26.1 x 10.1 x 29.5 cm |
| Font d'alimentació | Funciona amb bateria |
| Material | Durable plastic, soft rubber grip |
Garantia i Suport
Garantia del fabricant:
The Bosch EasyDrill 1200 comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty information provided in the product packaging or on the official Bosch weblloc.
Atenció al client:
For technical assistance, spare parts, or service inquiries, please visit the official Bosch Home & Garden website or contact their customer service department. Contact information can typically be found on the Bosch weblloc web o a la documentació del producte.
