YISSVIC 500W 2L Electric Food Chopper Instruction Manual

Introducció

Thank you for choosing the YISSVIC 500W 2L Electric Food Chopper. This appliance is designed for efficient and versatile food preparation, including chopping, mincing, pureeing, and mixing various ingredients. To ensure safe and optimal performance, please read this instruction manual thoroughly before first use and retain it for future reference.

Image: The YISSVIC Electric Food Chopper, showcasing its stainless steel bowl and motor unit, surrounded by fresh ingredients such as meat, corn, carrots, and pomegranates, highlighting its versatility.

Instruccions importants de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i/o lesions a les persones, incloent-hi les següents:

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• Do not immerse the main motor unit in water or any other liquid. Clean the surface of the main unit only with a damp tela.
• Keep hands and utensils out of the processing bowl while chopping to prevent severe injury to persons or damage to the food chopper. A scraper is provided for this purpose.
• Ensure the appliance is unplugged from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• No feu funcionar cap aparell amb el cable o l'endoll danyats, o després que l'aparell no funcioni correctament o s'hagi deixat caure o s'hagi fet malbé de qualsevol manera. Poseu-vos en contacte amb el servei d'atenció al client per a la seva revisió, reparació o ajust.
• Eviteu el contacte amb les peces mòbils. Les fulles són afilades. Manipuleu amb cura.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora d'una taula o taulell, ni toqui superfícies calentes.
• Continuous operation should not exceed 1 minute to protect the motor from overheating. Allow the chopper to cool for 30 minutes before resuming use.

Image: A close-up diagram illustrating the connection protection device, ensuring the motor unit is securely engaged with the bowl before operation.

Components del producte

Familiarize yourself with the parts of your YISSVIC Electric Food Chopper:

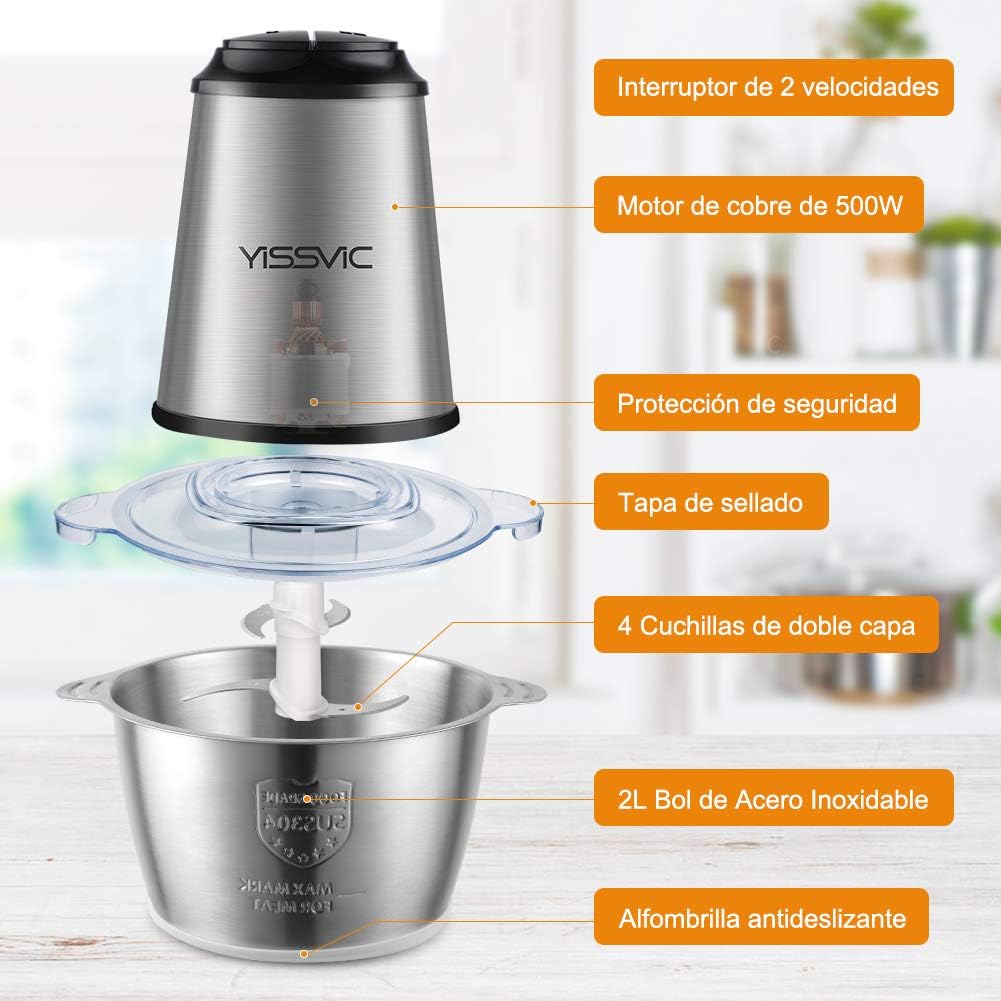

Imatge: Una explosió view diagram of the food chopper, clearly labeling its main components: the 2-speed switch, 500W copper motor, safety protection, sealing lid, 4 double-layer blades, 2L stainless steel bowl, and anti-slip mat.

• Unitat motora principal: Contains the 500W copper motor and 2-speed control switch.
• Bol d'acer inoxidable de 2 L: Durable food-grade stainless steel bowl with a maximum capacity of 2 liters.
• Tapa transparent: Seals the bowl during operation.
• Blade Assemblies (x2): Each assembly features 4 sharp, double-layer stainless steel blades. Two assemblies are included for extended lifespan.
• Anti-slip Mat: Proporciona estabilitat durant el funcionament.
• Raspador: For safely removing processed food from the bowl.
• Blade Protectors: For safe storage of the blades.

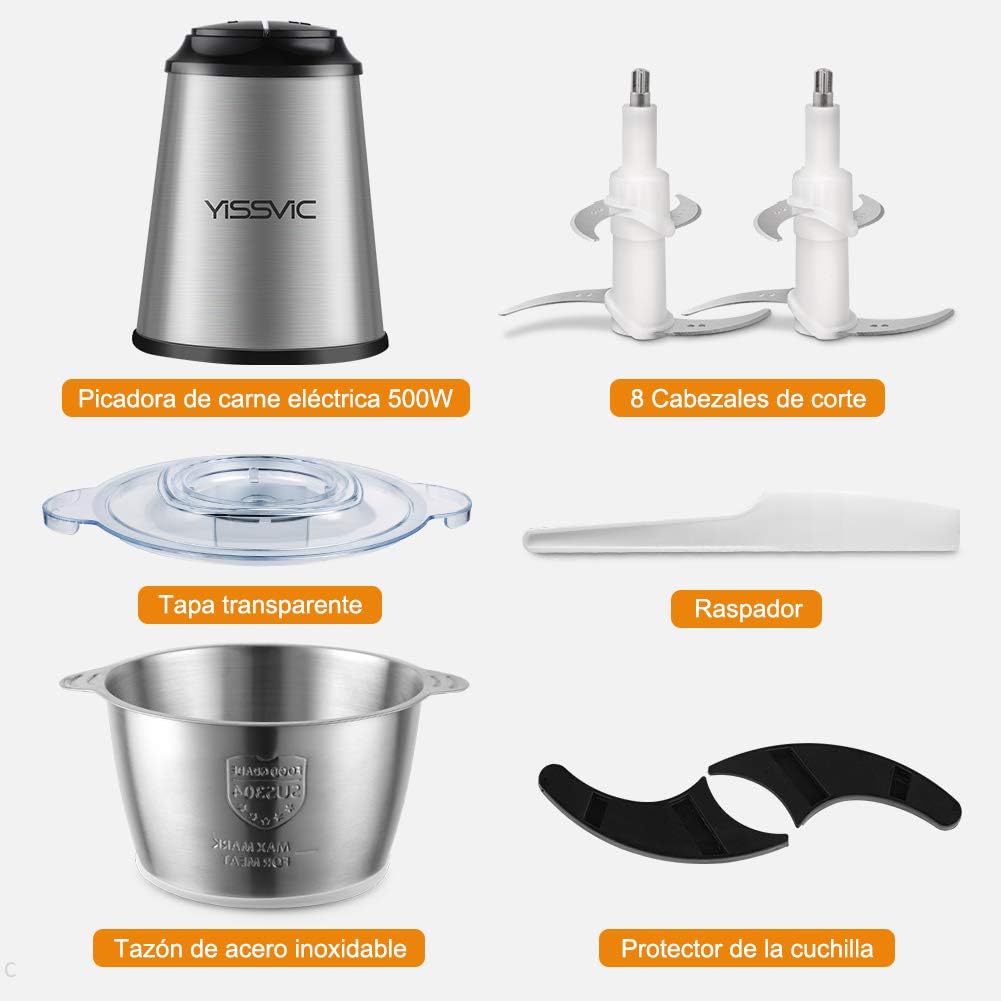

Image: A visual representation of all components included with the YISSVIC Electric Food Chopper, laid out neatly on a surface.

Imatge: Una imatge detallada view of the three-dimensional double-layer blade, highlighting its design for efficient chopping.

Instruccions de configuració

Follow these steps to assemble your food chopper before use:

1. Place Anti-slip Mat: Position the anti-slip mat on a clean, dry, and stable surface.
2. Col·locar el bol: Place the stainless steel bowl onto the anti-slip mat.
3. Inserir fulla: Carefully place one of the blade assemblies onto the central shaft inside the bowl. Ensure it is securely seated.
4. Afegir ingredients: Put your desired food items into the bowl. Do not overfill.
5. Tapa amb tapa: Place the transparent lid onto the bowl, ensuring it is properly aligned and sealed.
6. Install Motor Unit: Place the main motor unit onto the lid, aligning the motor shaft with the blade assembly. Ensure it clicks into place for safety.

Image: A six-step visual guide demonstrating the assembly process of the food chopper, from placing the mat to installing the motor unit and removing processed food.

Instruccions de funcionament

Your YISSVIC food chopper features two speed settings for various ingredients:

• Speed I (Low Speed): Ideal for softer ingredients such as vegetables, fruits, garlic, and peppers.
• Speed II (High Speed): Suitable for harder ingredients like meat, carrots, zucchini, and nuts.

Directrius d'ús:

1. Ensure the chopper is properly assembled and plugged into a suitable power outlet.
2. Press the desired speed switch (I or II) to start operation.
3. Process food in short pulses for better control over consistency.
4. Do not operate continuously for more than 1 minute. If longer processing is needed, allow the motor to cool down for at least 30 minutes before resuming. This prevents motor damage from overheating.
5. Once processing is complete, release the switch, unplug the appliance, and carefully disassemble. Use the provided scraper to remove food.

Image: A visual guide to the two speed settings, showing which ingredients are best suited for low speed (I) and high speed (II).

Recommended Processing Times (for 500g portions):

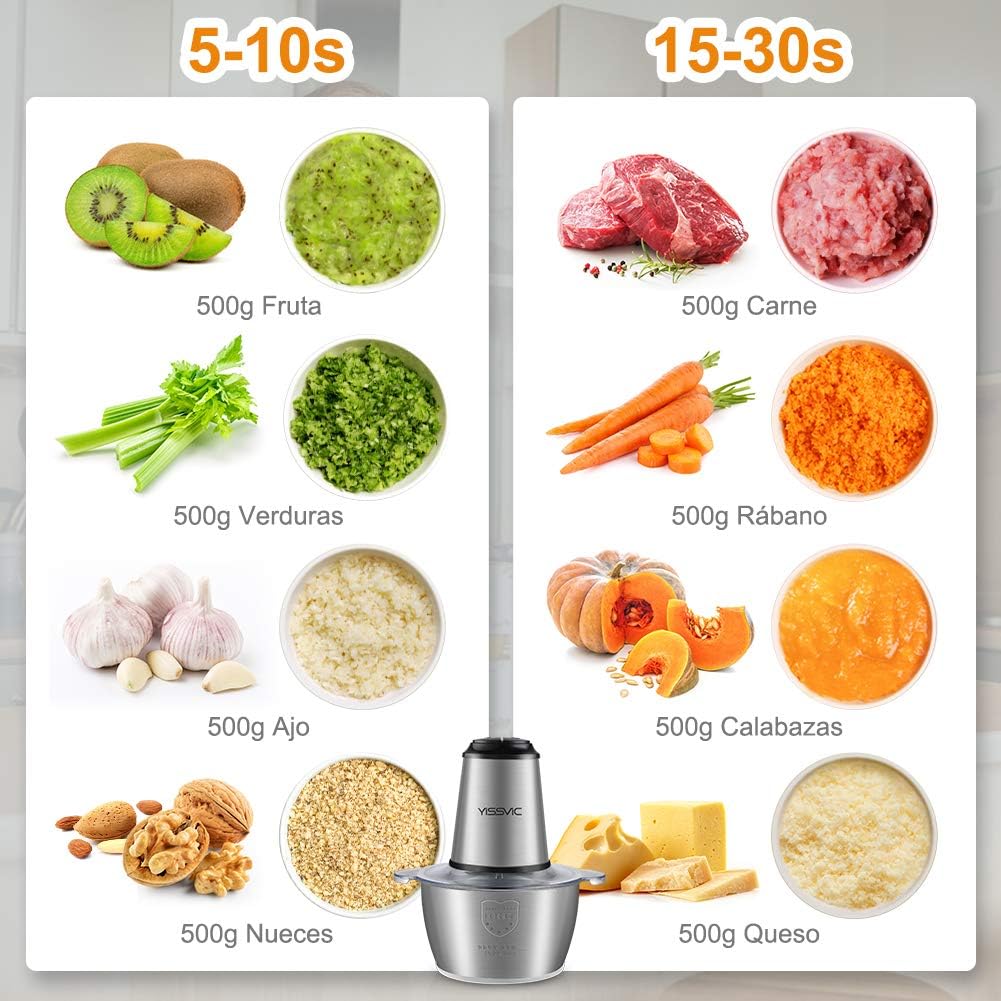

Image: A chart indicating approximate processing times for different food types, such as fruits, vegetables, garlic, nuts (5-10 seconds), and meat, radish, pumpkin, cheese (15-30 seconds).

Chopped Garlic

Chopped Meat

Chopped Carrots

Chopped Chili

Neteja i Manteniment

Proper cleaning and maintenance will ensure the longevity of your food chopper:

1. Desconnectar: Desconnecteu sempre l’aparell de la presa de corrent abans de netejar-lo.
2. Desmuntar: Carefully disassemble all removable parts: the motor unit, lid, blade assembly, and stainless steel bowl.
3. Fulles netes: Handle the blades with extreme care as they are very sharp. Wash them under running water with a mild detergent. Use a brush if necessary. Store them with the blade protectors.
4. Netegeu el bol i la tapa: The stainless steel bowl and transparent lid can be washed with warm soapy water or placed in the dishwasher (top rack recommended).
5. Unitat motora neta: Netegeu la unitat del motor principal amb anunciamp drap. NO submergiu la unitat del motor en aigua ni en cap altre líquid.
6. Assecar bé: Assegureu-vos que totes les peces estiguin completament seques abans de tornar a muntar o emmagatzemar.

Image: The detachable design of the food chopper components, illustrating how easily the lid and bowl separate for cleaning.

Resolució de problemes

If you encounter issues with your YISSVIC Electric Food Chopper, refer to the following common problems and solutions:

Especificacions

Technical details for the YISSVIC Electric Food Chopper:

Image: A diagram detailing the dimensions of the motor base and the 2L stainless steel bowl, providing a clear understanding of the product's size.

Garantia i Suport

Information regarding specific warranty terms and customer support contact details is not available in the provided product data. Please refer to the product packaging or the retailer's website for warranty information and customer service contacts.
