SHAD Top Master Fitting Kit for Kawasaki Z125

1. Introducció

This manual provides comprehensive instructions for the proper installation, operation, and maintenance of the SHAD Top Master Fitting Kit (Model K0Z119ST) designed specifically for the Kawasaki Z125 motorcycle. Please read this manual thoroughly before beginning installation to ensure correct assembly and safe use of the product. Retain this manual for future reference.

2. Informació de seguretat

• Always wear appropriate safety gear durant la instal·lació.
• Ensure the motorcycle is stable and on a level surface before starting installation.
• Do not exceed the maximum load capacity specified for your SHAD top case or motorcycle.
• Regularly check all fasteners for tightness, especially after the first few rides and periodically thereafter.
• Improper installation can lead to instability, loss of control, or detachment of the top case, potentially causing serious injury or damage. If unsure, seek professional assistance.
• This fitting kit is designed for specific SHAD top cases and plates. Do not attempt to use it with incompatible products.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al vostre paquet:

• SHAD Top Master Fitting Kit (K0Z119ST)
• Screw Set and Fasteners

Nota: A SHAD top case plate is required for mounting a top case. This plate is typically included with SHAD top cases (except TR48/TR37 models) and is not part of this fitting kit package.

4. Configuració i instal·lació

The SHAD Top Master fitting kit is designed for easy and secure installation on the Kawasaki Z125. Follow these general steps. Refer to the detailed diagram included with your physical product for precise bolt locations and torque specifications.

1. Preparació de la motocicleta: Ensure the motorcycle is turned off, stable, and cool. Remove any existing rear rack components or passenger grab handles as instructed in your motorcycle's service manual, if necessary.
2. Position the Fitting Kit: Carefully align the SHAD Top Master fitting kit components with the designated mounting points on the rear of your Kawasaki Z125. This kit is specifically engineered for a precise fit.
3. Secure Initial Bolts: Insert the provided screws and fasteners into their respective holes. Hand-tighten all bolts initially to ensure proper alignment without forcing any components.
4. Attach the Top Case Plate: Once the fitting kit is securely mounted, attach your compatible SHAD top case plate (D1B29PA, D1B40PA, or D1B591PA) to the fitting kit using the hardware supplied with the plate. Ensure the plate is oriented correctly. Important: This fitting is not compatible with aluminum top case plates.
5. Ajustament final: Once all components are aligned, progressively tighten all bolts to the manufacturer's specified torque settings. Start from the center and work outwards. Double-check all connections for security.

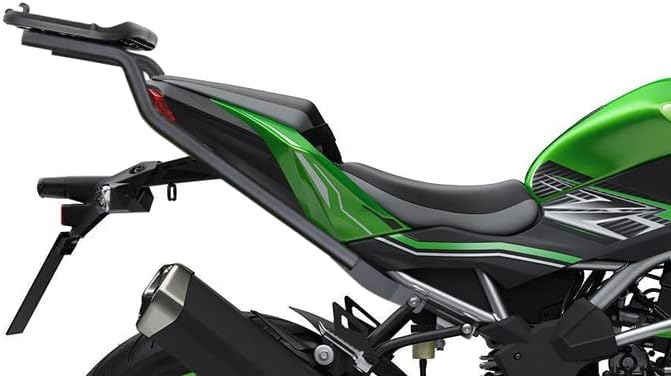

Image 1: SHAD Top Master fitting kit installed on a Kawasaki Z125, viewed from the rear, without a top case. This image shows the robust structure of the fitting kit.

Image 2: Kawasaki Z125 with SHAD Top Master fitting kit and a SHAD top case installed. This view demonstrates the complete setup with luggage.

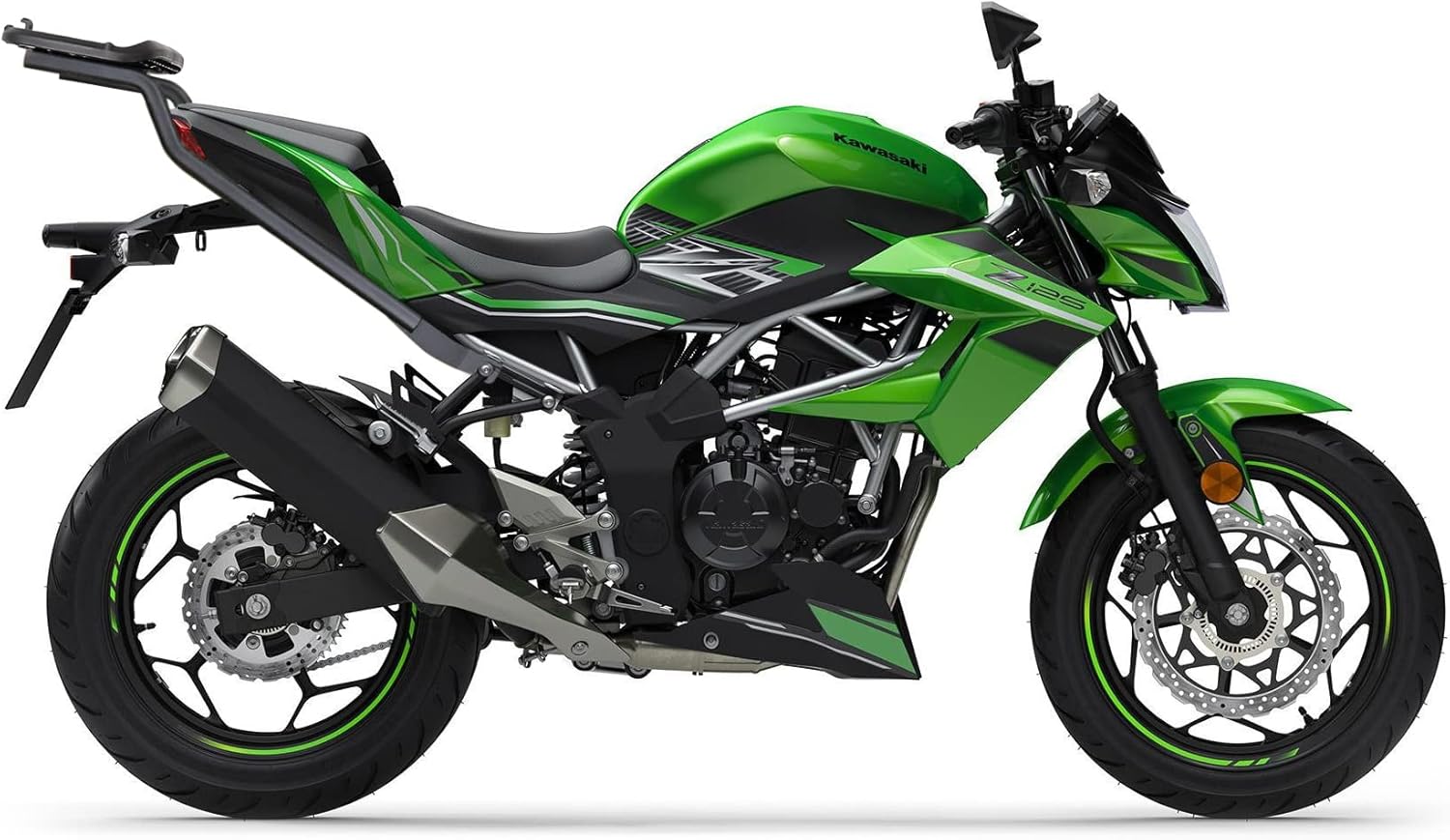

Imatge 3: Costat sencer view of a green Kawasaki Z125 motorcycle. This image provides a visual reference of the motorcycle model for which the fitting kit is designed.

5. Instruccions de funcionament

Once the SHAD Top Master fitting kit and compatible top case plate are installed, you can easily attach and detach your SHAD top case.

• Attaching the Top Case: Align the bottom of your SHAD top case with the corresponding grooves on the installed top case plate. Push down firmly until you hear a click, indicating it is securely locked. Always test the security by gently pulling upwards on the top case.
• Detaching the Top Case: Insert your key into the top case lock and turn it to the unlock position. Press the release button (location varies by top case model, typically near the lock or handle) and lift the top case upwards to remove it from the plate.
• Seguretat: Always ensure the top case is locked when riding to prevent accidental detachment and theft.

6. Manteniment

Proper maintenance ensures the longevity and safe operation of your SHAD Top Master fitting kit.

• Inspecció periòdica: Periodically inspect the fitting kit for any signs of wear, damage, or corrosion. Check all welded joints and connection points.
• Comprovació de fixació: Re-tighten all mounting bolts and screws every 3,000 km (approximately 1,800 miles) or every 3 months, whichever comes first. Do not overtighten.
• Neteja: Clean the fitting kit with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Lubricació: If any moving parts (e.g., quick-release mechanisms on the top case plate) become stiff, apply a small amount of silicone-based lubricant.

7. Solució De Problemes

If you encounter issues with your SHAD Top Master fitting kit, consider the following:

• Fitting Kit Does Not Align: Double-check that you have the correct model (K0Z119ST) for your Kawasaki Z125. Ensure no motorcycle components are obstructing the installation points. Re-read the installation steps carefully.
• Top Case Feels Loose: Verify that the top case is properly clicked into place on the plate. Inspect the top case plate for any damage or wear that might prevent a secure lock. Ensure all bolts securing the fitting kit and plate are tightened to specification.
• Difficulty Attaching/Detaching Top Case: Check for any debris or obstruction in the locking mechanism of the top case or plate. Ensure the key is fully inserted and turned to the correct position for release.
• Peces que falten: Refer to the 'Package Contents' section. If parts are missing upon unboxing, contact your retailer or SHAD customer support immediately.

8. Especificacions

9. Garantia i Suport

SHAD products are manufactured to high-quality standards and come with a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or to purchase replacement parts, please contact SHAD customer service through their official website or your authorized SHAD dealer. Provide your product model number (K0Z119ST) and purchase details when contacting support.
