Newland NLS-BS8060-3V Wireless 1D Barcode Reader User Manual

1. Introducció

This user manual provides comprehensive instructions for the Newland NLS-BS8060-3V Wireless 1D Barcode Reader. It covers product features, setup, operation, maintenance, and troubleshooting. Please read this manual thoroughly before using the device to ensure proper operation and to maximize its lifespan.

2. Contingut del paquet

Si us plau, comproveu el contingut del paquet en desembalar-lo per assegurar-vos que tots els elements hi són i no estan danyats:

• Newland NLS-BS8060-3V Barcode Reader
• MicroUSB Cable (Type B)
• Manual d'usuari

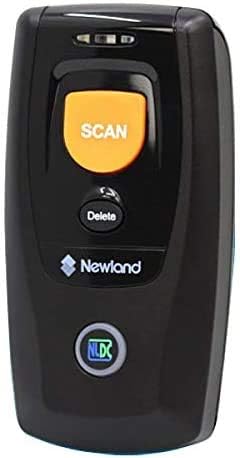

Imatge: Frontal view of the Newland NLS-BS8060-3V Barcode Reader, showing the 'SCAN' button and 'Delete' button, along with the Newland logo.

3. Característiques del producte

• Advanced Decoding: Equipped with the latest decoder chip for efficient and accurate reading of major 1D barcodes.
• Superior Performance & Connectivity: Offers excellent reading performance with Bluetooth 4.0 BLE compatibility, ensuring low power consumption.
• Abast de comunicació ampliat: Provides stable communication over a wide range, up to 50 meters, allowing for flexible operation in various environments.
• Llarga vida útil de la bateria: Features a large capacity lithium battery, significantly extending the operating time for prolonged use.
• Customizable Feedback: Supports vibration feedback for scan confirmation, with an option to disable the audible beep sound for quiet environments.

Image: The barcode reader shown with a wrist strap, highlighting its Bluetooth connectivity and IP42 dust and water resistance rating.

4. Configuració

4.1 Càrrega del dispositiu

Before first use, fully charge the barcode reader. Connect the supplied MicroUSB Type B cable to the charging port on the device and the other end to a USB power adapter or a computer's USB port.

Image: Diagram illustrating how to connect the MicroUSB cable to the barcode reader for charging.

4.2 Engegada/apagada

To power on the device, press and hold the 'SCAN' button for a few seconds until the indicator light illuminates. To power off, press and hold the 'SCAN' button again until the indicator light turns off.

4.3 Vinculació Bluetooth

The NLS-BS8060-3V uses Bluetooth 4.0 BLE for wireless communication. To pair with a host device (e.g., computer, tablet, smartphone):

1. Ensure the barcode reader is powered on.
2. Activate Bluetooth on your host device and search for available devices.
3. The barcode reader should appear as "Newland NLS-BS8060-3V" or similar. Select it to pair.
4. Once paired, the indicator light on the barcode reader will change (refer to the device's specific LED indicator guide for details).

5. Instruccions de funcionament

5.1 Escaneig de codis de barres

To scan a barcode, point the scanner's window at the barcode and press the large orange 'SCAN' button. A successful scan will be indicated by a vibration (if enabled) and/or a beep sound (if enabled).

5.2 Transmissió de dades

Once a barcode is scanned, the data will be immediately transmitted to the paired host device. Ensure your host device is ready to receive input (e.g., a text editor, spreadsheet, or specific application is open and active).

5.3 Deleting Scanned Data (Batch Mode)

If the scanner is operating in batch mode (storing scans internally), you can delete the last scanned item or clear all stored data using the 'Delete' button. Refer to the full programming guide for specific sequences to clear data.

5.4 Sound and Vibration Settings

The device allows you to enable or disable the beep sound and vibration feedback. These settings are typically configured by scanning specific programming barcodes found in the comprehensive user guide provided by Newland.

6. Manteniment

6.1 Neteja

Per mantenir un rendiment òptim, netegeu regularment la finestra i l'exterior de l'escàner. Feu servir un drap suau i sense borrissol, fregant lleugerament.ampNetegeu amb aigua o una solució de neteja suau i no abrasiva. No utilitzeu productes químics agressius ni materials abrasius.

6.2 Cura de la bateria

To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly. If storing the device for an extended period, ensure it is charged to approximately 50% and store it in a cool, dry place.

6.3 Emmagatzematge

Store the barcode reader in a dry environment, away from extreme temperatures, direct sunlight, and corrosive substances. Keep it protected from drops and impacts.

7. Solució De Problemes

If the problem persists after trying these solutions, please contact Newland customer support or refer to the comprehensive programming manual.

8. Especificacions

9. Garantia i Suport

For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Newland weblloc web. També podeu contactar amb el vostre punt de venda per obtenir ajuda.

Newland Official Weblloc: www.newland-id.com
