Introducció
Gràcies per la compraasing the TENMIYA A13 Portable Bluetooth Speaker. This manual provides detailed instructions for the proper use, setup, and maintenance of your speaker. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity.
Informació de seguretat
- No exposeu l'altaveu a temperatures extremes, humitat ni llum solar directa.
- Eviteu deixar caure o sotmetre l'altaveu a forts impactes.
- Do not disassemble, repair, or modify the speaker yourself. Refer to qualified service personnel.
- Mantingueu l'altaveu lluny de l'aigua i altres líquids.
- Feu servir només el cable de càrrega i l'adaptador de corrent especificats.
- Netegeu l'altaveu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- 1 altaveu Bluetooth A13
- 1 x Remote control (requires 2*AAA batteries, not included)
- 1 x cable AUX
- 1 x cable USB
- 1 x manual d'usuari
Producte acabatview
The TENMIYA A13 is a portable Bluetooth speaker designed for versatile audio playback. It features a powerful subwoofer, two tweeters, and a rear heavy bass guide tube for rich sound. Key features include Bluetooth 5.0 connectivity, FM radio, TF/SD card support, USB playback, AUX input, a 3.5mm microphone jack, intelligent remote control, digital display, and colorful RGB lights.
Figure 1: TENMIYA A13 Portable Bluetooth Speaker with included remote control, highlighting wireless connectivity.

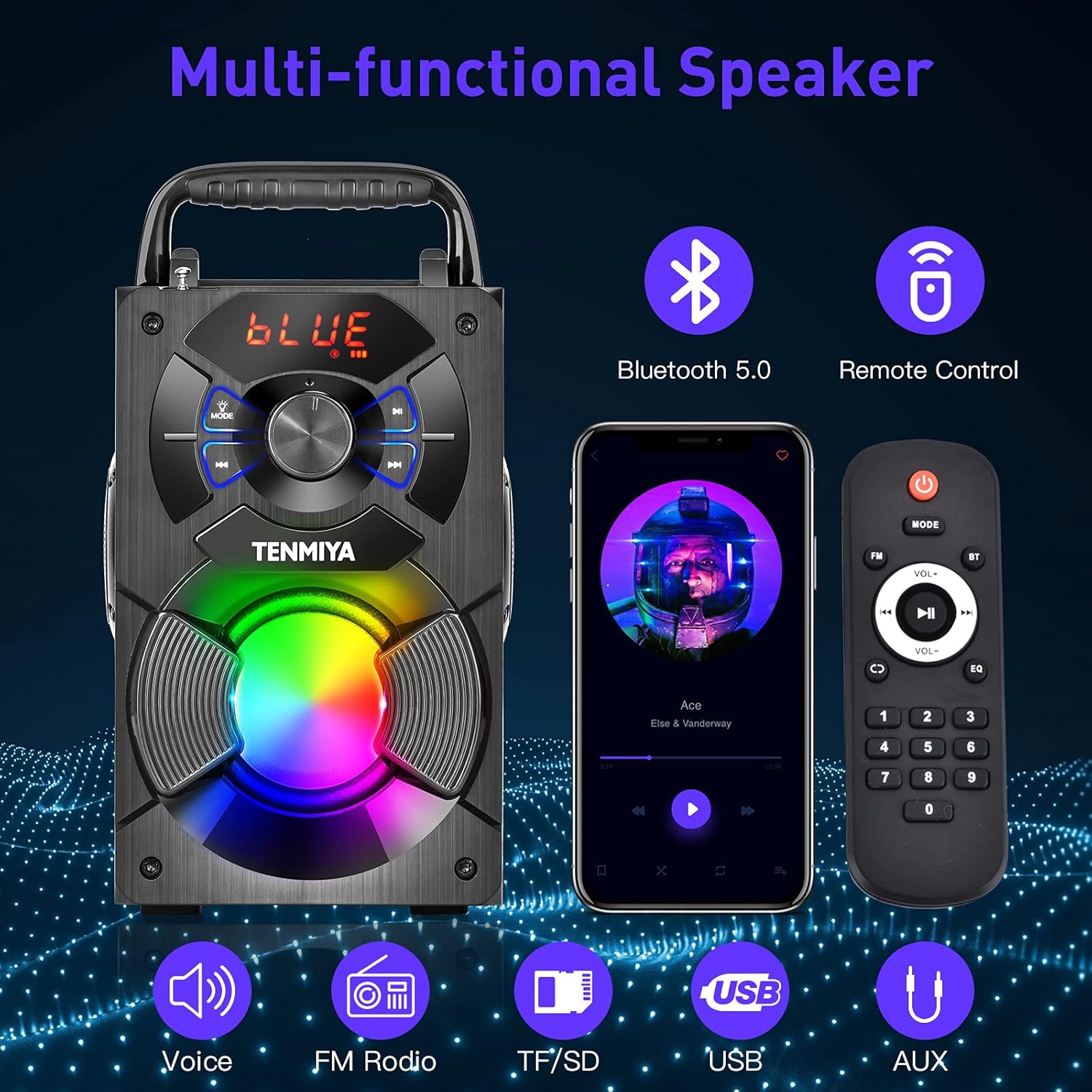

Figura 2: Mésview of the speaker's multi-functional capabilities including Bluetooth 5.0, remote control, voice prompts, FM radio, TF/SD card, USB, and AUX input.
Figure 3: Dimensions of the TENMIYA A13 Portable Bluetooth Speaker, showing its compact size and portability with a handle.
Configuració
Carregant l'altaveu
Before first use, fully charge the speaker. Connect the supplied USB cable to the speaker's DC 5V input port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will illuminate during charging and turn off when fully charged.
Encès/Apagat
To power on the speaker, press and hold the Power button until the digital display illuminates. To power off, press and hold the Power button again until the display turns off.
Instruccions de funcionament
Emparellament Bluetooth
- Turn on the speaker. It will automatically enter Bluetooth pairing mode, indicated by a flashing "BLUE" on the digital display.
- Activeu el Bluetooth al vostre telèfon intel·ligent, tauleta o altre dispositiu Bluetooth.
- Cerca "A13" in the list of available devices and select it to connect.
- Once successfully paired, the speaker will emit a confirmation tone, and "BLUE" on the display will stop flashing.
- Ara pots reproduir àudio des del teu dispositiu a través de l'altaveu.
Funcionament de la ràdio FM
- Press the "MODE" button on the speaker or remote control to switch to FM radio mode.
- Extend the antenna for better reception.
- To automatically search and save available stations, long press the "Play/Pause" button. The speaker will scan and store stations.
- Use the "Previous/Next" buttons to navigate between saved stations.
- Alternatively, use the remote control to manually input a station frequency.
Figure 4: The TENMIYA A13 speaker supporting FM radio, shown in an outdoor setting.
TF/SD Card Music Playback
Insert a TF (Micro SD) card into the TF card slot. The speaker will automatically switch to TF card mode and begin playing audio files (MP3, WAV, etc.) from the card.
USB Flash Drive Music Playback
Insert a USB flash drive into the USB port. The speaker will automatically switch to USB mode and begin playing audio files (MP3, WAV, etc.) from the drive.
AUX Line-in Connection
Connect one end of the supplied AUX cable to the speaker's AUX input port and the other end to the audio output jack of your external device (e.g., MP3 player, computer). Press the "MODE" button to switch to AUX mode.
Ús del micròfon
Connect a 3.5mm microphone (not included) to the speaker's microphone jack. The speaker will amplify the microphone input, allowing for karaoke or public speaking.
Funcions de control remot
The included remote control allows for convenient operation of the speaker from a distance. Ensure 2*AAA batteries are inserted correctly. Functions include:
- Potència: Enceneu/apaga l'altaveu.
- Mode: Switch between Bluetooth, FM, TF/SD, USB, and AUX modes.
- Volum +/-: Ajusteu el volum mestre.
- Anterior/Següent: Skip tracks or navigate FM stations.
- Reproduir/pausa: Play or pause audio. Long press for FM auto-scan.
- EQ: Cycle through various equalizer presets (Jazz, Rock, Classical, Pop, etc.).
- Bloc numèric: For direct input of FM frequencies.
Figure 5: User operating the TENMIYA A13 speaker with the remote control for convenient audio playback.
Llums de colors RGB
The speaker features built-in RGB colorful lights that enhance the listening experience. These lights typically activate automatically when the speaker is on. Specific controls for light modes may be available via the remote control or a dedicated button on the speaker (refer to the speaker's control panel for details).
Efectes de so d'equalització
The speaker includes various EQ sound effects to customize your audio experience. Press the "EQ" button on the remote control to cycle through presets such as Jazz, Rock, Classical, Pop, and more, adjusting the audio output to suit different music genres.
Manteniment
- Neteja: Feu servir un drap suau, sec i sense borrissol per netejar la superfície de l'altaveu. No utilitzeu netejadors líquids, aerosols ni dissolvents.
- Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu l'altaveu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu l'altaveu regularment, fins i tot si no l'esteu fent servir.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'altaveu no s'encén. | Bateria baixa. | Carregueu l'altaveu completament. |
| Sense so. | Volum massa baix; mode incorrecte; dispositiu no connectat. | Increase volume; switch to correct mode (Bluetooth, AUX, etc.); ensure device is paired/connected. |
| L'aparellament de Bluetooth falla. | L'altaveu no està en mode d'emparellament; el dispositiu és massa lluny; interferències. | Ensure speaker is in Bluetooth mode and flashing; move device closer; restart both devices. |
| Ràdio FM estàtica. | Senyal feble; antena no estesa. | Extend the antenna fully; try auto-scanning for stations again; move to a location with better reception. |
| El comandament a distància no funciona. | Batteries low or incorrectly inserted; remote out of range. | Replace AAA batteries; ensure correct polarity; point remote directly at the speaker; reduce distance. |
Especificacions
| Característica | Detall |
|---|---|
| Tipus de producte | Altaveu Bluetooth A13 |
| Potència de sortida dels altaveus | 5W + 3W x 2 (Total 11W) |
| Unitat d'altaveus | 3" (Subwoofer) + 2" x 2 (Tweeters) |
| Resposta de freqüència | 80Hz-20KHz |
| Impedància d'entrada | 10 kΩ |
| Entrada Voltage | DC 5V |
| Dimensions del producte | 6.1 x 4.72 x 7.48 polzades (18.52 x 11.51 x 22.5 cm) |
| Temps de joc | Approx. 6-8 hours (depends on playing volume) |
| Capacitat de la bateria | 2500 mAh (ió de liti) |
| Versió Bluetooth | 5.0 |
| abast sense fils | Up to 100 feet (barrier-free environment) |
| Funcions suportades | Bluetooth, MP3 music player, FM radio, TF Card, AUX, USB music player, Remote control, EQ, Karaoke |
| Dispositius compatibles | Computer, MP3, MP4, Smart Phone, Tablet, Laptop |
| Tipus de material | Fusta |
Garantia i Suport
TENMIYA products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official TENMIYA website. If you encounter any issues or have questions about your A13 speaker, please contact our customer service team. Our dedicated support staff will respond to your inquiries within 12 hours to assist you.
For customer service, please refer to the contact information provided on the product packaging or the official TENMIYA weblloc.
