CKPSMS Plastic Bobbins Instruction Manual

Introducció

This instruction manual provides essential information for the proper use and maintenance of your CKPSMS plastic bobbins. These high-quality replacement bobbins are designed for compatibility with various Kenmore household sewing machines. Please read this manual thoroughly to ensure optimal performance and longevity of your product.

Producte acabatview

The CKPSMS bobbin set includes 25 clear plastic bobbins and a clear storage box. These bobbins are manufactured from durable plastic material, ensuring smooth operation within compatible sewing machines.

Figure 1: CKPSMS Plastic Bobbins with Storage Box. The image displays the complete set of 25 clear plastic bobbins housed within their transparent storage case, illustrating their organized presentation.

• Número de peça: 102261103
• Nom de la part: Bobines
• Material: Plàstic
• Quantitat: 25 peces
• Inclòs: Caixa d'emmagatzematge

Especificacions

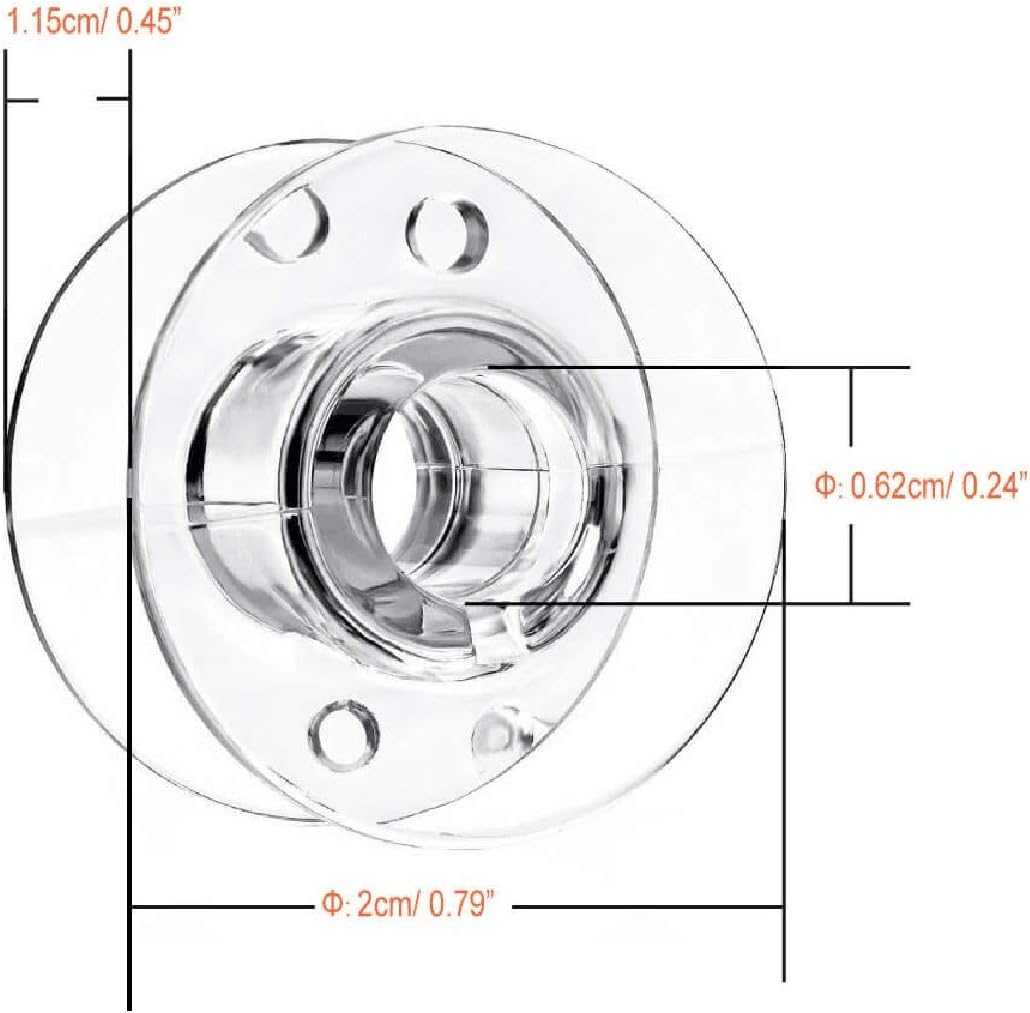

Figure 2: Bobbin Dimensions. This diagram illustrates the precise measurements of a single plastic bobbin, including its diameter and height, for accurate compatibility assessment.

Compatibilitat

These high-quality plastic bobbins are compatible with a wide range of Kenmore household sewing machines. Please verify your machine's model number against the lists below. Note that this list is not exhaustive, and compatibility may extend to other models not explicitly mentioned.

Compatible Kenmore 148/158 Series Models:

148.12140, 148.12181, 148.13100, 148.13022, 148.294, 158.10200, 158.10300, 158.10301, 158.10302, 158.10304, 158.10400, 158.10401, 158.10402, 158.10450, 158.10500, 158.10501, 158.10600, 158.121, 158.12110, 158.12111, 158.12112, 158.12120, 158.1212180, 158.12250, 158.12260, 158.12270, 158.12271, 158.12272, 158.12290, 158.12291, 158.12292, 158.12310, 158.12311, 158.12312, 158.12313, 158.12370, 158.12390, 158.12391, 158.12392, 158.12410, 158.12411, 158.12412, 158.12470, 158.12471, 158.12472, 158.12510, 158.12511, 158.12512, 158.12520, 158.130, 158.13010, 158.13011, 158.13030, 158.13031, 158.13032, 158.13033, 158.13040, 158.13041, 158.13050, 158.13150, 158.13160, 158.13170, 158.13180, 158.13190, 158.13200, 158.13201, 158.13250, 158.13360, 158.13400, 158.13401, 158.13402, 158.1340281, 158.13410, 158.13411, 158.13412, 158.13413, 158.13414, 158.13450, 158.1345180, 158.1345280, 158.1345380, 158.13470, 158.13471, 158.13500, 158.1350180, 158.1350280, 158.13510, 158.13512, 158.13513, 158.13520, 158.13521, 158.1355080, 158.13570, 158.13571, 158.13572, 158.13573, 158.13580, 158.1358180, 158.14000, 158.14001, 158.14002, 158.14003, 158.14100, 158.14101, 158.14300, 158.14301, 158.14310, 158.14311, 158.14510, 158.150, 158.15150, 158.15250, 158.1561280, 158.1561281, 158.1595180, 158.1595280, 158.1595281, 158.16000, 158.16010, 158.16012, 158.16030, 158.161, 158.162, 158.16250, 158.163, 158.16410, 158.16411, 158.16412, 158.16490, 158.16500, 158.16510, 158.16520, 158.16530, 158.16540, 158.16600, 158.17000, 158.17001, 158.17010, 158.17011, 158.17012, 158.17030, 158.17031, 158.17032, 158.17033, 158.17200, 158.17300, 158.17310, 158.17490, 158.17500, 158.17501, 158.17510, 158.17511, 158.17520, 158.17530, 158.17540, 158.17550, 158.17560, 158.17570, 158.17571, 158.17572, 158.17600, 158.17740, 158.17741, 158.1784182, 158.18020, 158.18021, 158.18022, 158.18023, 158.18024, 158.18030, 158.18031, 158.18032, 158.18033, 158.18034, 158.18130, 158.18131, 158.18140, 158.18141, 158.18150, 158.19130, 158.19131, 158.19140, 158.19141, 158.19142, 158.19310, 158.19311, 158.19312, 158.19410, 158.19411, 158.19412, 158.19460, 158.19470, 158.19471, 158.220, 158.221, 158.320, 158.321, 158.330, 158.331, 158.350, 158.351, 158.352, 158.353, 158.370, 158.371, 158.372, 158.373, 158.430, 158.431, 158.432, 158.433, 158.440, 158.441, 158.442, 158.443, 158.444, 158.445, 158.460, 158.461, 158.462, 158.463, 158.470, 158.471, 158.472, 158.480, 158.481, 158.500, 158.501, 158.502, 158.503, 158.504, 158.505, 158.540, 158.541, 158.542, 158.620, 158.650, 158.680, 158.6850, 158.750, 158.841, 158.842, 158.850, 158.900, 158.901, 158.902, 158.903, 158.904, 158.905, 158.920, 158.921, 158.922, 158.923, 158.924, 158.950, 158.960.

Compatible Kenmore 385 Series Models:

384.18028300, 385.11101, 385.11206, 385.11607, 385.11608490, 385.11682, 385.12014, 385.12049, 385.12102, 385.12116, 385.12216, 385.12314, 385.12318, 385.12514, 385.12545, 385.12581, 385.12612, 385.12614, 385.12618, 385.12712, 385.12714, 385.12781, 385.12812, 385.12814, 385.12912, 385.12916, 385.14052, 385.15008, 385.15510, 385.15512000, 385.15516000, 385.15518000, 385.1584180, 385.16020, 385.16120, 385.16126, 385.16130, 385.16221300, 385.16520, 385.16524000, 385.16528000, 385.1684180, 385.17624, 385.17626, 385.17628, 385.17641, 385.17724, 385.17781, 385.17822, 385.17824, 385.17826, 385.17828, 385.17881, 385.17922, 385.17928, 385.18080, 385.18230, 385.18330, 385.18630, 385.18830, 385.18836, 385.18841, 385.19000, 385.19001, 385.19005, 385.19110, 385.19112, 385.19150, 385.19153, 385.19157, 385.19233400, 385.12612090, 385.12714090, 385.19153690, 385.19150090, 385.19030790, 385.1884180, 385.18330990, 385.18230790, 385.17824090, 385.17822490, 385.1764180, 385.17622090, 385.17124790, 385.19606400, 385.18221800, 385.15108200, 385.12618890, 385.12614490, 385.12216790, 158.16801, 385.19365990, 158.17812, 158.882, 385.12014590, 385.12814490, 385.12102990, 385.1168291, 385.12912890, 385.15343600, 385.14052200, 385.15108, 385.15218400, 385.15212400, 385.15202400, 385.15208400, 385.1950280, 385.16020100, 385.17026590, 385.17928090, 385.18630890, 385.15358600, 385.17126690, 385.17627, 385.17724490, 385.18836090, 385.19106, 385.15358, 385.15408500, 385.19001890, 385.16231300, 385.1778180, 385.17826690, 385.1778181, 385.1278191, 385.11607090, 385.1168280, 385.11803800, 385.12116690, 385.12314990, 385.12318990, 385.12514590, 385.17628890, 385.17626890, 385.17324990, 385.176480, 385.16231301, 385.1915390, 385.19157100.

Configuració

Before using the bobbins, ensure they are clean and free from any debris. These bobbins are designed to be wound with thread according to your sewing machine's specifications.

1. Desembalar: Carefully remove the bobbins from their storage box.
2. Inspeccionar: Check each bobbin for any manufacturing defects or damage. Do not use damaged bobbins.
3. Enrotllament: Refer to your sewing machine's instruction manual for specific guidance on how to properly wind thread onto the bobbins. Ensure the thread is wound evenly and not overfilled.

En funcionament

Once wound, the bobbins are ready for insertion into your compatible sewing machine. The process for inserting the bobbin varies by machine model. Always consult your sewing machine's manual for precise instructions.

Figure 3: Bobbin in Sewing Machine. This image shows two bobbins and an example of a bobbin correctly placed within a sewing machine's bobbin compartment, indicated by an arrow.

General Bobbin Insertion Steps (Consult your machine's manual for specifics):

1. Open Bobbin Case/Area: Locate and open the bobbin case or bobbin loading area on your sewing machine. This is typically under the needle plate or in a front-loading compartment.
2. Insert Bobbin: Place the wound bobbin into the bobbin case or compartment, ensuring the thread unwinds in the correct direction (usually clockwise or counter-clockwise, as indicated by your machine).
3. Thread Path: Guide the bobbin thread through any tension springs or guides as specified by your machine's manual.
4. Compartiment tancat: Securely close the bobbin case cover or compartment door.
5. Prova: Perform a test stitch on scrap fabric to ensure proper tension and stitch formation before beginning your project.

Manteniment

Proper maintenance of your bobbins will extend their lifespan and ensure consistent sewing performance.

• Neteja: Periodically clean bobbins to remove lint and thread residue. A soft brush or compressed air can be used.
• Emmagatzematge: Store bobbins in the provided clear plastic box to keep them organized, clean, and protected from dust and damage.
• Inspecció: Before each use, quickly inspect bobbins for cracks, warping, or rough edges that could snag thread or damage your machine. Discard any damaged bobbins.
• Eviteu omplir excessivament: Do not overfill bobbins with thread, as this can lead to uneven winding, tension issues, or damage to the bobbin or machine.

Resolució de problemes

If you encounter issues while using the bobbins, consider the following common problems and solutions:

• Uneven Thread Winding:
  • Ensure the thread is correctly routed through the bobbin winding tension disc on your sewing machine.
  • Check that the bobbin is seated properly on the winding spindle.
• Thread Snapping/Breaking:
  • Verify that the bobbin is not overfilled.
  • Check for any burrs or rough spots on the bobbin that could be snagging the thread.
  • Ensure the bobbin is inserted with the thread unwinding in the correct direction for your machine.
• Skipped Stitches or Poor Stitch Quality:
  • Confirm the bobbin is correctly inserted into the bobbin case and the thread is properly tensioned.
  • Clean the bobbin area of your sewing machine to remove any lint buildup.
• Bobbin Not Fitting:
  • Double-check your sewing machine's model number against the compatibility list in this manual.
  • Ensure you are using the correct type of bobbin for your specific machine (these are Class 15 bobbins, common for many Kenmore models).

Garantia i Suport

Information regarding specific warranty terms for CKPSMS bobbins is not provided in the product details. For any product support or inquiries, please contact the seller directly through the platform where the purchase was made. Ensure to provide your order details and the product model number (102261103 25PCS+BOX) for efficient assistance.

Venedor: CKPSMS Officieel
