1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Autotek AYA-2100.4 Alloy Series Four Channel Car Audio Amplifier. Please read this manual thoroughly before attempting installation or operation to ensure proper function and to prevent damage to the unit or your vehicle's audio system.

The Autotek AYA-2100.4 is a Class A/B four-channel amplifier designed to deliver clear audio output for your car's speakers or subwoofers. It features a compact design, built-in electronic crossovers, and high-level inputs for versatile integration with various audio systems.

Figura 1.1: Davant view of the Autotek AYA-2100.4 Alloy Series Four Channel Car Audio Amplificador. Aquesta imatge mostra el amplifier's sleek silver casing with the Autotek logo and model number AYA-2100.4 prominently displayed, along with "2100 WATTS" indicating its power rating.

2. Informació de seguretat

Observeu les següents precaucions de seguretat durant la instal·lació i el funcionament:

• Desconnecteu sempre el terminal negatiu de la bateria del vehicle abans de començar qualsevol treball elèctric.
• Ensure all wiring is properly routed and secured to prevent damage from sharp edges or moving parts.
• Use appropriate gauge wiring for power and ground connections as specified in this manual to prevent overheating and potential fire hazards.
• Instal·leu el ampl'escalfador en un lloc que permeti una ventilació adequada per evitar el sobreescalfament.
• Eviteu instal·lar el fitxer amplifier in areas exposed to moisture or excessive vibration.
• If you are unsure about any part of the installation process, consult a qualified car audio professional.
• Aquest producte conté substàncies químiques que l'estat de Califòrnia sap que causen càncer i defectes congènits o altres danys reproductius (advertència de la Proposició 65).

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Autotek AYA-2100.4 Four Channel Car Audio Ampmés viu
• Manual d'usuari

4. Característiques del producte

The Autotek AYA-2100.4 amplifier incorporates several design elements for optimal performance:

• Minimize Distortion: High-quality RCA materials are used to prevent interference and distortion in the signal path. High-level inputs allow integration with OEM audio systems lacking RCA outputs.
• Built for Powerful Sound: Features high-speed Pro-Fi MOSFET components for maximized power efficiency, improved sound quality, and minimal distortion. A high-energy power supply is designed to deliver power with minimal impact on the vehicle's electrical system.
• Classe A/B Ampmés viu: Utilizes Class A/B topology and low-noise preamplifier circuitry to produce high-quality sound and achieve high power levels with minimal distortion.
• Dissipador de calor d'alumini: Quick Thermal Dispersion (QTD) technology ensures additional mass in the aluminum heat sink, keeping the amplifier cool and maintaining low distortion levels during normal operation.
• High Quality Connections: Nickel-plated brass connections and screw-down terminals provide secure connections and resist corrosion, allowing for easy access with hand tools.

5. Configuració i instal·lació

Una instal·lació correcta és crucial per al rendiment i la longevitat del vostre amplificador. Seguiu aquestes pautes amb atenció.

5.1 Ubicació de muntatge

Choose a mounting location that is dry, well-ventilated, and protected from direct sunlight or excessive heat. Ensure there is sufficient space around the amplifier for air circulation. Common locations include under seats, in the trunk, or behind panels.

5.2 Connexions de cablejat

Before making any connections, disconnect the negative terminal of your vehicle's battery.

Figura 5.1: Power and Speaker Terminal Side of the Autotek AYA-2100.4 Amplifier. This image shows the power input terminals (GND, REM, +12V), fuse holders (10A x 2), and the bridged and unbridged speaker output terminals for channels CH1, CH2, CH3, and CH4.

5.2.1 Connexions d'alimentació

• Terra (GND): Connect a heavy-gauge wire (e.g., 8 AWG or larger) from the amplifier's GND terminal to a clean, unpainted metal surface on the vehicle's chassis. Ensure a solid electrical connection.
• Remot (REM): Connecteu un cable d'encesa remota des de la sortida remota de la unitat principal a ampterminal REM del lificador. Aquest cable encén el ampengegueu i apagueu l'activador amb la unitat principal.
• +12V (Alimentació): Connect a heavy-gauge wire (e.g., 8 AWG or larger) from the amplifier's +12V terminal directly to the positive terminal of your vehicle's battery. Install an in-line fuse holder (rated appropriately for the amplifier's total current draw) within 18 inches of the battery.

5.2.2 Connexions d'altaveus

Connecteu els vostres altaveus al amplifier's speaker output terminals. The AYA-2100.4 is a four-channel amplifier, allowing for various configurations:

• Four-Channel Stereo: Connect one speaker to each channel (CH1, CH2, CH3, CH4).
• Two-Channel Bridged: Bridge channels (e.g., CH1+CH2 for one speaker, CH3+CH4 for another) for higher power output to two speakers or subwoofers. Refer to the amplifier's terminal markings for correct bridging.
• Three-Channel Mode: Bridge two channels for a subwoofer and use the remaining two channels for stereo speakers.

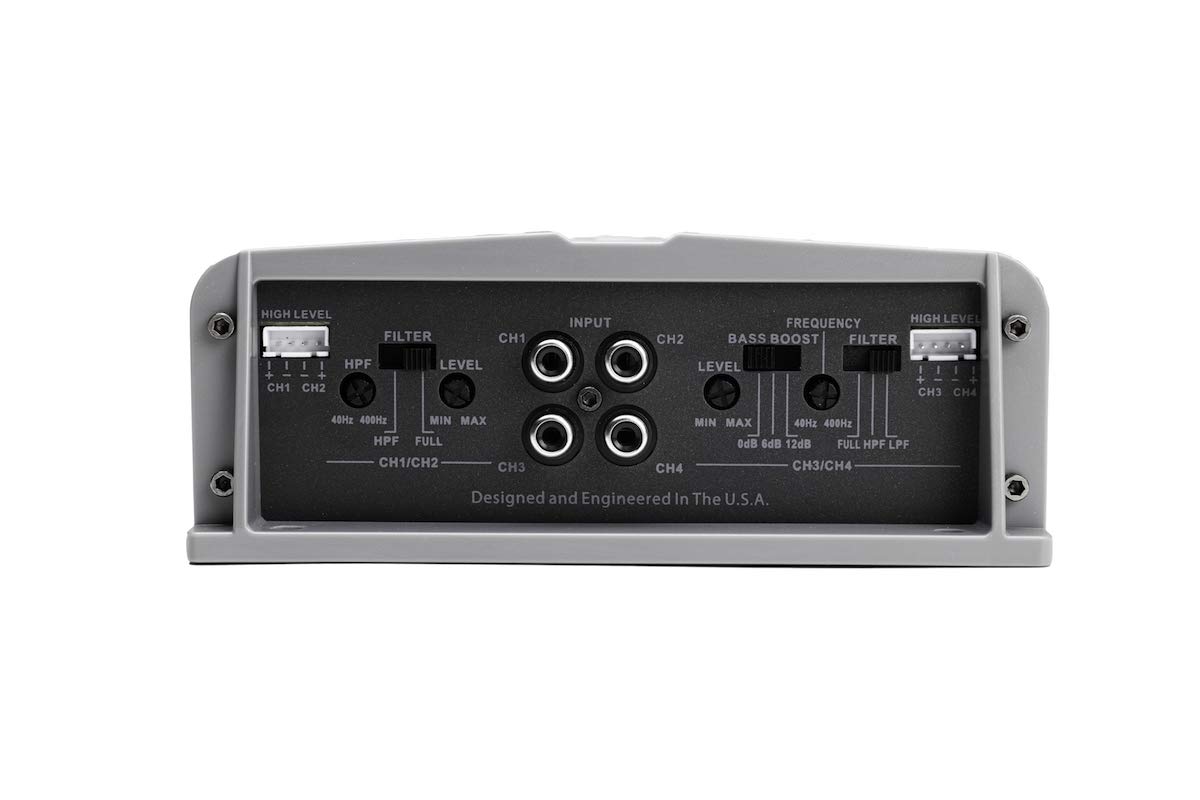

Figura 5.2: Input and Control Panel Side of the Autotek AYA-2100.4 Amplifier. This image details the high-level inputs, RCA inputs (CH1, CH2, CH3, CH4), gain controls (LEVEL), and crossover settings (HPF, LPF, BASS BOOST, FREQUENCY) for precise audio tuning.

5.2.3 Entrada de senyal

• Entrades RCA: Connecteu els cables RCA des del pre-emissor de la unitat principalamp sortides al amplifier's RCA inputs (CH1, CH2, CH3, CH4).
• Entrades d'alt nivell: If your head unit does not have RCA outputs, use the high-level inputs. Connect the speaker wires from your head unit directly to the ampterminals d'entrada d'alt nivell del lificador.

6. Instruccions de funcionament

Un cop instal·lat, el ampEl lificador requereix un ajust adequat per a una qualitat de so òptima.

6.1 Engegada inicial

After all connections are made and verified, reconnect the vehicle's battery negative terminal. Turn on your head unit. The amplifier should power on automatically via the remote turn-on wire, indicated by a power LED.

6.2 Adjusting Controls (Refer to Figure 5.2)

• LEVEL (Gain Control): Aquest control coincideix amb el ampla sensibilitat d'entrada del supervisor al nivell de sortida de la unitat principal. Comenceu amb el guany al mínim. Reproduïu una pista familiar a aproximadament el 75% del volum màxim de la unitat principal. Augmenteu lentament el amplifier's gain until you hear slight distortion, then back off slightly.
• FILTER (Crossover):
  • HPF (filtre de pas alt): Allows frequencies above the set point to pass through. Useful for speakers to prevent them from playing low bass, which can cause distortion.
  • LPF (filtre de pas baix): Allows frequencies below the set point to pass through. Essential for subwoofers to ensure they only reproduce bass frequencies.
  • COMPLET: Disables the crossover, allowing the full frequency range to pass.
  Adjust the HPF/LPF FREQUENCY controls according to your speaker types and desired sound.
• INTENSIFICACIÓ DELS SONS MÉS GREUS: This control provides an adjustable bass enhancement at a specific frequency. Use sparingly to avoid distortion and speaker damage.

It is recommended to make small adjustments and listen carefully to the sound output to achieve the desired audio balance.

7. Manteniment

The Autotek AYA-2100.4 amplifier is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure its longevity:

• Neteja: Mantenir el amplifier clean and free of dust and debris. Use a soft, dry cloth to wipe the exterior. Do not use harsh chemicals or solvents.
• Connexions: Periodically check all power, ground, remote, and speaker connections to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
• Ventilació: Assegureu-vos que el amplifier's heat sink fins are not obstructed, allowing for proper airflow and cooling.
• Fusibles: Si el amplifier stops working, check the fuses. Replace blown fuses only with fuses of the same type and rating (10A x 2).

8. Solució De Problemes

Si teniu problemes amb el vostre amplifier, consulteu la taula següent abans de contactar amb el servei d'assistència:

9. Especificacions

Key technical specifications for the Autotek AYA-2100.4 Ampmés viu:

10. Garantia i Suport

10.1 Informació de la garantia

Specific warranty details for the Autotek AYA-2100.4 amplifier are typically provided with the product packaging or can be found on the manufacturer's official website. Please retain your proof of purchase for warranty claims. Warranty coverage usually includes defects in materials and workmanship for a specified period from the date of purchase.

10.2 Atenció al client

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Autotek customer support. Refer to the official Autotek weblloc web o l'embalatge del producte per obtenir la informació de contacte més actualitzada.
