Biolomix D6300 Countertop Digital Touchscreen Blender User Manual

Introducció

Thank you for choosing the Biolomix D6300 Countertop Digital Touchscreen Blender. This appliance is designed for efficient blending of various ingredients, from smoothies and sauces to crushing ice. Please read this manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.

Instruccions importants de seguretat

Quan s'utilitzen aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat, incloses les següents:

• Llegiu totes les instruccions abans de fer servir la batedora.
• Per protegir-vos contra les descàrregues elèctriques, no submergiu la base del motor, el cable ni l'endoll en aigua ni en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no estigui en ús, abans de muntar o desmuntar peces i abans de netejar.
• Eviteu el contacte amb les peces mòbils.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• Mantingueu les mans i els estris fora del recipient mentre tritureu per reduir el risc de lesions greus a les persones o danys a la batedora. Es pot fer servir un rascador, però només quan la batedora no estigui en funcionament.
• Les fulles són afilades. Manipular amb cura.
• Feu servir sempre la batedora amb la tapa al seu lloc.
• Do not blend hot liquids that exceed the maximum capacity marked on the jug.
• Ensure the jug is securely seated on the motor base before operating.
• Aquest aparell només és per a ús domèstic.

Producte acabatview

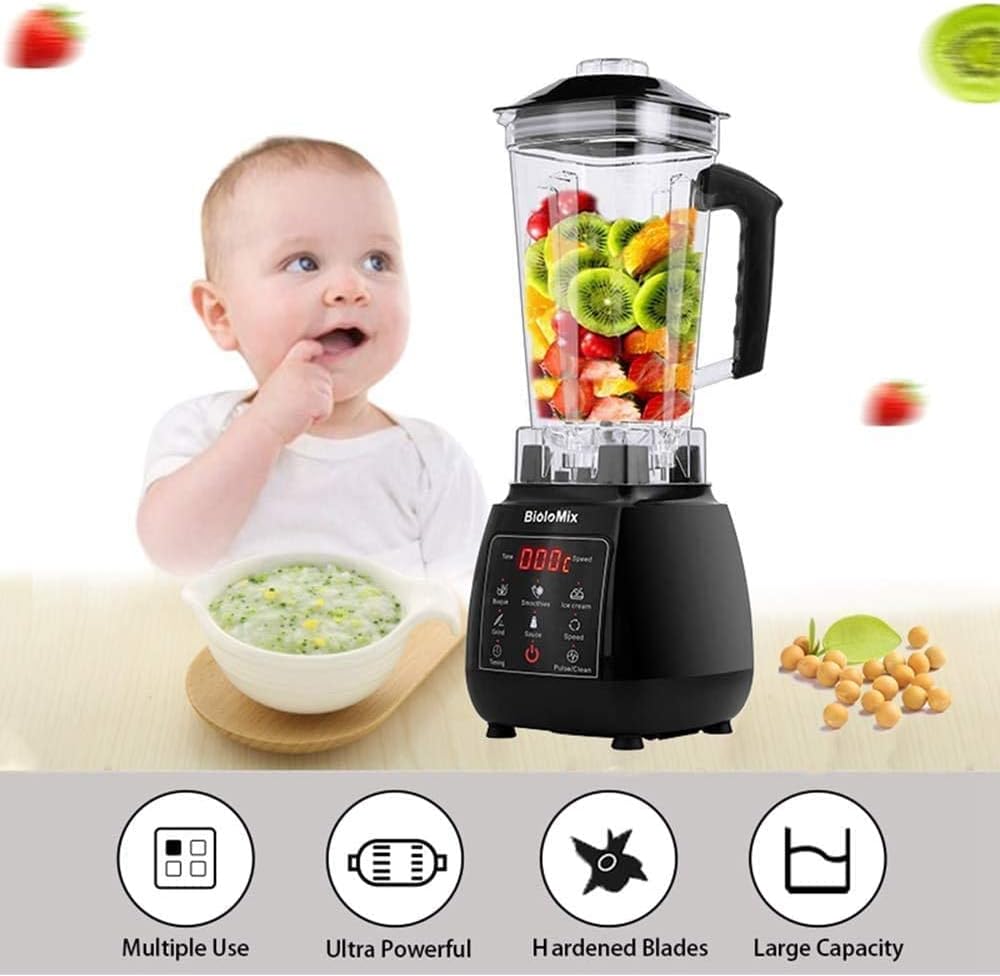

Imatge 1: The Biolomix D6300 Countertop Digital Touchscreen Blender, showing the motor base, 2-liter blending jug filled with fruit, and the included tampeh.

The Biolomix D6300 is a powerful countertop blender featuring a digital touchscreen interface. It is equipped with a 2200W motor and six stainless steel blades for efficient blending. The 2-liter jug is made from BPA-free plastic, designed for durability and large capacity blending tasks.

Contingut del paquet

Marqueu la casella per als elements següents:

• Biolomix D6300 Motor Base
• 2-Liter Blending Jug with Lid
• Tamper
• Manual d'usuari (aquest document)

Característiques del producte

Imatge 2: Close-up details of the blender, highlighting the non-slip handle, rubber cushion for noise reduction, and the non-slip base for stability.

• Motor potent: Peak 2200W motor with 38000 RPM for efficient blending.
• Fulles duradores: Six hardened stainless steel blades designed for various ingredients, including ice crushing.
• Large Capacity Jug: 2-liter BPA-free plastic jug for handling large volumes.
• Control de pantalla tàctil digital: Intuitive interface with LED display for easy operation.
• Configuració preprogramada: Five smart settings for common blending tasks: Bisque, Smoothies, Ice Cream, Grind, Sauce.
• Control ajustable: Manual time and speed adjustment options.
• Funció de pols: For quick bursts of power and controlled blending.
• Característiques de seguretat: Motor overheating protection and a safety button ensuring the blender only operates when the jug is correctly in place.
• Disseny fàcil d'utilitzar: Non-slip rubber handle, rubber cushion for reduced noise and vibration, and non-slip feet for stability.

Imatge 3: The digital touchscreen control panel, showing options for time, speed, pre-programmed functions (Bisque, Smoothies, Ice Cream, Grind, Sauce), and Pulse/Clean.

Imatge 4: Visual representation of the blender's versatility, illustrating its use for milkshakes, fruit juices, bisques, ice cream, nuts, and sauces.

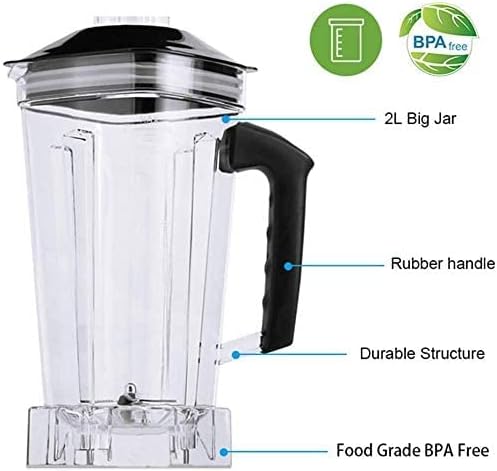

Imatge 5: A close-up of the 2-liter blending jug, highlighting its BPA-free food-grade material, durable structure, and ergonomic rubber handle.

Imatge 6: Un intern view illustrating the powerful motor and the design of the six stainless steel blades, featuring 14 sawteeth and a 30-degree fine grinding angle for optimal blending.

Configuració

1. Desembaleu tots els components i traieu qualsevol material d'embalatge.
2. Wash the blending jug, lid, and tamper with warm, soapy water before first use. Rinse thoroughly and dry.
3. Place the motor base on a clean, dry, and stable surface. Ensure it is away from the edge of the counter.
4. Ensure the power cord is unplugged from the electrical outlet.
5. Place the blending jug onto the motor base, ensuring it is securely seated. The blender has a safety mechanism that prevents operation if the jug is not correctly positioned.
6. Connecteu el cable d'alimentació a una presa de corrent adequada (220 V).

Instruccions de funcionament

Barreja general

1. Prepare your ingredients. Cut larger items into smaller pieces (approx. 1-inch cubes).
2. Add liquids first, then soft ingredients, followed by harder ingredients and ice. Do not exceed the "MAX" fill line on the jug.
3. Securely place the lid on the blending jug. Ensure the lid cap is also in place.
4. Ensure the jug is correctly seated on the motor base.
5. Premeu el botó d'engegada (ⓘ) on the touchscreen to turn on the blender. The LED display will illuminate.
6. Using Pre-programmed Settings: Select one of the five pre-programmed functions (Bisque, Smoothies, Ice Cream, Grind, Sauce) by touching the corresponding icon. The blender will automatically run through a pre-set cycle.
7. Manual Control (Time & Speed):
   • Touch the "Timing" icon to adjust the blending duration.
   • Touch the "Speed" icon to adjust the blending speed (5 levels available).
   • Once time and speed are set, press the power button (ⓘ) per començar a barrejar.
8. Funció de pols: For short bursts of power, touch the "Pulse/Clean" icon. The blender will operate as long as you hold the button. Release to stop.
9. When blending is complete, press the power button (ⓘ) per aturar la batedora.
10. Unplug the blender from the power outlet before removing the jug or serving.

Utilitzant el Tamper

El tamper can be used to push ingredients down towards the blades when blending thick mixtures. Only use the tamper through the opening in the lid while the blender is running. Never use other utensils or your hands.

Neteja i Manteniment

Una neteja i un manteniment adequats allargaran la vida útil de la batedora.

1. Desconnecteu sempre la batedora abans de netejar-la.
2. Autoneteja (Neteja ràpida): For a quick clean, add 700ml of warm water and a few drops of dish soap to the jug. Secure the lid. Select the "Pulse/Clean" function and run for 30-60 seconds. Rinse the jug thoroughly.
3. Neteja manual:
   • Traieu la gerra de la base del motor.
   • Renteu la gerra, la tapa i la tamper with warm, soapy water. Use a brush to clean around the blades carefully. The blades are sharp.
   • Rinse all parts thoroughly and allow them to air dry completely before storing.
4. Base del motor: Netegeu la base del motor amb un anunciamp drap. No submergiu mai la base del motor en aigua ni en cap altre líquid.
5. Do not use abrasive cleaners or scouring pads on any part of the blender.
6. Guardeu la batedora en un lloc sec.

Resolució de problemes

Especificacions

• Marca: Biolomix
• Número de model: D6300
• Potència/Wattage: 2200 watts (pic)
• Voltage: 220 Volts
• Capacitat: 2 litres
• Material: Stainless Steel (blades), BPA-free Plastic (jug)
• Nombre de velocitats: 5 (plus pre-programmed settings)
• Pes de l'article: 4.03 quilos
• Dimensions del paquet: 36.4 x 34.4 x 24.8 cm

Garantia i Suport

The Biolomix D6300 Countertop Digital Touchscreen Blender comes with a TWO-Year Warranty from the date of purchase. Additionally, Biolomix provides lifetime local after-sales service in Dubai.

For warranty claims, technical support, or any inquiries regarding your product, please contact Biolomix customer service. Refer to your purchase documentation for specific contact details or visit the official Biolomix weblloc.
