1Mii ML300 Bluetooth 5.3 Transmitter & Receiver User Manual

Introducció

Gràcies per la compraasing the 1Mii ML300 Bluetooth 5.3 Transmitter & Receiver. This versatile 2-in-1 device allows you to effortlessly stream audio wirelessly, transforming non-Bluetooth devices into Bluetooth-enabled ones. Whether you want to connect your TV to Bluetooth headphones or stream music from your phone to an old stereo system, the ML300 provides a high-quality, low-latency audio experience.

Image: The 1Mii ML300 Bluetooth adapter shown with its accompanying 3.5mm audio cable, RCA to 3.5mm audio cable, USB-C charging cable, and airplane adapter.

Característiques clau

• Latest Bluetooth 5.3 Technology: Ensures a more stable wireless connection and backward compatibility with older Bluetooth versions (5.0/4.2/4.0/3.0/2.0).
• Dual Link aptX Low Latency: Provides up to 80% lower latency, ensuring audio and video synchronization for gaming and movies. Supports aptX Low Latency even in dual link mode.
• 2-in-1 Transmitter & Receiver:
  • Mode transmissor (TX): Transforms non-Bluetooth devices (TV, PC, fitness equipment, airplane entertainment) into Bluetooth transmitters.
  • Mode receptor (RX): Enables Bluetooth audio streaming to non-Bluetooth speakers or home/car stereo systems.
• Ultra-Compatible, Plug & Play: Supports 3.5mm AUX and USB-A outputs. Compatible with Windows 7/8/10, Mac OS, Linux, Ubuntu, PS4, and Nintendo Switch via USB-A.
• Increïble durada de la bateria: Up to 10 hours in Transmitter mode and up to 15 hours in Receiver mode on a single charge. Can be used while charging.

Què hi ha a la caixa?

Imatge: Una representació visual dels elements inclosos a l'embalatge del producte.

• 1 x 1Mii ML300 2-in-1 Bluetooth Transmitter Receiver
• 1 x cable de càrrega USB tipus C
• 1 cable d'àudio de 3.5 mm
• 1 x 2RCA to 3.5mm AUX Audio Cable
• 1 x Adaptador d'avió

Instruccions de configuració

The 1Mii ML300 can operate in two modes: Transmitter (TX) and Receiver (RX). Ensure the mode switch on the device is set correctly for your desired function.

Mode transmissor (TX).

Feu servir el mode TX per enviar àudio des d'un dispositiu que no sigui Bluetooth (per exemple, un televisor, un ordinador o un reproductor MP3) a uns auriculars o altaveus Bluetooth.

1. Set the mode switch on the ML300 to TX.
2. Connect the ML300 to your audio source (e.g., TV, PC) using the 3.5mm audio cable or the 2RCA to 3.5mm AUX audio cable. Ensure the audio output port of your source device is used.
3. Power on the ML300. It will automatically enter pairing mode (indicated by a flashing blue light).
4. Poseu els auriculars o l'altaveu Bluetooth en mode d'emparellament.
5. Place the ML300 and your Bluetooth audio device close to each other (within 1 meter) for the first pairing. They should connect automatically. Once connected, the blue light on the ML300 will become solid.
6. For dual connection, after the first device is connected, press the corresponding pairing button (1 or 2) on the ML300 to pair the second device.

Image: Illustrates the dual connection feature, allowing two Bluetooth headphones to be simultaneously connected to a TV via the 1Mii ML300 for a shared audio experience with aptX Low Latency.

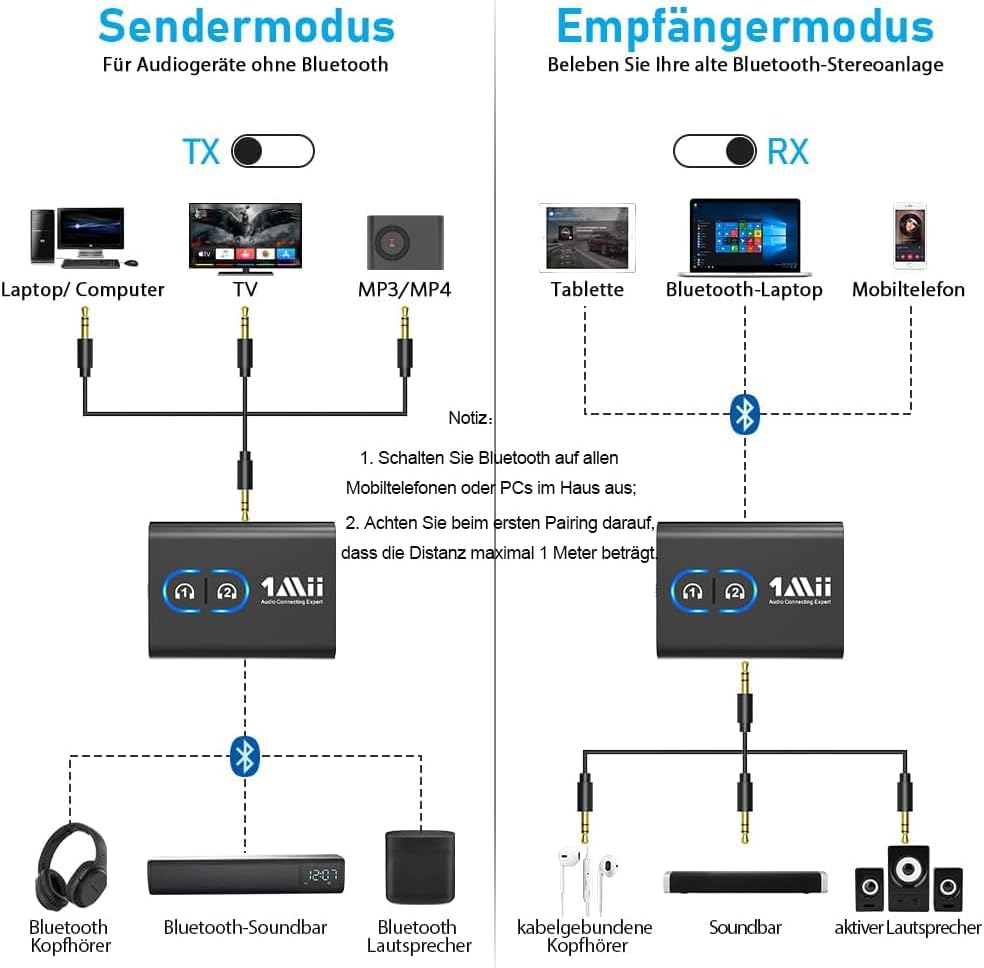

Image: A detailed diagram illustrating how to connect the 1Mii ML300 in both Transmitter (TX) mode for non-Bluetooth audio sources like TVs and PCs, and Receiver (RX) mode for non-Bluetooth speakers or stereo systems.

Mode receptor (RX).

Use RX mode to receive audio from a Bluetooth-enabled device (e.g., smartphone, tablet, Bluetooth laptop) and play it through a non-Bluetooth speaker or stereo system.

1. Set the mode switch on the ML300 to RX.
2. Connect the ML300 to your non-Bluetooth speaker or stereo system using the 3.5mm audio cable. Ensure the audio input port of your speaker system is used.
3. Power on the ML300. It will automatically enter pairing mode.
4. On your Bluetooth-enabled device (e.g., smartphone), enable Bluetooth and search for "ML300" in the list of available devices.
5. Select "ML300" to pair. Once connected, the blue light on the ML300 will become solid.
6. You can now stream audio from your device to your connected speaker system.

Instruccions de funcionament

Encès/Apagat

• Encès: Press and hold the multi-function button (usually the main power button) for 3 seconds until the indicator light turns on.
• Apagar: Press and hold the multi-function button for 3 seconds until the indicator light turns off.

Pairing and Reconnection

• Primera parella: El dispositiu entra automàticament en mode d'emparellament quan s'encén per primera vegada.
• Acoblament manual: If the device does not connect automatically, press and hold the pairing button (1 or 2) for 3 seconds to force it into pairing mode.
• Reconnexió: The ML300 will automatically attempt to reconnect to the last paired device when powered on.

Using the Airplane Adapter

The included airplane adapter allows you to connect the ML300 to in-flight entertainment systems that use dual 3.5mm jacks.

1. Plug the airplane adapter into the dual 3.5mm audio output of the in-flight entertainment system.
2. Connect the 3.5mm audio cable from the ML300 to the airplane adapter.
3. Set the ML300 to TX mode and pair your Bluetooth headphones as described in the TX mode setup.

Image: A user enjoying high-quality audio streaming on an airplane by connecting the 1Mii ML300 to the in-flight entertainment system and pairing it with their wireless earbuds.

Manteniment

• Mantingueu el dispositiu sec. Eviteu l'exposició a la humitat o a líquids.
• No desmunteu el dispositiu. Les reparacions només les ha de realitzar personal qualificat.
• Netegeu el dispositiu amb un drap suau i sec. No utilitzeu productes químics agressius ni netejadors abrasius.
• Guardeu el dispositiu en un lloc fresc i sec quan no el feu servir durant períodes prolongats.

Resolució de problemes

Especificacions

Garantia i Suport

1Mii products come with a standard manufacturer's warranty. For detailed warranty information, technical support, or customer service inquiries, please visit the official 1Mii weblloc web o contacteu directament amb el seu equip d'atenció al client.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
