VINGLI Glass Top Drafting Table User Manual

1. Introducció

This manual provides detailed instructions for the assembly, setup, operation, and maintenance of your VINGLI Glass Top Drafting Table. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.

Figure 1: VINGLI Glass Top Drafting Table with drawing in progress. This image shows the table in an angled position, equipped with side trays for supplies and two fabric drawers for storage.

2. Instruccions de seguretat

• Cura de la part superior de vidre: The table features a glass top. Handle with care during assembly and use to prevent breakage. Avoid placing heavy or sharp objects directly on the glass without protection.
• Muntatge: Ensure all parts are correctly assembled and tightened according to the instructions. Improper assembly can lead to instability and potential injury.
• Límit de pes: Do not exceed the recommended weight capacity of the table. Distribute weight evenly on the surface.
• Estabilitat: Always ensure the table is placed on a flat, stable surface. Lock the casters when the table is in a desired position to prevent accidental movement.
• Nens i animals de companyia: Mantingueu els nens i les mascotes allunyats de la zona de muntatge. Les peces petites poden ser un perill d'asfíxia.
• Movent la taula: When moving the table, ensure the glass top is securely in place and the angle adjustment mechanism is locked. Lift, do not drag, to prevent damage to the frame or floor.

3. Contingut del paquet

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Main Frame (Alloy Steel)
• Taula de vidre
• Side Trays (2)
• Fabric Drawers (2)
• Rodes (4)
• Maquinari de muntatge (cargols, perns, volanderes, clau Allen)
• Manual d'instruccions

Figure 2: The main frame structure of the VINGLI Drafting Table, shown without the glass top, highlighting the support for the drawers and side trays.

4. Instruccions de muntatge

Assembly is required for this product. It is recommended to have two people for certain steps, especially when handling the glass top. Lay out all parts on a clean, soft surface to prevent scratches.

1. Muntar el marc base: Connect the horizontal support bars to the vertical leg frames using the provided hardware. Ensure all connections are secure but do not fully tighten until the entire frame is assembled.
2. Fixeu les rodes: Insert the four casters into the designated holes at the bottom of the leg frames. Ensure they are firmly seated.
3. Install Drawer Supports: Attach the drawer support rails to the main frame as indicated in the diagrams.
4. Col·loca la part superior de vidre: Carefully place the glass tabletop onto the main frame. Align it with the pre-drilled holes and secure it using the provided screws and washers. Do not overtighten.
5. Attach Side Trays: Slide the two side trays into their respective slots on either side of the glass top.
6. Inserir calaixos: Slide the two fabric drawers into the drawer supports beneath the tabletop.
7. Ajustament final: Once all components are in place, carefully tighten all screws and bolts. Do not overtighten to avoid stripping threads or cracking the glass.

Figura 3: Detallada view of key components including the removable side tray, fabric storage drawers, the angle adjustment mechanism, and a locking caster wheel.

5. Configuració i ajust

5.1 Adjusting the Table Angle

The VINGLI Glass Top Drafting Table features an adjustable angle mechanism, allowing you to tilt the tabletop for various tasks such as drawing, drafting, or reading.

1. Mecanisme de desbloqueig: Locate the angle adjustment levers or knobs on the sides of the table. Loosen them to release the locking mechanism.
2. Tilt Tabletop: Carefully lift or lower the glass tabletop to your desired angle. The mechanism allows for multiple angle settings.
3. Mecanisme de bloqueig: Once the desired angle is achieved, tighten the levers or knobs to securely lock the tabletop in place. Ensure it is stable before applying pressure.

Figure 4: The drafting table displayed in both its flat and fully angled configurations, demonstrating the range of the tilt mechanism.

5.2 Ús de les funcions d'emmagatzematge

• Side Trays: The removable side trays are designed to hold pens, brushes, and other small art supplies. They can be easily detached for cleaning or repositioning.
• Calaixos de tela: The two fabric drawers provide convenient storage for larger items, documents, or additional supplies. Slide them in and out as needed.

6. Operating the Drafting Table

The VINGLI Glass Top Drafting Table is designed for versatility in various creative and professional tasks.

• Drafting and Drawing: Utilize the adjustable angle to find the most comfortable and ergonomic position for your work. The glass surface can be used with a light pad underneath for tracing or backlighting.
• Lectura i escriptura: Adjust the angle to reduce neck strain when reading large documents or books. The flat position is suitable for general writing tasks.
• Mobilitat: The integrated casters allow for easy movement of the table within your workspace. Lock the casters when the table is in its desired location to ensure stability during use.

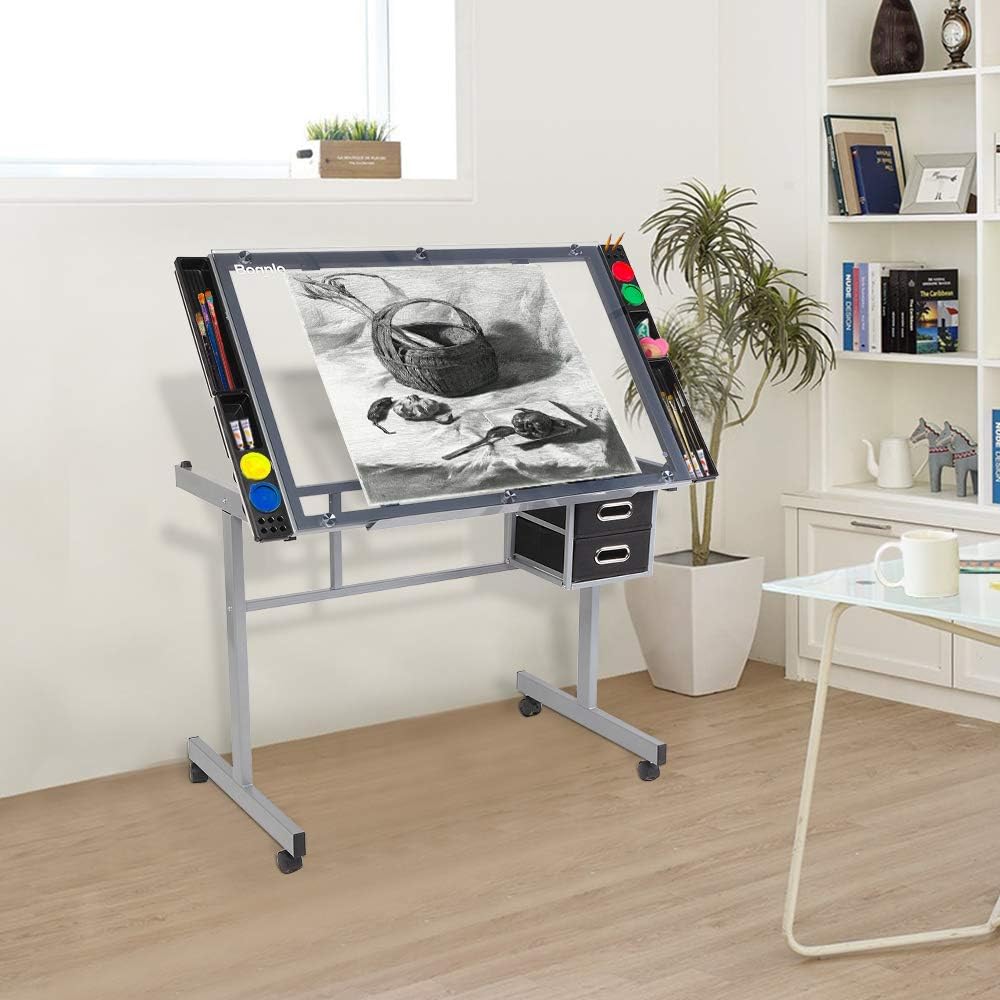

Figure 5: The VINGLI Drafting Table positioned in a room, demonstrating its integration into a home or studio environment.

7. Manteniment

Regular maintenance will help prolong the life and appearance of your drafting table.

• Taula de vidre: Clean the glass surface with a standard glass cleaner and a soft, lint-free cloth. Avoid abrasive cleaners or tools that could scratch the glass.
• Marc: Netegeu el marc d'acer d'aliatge amb anunciamp cloth and mild detergent if necessary. Dry immediately to prevent rust.
• Calaixos: The fabric drawers can be spot cleaned with a damp tela. No rentar a màquina.
• Maquinari: Reviseu periòdicament tots els cargols i perns per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.

8. Solució De Problemes

• La taula tremola: Ensure all assembly hardware is fully tightened. Check that the table is on a level surface. Adjust the casters if they are uneven.
• Angle Adjustment is Stiff: Check for any obstructions in the mechanism. Ensure the locking levers are fully disengaged before attempting to adjust the angle.
• Rodes que no giren suaument: Check for debris caught in the wheels. Ensure the caster locks are disengaged.

9. Especificacions

Figure 6: Key dimensions of the VINGLI Drafting Table, showing its depth, width, and height.

10. Informació de la garantia

Warranty information for the VINGLI Glass Top Drafting Table is not provided within this manual. Please refer to the product packaging, the VINGLI official weblloc web o el vostre punt de compra per obtenir els termes i condicions detallats de la garantia.

11. Atenció al client

For further assistance, questions regarding assembly, parts, or product operation, please contact VINGLI customer support. Contact details can typically be found on the product packaging or the official VINGLI weblloc.
