Introducció
The Yamaha THR30IIA Wireless Acoustic Desktop Amplifier is designed to provide realistic tube-amp tones and feel for acoustic-electric guitars, along with microphone models and flat voicings for various instruments. This 30-watt amplifier offers wireless connectivity, a built-in rechargeable battery, and stereo line outputs for versatile use. This manual provides essential information for setting up, operating, and maintaining your THR30IIA ampmés viu.
Característiques
- 30-watt stereo desktop amplifier with two 3.5" (9cm) speakers.
- 3 Authentic-sounding mic models, plus nylon-string and flat modes.
- Professional-quality microphone preamp with XLR input.
- Built-in wireless receiver compatible with optional Line 6 Relay G10T transmitter.
- Built-in rechargeable battery for portable use.
Configuració
Encès
Connect the included power adapter to the DC IN jack on the rear panel and plug it into an AC outlet. Alternatively, the built-in rechargeable battery allows for portable operation. Press and hold the power button on the top panel to turn the unit on or off.
Connecting Your Instrument
For acoustic-electric guitars, connect a standard 1/4" instrument cable to the GUITAR input jack on the top panel. For microphones, use an XLR cable to connect to the MIC/INST input. This input also supports instruments with a 1/4" jack.
Connectivitat sense fil
The THR30IIA features a built-in wireless receiver compatible with the optional Line 6 Relay G10T transmitter. Simply plug the G10T into the GUITAR input to charge and pair for wireless instrument connection. For audio playback from smart devices, activate Bluetooth on your device and pair with the THR30IIA.
Instal·lació de programari
Download the THR Remote Editor application for desktop or mobile devices to access advanced editing features and deeper control over the amplifier's settings. The amplifier also includes Cubase AI & Cubasis LE from Steinberg for recording and production.
Instruccions de funcionament
Selecció de to
Use the TONE SELECT knob to choose between different amplifier models: FLAT, NYLON-STR, TUBE, DYNAMIC, and CONDENSER. Each setting is optimized for specific instrument types or microphone characteristics.
Effects and Reverb
Adjust the EFFECT and REVERB knobs to apply built-in digital effects and reverb to your sound. Further customization of these effects is available via the THR Remote Editor app.
Controls de volum
Separate VOLUME knobs are provided for the GUITAR and MIC/INST inputs, allowing independent level adjustment. The overall output volume can be controlled by the master VOLUME knob.
Connexions del panell posterior
The rear panel includes LINE OUT (L/R) jacks for connecting to a PA system or recording interface, a USB port for computer connectivity (audio interface and THR Remote Editor), and the DC IN jack for power.
Vídeo acabatview
Manteniment
To ensure the longevity and optimal performance of your THR30IIA amplificador, seguiu aquestes pautes de manteniment:
- Neteja: Utilitzeu un drap suau i sec per netejar l'exterior amplifier. Avoid using abrasive cleaners, solvents, or waxes, as these can damage the finish.
- Emmagatzematge: Emmagatzemar el amplificador en un lloc fresc i sec, allunyat de la llum solar directa, temperatures extremes i humitat elevada.
- Cura de la bateria: For models with a built-in rechargeable battery, ensure regular charging to maintain battery health, even if not used frequently. Avoid completely draining the battery for extended periods.
- Connexions: Periodically check all cables and connections for wear and tear. Ensure they are securely plugged in during use.
Resolució de problemes
If you encounter issues with your THR30IIA amplifier, consider the following common troubleshooting steps:
- Sense energia: Ensure the power adapter is securely connected and the outlet is functional. If using battery power, check if the battery is charged.
- Sense so: Verify that your instrument or microphone is properly connected and the volume knobs (GUITAR, MIC/INST, Master) are turned up. Check the cable connections.
- Problemes sense fil: Ensure the Line 6 Relay G10T transmitter is charged and properly paired with the amplifier. Check for interference from other wireless devices.
- Problemes de connectivitat de l'aplicació: Ensure Bluetooth is enabled on your device and the THR Remote Editor app is updated to the latest version. Restart both the amplifier and your device if connection issues persist.
- So distorsionat: Reduce the input gain or volume levels on both your instrument/microphone and the amplifier. Check for damaged cables.
If these steps do not resolve the issue, please contact Yamaha customer support for further assistance.
Especificacions
| Característica | Detall |
|---|---|
| Potència de sortidatage | 30 watts |
| Pes de l'article | 1 lliures |

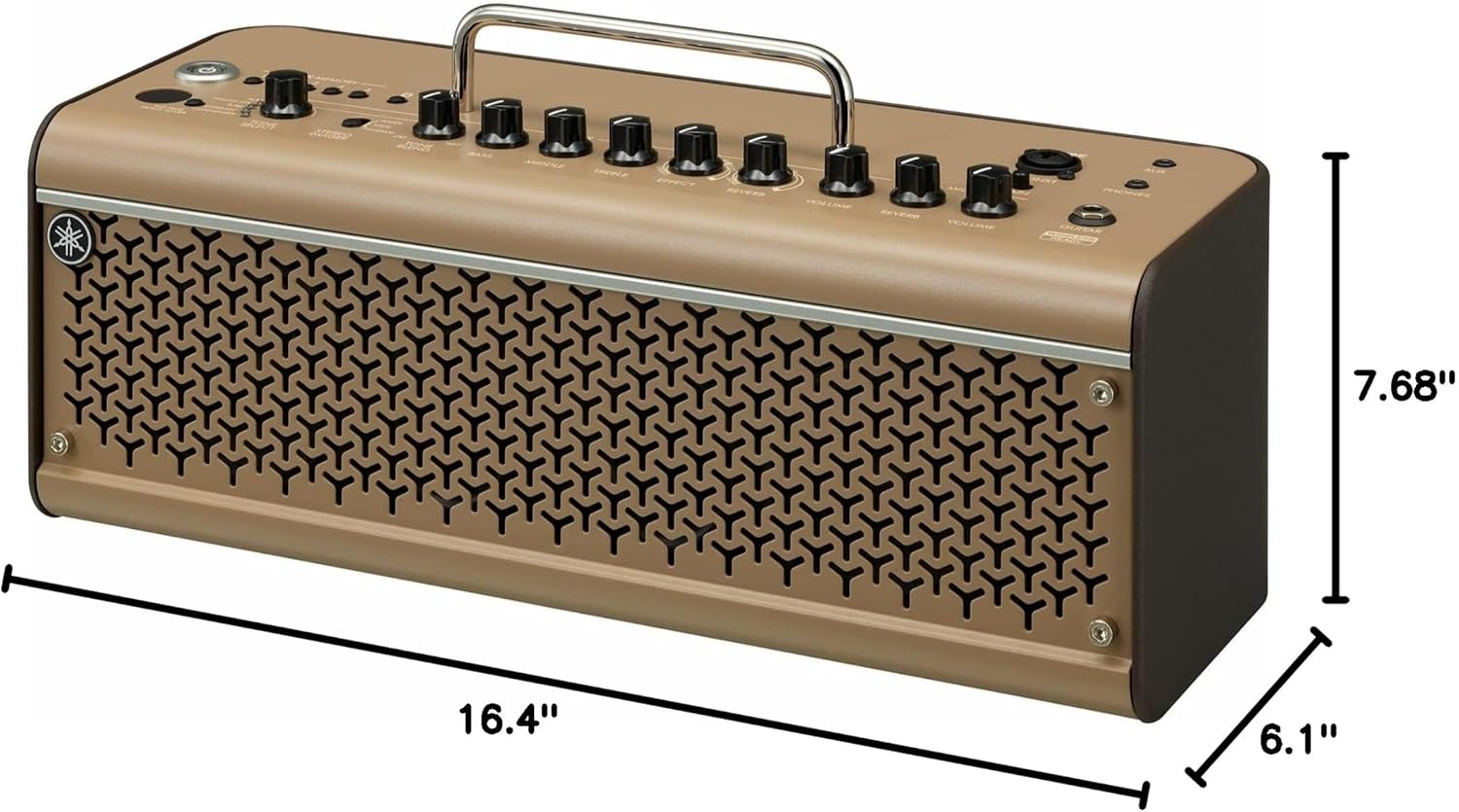

| Dimensions del producte | 16.4 x 6.1 x 7.68 polzades |
| Dispositius compatibles | Guitarra |
| Tipus de connector | Sense fil |
| Font d'alimentació | Funciona amb bateria |
| Tipus de material | Bateria |
| Data de primera disponibilitat | 28 d'octubre de 2020 |
Què hi ha a la caixa
En obrir el paquet, hauríeu de trobar els elements següents:
- Yamaha THR30IIA Wireless Acoustic Desktop Ampmés viu
- Adaptador d'alimentació
- Manual del propietari (aquest document)
Garantia i Suport
For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Yamaha website. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Yamaha customer support through their official channels.
Podeu trobar recursos addicionals i informació de contacte a Yamaha official weblloc.
