Venom PS5 DualSense Controller Twin Docking Station User Manual

1. Introducció

Thank you for choosing the Venom PS5 DualSense Controller Twin Docking Station. This manual provides essential information for the proper setup, operation, and maintenance of your charging station. Please read these instructions carefully before use.

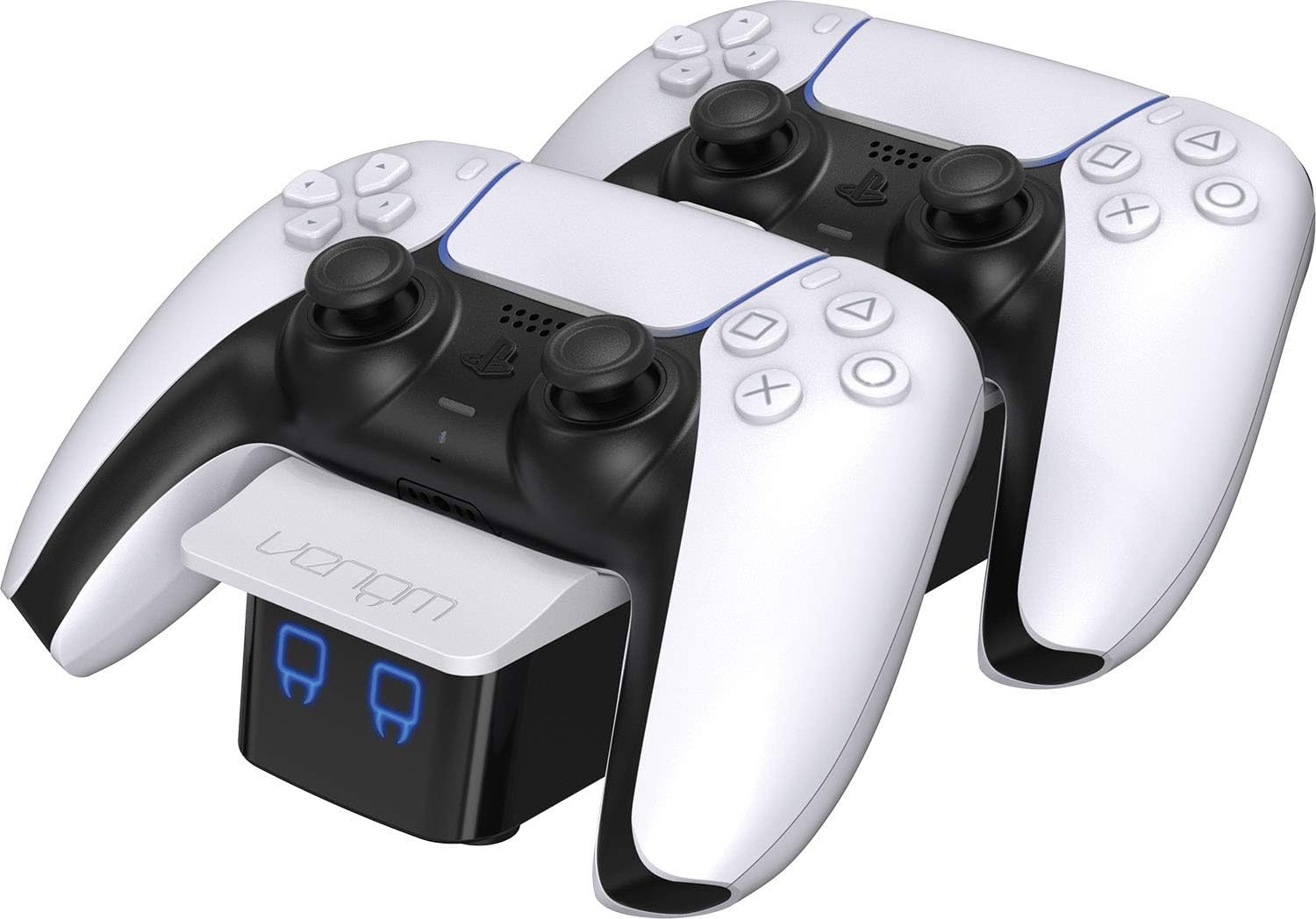

Image 1.1: The Venom PS5 DualSense Controller Twin Docking Station with two controllers.

2. Contingut del paquet

Assegureu-vos que tots els elements següents estiguin presents al vostre paquet:

• Venom PS5 DualSense Controller Twin Docking Station
• USB-A to USB-C Charging Cable (1 meter)
• 2 x USB-C Charging Dongles

Image 2.1: The two included USB-C charging dongles.

Image 2.2: The USB-A to USB-C charging cable.

3. Instruccions de configuració

1. Attach Charging Dongles: Carefully insert one USB-C charging dongle into the USB-C port on each of your PS5 DualSense controllers. These dongles are designed to remain in the controller for convenient drop-and-charge functionality.


Image 3.1: USB-C dongle correctly inserted into a PS5 DualSense controller.

2. Connectar l'alimentació: Connect the supplied USB-A to USB-C charging cable to the USB-C input port on the rear of the docking station. Plug the USB-A end into a compatible USB power source (e.g., a PS5 console USB port, a USB wall adapter, or a PC USB port). Ensure the power source provides sufficient output (minimum 5V/1.8A recommended for optimal charging of two controllers).


Image 3.2: Rear ports of the docking station, including the USB-C power input.

3. Controladors de lloc: Gently place your PS5 DualSense controllers onto the docking station, aligning the dongles with the charging contacts. The controllers should sit securely in the cradles.

Image 3.3: A PS5 controller correctly placed on the docking station.

4. Instruccions de funcionament

4.1 Charging Controllers

Once controllers are correctly placed on the docking station and power is connected, charging will begin automatically. The front LED indicators provide charging status:

• LED vermell: Indica que el controlador s'està carregant actualment.
• LED blau: Indica que el controlador està completament carregat.

4.2 Rear USB Output

The docking station features a rear USB-A output port. This port can be used to charge other USB-powered devices, such as wireless headsets or mobile phones, while the docking station is powered.

5. Manteniment

• Neteja: Disconnect the docking station from power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or solvents.
• Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu l'estació d'acoblament en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Manipulació: Avoid dropping or subjecting the docking station to strong impacts, as this may damage internal components.

6. Solució De Problemes

• El comandament no es carrega:
  • Ensure the USB-C dongle is fully inserted into the controller.
  • Verify the controller is correctly seated on the docking station, making proper contact with the charging pins.
  • Check that the power cable is securely connected to both the docking station and the power source.
  • Try a different USB power source or USB-A to USB-C cable to rule out a faulty component.
• Only One Controller Charges at a Time:
  • Ensure your power source provides adequate current (at least 1.8 Amps). Lower current power sources may prioritize charging one controller over two.
  • Verify both controllers have their USB-C dongles correctly inserted and are properly seated on the dock.
• Els indicadors LED no funcionen:
  • Confirm the docking station is receiving power.
  • If the station is powered but LEDs are off, ensure a controller is placed on the dock and requires charging.
• Concerns about Controller Battery Life:
  • The docking station is designed to provide optimal charging. To prolong battery life, avoid leaving controllers on the charger indefinitely after they reach full charge. While modern batteries have overcharge protection, prolonged trickle charging can still contribute to long-term degradation.
  • Ensure you are using a reliable power source that meets the recommended specifications.
• Missing USB-C Charging Dongles:
  • The package should contain two dongles. If any are missing, please contact Venom customer support.

7. Especificacions

8. Garantia i Suport

For warranty information, technical support, or to report missing components, please visit the official Venom weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.

Venom Official Weblloc: www.venomuk.com
