Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Soundstream TXP1.6000D Monoblock Class D Car Audio Amplificador. Llegiu atentament aquest manual abans d'intentar la instal·lació o el funcionament per garantir un ús correcte i evitar danys a la unitat o al sistema d'àudio del vostre vehicle.
The Soundstream TXP1.6000D is a high-performance monoblock amplifier designed for powerful subwoofer applications, featuring 1-ohm minimum impedance operation and advanced protection circuits.
Informació de seguretat
WARNING: High Power Amplifier. Speaker connector with live DC output. DO NOT TOUCH the speaker output within the amplifier. It MUST be installed by professionals.
- Desconnecteu sempre el terminal negatiu de la bateria del vehicle abans de començar qualsevol instal·lació.
- Assegureu-vos que tot el cablejat estigui correctament encaminat i fixat per evitar que es piqui o es faci malbé.
- Utilitzeu cables d'alimentació i de terra del calibre adequat, tal com s'especifica a la secció d'instal·lació.
- Eviteu muntar el amplificador en zones exposades a la llum solar directa, a la calor excessiva, a la humitat o a la pols.
- No opereu el amplifier if it is damaged or malfunctioning. Refer to the troubleshooting section or contact qualified service personnel.
- Aquest producte conté productes químics coneguts per l'estat de Califòrnia per causar càncer i defectes de naixement o altres danys reproductius.
Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Soundstream TXP1.6000D Ampmés viu
- Hardware (mounting screws, etc.)
- Manual d'usuari (aquest document)
- Dash Mount Gain Control Module
Característiques
The Soundstream TXP1.6000D amplifier incorporates several advanced features for optimal performance and reliability:
- 1-ohm Minimum Impedance Monoblock Operation
- LED Accent Lighting Illuminates Circuit Board
- Silicone Steel Alloy Core Power Supply Transformers
- Military Grade SMT PCB for Dynamic Performance
- Direct Short, Thermal, & Overload Protection Circuits
- 200mV-6V High Level or Low-Level RCA Input & Output
- Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
- Dash Mount Gain Control Module Included
Configuració i instal·lació
Una instal·lació correcta és crucial per al rendiment i la longevitat del vostre amplifier. It is recommended that installation be performed by a qualified professional.
Muntatge del Ampmés viu
Choose a mounting location that is dry, well-ventilated, and protected from direct sunlight or excessive heat. Ensure sufficient airflow around the amplifier's heatsink. Secure the amplifier using the provided hardware.
Figura 1: Angle view of the Soundstream TXP1.6000D amplifier, highlighting its design and heatsink.
Connexions de cablejat
All wiring should be done with the vehicle's battery disconnected. Use high-quality, appropriate gauge wiring for power, ground, and speaker connections.
Connexions d’alimentació i terra
Figure 2: Power input terminals (GND, REM, +12V) on the ampmés viu.
- +12V (Alimentació): Connect a fused power cable directly from the positive terminal of the vehicle's battery. The fuse should be located within 18 inches of the battery.
- GND (terra): Connect a ground cable of the same gauge as the power cable to a clean, unpainted metal surface of the vehicle's chassis. Ensure a solid electrical connection.
- REM (encesa remota): Connect a remote turn-on wire from your head unit or other switched 12V source. This turns the ampengegueu i apagau l'activador amb el vostre sistema d'àudio.
El amplifier requires a large power feed, with a minimum of 300 amps recommended for optimal performance.
Connexions d'altaveus
Figure 3: Rear panel with speaker output terminals and audio controls.
Connect your subwoofer(s) to the speaker output terminals. The TXP1.6000D is designed for 1-ohm minimum impedance monoblock operation. Ensure your subwoofer(s) impedance matches the ampcapacitats del lificador.
RCA Input/Output Connections
Connect the RCA input from your head unit or signal processor to the ampels endolls d'entrada RCA del lifer. El amplifier supports 200mV-6V high-level or low-level RCA input.
Figura 4: Mésview of amplifier connections, including RCA inputs and the remote gain control port.
If using the RCA output, connect it to another amplifier for additional speakers.
Dash Mount Gain Control Module
Connect the included dash mount gain control module to the "REMOTE" port on the amplifier's control panel. This allows for convenient adjustment of the amplifier's output level from the driver's seat.

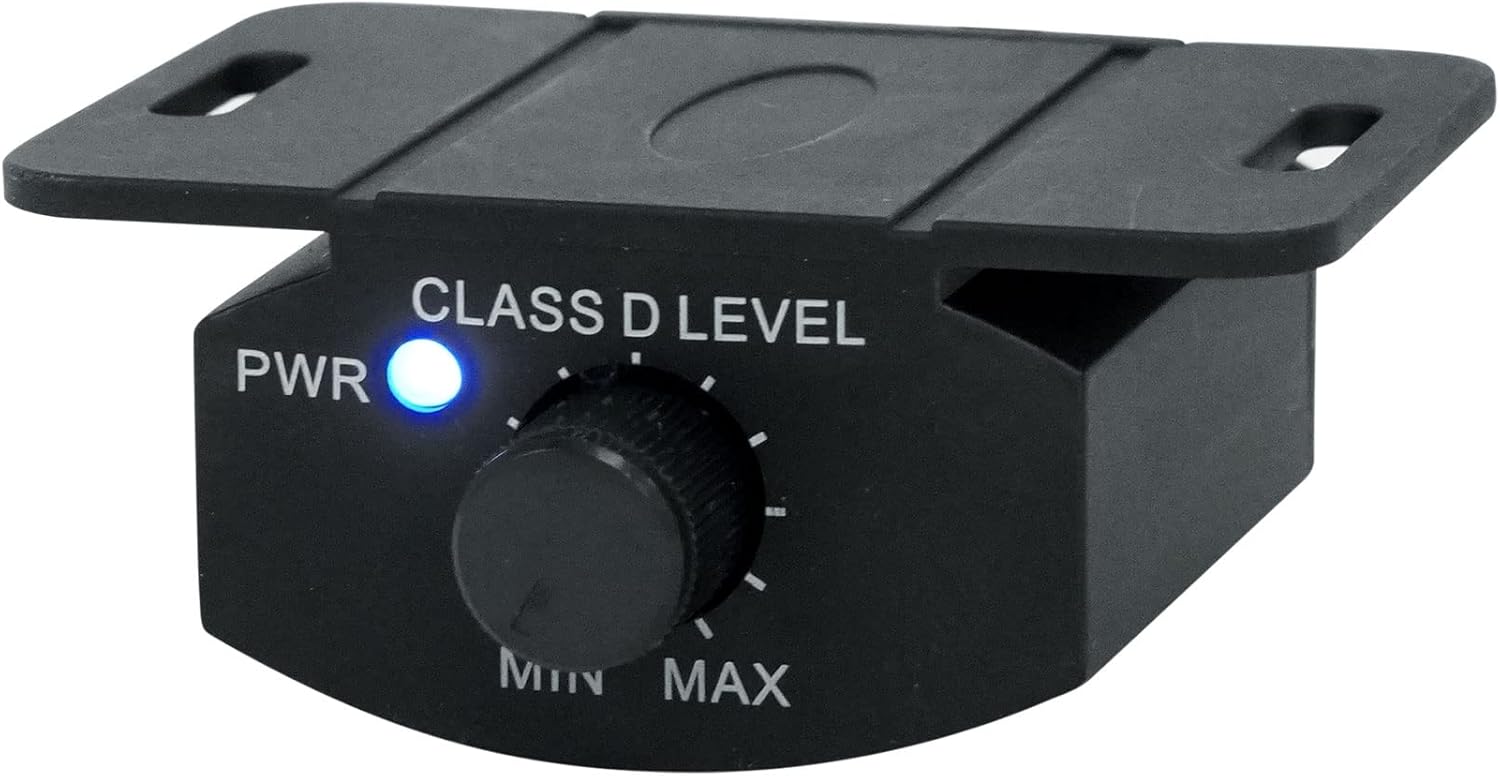

Figure 5: Dash Mount Gain Control Module (front view).

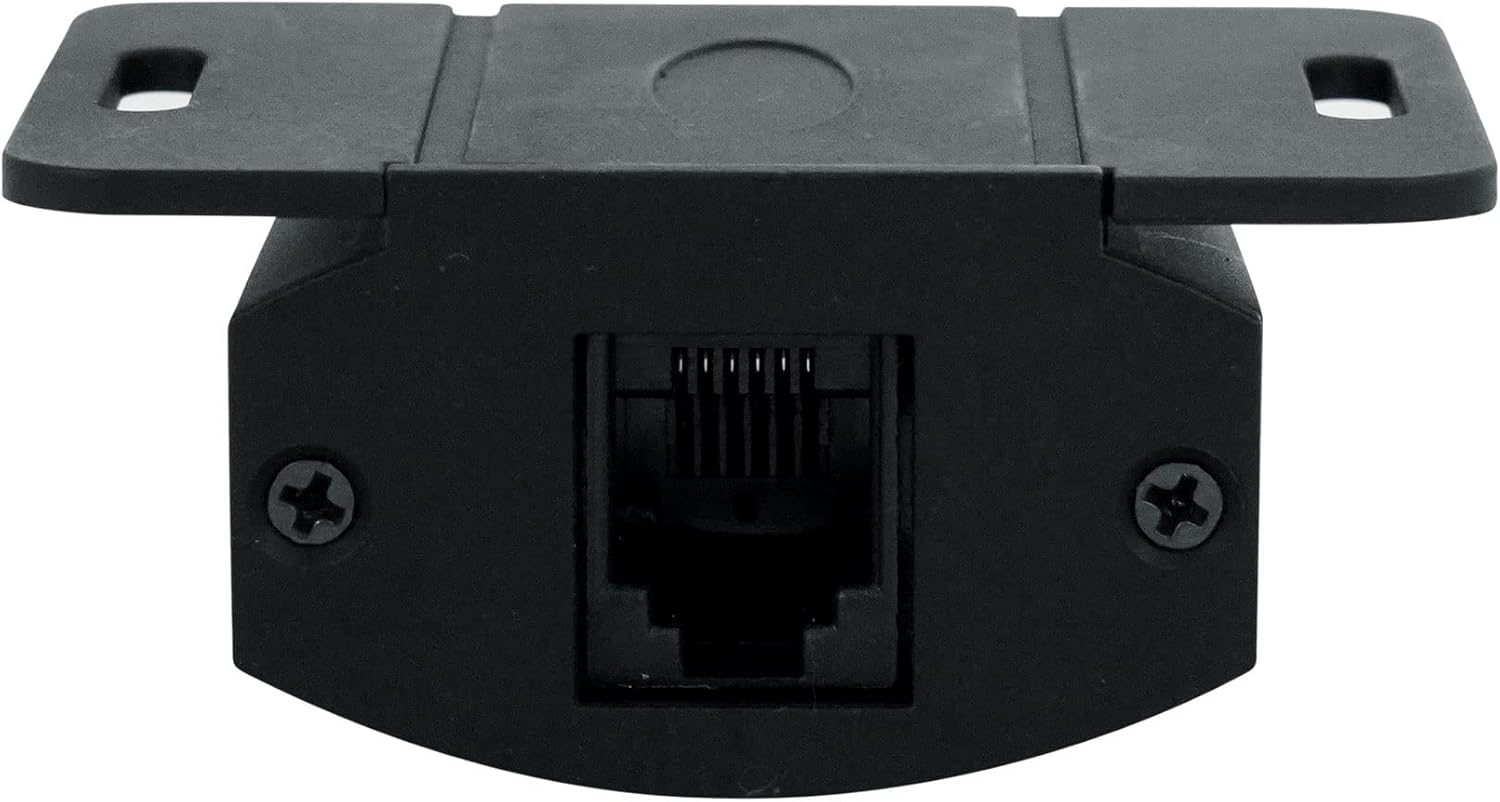

Figure 6: Dash Mount Gain Control Module (rear view with RJ45 port).
Instruccions de funcionament
Un cop el amplifier is properly installed and wired, you can proceed with adjusting its settings.
Tauler de control acabatview
Figura 7: Amplifier control panel details.
The control panel features several adjustable settings:
- BASS BOOST (FREQ, LEVEL, GAIN): Adjusts the bass emphasis. FREQ sets the center frequency, LEVEL adjusts the boost amount, and GAIN controls the overall input sensitivity.
- CROSSOVER (LOW, HIGH): Variable 12dB high-pass, low-pass, and subsonic crossovers. Adjust these to filter frequencies sent to your subwoofer(s) for optimal sound quality and protection.
- GUANY: Estableix la sensibilitat d'entrada del amplifier to match the output of your head unit. This is NOT a volume control. Set it carefully to avoid clipping.
- PRT (Protection) / CLIP / PWR (Power) LEDs: Indicadors per a amplifier status. PWR (blue) indicates normal operation. CLIP (white) indicates signal clipping. PRT (red) indicates a protection mode (short circuit, thermal, overload).
Establiment del guany
Setting the gain correctly is critical to prevent distortion and damage. It is recommended to use an oscilloscope or a digital multimeter for precise gain setting. If not available, follow these steps:
- Gireu el amplifier's gain control all the way down (minimum).
- Set your head unit's volume to about 75-80% of its maximum.
- Play a test tone (e.g., 50Hz at 0dB) through your system.
- Augmenta lentament el amplifier's gain until you hear audible distortion or the CLIP indicator lights up.
- Back off the gain slightly until the distortion disappears or the CLIP light turns off.
The dash mount gain control module can then be used for fine-tuning the bass level during normal listening.
Manteniment
The Soundstream TXP1.6000D ampEl purificador requereix un manteniment mínim. Seguiu aquestes pautes per garantir la seva longevitat:
- Mantenir el ampEl lificador està net i lliure de pols i restes. Feu servir un drap suau i sec per netejar-lo.
- Ensure that the heatsink fins are not obstructed to allow for proper cooling.
- Periodically check all wiring connections for tightness and corrosion. Loose connections can cause performance issues or damage.
- Eviteu exposar el ampLifer a temperatures o humitat extremes.
Resolució de problemes
Si tens problemes amb el teu amplifier, refer to the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense alimentació (LED PWR apagat) | Blown fuse, loose power/ground/remote wire, no 12V at remote terminal. | Check inline fuse, verify all power, ground, and remote connections. Test for 12V at the remote terminal when the head unit is on. |
| Protection Mode (PRT LED on) | Short circuit in speaker wiring, amplifier overheating, impedance too low, DC offset. | Check speaker wiring for shorts. Ensure proper ventilation. Verify speaker impedance. Disconnect speakers and RCA inputs, then power on. If PRT LED is off, reconnect one by one to isolate the issue. |
| Sense so | RCA cables disconnected, gain too low, speaker wires disconnected, head unit settings. | Check RCA connections, increase gain, verify speaker wiring. Check head unit's audio output settings. |
| Distorted Sound (CLIP LED on) | Guany massa alt, mala connexió a terra, altaveus danyats. | Reduce gain setting. Verify ground connection. Inspect speakers for damage. |
| Soroll/xiuxiueig del motor | Poor ground, RCA cables routed near power wires, faulty RCA cables. | Improve ground connection. Reroute RCA cables away from power wires. Try different RCA cables. |
If the problem persists after following these steps, contact Soundstream customer support or a qualified car audio technician.
Especificacions
| Característica | Especificació |
|---|---|
| Número de model | TXP1.6000D |
| Potència de sortida | 6000 watts (màx.) |
| Nombre de canals | 1 (Monobloc) |
| Impedància mínima | 1 ohms |
| Subministrament mínim Voltage | 6 volts (CC) |
| Volum de subministrament màximtage | 16 volts (CC) |
| Sensibilitat d'entrada | 200mV-6V (High Level or Low-Level RCA) |
| Crossovers | Variable 12dB High Pass, Low Pass, & Subsonic |
| Dimensions (L x A x A) | 11 x 9.5 x 4.5 polzades |
| Pes de l'article | 5.26 lliures |
| Material | Silicone Steel Alloy, Military Grade SMT PCB |
| Fabricant | Corrent sonora |
| UPC | 709483061064 |
Garantia i Suport
For warranty information and technical support, please refer to the official Soundstream website or contact your authorized Soundstream dealer. Keep your purchase receipt as proof of purchase for warranty claims.
També poden haver-hi recursos en línia i preguntes freqüents disponibles a la pàgina web del fabricant. weblloc: www.soundstream.com
