The GKOLED 12 Inch LED Hardscape Lighting fixture (Model GKOLHA4WL12V27KAD) is designed for low voltage outdoor landscape applications, providing warm white illumination for retaining walls, steps, and paver areas. This durable light features energy-saving LED chips and a weather-resistant aluminum housing, ensuring reliable performance in various outdoor conditions.
Image: Four GKOLED 12 Inch LED Hardscape Lights, showcasing the product's design and included mounting brackets.
Image: Product features graphic, highlighting the durable die-cast aluminum housing, stainless steel mounting bracket, pre-wired leads, and included mounting hardware.
Característiques principals:
- Sortida de llum: 300 Lumens from 22 energy-saving LED chips for even and comfortable light distribution.
- Temperatura de color: 2700K Warm White.
- Voltage: 12V AC/DC working voltage, compatible with most 12V landscape lighting systems. A 12V low voltage transformer is required (not included).
- Construcció: Durable powder-coated die-cast aluminum housing ensures weather resistance.
- Instal·lació: Includes a versatile stainless steel mounting bracket, pre-wired 39-inch SPT-1 18AWG leads, 2 screws, and 2 expansion anchors.
- Vida útil: Extended lifespan of over 40,000 hours due to durable construction and well-designed driver.

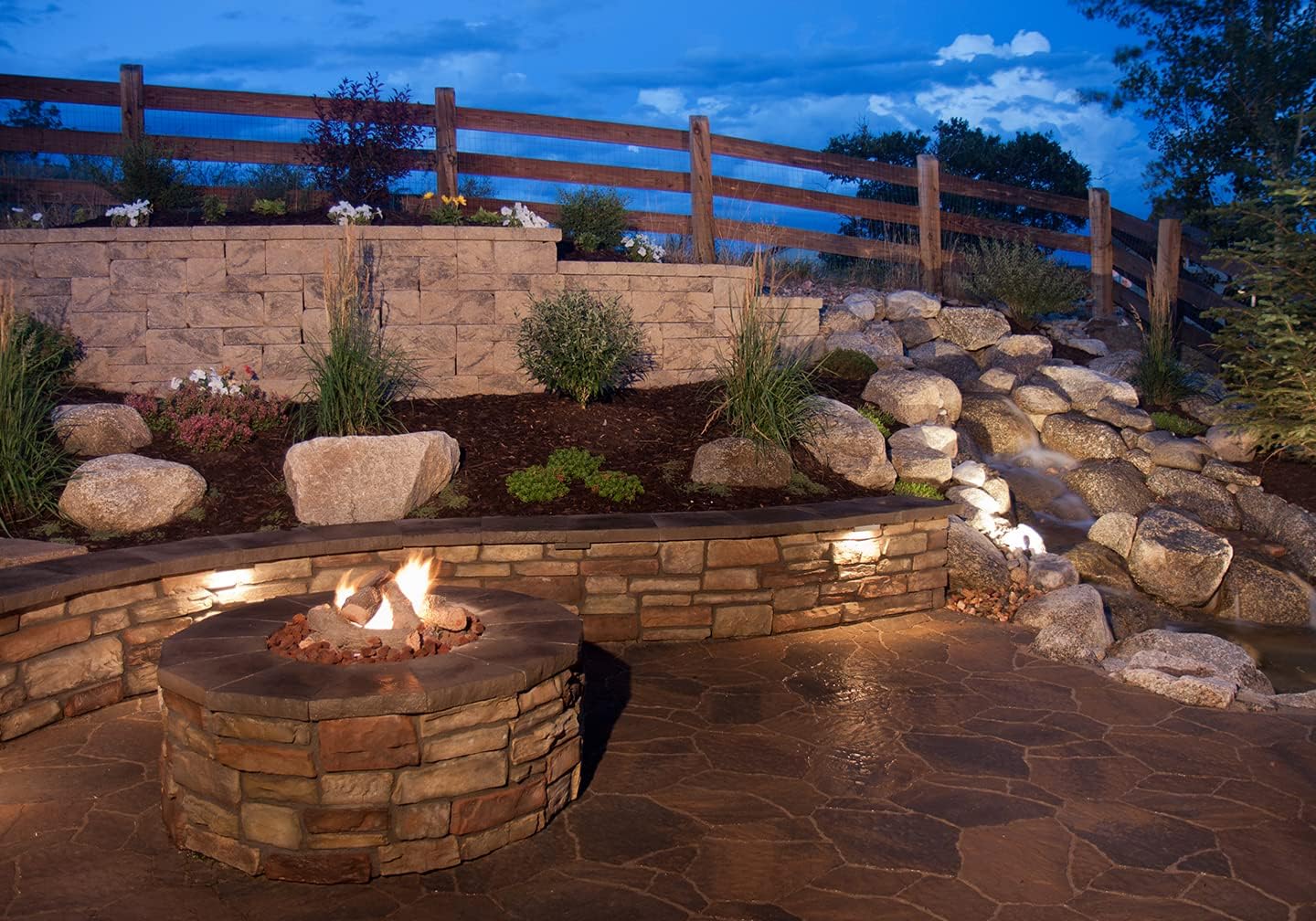

Imatge: Example of GKOLED hardscape lights installed in an outdoor patio setting, illuminating a retaining wall and steps.
Contingut del paquet
- GKOLED 12 Inch LED Hardscape Light Fixtures (Quantity as per pack size)
- Suports de muntatge d'acer inoxidable
- Mounting Screws (2pcs per fixture)
- Expansion Anchors (2pcs per fixture)
Instruccions d'instal·lació
IMPORTANT: To ensure safety, make sure the power supply is turned OFF before installation. Perform installation in accordance with the National Electric Code (NEC) and local code specifications.
Image: Detailed diagram illustrating the installation process of the hardscape light within a retaining wall structure.
- Apagueu la font d'alimentació. Ensure all power to the landscape lighting system is disconnected before proceeding.
- Determineu la ubicació de muntatge: Select the desired location for each fixture. If installing in a new wall, determine the location before construction begins. Mark the location for two screw holes and drill holes appropriate for the material. Insert the plastic anchors into these holes.
- Assegureu el dispositiu: Place the stainless steel mounting bracket and fixture in between layers of hardscape material (e.g., retaining wall blocks). Screw the two screws into the anchors through the holes in the bracket, securing the fixture firmly.
- Cablejat de ruta: Encamineu el cable de l'aparell a través de la paret fins al principal baix voltage power supply cable using standard masonry procedures. The fixture's groove houses the wire to allow it to sit flush with the wall.
- Connecteu-vos a la font d'alimentació: Connect the fixture to a 12V low voltage power supply. Ensure connections are secure and waterproof.
ATENCIÓ!
- Install fixture at least 10 feet (3 meters) from a pool, spa, or fountain.
- Use approved/listed wire connection devices suitable for the application.
- Do not exceed manufacturers' wiring combinations specification for size and quantity of conductors.
IMPORTANT: The operating voltage range is 10-14V AC/DC only.
Instruccions de funcionament
Once properly installed and connected to a compatible 12V low voltage transformer (not included), the GKOLED Hardscape Light will operate when power is supplied to the circuit. Control the light by turning the power to the landscape lighting system ON or OFF.
The light features an "Instant On" capability, providing immediate illumination when power is applied.
Manteniment
The GKOLED Hardscape Light is designed for minimal maintenance. To ensure optimal performance and appearance:
- Neteja: Netegeu periòdicament la lent i la carcassa amb un drap suau iamp cloth to remove dirt, dust, or debris. Avoid abrasive cleaners or solvents.
- Inspecció: Regularly inspect the wiring and connections for any signs of damage or wear. Ensure all connections remain secure and waterproof.
- LED: The integrated LED chips are designed for long life and are not user-replaceable.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No hi ha alimentació al circuit. Cablejat fluix o incorrecte. Transformador defectuós. | Check if the landscape lighting system is powered ON. Verify all wire connections are secure and correct. Test the transformer output voltage. Ensure it is 10-14V AC/DC. |
| La llum parpelleja o és tènue. | Potència insuficient. Voltage drop due to long wire runs or undersized wire. Connexió fluixa. | Ensure the transformer is adequately sized for the total wattage of all connected lights. Check wire gauge and length; consider using heavier gauge wire or shorter runs. Inspect all connections for tightness. |
| Aigua dins de l'aparell. | Segellat incorrecte durant la instal·lació. Damage to housing or lens. | Ensure all seals are intact and the fixture is properly installed to prevent water ingress. If damage is present, contact support. |
Especificacions
Image: Product specification graphic, highlighting key performance metrics and features.
| Atribut | Detall |
|---|---|
| Marca | GKOLED |
| Número de model | GKOLHA4WL12V27KAD |
| Dimensions del producte | 12 cm de llargada x 0.77 cm d'amplada x 3.07 cm d'alçada |
| Pes de l'article | 4.55 lliures (per a un paquet de 4) |
| Material | Aluminum (Housing), Plastic (Shade) |
| Tipus d'acabat | Recobert de pols |
| Tipus de font de llum | LED |
| Nombre de fonts de llum | 22 LED |
| Wattage | 4 watts |
| Voltage | 12V AC/DC (Operating range 10-14V AC/DC) |
| Brillantor | 300 lúmens |
| Eficiència | 30 lúmens per watt |
| Temperatura de color | 2700 Kelvin (Blanc càlid) |
| Ús interior/exterior | Només per a ús exterior |
| Nivell de resistència a l'aigua | Resistent a l'aigua |
| Característica especial | Instant On, Compact |
| Vida útil estimada | 40,000 hores |
Image: Dimensional drawing of the hardscape light, indicating length, width, and height in inches.
Informació de la garantia
This GKOLED product is covered by a 5 any de garantia from the date of original purchase. The durable aluminum housing and well-designed driver contribute to an extended lifespan of 40,000 hours.
For any quality issues or warranty claims, please contact GKOLED customer support.
Suport
For further assistance, technical support, or inquiries regarding your GKOLED 12 Inch LED Hardscape Lighting, please visit the official GKOLED weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
També podeu consultar el GKOLED Store on Amazon per obtenir informació addicional sobre el producte i recursos d'assistència.
