Manual d'usuari del microscopi de monedes Andonstar AD208

1. Introducció

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Andonstar AD208 Coin Microscope. Designed for precision viewing, this digital microscope is suitable for various applications including coin inspection, PCB repair, soldering, jewelry examination, and general scientific observation. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

2. Producte acabatview

The Andonstar AD208 features an 8.5-inch LCD screen, an adjustable metal stand, and integrated lighting for clear observation of magnified objects. Key components are described below and illustrated in the accompanying images.

Figura 2.1: The Andonstar AD208 Coin Microscope, showcasing its 8.5-inch LCD screen and adjustable stand with integrated lighting, observing a circuit board.

2.1 Components clau

• Pantalla LCD d'8.5 polzades: Provides a large, clear display for viewing magnified images.
• Adjustable Metal Stand: Offers stability and allows for precise height and angle adjustments of the microscope head.
• Focus Controller: A rotating knob used to achieve a sharp image.
• Llums LED incorporades: Eight integrated LEDs provide primary illumination.
• Adjustable Fill LED Lights: Two flexible, external LED lights on the stand for additional, directional illumination.
• Ranura per a targetes microSD: For storing captured photos and recorded videos.
• Botons de control: Located below the screen for power, menu, mode, and capture functions.

Figura 2.2: Detallada view of the microscope's components, including the two metal fixed clips on the base, the 180-degree adjustable stand, the two metal fill LED lights with 360-degree rotation, and the metal optical bracket for holding the microscope lens.

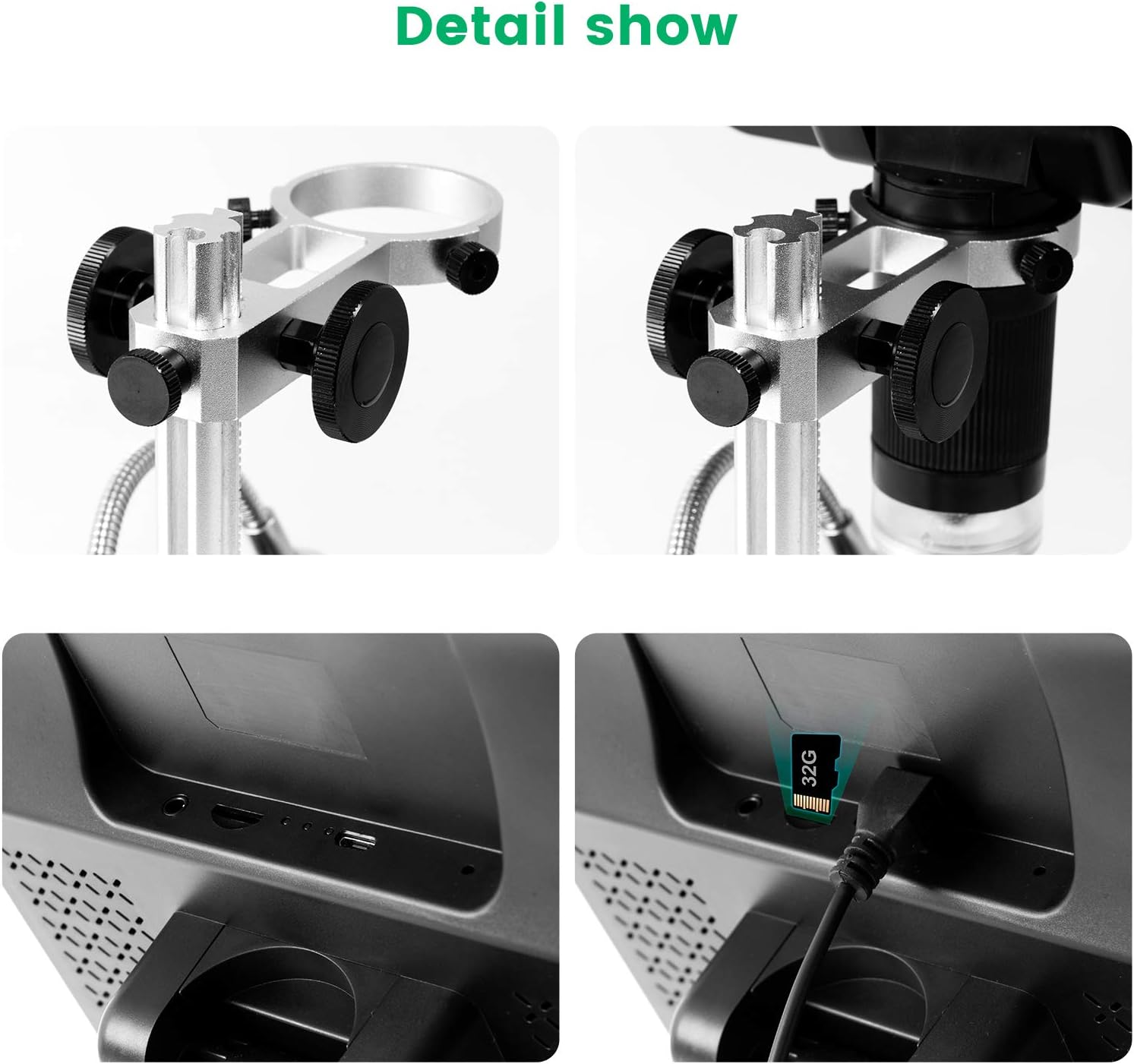

Figura 2.3: Close-up images showing the metal optical bracket for secure lens positioning and the micro-SD card slot for data storage.

3. Instruccions de configuració

Follow these steps to assemble and prepare your microscope for first use.

3.1 Muntatge

1. Desembaleu amb cura tots els components de l'embalatge.
2. Attach the microscope unit (with the LCD screen) to the adjustable metal stand. Ensure it is securely fastened.
3. Position the two flexible fill LED lights on the stand as desired.
4. Connect the power adapter to the microscope and plug it into a power outlet.

3.2 Instal·lació de la targeta Micro-SD

• Locate the micro-SD card slot on the side of the microscope unit.
• Insert a compatible micro-SD card (not included) into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
• The device supports photo and video recording only when a micro-SD card is installed.

4. Instruccions de funcionament

This section details how to operate your Andonstar AD208 microscope.

4.1 Encès/Apagat

• To power on the microscope, press and hold the power button located below the screen.
• Per apagar l'aparell, premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.

4.2 Focusing and Magnification

Achieving a clear image involves adjusting both the distance to the object and the focus controller.

1. Place the object you wish to observe on the base plate.
2. Adjust the height of the microscope head using the knob on the bracket. The lower the height, the greater the magnification (up to 260X).
3. Rotate the focus controller (the ring around the lens) until the image on the screen becomes clear and sharp.

Figura 4.1: Rotate the focus controller to obtain a clear image of the object under observation.

4.3 Ajust de la il·luminació

The microscope is equipped with multiple light sources to ensure optimal viewcondicions.

• The 8 built-in LEDs provide general illumination.
• The two adjustable/flexible fill LEDs on the stand can be positioned to eliminate shadows or highlight specific areas. Adjust their brightness as needed.

Figura 4.2: The two flexible LED lights provide additional illumination, useful for reducing shadows and enhancing detail.

4.4 Capturing Images and Recording Videos

With a micro-SD card inserted, you can capture high-resolution images and videos.

• Press the "OK" button to take a still photo.
• Press the "M" button to switch to video recording mode, then press "OK" to start/stop recording.
• It is possible to capture still photos while a video is being recorded.

4.5 Ajust de la pantalla

The 8.5-inch LCD screen can be adjusted for optimal viewangles d'ajust.

• The screen can be tilted up to 270 degrees, allowing for more convenient observation from various positions.

Figura 4.3: The microscope screen can be tilted up to 270 degrees for comfortable viewing.

5. Manteniment

Proper maintenance ensures the longevity and performance of your microscope.

• Neteja de la lent i la pantalla: Use a soft, lint-free cloth specifically designed for optical surfaces. Do not use abrasive cleaners or solvents.
• Neteja general: Wipe the body of the microscope and stand with a dry or slightly damp tela.
• Emmagatzematge: Store the microscope in a clean, dry environment away from direct sunlight and extreme temperatures.
• Cura de la bateria: The device includes a Lithium Metal battery. For optimal battery life, avoid fully discharging the battery frequently and store the device with a partial charge if not used for extended periods.

6. Solució De Problemes

Consulteu aquesta secció per obtenir solucions a problemes comuns.

7. Especificacions

Key technical specifications for the Andonstar AD208 Coin Microscope.

• Model: AD208
• Mida de la pantalla: LCD de 8.5 polzades
• Ampliació: Fins a 260X
• Sensor d'imatge: Native 2MP CMOS HD sensor
• Emmagatzematge: Micro-SD card slot (card not included)
• Il·luminació: 8 built-in LEDs + 2 adjustable fill LEDs
• Font d'alimentació: 5 Volts (Lithium Metal battery included)
• Dimensions del producte: 6 x 5.4 x 5.55 polzades (L x A x A)
• Pes de l'article: 3.08 lliures (1.4 quilograms)
• Material: Metall, plàstic
• Fabricant: ShenZhen Andonstar Technology Co., Ltd

Figura 7.1: Dimensions of the microscope, illustrating the 6.0-inch base length, 5.4-inch base width, and 5.55-inch height, providing a larger working space.

Figura 7.2: Visual comparison highlighting the larger 8.5-inch LCD screen of the Andonstar AD208 model.

8. Garantia i Suport

For warranty information and technical support, please refer to the manufacturer's official documentation or contact Andonstar customer service.

• Fabricant: ShenZhen Andonstar Technology Co., Ltd
• Política de devolució: Please refer to your retailer's return policy for details (e.g., 30-day return policy on Amazon).
• Per obtenir més ajuda, visiteu el Andonstar Store on Amazon.
