CFMOTO Rear Cargo Box (Model 010_008_00) Instruction Manual

1. Producte acabatview

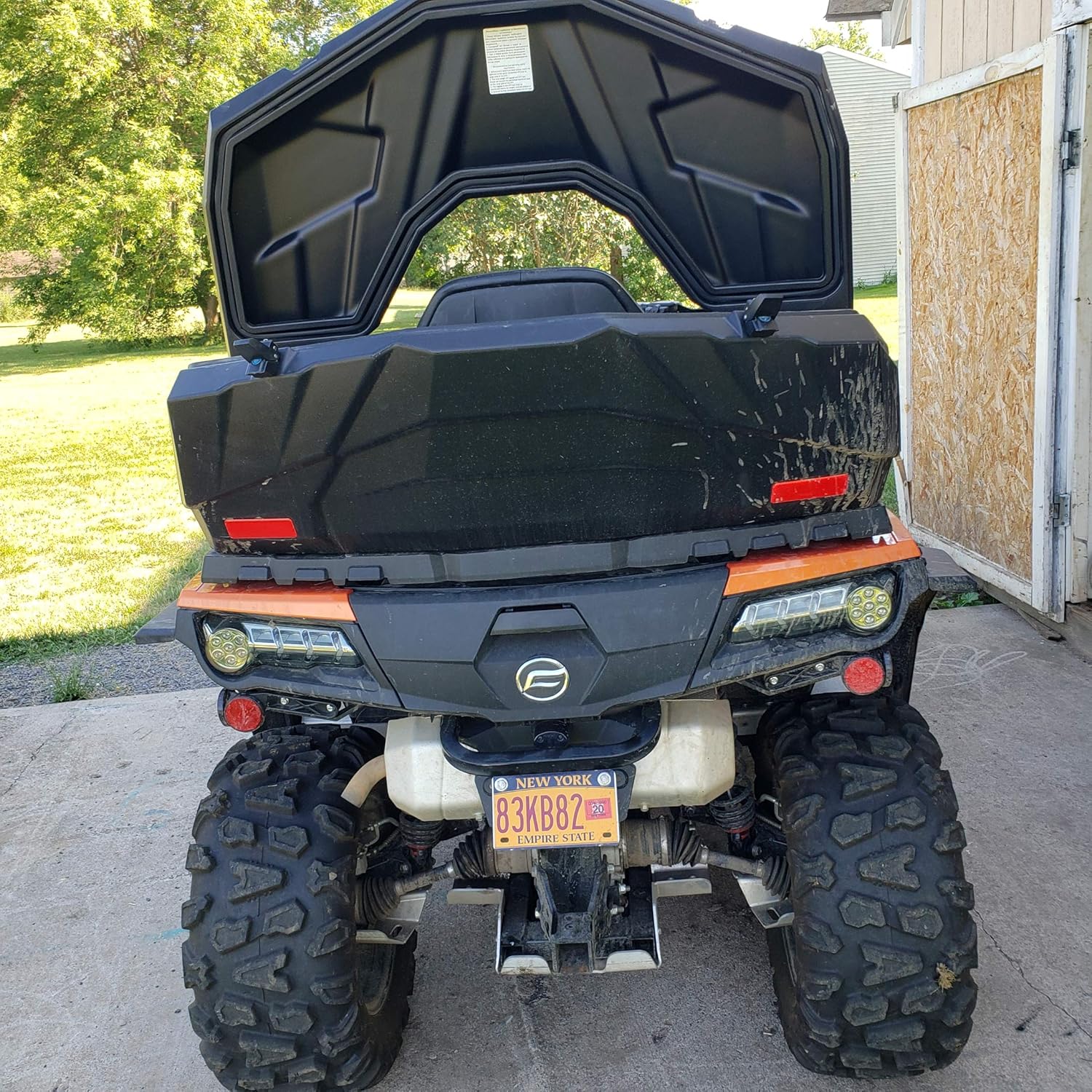

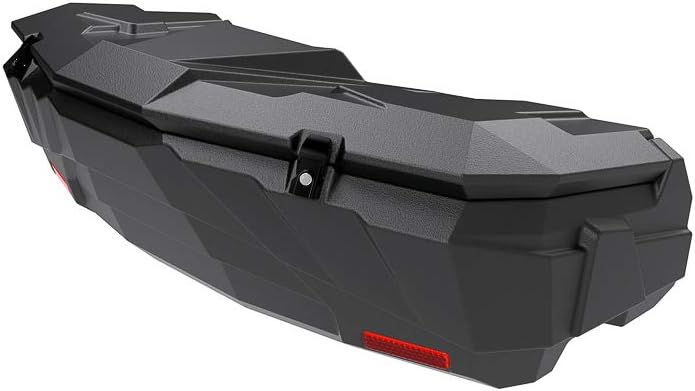

This manual provides instructions for the installation, operation, and maintenance of the CFMOTO 100L Rear Cargo Box. This durable, hard-shell storage solution is designed to securely attach to the rear rack of compatible CFMOTO ATV models, including the 800xc, 850xc, X8, and X10.

Característiques principals:

• Designed specifically for CFMOTO 850xc/X8/X10 h.o. quad bikes.
• Constructed from durable metal for robust protection.
• Features two metal lockers with keys for secure storage.
• Equipped with a quick-release mount system for easy attachment and removal.
• Total volume capacity of 100 liters (26.4 gallons).
• Dimensions (LxWxH): 1068mm x 614mm x 364mm (42" x 24" x 14").
• Item weight: 9.5 kg (21 lbs).

2. Components

The CFMOTO Rear Cargo Box package includes the following components:

• 1 x CFMOTO Rear Cargo Box
• 4 x Quick-release mounting mechanisms
• 2 x Metal lockers with corresponding keys

3. Instal·lació

Follow these steps to properly install the CFMOTO Rear Cargo Box on your ATV:

1. Prepare the ATV Rack: Ensure your ATV's rear cargo rack is clean and free of debris. If any existing accessories are mounted, remove them to provide clear access.
2. Position Mounting Tabs: The quick-release mounting tabs are designed to be placed sota the ATV's cargo rack. Carefully position these tabs in the desired locations on the rack.
3. Secure Mounting Tabs: Reinstall your ATV's cargo rack over the mounting tabs, ensuring they are firmly secured between the rack and the ATV frame. This prevents the box from detaching during operation.
4. Align Cargo Box: Place the CFMOTO Rear Cargo Box onto the ATV's rack, aligning the quick-release receivers on the bottom of the box with the installed mounting tabs.
5. Engage Quick-Release Mechanism: Press down firmly on the cargo box until the quick-release mechanisms click into place, indicating a secure connection. Verify that all four mounts are fully engaged.
6. Seguretat de la prova: Gently attempt to lift and move the cargo box to confirm it is securely attached and does not wobble. Adjust the mounting tabs if necessary to achieve a tight fit.

4. Funcionament

The CFMOTO Rear Cargo Box is designed for ease of use and secure storage.

Opening the Cargo Box:

1. Insert the key into the metal locker on the front of the box.
2. Turn the key to unlock the latch.
3. Lift the lid to access the storage compartment.

Closing and Locking the Cargo Box:

1. Lower the lid until it is fully seated.
2. Ensure the metal latches align with their respective locking mechanisms.
3. Press down firmly on the latches until they click into place.
4. Turn the key to lock the latches, securing the contents. Remove the key after locking.

For a visual demonstration of the box's features and locking mechanism, please refer to the video below:

5. Manteniment

Regular maintenance will ensure the longevity and optimal performance of your CFMOTO Rear Cargo Box.

• Neteja: Clean the exterior of the box with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish. Rinse thoroughly and dry with a soft cloth.
• Cura del pany: Periodically lubricate the key locks with a graphite-based lubricant to ensure smooth operation and prevent corrosion.
• Comprovació de muntatge: Regularly inspect the quick-release mounting mechanisms for any signs of wear or damage. Ensure they remain securely fastened to the ATV rack.
• Inspecció del segell: Check the weather seals around the lid for any cracks or damage. A compromised seal can lead to water intrusion. Replace if necessary.

6. Solució De Problemes

This section addresses common issues you might encounter with your cargo box.

Issue: Cargo box feels loose or wobbly after installation.

Possible causa: The mounting tabs are not securely positioned under the ATV rack, or the quick-release mechanisms are not fully engaged.

Solució:

1. Remove the cargo box from the ATV.
2. Ensure the ATV's cargo rack is properly secured to the ATV frame.
3. Re-position the quick-release mounting tabs firmly under the ATV rack before reinstalling the rack.
4. Reattach the cargo box, ensuring all four quick-release mechanisms click into place. Apply firm pressure.
5. Test the box for stability. If the issue persists, consult a qualified technician.

Issue: Lid is difficult to open or close, or locks are stiff.

Possible causa: Dirt or debris in the hinges/locks, or lack of lubrication.

Solució:

1. Clean hinges and lock mechanisms with a soft brush and mild cleaner.
2. Apply a small amount of graphite lubricant to the keyhole and moving parts of the latches.
3. Operate the lid and locks several times to distribute the lubricant.
