Introducció
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Hisense WSA1603P Semi-Automatic Twin Tub Washing Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.
Informació de seguretat
- Assegureu-vos que l'aparell estigui ben connectat a terra.
- No ho feu servir amb un cable d'alimentació o un endoll danyats.
- Mantenir els nens allunyats de l'aparell durant el funcionament.
- No renteu materials impermeables.
- Desendolleu la màquina abans de netejar-la o fer-ne el manteniment.
Producte acabatview
The Hisense WSA1603P is a semi-automatic twin tub washing machine designed for efficient laundry care. It features separate wash and spin tubs, allowing for simultaneous operation.
Figura 1: Davant view of the Hisense WSA1603P washing machine. This image displays the control panel at the top, with the wash tub on the left and the spin tub on the right, both covered by transparent lids.

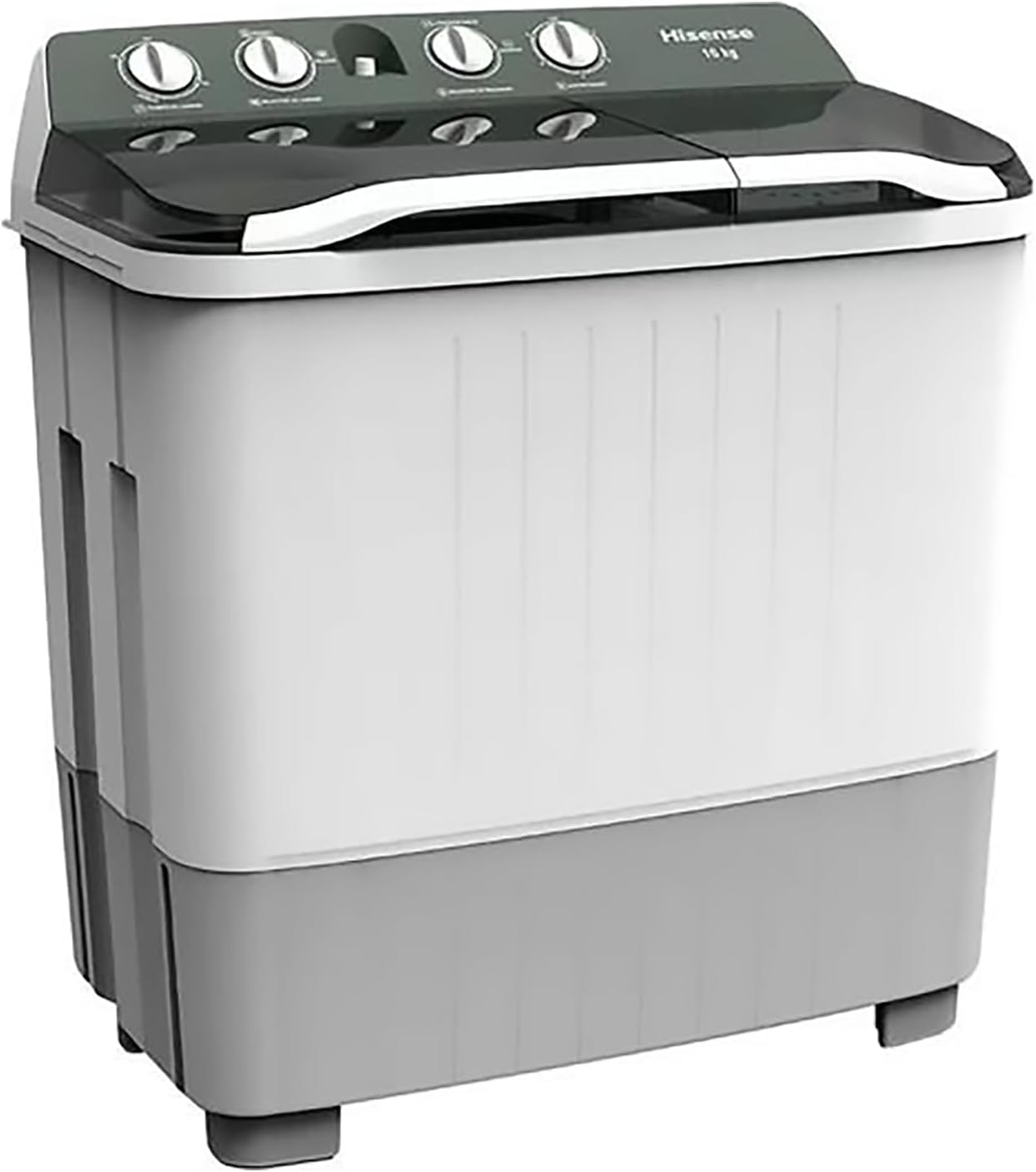

Figura 2: Frontal inclinat view of the Hisense WSA1603P washing machine, showing the overall design and the two distinct tubs.
Configuració i instal·lació
- Desembalatge: Carefully remove the washing machine from its packaging. Inspect for any damage.
- Col·locació: Place the machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and operation. Avoid direct sunlight or damp ambients.
- Subministrament d'aigua: Connecteu la mànega d'entrada d'aigua a una aixeta d'aigua freda. Assegureu-vos que les connexions estiguin ben ajustades per evitar fuites.
- Drenatge: Position the drain hose to allow for proper water discharge. It should be placed in a sink or a drain pipe, ensuring it is not kinked or blocked.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage coincideix amb els requisits de l'aparell.
Instruccions de funcionament
Cicle de rentat
- Carregar la roba: Open the wash tub lid and place clothes loosely into the wash tub. Do not overload. The maximum wash capacity is 16 kg.
- Afegeix aigua: Fill the wash tub with water to the desired level, considering the load size.
- Afegeix detergent: Add the appropriate amount of detergent directly into the wash tub.
- Select Wash Time: Turn the "Wash Timer" knob to select the desired wash duration.
- Seleccioneu el mode de rentat: Use the "Wash Selector" knob to choose the wash mode (e.g., Gentle, Normal).
- Començar a rentar: The machine will begin the wash cycle. The reversible impeller and "Storm Wash" system will ensure efficient cleaning.
- Drenatge d'aigua: Once the wash cycle is complete, turn the "Drain Selector" knob to drain the water from the wash tub.
Cicle de gir
- Bugaderia de trasllat: Carefully transfer the washed clothes from the wash tub to the spin tub. Distribute them evenly. The maximum spin capacity is 8 kg.
- Tapa segura: Tanqueu bé la tapa de la tina de centrifugat.
- Select Spin Time: Turn the "Spin Timer" knob to select the desired spin duration.
- Comença a girar: The machine will begin the spin cycle to remove excess water.
- Treure la roba: Once the spin cycle is complete, open the lid and carefully remove the spun clothes.
Nota: The two independent motors allow for washing and spinning to occur simultaneously, optimizing your laundry process.
Manteniment
- Neteja de l'exterior: Netegeu l'exterior de la màquina amb un damp tela. No utilitzeu netejadors abrasius.
- Neteja del filtre de pelussa: Regularly remove and clean the lint filter located in the wash tub to ensure efficient operation and prevent lint buildup on clothes.
- Tub Cleaning: Periodically clean the wash and spin tubs to prevent mold and odor. Run a short cycle with hot water and a cup of white vinegar or a washing machine cleaner.
- Mànega de drenatge: Assegureu-vos que la mànega de desguàs estigui lliure d'obstruccions.
- Emmagatzematge: If storing the machine for an extended period, drain all water, clean the tubs, and leave lids slightly ajar to allow for air circulation.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Cable d'alimentació desconnectat; apagadatage; tapa no tancada correctament. | Check power connection; check circuit breaker; ensure lids are fully closed. |
| L'aigua no drena | Drain hose kinked or blocked; drain selector not set correctly. | Straighten drain hose; clear any blockages; set drain selector to 'Drain'. |
| Vibració / soroll excessius | Machine not level; clothes unevenly distributed in spin tub; foreign objects. | Adjust leveling feet; redistribute laundry evenly; check for and remove foreign objects. |
| Pobres resultats de rentat | Overloading; insufficient detergent; incorrect wash mode. | Reduce load size; use correct amount of detergent; select appropriate wash mode. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Hisense |
| Número de model | WSA1603P |
| Tipus | Semi-Automatic Twin Tub |
| Capacitat de rentat | 16 kg |
| Capacitat de gir | 8 kg |
| Motors | 2 Independent Motors |
| Sistema de rentat | "Storm Wash" High Efficiency |
| Característiques especials | Reversible Impeller, Water Saver, Lint Filter |
| Tipus d'accés | Càrrega superior |
| Color | Blanc |
| Material | Plàstic |
| Pes del producte | 29.33 kg |
| Dimensions (aprox.) | Alçada: 257.81 cm, Amplada: 226.06 cm, Profunditat: 130.81 cm Note: Dimensions as provided in product data. Please verify physical measurements if precise fit is required. |
Figura 3: Diagram illustrating the dimensions of the Hisense WSA1603P washing machine. The image shows a height of 257.81 cm, a width of 226.06 cm, and a depth of 130.81 cm.
Garantia i Suport
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Hisense website. Contact details for service and technical assistance can typically be found there.
Official Hisense Weblloc: www.hisense.com
