Beninca BULL10MA Slide Gate Opener User Manual

1. Introducció i presentació del producteview

The Beninca BULL10MA is a robust 115 VAC single-phase electric motor opener designed for sliding gates. It is engineered for frequent use and can handle gates up to 30 feet in length or weighing up to 2,000 pounds. This operator features a built-in control panel with an integrated LCD display for easy programming, ensuring smooth and energy-efficient operation.

Les característiques clau inclouen:

• Designed for sliding gates up to 30ft or 2,000lb.
• 115 VAC single-phase operation with built-in control panel.
• Suitable for frequent use, offering energy-efficient and smooth operation.
• Integrated LCD display for simplified programming.
• Built-in radio-receiver for remote control functionality.

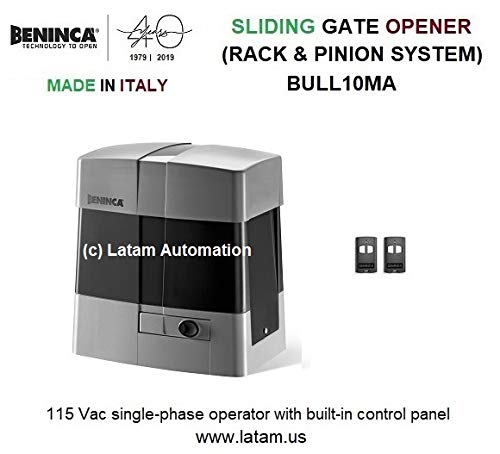

Figure 1.1: The Beninca BULL10MA slide gate opener unit shown with two remote controls. This image provides an overall view of the product and its accompanying accessories.

2. Instruccions de seguretat

It is crucial to read and understand all safety instructions before installing, operating, or performing maintenance on the Beninca BULL10MA gate opener. Failure to follow these instructions could result in serious injury or property damage.

• Instal·lació professional recomanada: Installation should be performed by qualified personnel familiar with gate automation systems and electrical wiring.
• Desconnexió d'alimentació: Always disconnect power to the gate opener before performing any service or maintenance.
• Parts mòbils: Keep hands, feet, and clothing clear of the gate and gate opener mechanism when the gate is in motion.
• Nens i animals de companyia: Never allow children or pets to play near the gate or operate the gate controls.
• Obstruction Sensors: Ensure all safety devices, such as photo-electric cells and safety edges, are correctly installed and functioning to prevent crushing or entrapment.
• Alliberament d'emergència: Familiarize yourself with the manual emergency release mechanism in case of power failure or malfunction.
• Seguretat elèctrica: All electrical connections must comply with local and national electrical codes.

3. Contingut del paquet

En desembalar, verifiqueu que tots els components que s'enumeren a continuació siguin presents i no estiguin danyats. Si falta algun element o està danyat, poseu-vos en contacte amb el vostre proveïdor immediatament.

• 1 x Beninca BULL10MA Slide Gate Opener Unit
• 2 comandaments a distància Beninca ARC 128 de llarg abast i 2 botons
• 1 x Manual d'instal·lació (aquest document)
• Mounting Hardware (bolts, nuts, washers - specific quantities may vary)
• Emergency Release Key

Figura 3.1: Un tancador view of the Beninca BULL10MA unit and the included remote controls. This image highlights the primary components of the package.

4. Configuració i instal·lació

Installation of the Beninca BULL10MA requires careful planning and adherence to local building and electrical codes. It is strongly recommended that installation be carried out by a certified professional.

4.1 Preparació del lloc

• Ensure the gate track is level and free of obstructions.
• Verify the gate moves freely by hand before installing the opener.
• Prepare a stable concrete foundation for mounting the opener unit, ensuring it is level and provides adequate drainage.

4.2 Muntatge de l'obridor

1. Position the opener unit on the prepared foundation, ensuring proper alignment with the gate's rack.
2. Fixeu la unitat amb els accessoris de muntatge proporcionats.
3. Install the gate rack (not included) onto the gate, ensuring it meshes correctly with the opener's pinion gear.

4.3 Connexions elèctriques

• Connect the 115 VAC power supply to the designated terminals within the control panel.
• Wire any external safety devices (e.g., photocells, safety edges) and accessories (e.g., keypads, intercoms) according to the wiring diagram in the control panel manual.
• Ensure all wiring is properly insulated and protected from environmental factors.

4.4 Programació inicial

• Power on the unit. The integrated LCD display will guide you through initial setup.
• Perform the auto-learning procedure for gate travel limits.
• Adjust electronic settings such as torque, anti-crushing reverse sensitivity, soft-start, and soft-stop as needed.
• Program the included remote controls to the built-in radio-receiver.

Figure 4.1: Technical drawing showing dimensions and a table of specifications for the Beninca BULL10MA, BULL15M, and BULL20HEA models. This information is critical for proper installation and planning.

5. Instruccions de funcionament

Once installed and programmed, operating your Beninca BULL10MA gate opener is straightforward.

5.1 Ús del comandament a distància

• Press the programmed button on your Beninca remote control once to activate the gate.
• The gate will begin to open or close. Pressing the button again during operation will stop the gate.
• A third press will reverse the gate's direction (if stopped mid-cycle) or continue its original cycle (if stopped at an end limit).

5.2 Alliberament manual

In case of power failure or malfunction, the gate can be operated manually using the emergency release key.

1. Locate the manual release mechanism on the side or front of the opener unit.
2. Insert the emergency release key and turn it as indicated (usually 90 degrees) to disengage the motor.
3. Ara la porta es pot moure a mà.
4. To re-engage the motor, reverse the key turning process. Ensure the gate is fully closed or open before re-engaging to prevent damage.

6. Manteniment

Regular maintenance ensures the longevity and reliable operation of your Beninca BULL10MA gate opener. Perform these checks periodically:

• Gate Track and Wheels: Keep the gate track clean and free of debris. Inspect gate wheels for wear and ensure they roll smoothly.
• Gate Rack: Check the gate rack for any loose sections or damage. Ensure it is securely fastened to the gate.
• Opener Unit: Keep the exterior of the opener unit clean. Check for any signs of water ingress or pest activity.
• Dispositius de seguretat: Regularly test photocells and other safety sensors to ensure they are functioning correctly and detecting obstructions.
• Lubricació: Refer to the detailed technical manual for specific lubrication points and recommended lubricants. Generally, the pinion gear and rack should be kept clean and lightly lubricated.
• Connexions elèctriques: Periodically inspect all electrical connections for corrosion or loose wiring. (Ensure power is disconnected before inspection).

For complex maintenance or repairs, contact a qualified Beninca service technician.

7. Solució De Problemes

This section provides solutions to common issues you might encounter with your Beninca BULL10MA gate opener. For problems not listed here, or if solutions do not resolve the issue, contact technical support.

8. Especificacions

Detailed technical specifications for the Beninca BULL10MA model.

Figure 8.1: Detailed technical data and dimensional drawings for the BULL10MA and related models, providing precise measurements and performance metrics.

9. Garantia i Suport

Beninca products are manufactured to high standards and are typically covered by a manufacturer's warranty against defects in materials and workmanship. The specific warranty period and terms may vary by region and purchase date.

For warranty claims, technical support, or service inquiries, please contact your authorized Beninca dealer or visit the official Beninca website. When contacting support, please have your product model number (BULL10MA) and purchase information readily available.

Beninca Official Weblloc: www.beninca.com
