Producte acabatview
The IFB SENATOR WSS 8014 is an 8 Kg 5 Star AI Powered Fully Automatic Front Load Washing Machine designed for efficient and thorough laundry care. It features an in-built heater and offers a comprehensive warranty. This appliance is equipped with advanced technologies to optimize wash performance and ensure fabric care.
Davant view of the IFB SENATOR WSS 8014 washing machine, showcasing its silver finish, large front-loading door, and control panel.
Característiques clau
- AI Powered Wash: A neural network-based algorithm detects fabric type and weight, optimizing wash duration, water level, wash actions, and gentleness.
- Classificació energètica de 5 estrelles: Garanteix la millor eficiència energètica de la seva classe.
- TRISHIELD PROTECTION: Includes 4 Years Comprehensive Warranty, 10 years Motor Warranty, and 10 years Spares Support.
- Velocitat de centrifugat de 1400 RPM: Higher spin speeds for faster drying.
- 14 programes de rentat: Including Hygiene/Anti Allergen, Cradlewash for Delicates, Baby Wear, Mixed/Daily/Soiled, Cotton Normal, Synthetic, Bulky/Bedding/Curtains/Duvet, Sports Wear/Fitness Wear, Uniform, Express Wash, Cotton Eco Plus, Woollens, Rinse+Spin, Spin Dry/Drain.
- Crescent Moon Drum: Innovative stainless steel drum design creates a gentle water cushion, preventing fabric damage.
- Aqua Energie Device: For water softening, better detergent action, and color protection.
- Dual Steam Cycle: Provides power cleaning for germ and wrinkle-free clothes.
- Inbuilt Heater: Offers Hot, Warm, and Cold temperature options.
- Característiques de seguretat: Child Lock, High-Low Voltage Protection, Auto Imbalance Control, Foam Detection, Auto Restart, Auto Tub Clean, Protective Rat Mesh.
Configuració i instal·lació
Proper installation is crucial for the optimal performance and longevity of your washing machine. It is recommended to have the appliance installed by a qualified technician.
Desembalatge
Carefully remove all packaging materials. Ensure that all included components are present:
- Rentadora
- Mànega de desguàs
- Tub d’entrada
- Manual d'usuari + Targeta de garantia
- Clip Ring
- Acoblament de cargol
- Protective Rat Mesh Cover
Requisits d'ubicació
- Col·loqueu la màquina sobre una superfície ferma i anivellada per minimitzar les vibracions i el soroll.
- Assegureu-vos que hi hagi prou espai al voltant de la màquina per a la ventilació i el manteniment.
- Eviteu la llum solar directa o fonts de calor.
Connexió d'aigua i electricitat
- Connect the inlet pipe to a cold water tap with sufficient water pressure.
- Ensure the drain hose is properly secured to a drain outlet.
- Connect the power cord to a grounded 220 Volt AC power outlet.
Diagram showing the dimensions of the IFB washing machine: 87.5 cm height, 61.5 cm depth, and 59.8 cm width, important for installation planning.
Instruccions de funcionament
Familiarize yourself with the control panel and various wash programs to achieve the best results.
Tauler de control acabatview
The control panel features a knob for program selection and buttons for various options and settings. The digital display provides information on the selected program, time remaining, and error codes.

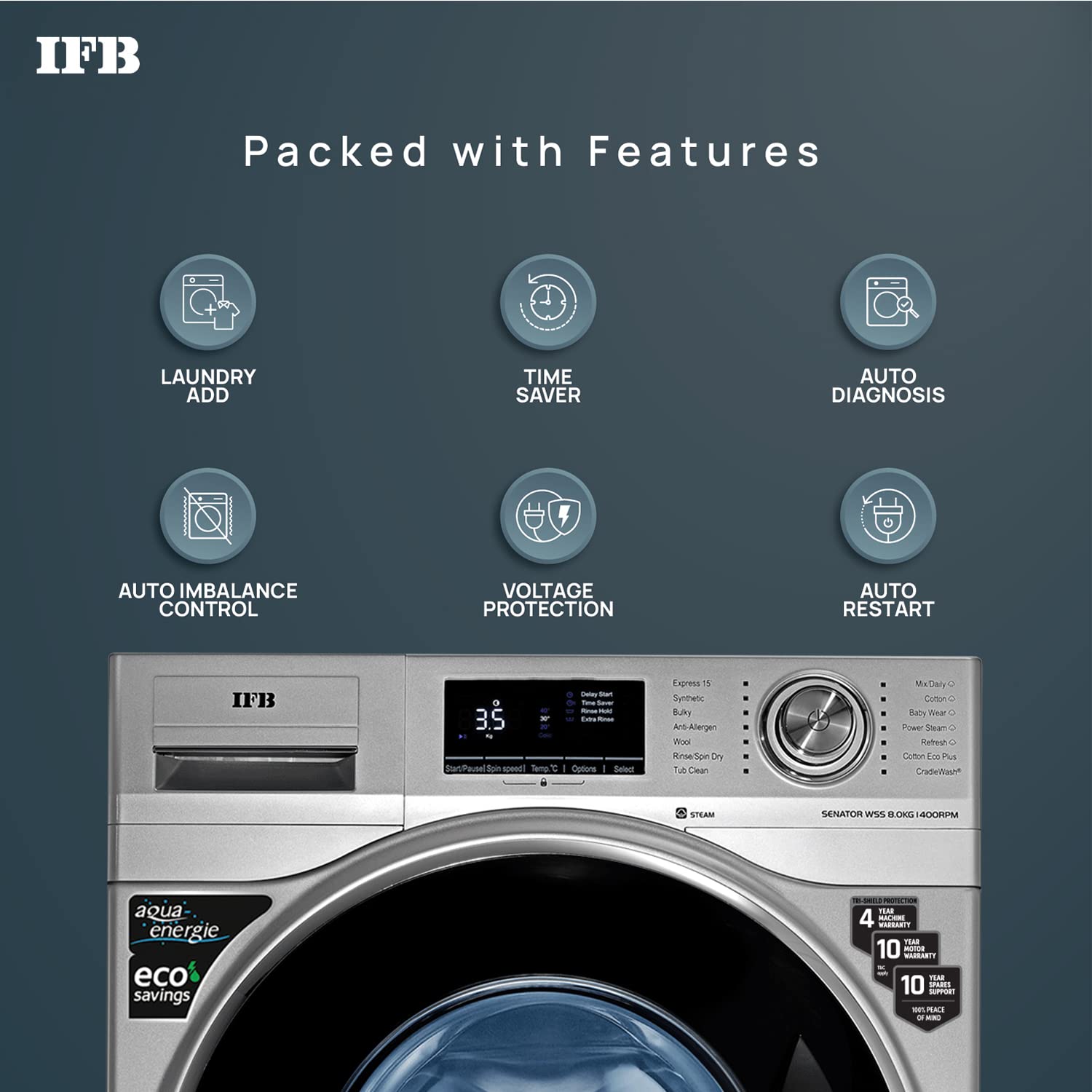

Primer pla view of the IFB washing machine's control panel, highlighting features like Laundry Add, Time Saver, Auto Diagnosis, Auto Imbalance Control, Voltage Protection, and Auto Restart.
Carregant la bugaderia
- Ordena la roba per tipus de teixit, color i nivell de sòl.
- Do not overload the drum. Refer to the 8 Kg capacity limit.
- For delicate items, utilize the Cradle Wash program.
Image illustrating the Cradle Wash feature, showing delicate fabrics being gently washed inside the Crescent Moon Drum, ideal for silks, lace, and chiffons.
Selecció d'un programa de rentat
- Turn the program selection knob to choose the desired wash program (e.g., Cotton Normal, Synthetic, Express Wash).
- Adjust additional options like temperature (Hot, Warm, Cold) or spin speed if available for the selected program.
- Add appropriate detergent to the dispenser.
- Premeu el botó Inici/Pausa per començar el cicle.
Ús de funcions especials
- Aqua Energie: This feature softens water, improving detergent action and protecting fabric colors.
- Actualització de vapor: For quick refreshing of clothes and wrinkle removal. This cycle typically takes 30 minutes.
- Laundry Add: Allows you to add forgotten laundry items during the initial stages of a wash cycle.
Visual representation of the 2X Steam Cycle, highlighting its benefits: reduces wrinkles, provides 99.99% germ-free wash, and offers multiple steam wash programs.
Graphic indicating the 30-minute Steam Refresh cycle, designed to remove wrinkles and allergens from clothes, offering a quick steam spa.
Manteniment i cura
Regular maintenance ensures the longevity and efficient operation of your washing machine.
Neteja del dispensador de detergent
Traieu i netegeu periòdicament el calaix del dispensador de detergent per evitar l'acumulació de residus.
Neteja del Tambor
Utilize the Auto Tub Clean program to maintain drum hygiene and prevent odors.
Neteja de filtres
Regularly check and clean the drain pump filter to remove lint and small objects.
Neteja exterior
Netegeu l'exterior amb un suau, damp tela. Eviteu els netejadors abrasius.
Hivernació (si escau)
If the machine is in an unheated area, drain all water from the hoses and pump to prevent freezing damage.
Resolució de problemes
Aquesta secció ofereix solucions per a problemes comuns que podeu trobar.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Cable d'alimentació no connectat; Porta no tancada correctament; Programa no seleccionat; Botó d'inici/pausa no premut. | Check power connection; Ensure door is securely latched; Select a program; Press Start/Pause. |
| Vibració / soroll excessius | Màquina no anivellada; Cargols de transport no retirats; Càrrega desigual. | Adjust leveling feet; Ensure transit bolts are removed (if new installation); Redistribute laundry inside the drum. |
| L'aigua no drena | Mànega de desguàs doblegada o bloquejada; filtre de la bomba de desguàs obstruït. | Check drain hose for obstructions; Clean the drain pump filter. |
| Fuga d'aigua | Inlet/drain hose connections loose; Detergent overdose causing excessive foam. | Tighten hose connections; Use recommended amount of detergent. |
| La roba no neta | Overloading; Incorrect program selection; Insufficient detergent; Hard water. | Reduce load size; Select appropriate program; Use correct detergent amount; Utilize Aqua Energie feature for hard water. |
Per a problemes que no figuren aquí o si les solucions no resolen el problema, poseu-vos en contacte amb l'atenció al client.
Especificacions
| Especificació | Valor |
|---|---|
| Model | SENATOR WSS 8014 |
| Capacitat | 8 quilos |
| Eficiència energètica | 5 Estrella |
| Velocitat de rotació màxima | 1400 RPM |
| Nombre de cicles de rentat | 14 |
| Voltage | 220 Volts |
| Pes de l'article | 75 kg |
| Dimensions (LxWxH) | 61.5P x 59.8A x 87.5H centímetres |
| Material del tambor | Acer inoxidable |
| Característiques especials | 2x Power Dual Steam, Aqua Energie, AI Powered, Child Lock, Cradle Wash, Inbuilt Heater, Self Diagnosis, Time Saver |
Garantia i Suport
Your IFB washing machine comes with comprehensive warranty and support services.
- 4 anys de garantia completa a la màquina.
- 10 Years Motor Warranty.
- 10 Years Spares Support.
Image detailing IFB's Tri-Shield Protection, which includes a 4-year machine warranty, 10-year motor warranty, and 10-year spares support, ensuring peace of mind.
Atenció al client
For any service requests, technical assistance, or queries, please contact IFB customer care.
- 24x7 Help: Available via call or AI chat.
- Reparacions in situ: Provided by trained service experts.
- Centres de servei: Over 1250 service centers across 19000+ pin-codes.
Information graphic for IFB Care, showing contact options like 24x7 help, on-site repairs, and the number of service experts and centers available for doorstep service.
For more information, visit the official IFB weblloc web o consulteu la targeta de garantia inclosa amb el producte.
