1. Introducció
The Gecko in.k800 Electronic Keypad is designed to provide an advanced and intuitive user interface for controlling your spa's functions. Featuring a bright, full-color display and a 10-button layout, this keypad offers seamless navigation and control for Gecko's X and Y series control systems.
Les característiques clau inclouen:
- Full-color interface for clear and efficient user control.
- Menu-driven interface to configure and manage all spa functions and connected accessories.
- 10-key layout for dynamic navigation and enhanced user experience.
- Compatibility with Gecko's X and Y series control systems.
2. Configuració i instal·lació
This section outlines the general steps for setting up and installing your Gecko in.k800 Electronic Keypad. For detailed wiring and system-specific instructions, please refer to your spa's main control system manual or consult a qualified technician.
2.1 Components inclosos
El vostre paquet ha de contenir els elements següents:
- Gecko in.k800 Keypad
- Guia de l'usuari (aquest document)
2.2 Compatibilitat
The in.k800 keypad is compatible with Gecko's X and Y series control systems.
2.3 Passos d'instal·lació
- Ensure the spa's power supply is disconnected before beginning installation.
- Carefully remove the existing keypad (if applicable) or prepare the mounting location for the new in.k800 keypad.
- Connect the keypad cable to the designated port on your Gecko X or Y series control system. Ensure the connection is secure and watertight.
- Mount the in.k800 keypad in the desired location, ensuring it is securely fastened and sealed to prevent water ingress.
- Once installed, restore power to the spa. The keypad should power on and display the initial setup screen or home interface.
3. Instruccions de funcionament
The in.k800 keypad features a user-friendly, menu-driven interface. This section provides an overview of the keypad's buttons and display elements.
3.1 Keypad Layout
The keypad consists of 10 physical buttons and a central color display. Refer to Figure 2 for the button identification.
- Botó de configuració: Typically used to access the main settings menu.
- Botó de mode: Used to cycle through different operating modes or functions.
- Fletxes amunt/avall: Used for navigation within menus and adjusting values (e.g., temperature).
- Light/Key 6: Controls spa lighting or serves as a programmable function key.
- Tecles 1-5: Functions for these keys may vary depending on your system's configuration.
- Selection Lights: Indicate active selections or modes.
3.2 Interfície de visualització

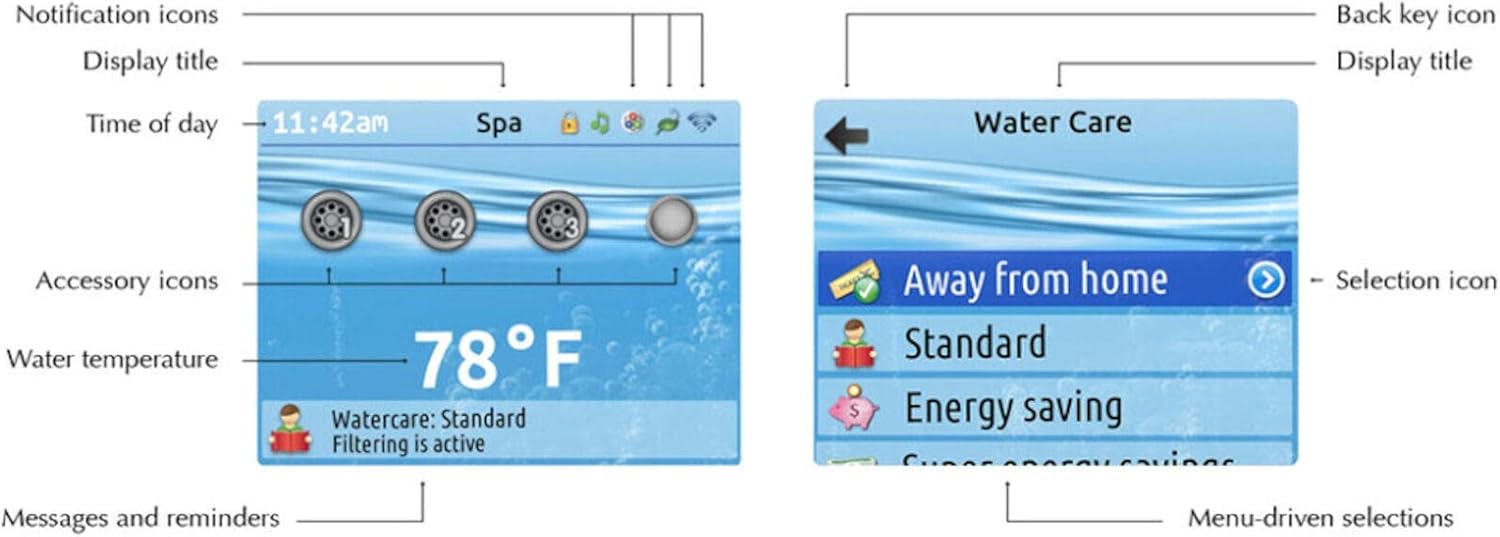

The full-color display provides real-time information and allows for intuitive menu navigation. Refer to Figure 3 for an explanation of the display elements.
- Notification Icons: Display system alerts or status indicators.
- Títol de visualització: Shows the current menu or screen name (e.g., "Spa", "Water Care").
- Hora del dia: Indica l'hora actual.
- Accessory Icons: Represent active accessories (e.g., jets, blower).
- Temperatura de l'aigua: Shows the current spa water temperature.
- Messages and Reminders: Provides important system messages or maintenance reminders (e.g., "Watercare: Standard Filtering is active").
- Back Key Icon: Used to return to the previous screen or menu.
- Selection Icon: Highlights the currently selected menu item.
- Menu-driven Selections: List of options available for selection (e.g., "Away from home", "Standard", "Energy saving").
3.3 Navegació bàsica
To navigate the in.k800 interface:
- Utilitza el Up i Avall botons de fletxa per desplaçar-se per les opcions del menú.
- Premeu el centre Selecció button (often indicated by a dot or circle) to confirm a selection or enter a submenu.
- Utilitza el Back Key Icon (usually an arrow pointing left) to return to the previous screen.
- El Configuració button provides access to advanced configurations.
4. Manteniment
Un manteniment adequat garanteix la longevitat i el rendiment òptim del teclat in.k800.
4.1 Neteja
- Gently wipe the keypad surface and display with a soft, damp tela.
- Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the display and keypad finish.
- Ensure no water enters the keypad housing during cleaning.
4.2 Protecció
- To prevent sun damage and prolong the life of the display, consider using a protective cover for your spa, especially if the keypad is frequently exposed to direct sunlight.
5. Solució De Problemes
This section provides basic troubleshooting steps for common issues. If the problem persists, contact Gecko customer support or a qualified spa technician.
| Problema | Causa possible | Solució |
|---|---|---|
| Keypad display is blank | No power to the spa or keypad; Loose connection | Check spa's main power supply. Ensure keypad cable is securely connected to the control system. |
| Els botons no responen | Keypad malfunction; Water ingress | Ensure keypad surface is dry. If problem persists, contact support. |
| Lectura de temperatura incorrecta | Sensor issue; System calibration needed | Consult your spa's control system manual for sensor troubleshooting or recalibration. |
6. Especificacions
Technical specifications for the Gecko in.k800 Electronic Keypad:
- Número de model:
- in.k800 (0607-008030)
- Dimensions del producte:
- 8.75 x 4.25 x 2.5 polzades
- Fabricant:
- Gecko
- Dispositius compatibles:
- Gecko's X and Y series control systems
- Descripció del teclat:
- Specialized Input Device with 10-Key Layout and Color Display
- Estil:
- Modern
- Components inclosos:
- Keypad, User Guide
- Font d'alimentació:
- Passiva
- Nombre de botons:
- 10
- Data de primera disponibilitat:
- 5 de novembre de 2020
7. Garantia i Suport
For warranty information, please refer to the documentation provided with your spa control system or contact Gecko directly. For technical support or service inquiries, please visit the official Gecko weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat.
You can find more information about Gecko products at the Gecko Store on Amazon.
