1. Introducció
The SHAD S0SL10ST TOP Master fitting is a specifically designed kit that enables the secure mounting of a SHAD top case onto compatible motorcycles. This fitting ensures a high-quality, comfortable, and safe solution for carrying luggage, engineered to integrate seamlessly with your motorcycle's design.
It is essential to note that this fitting requires the use of a SHAD mounting plate, which is typically included with SHAD top cases (excluding TR48/TR37 models). This manual provides detailed instructions for the proper installation and use of the S0SL10ST TOP Master fitting.
2. Contingut del paquet
Abans de començar la instal·lació, comproveu que tots els components siguin presents al paquet:
- SHAD S0SL10ST TOP Master Fitting Kit
- All necessary screws and fasteners for installation
- Guia d'instal·lació (aquest document)
Note: A SHAD mounting plate is required for attaching a top case and is sold separately or included with SHAD top cases. This fitting is not compatible with aluminium mounting plate (D1BTRPA).
3. Compatibilitat
The SHAD S0SL10ST TOP Master fitting is designed for specific motorcycle models. Please ensure your motorcycle is compatible before installation.
Compatible SHAD Top Cases:
- Small plates (D1B29PA)
- Medium plates (D1B40PA)
- SH26
- SH29
- SH33
- SH34
- SH37
- SH39
Important: This top fitting is no compatible with the aluminium mounting plate (D1BTRPA).
4. Instal·lació (Configuració)
Follow these steps carefully to install the SHAD S0SL10ST TOP Master fitting on your motorcycle. It is recommended to have basic mechanical knowledge and appropriate tools.
Guia pas a pas:
- Preparació de la motocicleta: Ensure the motorcycle is stable, preferably on a center stand or paddock stand. Remove any existing rear rack or passenger grab handles if they interfere with the fitting's mounting points. Refer to your motorcycle's service manual for specific instructions on removing components.
- Identificar els punts de muntatge: Locate the designated mounting points on the rear of your motorcycle, typically near the tail light or under the passenger seat. The SHAD fitting is designed to align with these specific points.
Image: The SHAD S0SL10ST TOP Master fitting securely attached to the rear of a motorcycle, ready to receive a top case. This image illustrates the fitting's position and how it integrates with the motorcycle's rear section.
- Attach the Fitting Components: Assemble the fitting components according to the included diagram (if provided, otherwise follow the general structure). Securely attach the main support bars to the identified mounting points using the provided screws and fasteners. Ensure all bolts are hand-tightened initially.
- Alinear i estrènyer: Once all components are in place, ensure the fitting is properly aligned and level. Systematically tighten all screws and bolts using appropriate tools. Do not overtighten, but ensure they are firm and secure to prevent vibration and movement during operation.
- Comprovació final: After tightening all fasteners, gently shake the installed fitting to confirm its stability. There should be no excessive play or wobbling. Double-check all connections.
Imatge: Un costat sencer view of an electric scooter, showcasing the SHAD S0SL10ST TOP Master fitting mounted on its rear. This provides a broader perspective of the fitting's integration with the overall vehicle.
5. Operating (Using the Fitting)
Once the SHAD S0SL10ST TOP Master fitting is securely installed, it provides a stable platform for attaching compatible SHAD top cases.
- Attaching a Top Case: Align the SHAD top case (with its integrated mounting plate) with the fitting. Press down firmly until you hear a click, indicating that the top case is securely locked onto the fitting.
Image: The SHAD S0SL10ST TOP Master fitting with a SHAD SH39 top case successfully mounted on a motorcycle. This demonstrates the final appearance with a top case attached.
- Detaching a Top Case: To remove the top case, typically use the release mechanism on the top case itself (often a button or lever). Follow the instructions provided with your specific SHAD top case model.

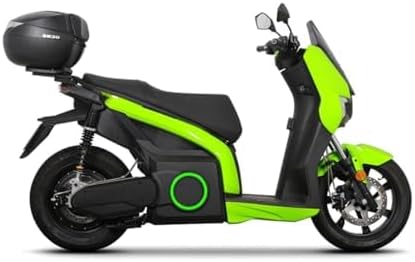

Image: A comprehensive side view of an electric scooter featuring both the SHAD S0SL10ST TOP Master fitting and a SHAD top case installed. This illustrates the complete setup on the vehicle.
Always ensure the top case is securely attached before riding. Periodically check the fitting for any signs of loosening or damage.
6. Manteniment
The SHAD S0SL10ST TOP Master fitting requires minimal maintenance to ensure its longevity and safe operation.
- Inspecció periòdica: Periodically inspect all bolts and fasteners for tightness. Vibrations from riding can cause them to loosen over time. Tighten as necessary.
- Neteja: Clean the fitting with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Comprovació de danys: Inspect the fitting for any signs of cracks, bends, or corrosion, especially after long rides or if the motorcycle has been involved in an incident. Replace damaged components immediately.
7. Solució De Problemes
If you encounter issues with your SHAD S0SL10ST TOP Master fitting, consider the following common solutions:
- Fitting does not align with mounting points:
- Ensure you have the correct SHAD TOP Master fitting for your specific motorcycle model.
- Check for any obstructions on the motorcycle's frame or bodywork.
- Loosen all bolts slightly, adjust the fitting, and then re-tighten.
- Top case does not attach securely:
- Verify that you are using a compatible SHAD top case and mounting plate (D1B29PA or D1B40PA).
- Ensure the top case's mounting plate is correctly installed on the top case itself.
- Check for any debris or damage on the fitting or the top case's mounting mechanism.
- Vibració o soroll excessiu:
- Re-check all installation bolts and fasteners for tightness.
- Ensure the top case is securely locked onto the fitting.
- Inspect the fitting for any signs of damage or wear.
If problems persist, contact SHAD customer support or a qualified motorcycle mechanic.
8. Especificacions
| Marca | Shad |
| Model | S0SL10ST |
| Material | Niló |
| Pes de l'article | 2.55 quilograms (aproximadament 5.61 lliures) |
| Tipus de muntatge | Muntatge en rack |
| Fabricant | SHAD |
| Dimensions del paquet | 21.77 x 18.81 x 4.69 polzades |
9. Garantia i Suport
SHAD products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official SHAD website. For technical support, installation assistance, or spare parts, please contact SHAD customer service through their official channels.
Official SHAD Weblloc: www.shad.es
