AIRTHEREAL MA5000 Blau

Manual d'usuari del generador d'ozó Airthereal MA5000

Model: MA5000

1. Informació important de seguretat

WARNING: Use only in unoccupied spaces. Ozone is harmful to humans and pets when present in high concentrations.

  • Always ensure no people, pets, or plants are in the room during operation.
  • Ventilate the treated area thoroughly for at least 30-60 minutes after ozone generation is complete before re-entering.
  • No feu funcionar el dispositiu si està danyat o no funciona correctament.
  • Mantenir fora de l'abast dels nens.
  • No bloquegeu les reixetes d'entrada o sortida d'aire.
  • Unplug the unit before any maintenance or cleaning.

2. Producte acabatview

The Airthereal MA5000 is a commercial ozone generator designed to effectively eliminate odors, bacteria, and viruses from various environments. It produces 5000 mg/h of ozone, making it suitable for treating homes, offices, vehicles, and other spaces.

Airthereal MA5000 Ozone Generator, front view

Figura 2.1: Frontal view of the Airthereal MA5000 Ozone Generator, showing the control dial and air vents.

2.1 Característiques clau

  • High Ozone Output: 5000 mg/h for powerful odor and pathogen elimination.
  • Aplicació versàtil: Ideal for homes, offices, cars, basements, smoking areas, kitchens, and areas affected by water or fire damage.
  • Funció de temporitzador: Features a 120-minute timer and a HOLD mode for flexible operation.
  • Disseny portàtil: Equipped with an insulating rubber handle for easy transport.
  • Eficient energètic: Dissenyat per a un baix consum d'energia.
  • Construcció duradora: Made from metal (aluminum alloy).
Airthereal MA5000 eliminating various odors

Figure 2.2: The Airthereal MA5000 effectively eliminates odors such as musty smells, smoke, pet odors, cooking odors, formaldehyde, and those from fire-damaged areas.

3. Configuració

3.1 Desembalatge i inspecció

Carefully remove the ozone generator from its packaging. Inspect the unit for any signs of damage. Ensure all components listed below are present:

  • 1 x Airthereal MA5000 Ozone Generator
  • 1 x Ozone Plate (pre-installed)
  • 1 x cable d'alimentació
  • 1 x Manual d'usuari
Airthereal MA5000 with power cable and user manual

Figure 3.1: Contents of the Airthereal MA5000 package, including the unit, power cable, and user manual.

3.2 Col·locació

Place the ozone generator in the center of the room or area to be treated, ensuring it is on a stable, flat surface. Do not place it directly against walls or furniture, as this may obstruct airflow. Ensure there is adequate space around the unit for proper ventilation.

4. Instruccions de funcionament

4.1 Llista de verificació prèvia a l'operació

  1. Ensure the area to be treated is completely empty of people, pets, and plants.
  2. Close all windows and doors in the treatment area.
  3. Remove any valuable artwork, delicate fabrics, or rubber materials that might be sensitive to ozone.

4.2 Configuració del temporitzador

The MA5000 features a 120-minute timer and a HOLD function.

  • Mode de temporitzador: Turn the dial clockwise to set the desired operating time (up to 120 minutes). The unit will automatically shut off when the timer expires.
  • Mode HOLD: Turn the dial counter-clockwise to the "HOLD" position for continuous operation. Use this mode with extreme caution and only when you can ensure the area remains unoccupied for the entire duration.

Recommended Operating Time based on Area:

Superfície (m²)Temps (minuts)
9.29 m²7 min
18.58 m²15 min
27.87 m²30 min
37.16 m²45 min
46.45 m²60 min
92.9 m²MANTENIM

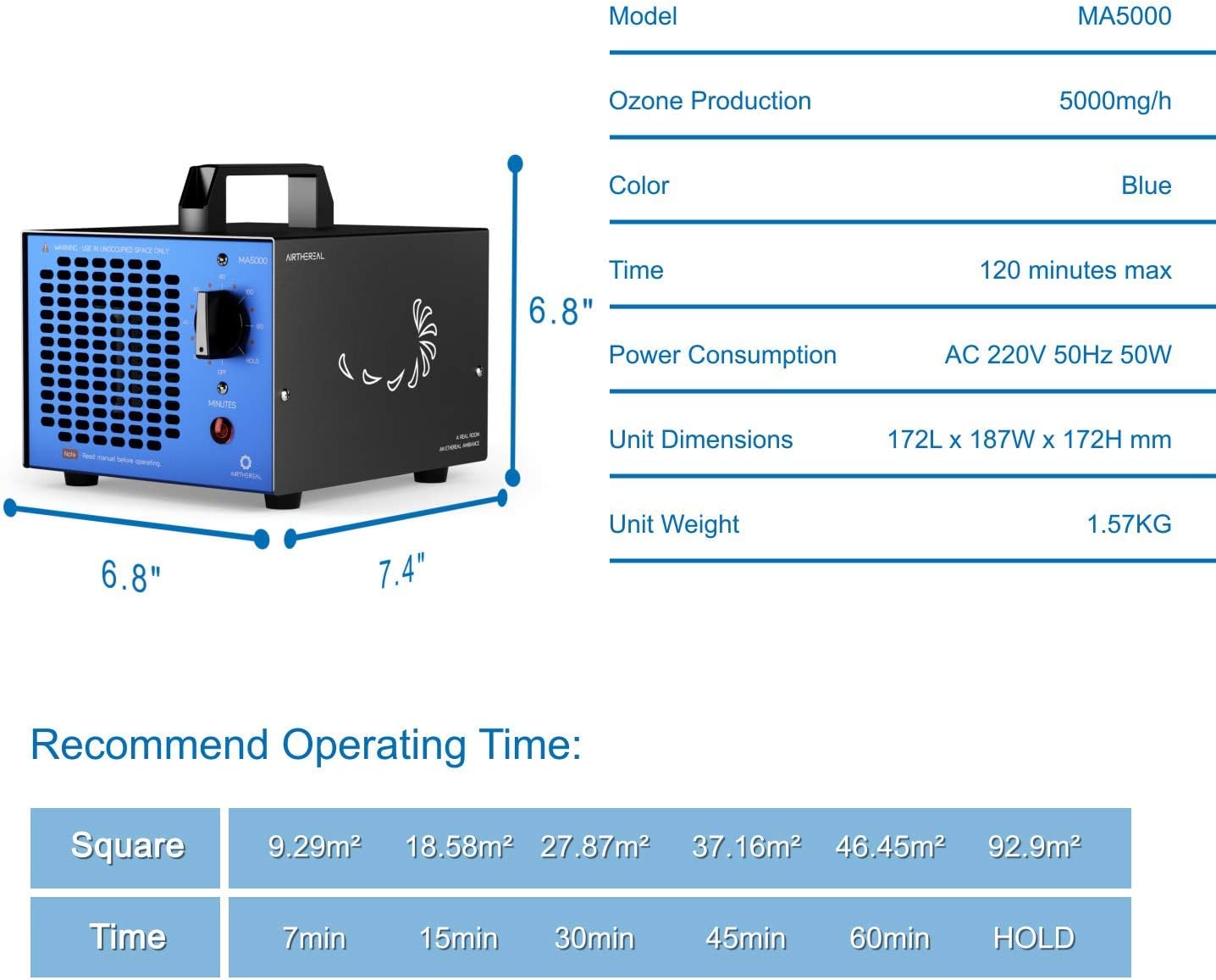

Airthereal MA5000 dimensions and recommended operating times

Figure 4.1: Product dimensions and a table showing recommended operating times based on room size.

4.3 Post-Operation Ventilation

After the ozone generation cycle is complete, open all windows and doors to ventilate the treated area. Allow at least 30-60 minutes for the ozone to dissipate before re-entering. The treated area should smell fresh and clean, similar to the scent after a thunderstorm.

5. Manteniment

Regular maintenance ensures optimal performance and longevity of your Airthereal MA5000 ozone generator.

5.1 Cleaning the Ozone Plate and Filter

The ozone plate and air filter should be cleaned regularly, depending on usage and air quality. A dirty plate or filter can reduce ozone output and efficiency.

  1. Desendolleu la unitat de la presa de corrent.
  2. Locate the filter cover on the side of the unit.
  3. Remove the filter cover and carefully slide out the ozone plate and filter.
  4. Clean the ozone plate with a cotton swab dipped in rubbing alcohol. Ensure it is completely dry before reinstallation.
  5. The air filter is removable and washable. Rinse it under warm water and allow it to air dry completely.
  6. Reinstall the dry filter and ozone plate, then replace the filter cover.

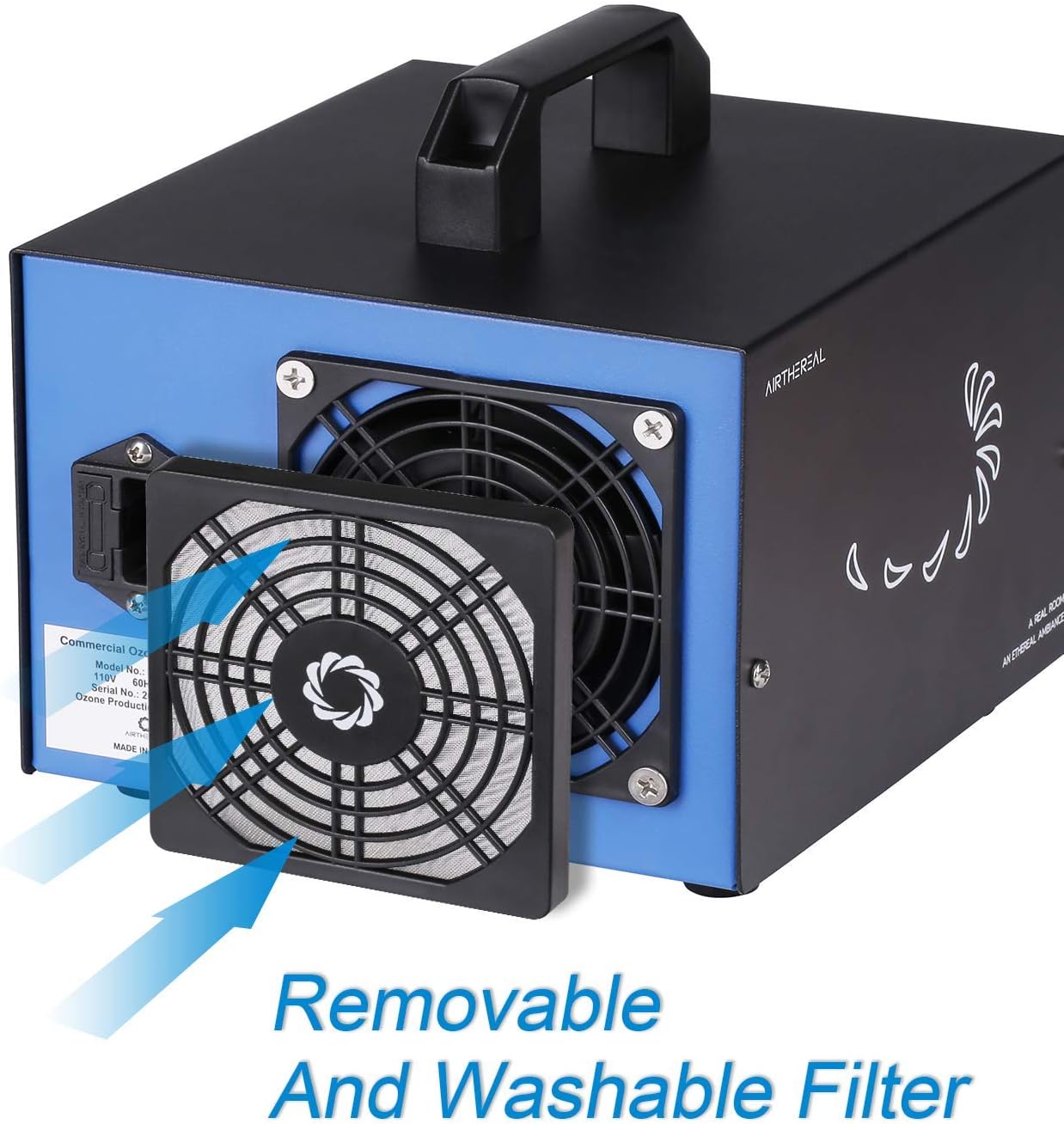

Airthereal MA5000 showing removable and washable filter

Figure 5.1: Illustration of how to remove and clean the washable filter and ozone plate.

5.2 Neteja exterior

Netegeu l'exterior de la unitat amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.

6. Solució De Problemes

ProblemaCausa possibleSolució
La unitat no s'encén.No power supply; Timer not set.Check power connection; Ensure timer is set or in HOLD mode.
Low ozone output.Dirty ozone plate or filter; Obstructed vents.Clean ozone plate and filter (refer to Section 5.1); Ensure vents are clear.
Soroll inusual.Fan obstruction; Loose components.Unplug and check for obstructions in the fan; Contact customer support if noise persists.

7. Especificacions

EspecificacióDetall
MarcaAERI
Número de modelMA5000 Blau
Producció d'ozó5000 mg/h
MaterialMetall (aliatge d'alumini)
ColorBlau
Dimensions de la unitat (L x A x A)172 x 187 x 172 mm (6.8 x 7.4 x 6.8 polzades)
Pes de la unitat1.57 kg (3.46 lliures)
PoderAC 220-240 V 50 Hz 50 W
Nivell de soroll35 dB
Mètode de controlTactile (Dial)
Tipus de filtreReplaceable Ozone Plate
Max Floor Area100 metres quadrats
Airthereal MA5000 with dimensions labeled

Figure 7.1: Detailed dimensions of the Airthereal MA5000 unit.

8. Garantia i Suport

The Airthereal MA5000 comes with a 2 any de garantia i suport de tota la vida.

If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact Airthereal customer support. They are committed to resolving any issues as quickly as possible.

For support, please refer to the contact information provided in the original packaging or on the official Airthereal weblloc.
