1. Introducció
Thank you for choosing the Montech X2 MESH White ATX Mid-Tower Case. This manual provides essential information for the proper setup, operation, and maintenance of your new PC case. The X2 MESH is designed for high airflow and features a fine mesh front panel, a full tempered glass side panel, and comes with three pre-installed rainbow LED fans (two 140mm at the front and one 120mm at the rear) to ensure optimal cooling performance and aesthetic appeal.
Figure 1.1: Montech X2 MESH White ATX Mid-Tower Case overview.
2. Producte acabatview
The Montech X2 MESH case combines classic design with modern functionality. Key features include:
- Fine Mesh Front Panel: Designed for maximum air intake and dust filtration.
- Full Tempered Glass Side Panel: Proporciona un clar view of your internal components and RGB lighting.
- Pre-installed Rainbow LED Fans: Two 140mm fans at the front and one 120mm fan at the rear for immediate cooling.
- Interior espaiós: Supports ATX, Micro-ATX, and Mini-ITX motherboards, multiple storage drives, and ample wiring space.
Figure 2.1: The fine mesh front panel ensures high airflow for efficient cooling.
Figure 2.2: The full tempered glass side panel allows for showcasing components interns.

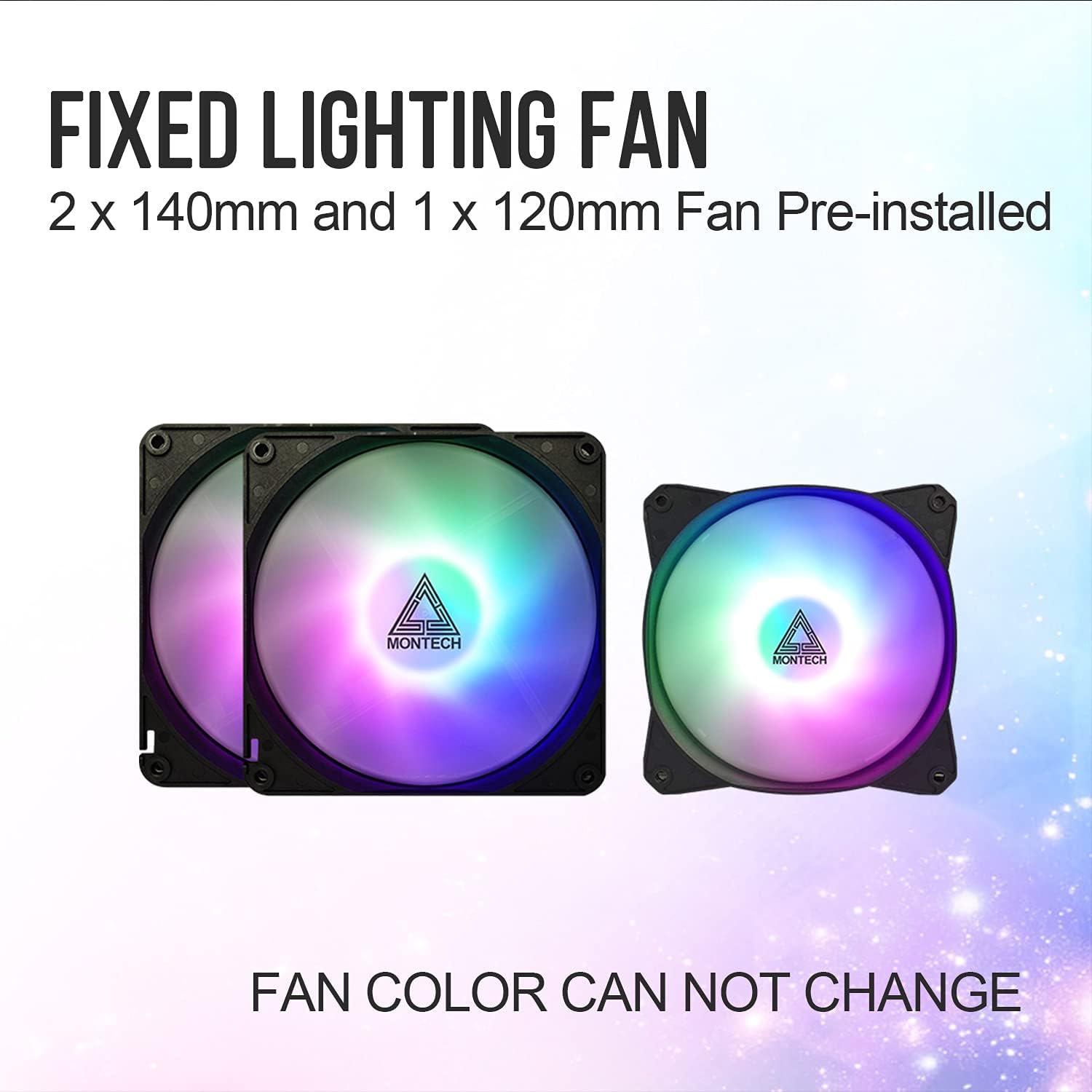

Figure 2.3: The case includes two 140mm and one 120mm pre-installed rainbow LED fans.
3. Configuració i instal·lació
Follow these steps for proper installation of your PC components into the Montech X2 MESH case.
3.1 Instal·lació de la placa base
- Traieu el panell lateral de vidre temperat desenroscant els cargols de polze.
- Install the necessary motherboard standoffs for your ATX, Micro-ATX, or Mini-ITX motherboard.
- Carefully place your motherboard into the case, aligning it with the standoffs and the I/O shield opening.
- Fixeu la placa base amb cargols.

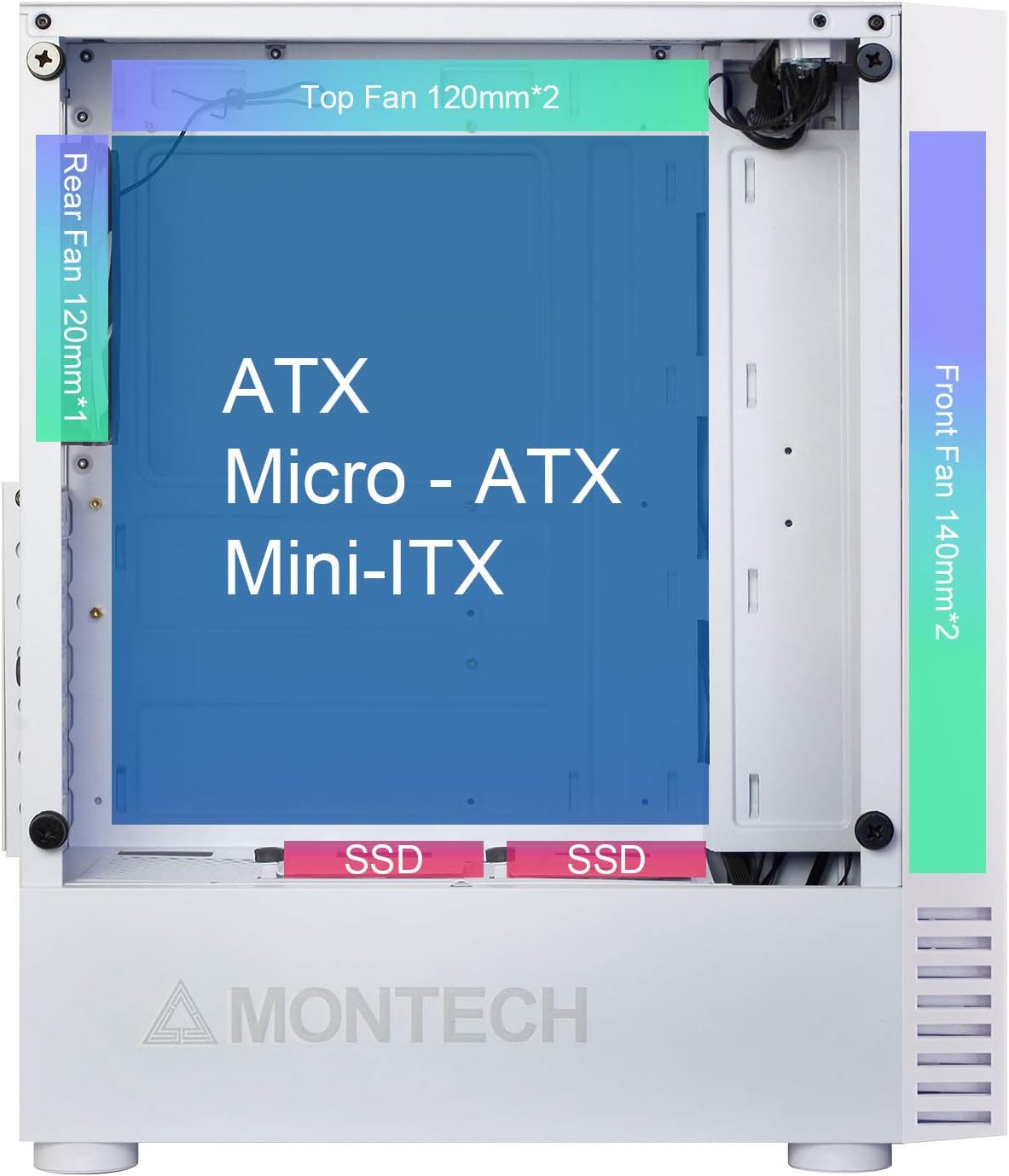

Figure 3.1: Internal layout showing compatibility for ATX, Micro-ATX, and Mini-ITX motherboards, along with fan placements.
3.2 Instal·lació d'unitats d'emmagatzematge (HDD/SSD)
- SSD de 2.5 polzades: Mount SSDs to the dedicated SSD trays located near the PSU shroud or on the rear of the motherboard tray.
- Discs durs de 3.5 polzades: Install HDDs into the drive cage located beneath the PSU shroud.
Figure 3.2: Locations for HDD, SSD, and PSU installation, highlighting wiring space.
3.3 Instal·lació de la unitat d'alimentació (PSU).
The X2 MESH supports standard ATX PSUs. Install the PSU from the rear of the case, securing it with screws. Ensure proper cable routing through the designated cutouts.
3.4 Gestió de cables
Utilitzeu el ample wiring space behind the motherboard tray and the cable tie-down points to manage cables neatly. This improves airflow and aesthetics.
4. Instruccions de funcionament
Once all components are installed and connected, close the side panels. The pre-installed rainbow LED fans will illuminate upon system power-on, providing effective cooling and visual appeal. Ensure your system's power button is connected to the motherboard's front panel headers.
5. Manteniment
Un manteniment regular ajuda a garantir un rendiment òptim i una major longevitat de la carcassa del teu PC.
- Cleaning the Mesh Front Panel: Periodically clean the fine mesh front panel to prevent dust buildup, which can restrict airflow. Use a soft brush or compressed air.
- Cleaning the Tempered Glass Side Panel: Use a microfiber cloth and a non-abrasive glass cleaner to keep the tempered glass panel clear and smudge-free.
- Neteja del ventilador: Gently clean the fan blades with compressed air or a soft brush to remove dust buildup.
6. Solució De Problemes
Si teniu problemes, tingueu en compte els passos habituals següents per resoldre'ls:
- Sense energia: Ensure all power cables (24-pin ATX, 8-pin CPU, GPU, etc.) are securely connected to the motherboard and components. Check the PSU switch.
- Fans Not Spinning/LEDs Off: Verify that the fan headers are correctly connected to the motherboard or fan controller. Ensure power is supplied to the fans.
- Flux d'aire deficient: Check for dust buildup on the mesh panel and fans. Ensure no cables are obstructing airflow paths.
- Components solts: If experiencing system instability, re-check all component connections (RAM, GPU, storage drives).
For persistent issues, consult your component manuals or contact Montech support.
7. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | X2 MESH |
| Marca | Montech |
| Tipus de cas | Mitjana Torre |
| Color | X2 MESH White |
| Material | Vidre (panell lateral de vidre temperat) |
| Compatibilitat amb la placa base | ATX, Micro ATX, Mini ITX |
| Dimensions del producte (L x A x A) | 38 x 19 x 44.7 cm |
| Pes de l'article | 5.2 quilos |
| Ventiladors preinstal·lats | 2 x 140mm Rainbow LED (Front), 1 x 120mm Rainbow LED (Rear) |
| Ports USB 2.0 | 2 |
| Mètode de refrigeració | Aire |
| Tipus de muntatge de la font d'alimentació | Muntatge inferior |
8. Garantia i Suport
For warranty information and technical support, please refer to the official Montech weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.
