1. Introducció
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Haverland TT6PLUS 900W Electric Radiator. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Haverland TT6PLUS is a durable 900W electric radiator designed for indoor use, providing efficient convection heating.
2. Instruccions de seguretat
Observeu sempre les següents precaucions de seguretat per reduir el risc d'incendi, descàrrega elèctrica o lesions:
- Read all instructions before using this radiator.
- Assegureu-vos que la font d'alimentació voltage matches the rating label on the radiator.
- Do not operate any radiator with a damaged cord or plug, or after the radiator malfunctions or has been dropped or damaged in any manner.
- Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front and sides of the radiator.
- No utilitzar a l'aire lliure.
- Do not immerse the radiator in water or other liquids.
- Desendolla el radiador quan no l'utilitzis.
- Supervise children and individuals with reduced physical, sensory, or mental capabilities when the radiator is in use.
3. Contingut del paquet
En desembalar-lo, comproveu que tots els components siguin presents i no estiguin danyats:
- Haverland TT6PLUS 900W Electric Radiator
- Mounting accessories (e.g., wall brackets, screws, floor stands - may vary by package)
- Manual d'usuari (aquest document)
Si falta algun article o està malmès, contacteu immediatament amb el vostre distribuïdor.
4. Instal·lació i configuració
The Haverland TT6PLUS radiator can be installed as a wall-mounted unit or used as a floor-standing unit, depending on the included accessories.
4.1. Desembalatge
Carefully remove the radiator from its packaging. Retain packaging for future transport or storage.
4.2. Consideracions de col·locació
- Ensure the radiator is placed on a stable, level surface if floor-standing, or securely mounted if wall-mounted.
- Maintain adequate clearance from walls, furniture, and other objects to allow for proper heat circulation and prevent overheating. Refer to safety instructions for minimum distances.
- Do not place the radiator directly below a power outlet.
4.3. Wall Mounting (If applicable)
For wall mounting, it is recommended to consult a qualified electrician or professional installer to ensure safe and correct installation. Use the provided mounting hardware and follow local electrical codes.

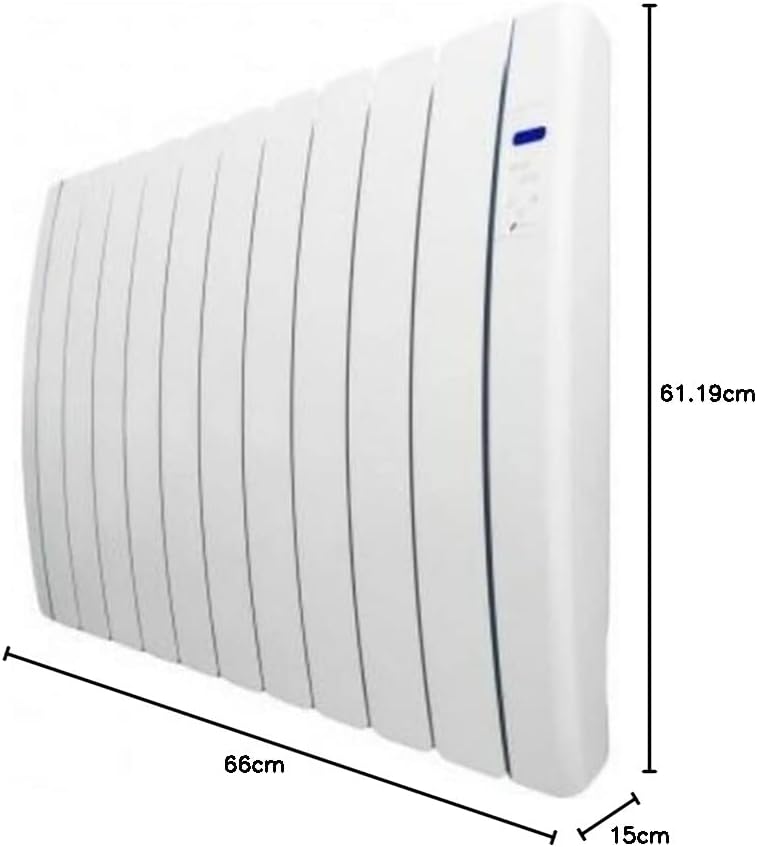

Image 1: Haverland TT6PLUS Radiator with indicated dimensions (Width: 66cm, Height: 61.19cm, Depth: 15cm). This image illustrates the physical size of the unit for installation planning.
Imatge 2: Frontal view of the Haverland TT6PLUS 900W Electric Radiator. The radiator is white with multiple fins and a small blue digital display on the side control panel.
5. Instruccions de funcionament
The Haverland TT6PLUS radiator is designed for user-friendly operation.
5.1. Encès / apagat
Plug the radiator into a suitable electrical outlet. The unit will typically enter standby mode. Use the power button on the control panel to turn the radiator on or off.
5.2. Control de temperatura
Use the control panel (visible on the side, as shown in Image 2) to adjust the desired temperature. The blue display will show the current settings. Refer to the specific icons and buttons on your unit for precise temperature adjustment and mode selection (e.g., comfort, economy, anti-freeze, programming).
5.3. Heating Modes (General)
Your radiator may feature various heating modes to optimize energy consumption and comfort. Consult the control panel for available options and how to select them.
6. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament eficient del radiador.
6.1. Neteja
- Desendolleu sempre el radiador de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
- Netegeu les superfícies exteriors amb un damp drap. No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius, ja que poden danyar l'acabat.
- Assegureu-vos que no entri aigua als components interns.
6.2. Emmagatzematge
If storing the radiator for an extended period, unplug it, clean it thoroughly, and store it in a dry, dust-free location, preferably in its original packaging.
7. Solució De Problemes
If you encounter issues with your Haverland TT6PLUS radiator, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| El radiador no s'encén. | Sense font d'alimentació. No s'ha premut el botó d'engegada. | Check if the radiator is properly plugged into a working outlet. Premeu el botó d’engegada del tauler de control. |
| El radiador està encès però no escalfa. | Temperatura massa baixa. Safety cut-off activated. | Augmenteu la temperatura desitjada. Unplug the radiator, let it cool for 30 minutes, then plug it back in. Ensure proper ventilation. |
| Sorolls inusuals. | Normal expansion/contraction sounds. Components solts. | Minor clicking or creaking sounds are normal during heating/cooling. If noises are loud or persistent, unplug and contact support. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client o amb un tècnic qualificat.
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Haverland |
| Nom del model | TT6PLUS |
| Número de model | S0427576 |
| Poder | 900W |
| Color | Blanc |
| Dimensions (L x A x P) | 66 cm x 61.2 cm x 15 cm |
| Pes de l'article | 5.8 kg |
| Tipus de muntatge | Wall-mountable / Floor-standing |
| Font d'alimentació | Elèctric amb cable |
| Mètode de calefacció | Convecció |
| Ús interior/exterior | Interior |
| Característica especial | Durable |
9. Garantia i Suport
For warranty information, product support, or service inquiries, please refer to the documentation provided with your purchase or contact Haverland customer service directly. Keep your proof of purchase for warranty claims.
Manufacturer: BigBuy Home
