Vivolink VLQICHR QI Wireless Charger User Manual

1. Introducció

Thank you for choosing the Vivolink VLQICHR QI Wireless Charger. This device provides a convenient and efficient way to charge your QI-compatible devices without the need for cables. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan. Keep this manual for future reference.

2. Informació de seguretat

• No exposeu el carregador a l'aigua, la humitat ni a temperatures extremes.
• Eviteu deixar caure el carregador ni sotmetre'l a impactes forts.
• Do not disassemble, repair, or modify the charger. This may void the warranty and pose safety risks.
• Keep the charger away from medical implants (e.g., pacemakers) to prevent potential interference.
• Use only certified power adapters and cables with the charger.
• Ensure there are no metal objects (e.g., coins, keys, credit cards) between the charging surface and your device during charging, as this can cause overheating or damage.
• Desendolleu el carregador durant tempestes o quan no l'utilitzeu durant períodes prolongats.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• Vivolink VLQICHR QI Wireless Charger
• USB Power Cable (Type-C or Micro-USB, depending on model)
• Manual d'usuari (aquest document)

4. Producte acabatview

The Vivolink VLQICHR is a compact and efficient wireless charging solution. It features a charging surface where QI-compatible devices are placed for power transfer. An LED indicator typically signals charging status.

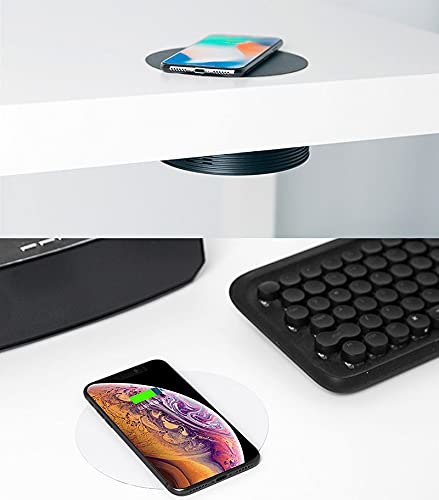

This image illustrates the Vivolink VLQICHR QI Wireless Charger in two common usage scenarios. The top portion shows a smartphone wirelessly charging on a pad seamlessly integrated into a desk surface. The bottom portion displays another smartphone charging on a separate, standalone wireless charging pad, highlighting the versatility of QI wireless charging technology.

5. Configuració

1. Connecteu-vos a l'alimentació: Plug the provided USB power cable into the charging port on the Vivolink VLQICHR wireless charger.
2. Connecteu-vos a la font d'alimentació: Connect the other end of the USB cable to a compatible USB power adapter (not included) or a USB port on a computer. Ensure the power adapter meets the charger's power requirements (e.g., 5V/2A, 9V/1.67A for fast charging).
3. Encès: Once connected, the LED indicator on the charger may light up briefly to confirm it is powered on and ready for use.

6. Instruccions de funcionament

1. Col·loca el dispositiu: Place your QI-compatible smartphone or other device directly onto the center of the Vivolink VLQICHR charging surface.
2. Confirma la càrrega: The LED indicator on the charger should change color or illuminate steadily to indicate that charging has begun. Your device's screen should also show a charging icon or notification.
3. Col·locació òptima: If charging does not start, slightly adjust the position of your device on the charging pad. Some devices may have specific coil locations that require precise alignment.
4. Càrrega completa: Once your device is fully charged, remove it from the charging pad. The charger's LED indicator may change or turn off.

Nota: Charging speed may vary depending on the device, power adapter, and environmental conditions. Thick phone cases may interfere with wireless charging; consider removing them for optimal performance.

7. Manteniment

• Neteja: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface. Do not use harsh chemicals or abrasive cleaners.
• Emmagatzematge: Guardeu el carregador en un lloc fresc i sec quan no l'utilitzeu.
• Cura del cable: Avoid bending or twisting the power cable excessively to prevent damage.

8. Solució De Problemes

• El dispositiu no es carrega:
  • Assegureu-vos que el carregador estigui connectat correctament a una font d'alimentació que funcioni.
  • Verify your device is QI-compatible.
  • Adjust the placement of your device on the charging pad to ensure proper alignment.
  • Remove any thick phone cases or metal objects from your device.
  • Proveu un cable USB o un adaptador d'alimentació diferent.
• Càrrega lenta:
  • Ensure you are using a power adapter that supports the charger's fast charging capabilities (e.g., Quick Charge 2.0/3.0 or Power Delivery).
  • Check for proper device alignment.
  • Tanca les aplicacions innecessàries del dispositiu.
• LED indicator flashing:
  • Refer to your device's specific LED indicator guide. Often, flashing indicates a foreign object detection (FOD) or improper device placement.
  • Remove the device and any foreign objects, then place the device back on the charger.

9. Especificacions

Note: Specific input/output power ratings may vary. Please refer to the product packaging or the device itself for precise specifications.

10. Garantia i Suport

Specific warranty information for the Vivolink VLQICHR QI Wireless Charger is not provided in the available product data. For detailed warranty terms, technical support, or service inquiries, please refer to the documentation included with your purchase or contact Vivolink customer support directly through their official weblloc web o canals de contacte.
