Husqvarna 18-inch X-Force Chainsaw Guide Bar Instruction Manual

1. Producte acabatview

The Husqvarna X-Force guide bar is engineered for enhanced durability, reduced weight, and superior performance in Husqvarna chainsaws. Its design features a smooth, optimized profile, robust durability in the nose and bearing system, and an optimized center plate, all contributing to minimal downtime and maximum cutting efficiency.

Característiques principals:

• Genuine Husqvarna X-Force 18-inch guide bar.
• Designed for use with select Husqvarna chainsaws and chains.
• Features a .325-inch pixel chain pitch.
• Features a .050 gauge.
• Accommodates 72 drive links.
• Recommended 3/16-inch file size for chain sharpening.
• Compatible with Husqvarna chainsaw models: 435e, 440e, 450e, 450 Rancher, 543 XP, 545 Mark II.
• Engineered for maximum durability and performance.

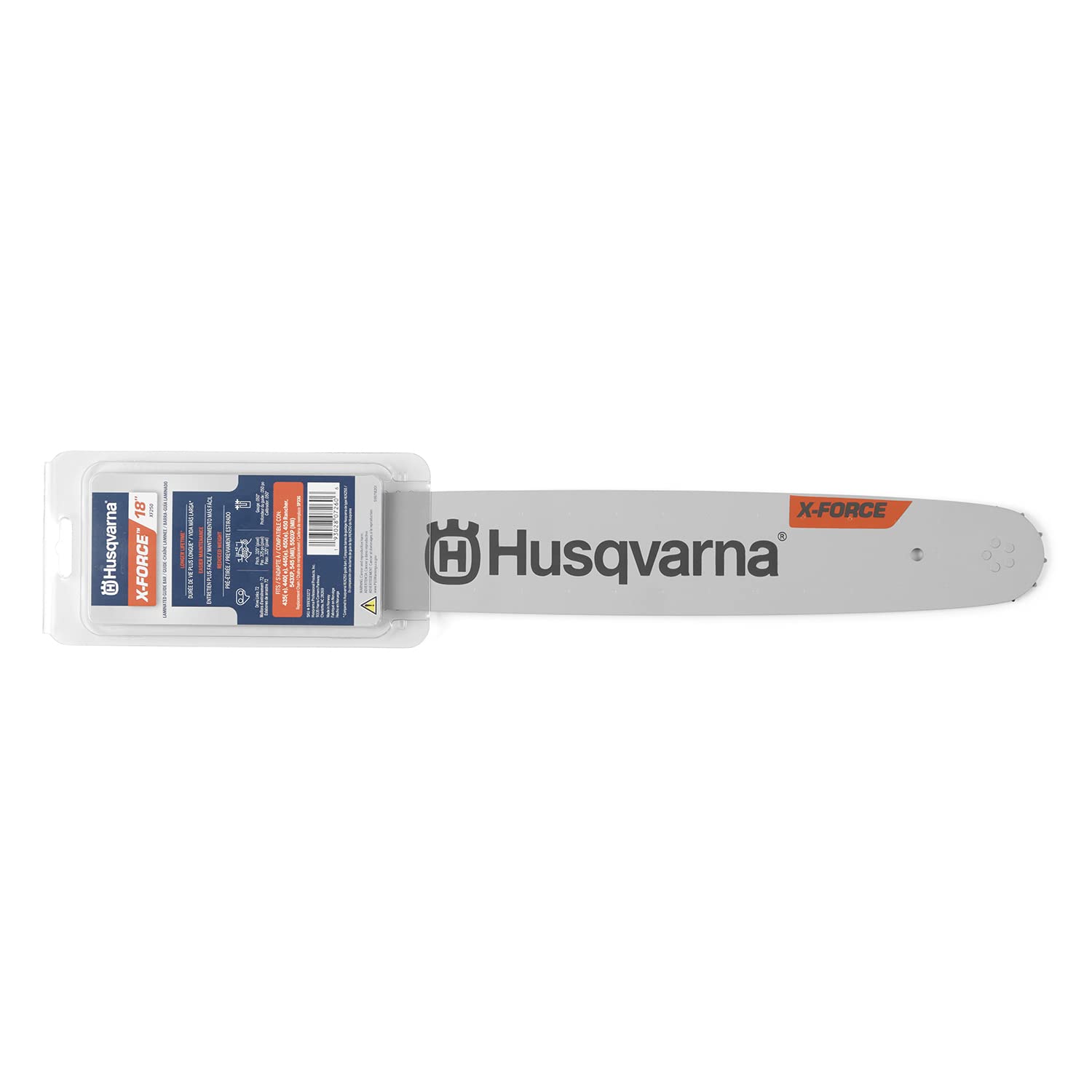

Figure 1: Husqvarna 18-inch X-Force Chainsaw Guide Bar, top view. This image displays the full length of the guide bar with the Husqvarna logo and X-Force branding clearly visible.

2. Configuració i instal·lació

Proper installation of the guide bar is crucial for safe and efficient chainsaw operation. Always refer to your specific chainsaw's instruction manual for detailed installation procedures.

Passos generals d'instal·lació:

1. La seguretat primer: Ensure the chainsaw is turned off, the spark plug cap is removed (for gasoline models), or the battery is disconnected (for electric models) before beginning any work. Wear appropriate protective gloves.
2. Treure la barra i la cadena velles: Loosen the bar nuts and remove the clutch cover. Carefully remove the old guide bar and chain.
3. Components nets: Clean any sawdust, debris, or old oil from the clutch area, bar mounting studs, and the new guide bar's groove.
4. Instal·la una barra nova: Place the new Husqvarna X-Force guide bar onto the bar mounting studs. Ensure the drive links of the chain fit correctly into the bar groove and around the drive sprocket.
5. Instal·lació de la cadena: Loop the chain around the clutch drum and guide it into the bar groove. Ensure the cutting edges of the chain are facing the correct direction.
6. Replace Clutch Cover: Reinstall the clutch cover and hand-tighten the bar nuts.
7. Ajustar la tensió de la cadena: Adjust the chain tension according to your chainsaw's manual. The chain should be snug against the bar but still able to be pulled freely by hand. It should not sag underneath the bar.
8. Ajustament final: Once tension is correct, fully tighten the bar nuts.

Figure 2: Husqvarna 18-inch X-Force Chainsaw Guide Bar. This image highlights the X-Force branding and the overall design of the guide bar.

3. Pautes de funcionament

The Husqvarna X-Force guide bar is designed for optimal cutting performance when used correctly. Always prioritize safety and follow all instructions provided in your chainsaw's operating manual.

Safe and Effective Use:

• Equips de protecció individual (EPI): Always wear appropriate PPE, including a helmet, eye protection, hearing protection, gloves, and chainsaw protective trousers/chaps.
• Lubricació de la cadena: Ensure the chainsaw's oil tank is filled with the correct bar and chain oil. The guide bar and chain require constant lubrication during operation to prevent overheating and premature wear.
• Afilat de la cadena: A sharp chain is essential for efficient and safe cutting. A dull chain can lead to increased effort, poor cuts, and accelerated wear on the guide bar.
• Tècnica de tall: Allow the chainsaw to do the work. Do not force the bar through wood. Maintain a firm grip and stable stance.
• Eviteu les obstruccions: Be aware of potential obstructions like dirt, rocks, or metal that can damage the guide bar and chain.

4. Manteniment

Regular maintenance of your Husqvarna X-Force guide bar will extend its lifespan and ensure consistent performance.

Procediments de manteniment:

• Solc de barra net: After each use, or regularly during extended use, remove the guide bar and clean the groove with a bar groove cleaner or a thin flat tool. This removes sawdust and debris that can impede chain movement and lubrication.
• Inspect for Burrs: Check the edges of the guide bar for burrs, especially along the top and bottom rails. These can be filed smooth with a flat file to prevent uneven chain wear.
• Flip the Bar: To promote even wear, flip the guide bar periodically (e.g., every time you sharpen the chain or replace it). This distributes wear across both sides of the bar.
• Check Nose Sprocket: For guide bars with a nose sprocket, ensure it spins freely and is adequately lubricated. X-Force bars often feature a sealed bearing system, but regular inspection for damage is still recommended.
• Inspeccionar el desgast: Look for signs of excessive wear, such as widening of the bar groove, discoloration from heat, or bending. A worn bar can cause the chain to cut unevenly or bind.

Figure 3: Husqvarna 18-inch X-Force Chainsaw Guide Bar with specifications. This image shows the guide bar with markings indicating its specifications, such as pitch and gauge.

5. Solució De Problemes

Addressing common issues can help maintain the performance and longevity of your guide bar.

Problemes comuns i solucions:

• Uneven Cutting (“Banana Cut”):
  Causa: This often indicates uneven wear on the guide bar rails or a chain that is dull on one side. It can also be caused by incorrect chain tension.
  Solució: Inspect the guide bar for wear and burrs; file smooth if necessary. Ensure the chain is sharpened evenly on both sides. Check and adjust chain tension. Consider flipping the bar for even wear. If the bar is significantly worn, replacement may be necessary.
• Chain Binding or Sticking:
  Causa: Insufficient lubrication, a clogged bar groove, or incorrect chain tension can cause binding.
  Solució: Verify the oiler is functioning and the oil tank is full. Clean the bar groove thoroughly. Adjust chain tension to the recommended specifications.
• Guide Bar Overheating:
  Causa: Lack of lubrication, incorrect chain tension, or a dull chain can lead to excessive friction and heat.
  Solució: Ensure proper chain lubrication and tension. Sharpen or replace the chain if dull. Clean the bar groove to ensure smooth chain movement.

6. Especificacions

7. Garantia i Suport

For specific warranty information regarding your Husqvarna X-Force guide bar, please refer to the documentation included with your purchase or visit the official Husqvarna website. For technical assistance, spare parts, or service inquiries, contact Husqvarna customer support directly.

Oficial de Husqvarna Weblloc: www.husqvarna.com
