1. Introducció
The Team Associated Reedy Electronic Power Switch ASC27035 is designed to provide reliable and convenient power control for your remote-controlled vehicle's electronic speed controller (ESC) and receiver system. This electronic switch offers a modern alternative to traditional mechanical switches, ensuring consistent performance and durability. It features selectable battery modes for both NiMH and LiPo battery types, enhancing versatility for various power setups.
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Reedy Electronic Power Switch to ensure optimal performance and longevity.
2. Característiques
- Electronic Switching: Provides a reliable and consistent power on/off function, eliminating issues associated with mechanical switches.
- NiMH/LiPo Mode Selection: Easily switch between NiMH and LiPo battery modes to match your power source, ensuring proper voltage cutoff and protection.
- Disseny compacte: Small footprint allows for easy integration into various RC vehicle chassis.
- Integrated Power Button: Simple push-button operation for turning the system on and off.
- Indicadors LED: Clear visual feedback for power status (PWR) and selected battery type (LIPO).
3. Configuració i instal·lació
Proper installation is crucial for the reliable operation of your electronic power switch. Follow these steps carefully:
- Muntatge de l'interruptor: Identify a suitable, secure location on your vehicle's chassis for mounting the electronic power switch. Use the provided screws to firmly attach the switch, ensuring it is protected from excessive vibration and impact.
- Connecting to Receiver: Plug the switch's servo-style connector (typically a black, red, and white wire) into an available channel on your receiver. It is commonly connected to the battery (BATT) or auxiliary (AUX) port. Refer to your receiver's manual for specific port recommendations.
- Connecting to ESC/Battery: The other end of the switch, usually with thicker red and black wires, connects to the power input of your Electronic Speed Controller (ESC) or directly to your battery if the ESC does not have a dedicated switch input. Ensure correct polarity (red to positive, black to negative).
- Gestió de cables: Secure all wires using zip ties or cable clips to prevent them from interfering with moving parts or becoming damaged during operation.

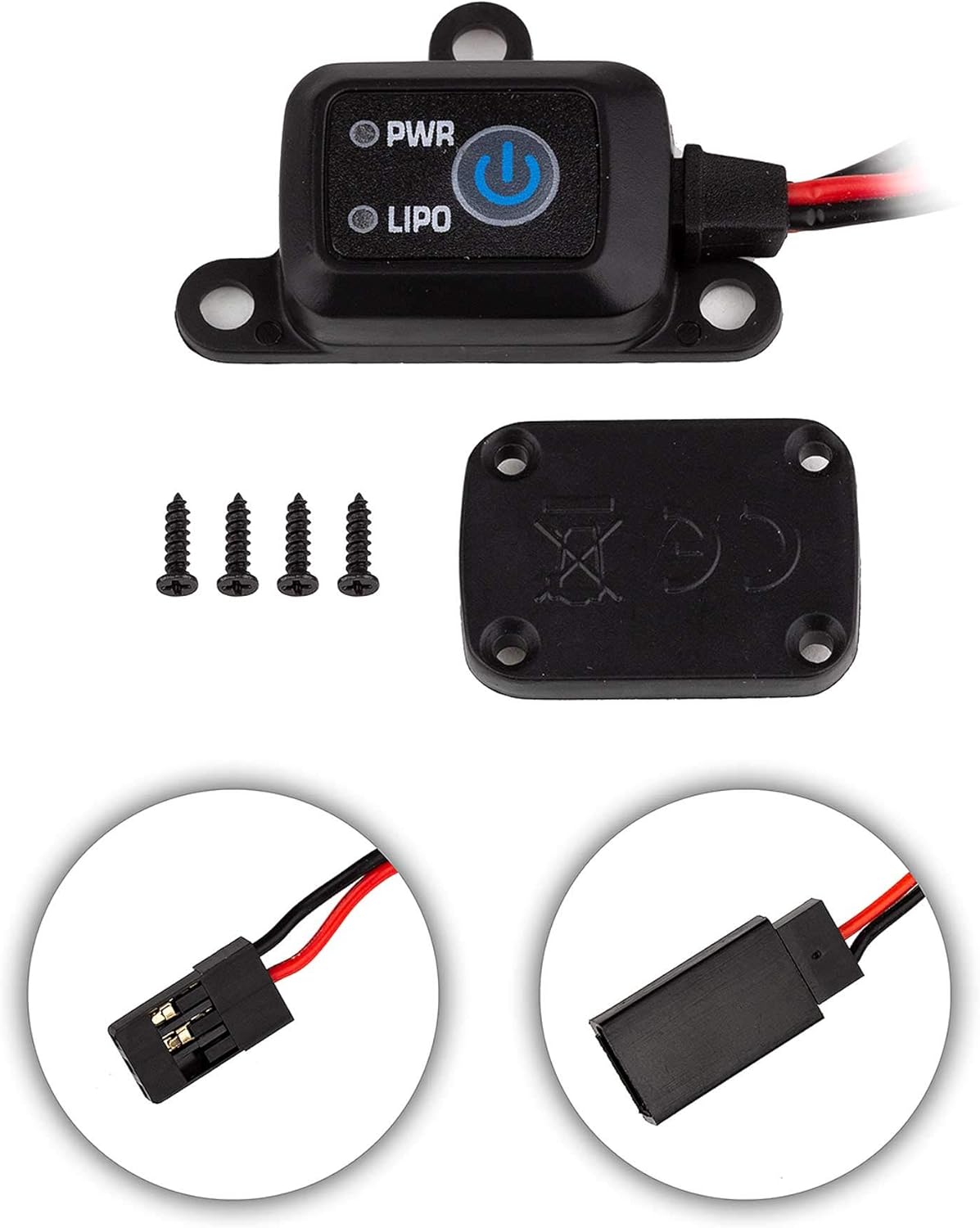

This image displays the Team Associated Reedy Electronic Power Switch, showing its main unit with 'PWR' and 'LIPO' indicators and a power button. Below it are four mounting screws and the bottom cover of the switch. The lower part of the image shows close-ups of the male and female servo-style connectors.
4. Instruccions de funcionament
The Reedy Electronic Power Switch is designed for straightforward operation:
- Encès: Press and hold the power button (marked with a universal power symbol) for approximately 1-2 seconds until the 'PWR' LED illuminates. Your vehicle's electronics should now be active.
- Apagat: Press and hold the power button for approximately 2-3 seconds until the 'PWR' LED turns off. This will safely shut down your vehicle's electronics.
- Battery Mode Selection (NiMH/LiPo):
- With the switch powered on, briefly press the power button (do not hold).
- The 'LIPO' LED will toggle on or off.
- If the 'LIPO' LED is illuminated, the switch is set for LiPo battery operation.
- If the 'LIPO' LED is off, the switch is set for NiMH battery operation.
- Always ensure the correct battery mode is selected to prevent over-discharge of LiPo batteries or improper voltage cutoff for NiMH batteries.
5. Manteniment
The Reedy Electronic Power Switch requires minimal maintenance. Follow these guidelines to ensure its longevity:
- Neteja: Periodically clean the exterior of the switch with a soft, dry cloth. Avoid using solvents or harsh chemicals.
- Inspecció: Regularly inspect the wires and connectors for any signs of wear, fraying, or damage. Ensure all connections are secure.
- Emmagatzematge: When not in use, store the switch in a dry, cool environment, away from direct sunlight and extreme temperatures.
- Eviteu l'exposició a l'aigua: This switch is not waterproof. Avoid exposing it to water or excessive moisture.
6. Solució De Problemes
If you encounter issues with your Reedy Electronic Power Switch, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| L'interruptor no s'encén. | No power from battery; incorrect connection; faulty switch. | Check battery charge. Verify all connections are secure and correct polarity. If issues persist, the switch may be faulty. |
| Incorrect battery mode selected. | User error in selection. | Briefly press the power button to toggle between NiMH (LIPO LED off) and LiPo (LIPO LED on) modes. |
| Poder intermitent. | Loose connection; damaged wire. | Inspect all wiring and connectors for damage or looseness. Re-secure connections. |
7. Especificacions
| Especificació | Valor |
|---|---|
| Número de model | ASC27035 |
| Dimensions del producte | 5.2 x 3.8 x 0.84 polzades |
| Pes de l'article | 0.96 unces |
| Fabricant | Equip associat |
| Edat recomanada | 0 - 9 years (Manufacturer's recommendation) |
8. Vídeos oficials de productes
En aquest moment no hi ha vídeos oficials del venedor disponibles per a aquest article.
9. Garantia i Suport
For warranty information or technical support regarding your Team Associated Reedy Electronic Power Switch ASC27035, please refer to the official Team Associated weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
Nota: Els termes i condicions de la garantia poden variar segons la regió i el distribuïdor.
