1. Introducció i presentació del producteview

The IKRA ILH 3000A electric roller shredder is designed for efficient and powerful shredding of branches and brushwood. Equipped with a high-performance 3000 W motor and a patented 3-stage planetary gear, it ensures excellent shredding performance and exceptional longevity. This garden shredder features a robust, quiet, and low-maintenance roller system. It automatically feeds branches and discharges shredded material into a large 60-liter collection bin.

Figure 1: The IKRA ILH 3000A electric shredder, shown with the included garden pruner and safety glasses.

Característiques principals:

• Powerful 3000 W motor with patented 3-stage planetary gear for effective shredding.
• Maximum branch diameter capacity of 44 mm.
• Low-noise operation and enhanced safety with an anti-kickback roller system.
• Automatic reverse function to clear branch obstructions.
• Automatic branch feeding mechanism.
• Easy transport with a practical handle and robust wheeled chassis.
• Large 60-liter collection bin with integrated safety switch.
• Includes a pusher tool for safe feeding.
• Foldable design for compact, space-saving storage.
• Convenient storage compartment for tools or small items.
• Integrated power plug with strain relief.
• Overload protection system for motor safety.
• Restart protection to prevent automatic startup after power failure.
• Exclusive bundle includes safety glasses (CE EN 166 compliant) and a high-quality garden pruner (21 cm, C55 carbon steel blades, max. 2 cm branch diameter).

2. Instruccions de seguretat

Always prioritize safety when operating the IKRA ILH 3000A shredder. Read and understand all safety warnings and instructions before use. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

Precaucions generals de seguretat:

• Equips de protecció individual: Always wear appropriate personal protective equipment, including the provided safety glasses (CE EN 166 compliant) to protect your eyes from dust and wood chips.

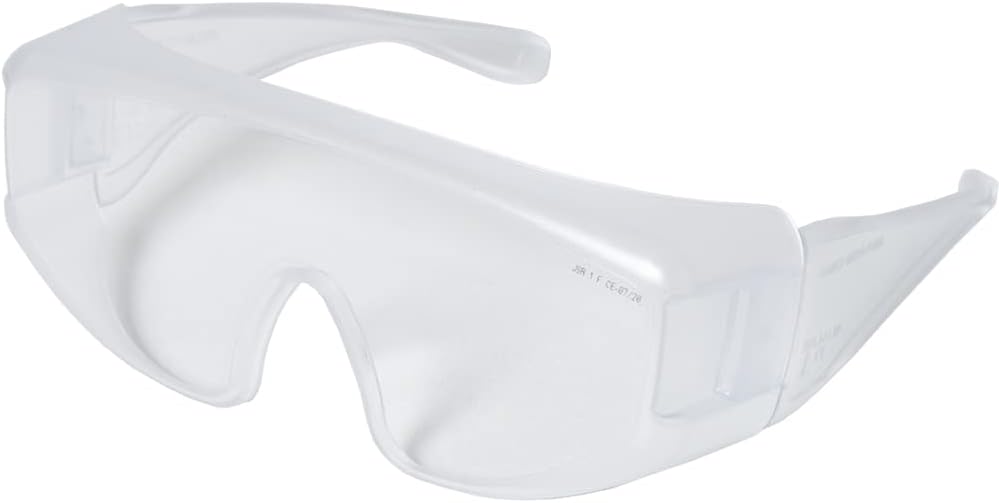

  Figure 2: Always wear safety glasses during operation.

• Àrea de treball: Ensure the work area is clear of bystanders, children, and pets. Operate the shredder on a firm, level surface.
• Seguretat elèctrica:
  • Connect the shredder to a properly grounded outlet.
  • Ensure the extension cord is securely attached using the integrated strain relief.
  • Do not operate the shredder in wet conditions or expose it to rain.
  • En cas d'una potènciatage, the restart protection prevents the shredder from automatically restarting. You must manually restart the machine.
• Material d'alimentació:
  • Never insert hands or other body parts into the feeding chute or discharge opening.
  • Always use the provided pusher tool to feed branches that are no longer reachable by hand.


    Figure 3: The pusher tool for safe material feeding.

  • Do not overload the machine. The maximum branch diameter is 44 mm.
  • Ensure the discharge chute is free of blockages. Blockages can lead to overheating.
• Interruptors de seguretat: The collection bin is equipped with an integrated safety switch. The shredder will automatically stop if the bin is not correctly in place or is removed during operation.
• Protecció de sobrecàrrega: The shredder is equipped with an overload protection system that will automatically shut down the machine to protect the motor in case of overheating due to blockages.
• Manteniment: Disconnect the shredder from the power supply before performing any maintenance, cleaning, or when clearing blockages.

3. Llista de components i peces

The IKRA ILH 3000A shredder comes with several components designed for safe and efficient operation.

Components inclosos:

• 1x IKRA ILH 3000A Electric Shredder Unit
• 1x 60-liter Collection Bin
• 1x Pusher Tool
• 1x Garden Pruner
• 1x Pair of Safety Glasses
• 1 x manual d'usuari

Main Parts of the Shredder:

1. Tremuja d'alimentació: The top opening where branches are inserted.
2. Tauler de control: Located on top, with START, STOP, and REVERSE buttons.


   Figure 4: The control panel with operational buttons.
3. Mecanisme de rodets: Internal shredding rollers that process the material.


   Figure 5: The internal roller mechanism.

4. Collection Bin (60L): Large capacity bin for collecting shredded material, with integrated safety switch.


   Figure 6: The large 60-liter collection bin.

5. Wheeled Chassis: Robust frame with wheels for easy mobility.


   Figure 7: The wheeled chassis for easy transport.
6. Botó d'ajust: For adjusting the roller clearance.


   Figure 8: The adjustment knob for optimal shredding.

4. Configuració

Before operating your IKRA ILH 3000A shredder, follow these steps for proper assembly and setup.

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports si cal.
2. Muntatge de rodes: Attach the axle and wheels to the shredder's frame. This process is quick and typically requires minimal tools (often included). Ensure wheels are securely fastened.
3. Collection Bin Placement: Slide the 60-liter collection bin into its designated position beneath the shredder unit. Ensure it clicks securely into place, activating the integrated safety switch. The shredder will not operate if the bin is not correctly seated.


   Figure 9: Securely attach the collection bin.

4. Posicionament: Place the shredder on a firm, level, and stable surface in your garden or work area. Ensure there is ample space around the machine for safe operation and material handling.
5. Connexió d'alimentació: Connect the shredder's power cable to a suitable outdoor extension cord. Utilize the integrated strain relief to secure the connection and prevent accidental disconnection. Plug the extension cord into a grounded electrical outlet.


   Figure 10: Secure the power cord with the strain relief.

5. Instruccions de funcionament

Follow these steps for safe and effective operation of your IKRA ILH 3000A shredder.

1. Preparació:
   • Ensure the collection bin is empty and correctly installed.
   • Wear all necessary personal protective equipment, including safety glasses.
   • Prepare the material to be shredded. The shredder can handle branches up to 44 mm in diameter. Remove any foreign objects like metal, stones, or plastic.
2. Inici de la trituradora:
   • Press the green START button on the control panel. The shredder will begin operating.
3. Material d'alimentació:
   • Carefully feed branches into the feeding hopper. The powerful roller system will automatically draw in the branches.


     Figure 11: Feeding branches into the shredder.

   • For shorter branches or those that are no longer easily gripped, use the provided pusher tool to safely guide them into the shredder. Never use your hands or feet.
   • Avoid forcing material into the shredder. Allow the automatic feeding mechanism to work.
4. Clearing Blockages (Automatic Reverse):
   • If branches become jammed in the roller, the shredder features an automatic reverse function that will attempt to clear the blockage by reversing the roller direction.
   • If the blockage persists, press the red STOP button, disconnect the power, and carefully clear the obstruction manually following the maintenance guidelines.
5. Adjusting Roller Clearance:
   • The shredder has an adjustment knob to fine-tune the clearance of the roller mechanism. Adjust this for optimal shredding results depending on the type and dryness of the material. Turning the knob clockwise typically reduces clearance for finer shredding, and counter-clockwise increases it.
6. Stopping the Shredder:
   • To stop the shredder, press the red STOP button on the control panel.
   • Always disconnect the shredder from the power supply after use and before any cleaning or maintenance.
7. Emptying the Collection Bin:
   • Monitor the collection bin level. When full, stop the shredder, disconnect power, and carefully remove the bin.


     Figure 12: Shredded material in the collection bin.
   • The shredded material can be used as mulch or compost.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your IKRA ILH 3000A shredder.

1. Neteja:
   • After each use, disconnect the shredder from the power supply.
   • Clean the feeding hopper and the discharge chute to prevent material buildup.
   • Netegeu l'exterior de la màquina amb un anunciamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
   • Ensure the roller mechanism is free of debris.
2. Comprovació de bloquejos:
   • Periodically inspect the shredding mechanism for any lodged branches or compacted material. Always ensure the machine is unplugged before inspection.
3. Blade/Roller Inspection:
   • While the ILH 3000A uses a roller system, it's good practice to periodically check the rollers for wear or damage. Consult the manufacturer's guidelines for any specific maintenance related to the roller system.
4. Emmagatzematge:
   • For compact storage, the shredder can be folded. Store it in a dry, protected area, away from direct sunlight and extreme temperatures.
5. Garden Pruner Maintenance:
   • Clean the blades of the garden pruner after each use to prevent sap and debris buildup.
   • Periodically sharpen the blades for optimal cutting performance.
   • Apply a light coat of oil to the blades and pivot point to prevent rust and ensure smooth operation.


     Figure 13: Maintain the garden pruner for best results.

7. Solució De Problemes

This section provides solutions to common issues you might encounter with your IKRA ILH 3000A shredder.

8. Especificacions

Technical specifications for the IKRA ILH 3000A Electric Shredder.

9. Garantia i Suport

For information regarding the warranty of your IKRA ILH 3000A Electric Shredder, please refer to the warranty card included with your purchase or visit the official IKRA weblloc. Els termes i condicions de la garantia poden variar segons la regió.

For technical support, spare parts, or service inquiries, please contact IKRA customer service. Contact details can typically be found on the manufacturer's weblloc web o a la documentació que s'inclou amb el producte.

IKRA Official Weblloc: www.ikra.de (Please note: This link is provided as a general reference and may not be specific to your region's support page. Always check your local documentation.)
