Introducció
Gràcies per la compraasing the MEIKEE 20W LED PIR Motion Sensor Security Floodlight. This manual provides essential information for the safe installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before use and retain them for future reference.
Instruccions importants de seguretat
- Desconnecteu sempre l'alimentació abans de la instal·lació o el manteniment.
- La instal·lació l'ha de dur a terme un electricista qualificat o d'acord amb les normes elèctriques locals.
- Assegureu-vos que la font d'alimentació voltage matches the product specifications (85-265VAC).
- No mireu directament a la font de llum LED quan estigui il·luminada, ja que podeu causar lesions oculars.
- Do not modify the product in any way, as this will void the warranty and may pose safety risks.
- Mantingueu els materials d'embalatge lluny dels nens.
Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- 1x MEIKEE 20W Motion Sensor Floodlight
- 1x Screw Package (Mounting Hardware)
- 1x Manual d'usuari (aquest document)
Producte acabatview
The MEIKEE 20W LED PIR Motion Sensor Security Floodlight is designed for outdoor use, featuring a sensitive motion sensor and durable, waterproof construction. It provides warm white illumination for enhanced security and convenience.
Figura 1: Davant view of the MEIKEE 20W LED PIR Motion Sensor Security Floodlight, showing the main light panel, integrated motion sensor, and mounting bracket.
Característiques principals:
- Wattage: LED de 20 W
- Sortida lumen: 1700 lm
- Temperatura de color: Blanc càlid
- Sensor de moviment: PIR (Passive Infrared) with 180° detection angle and up to 12m detection distance.
- Classificació impermeable: IP66 for floodlight, IP65 for sensor.
- Configuració ajustable: Time duration and light sensitivity (LUX).

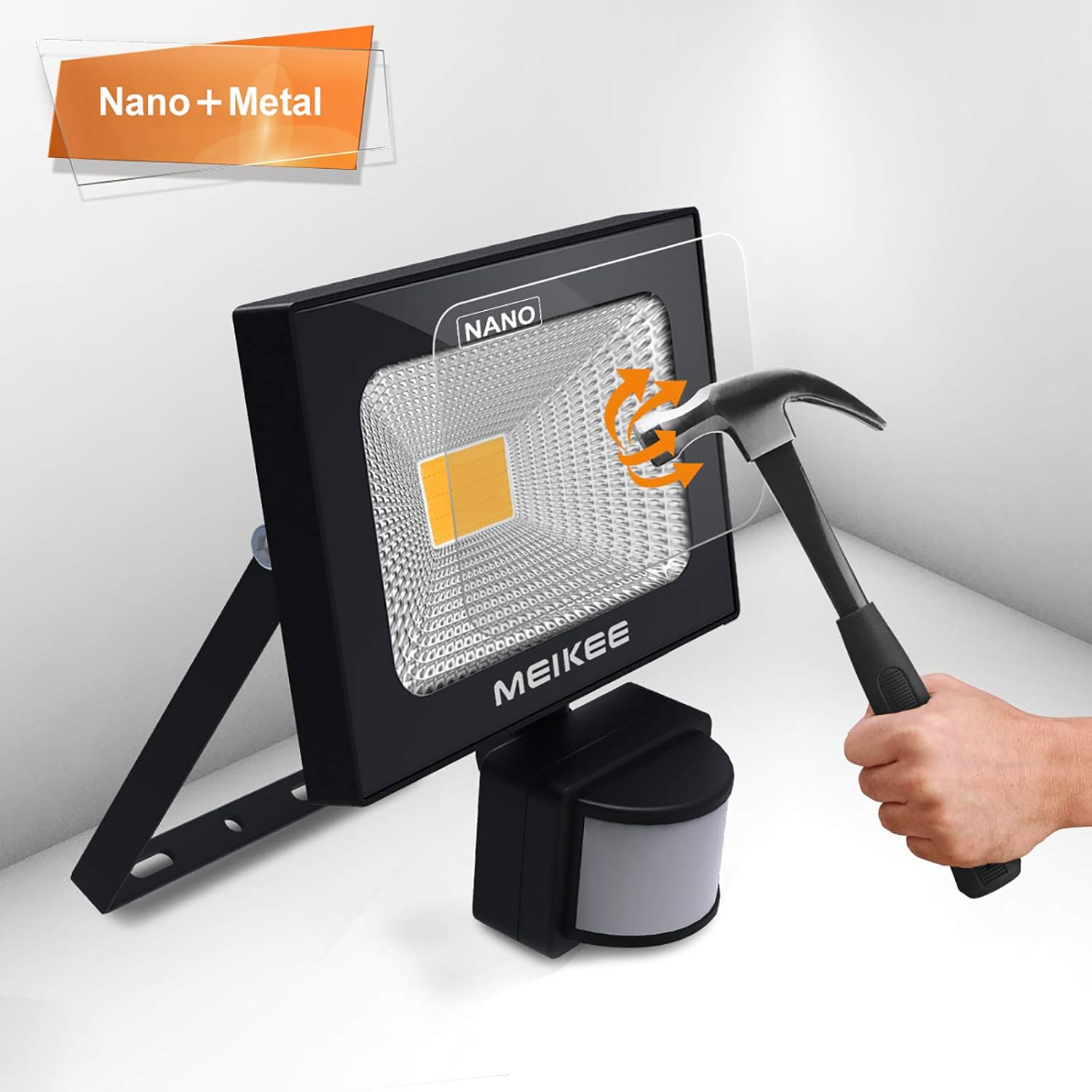

- Construcció duradora: Aluminum body, nano-material front cover.
Instruccions d'instal·lació
Before installation, ensure the power supply is turned off at the main circuit breaker.
- Trieu una ubicació de muntatge: Select a suitable location for the floodlight, ideally between 9.84ft (3m) and 16.4ft (5m) high for optimal detection range and light coverage. Consider the 120° beam angle and 12m detection distance.
Figura 2: Illustration of optimal mounting height (9.84ft - 16.4ft) and detection range (max 39ft / 12m) for the floodlight, showing a 120° beam angle.
- Marca els punts de perforació: Use the mounting bracket as a template to mark the drilling points on the wall or mounting surface.
- Forats: Drill holes at the marked points and insert appropriate wall plugs (if necessary, depending on the surface).
- Assegureu el suport: Fixeu el suport de muntatge a la superfície amb els cargols proporcionats.
- Wire the Floodlight: Connect the floodlight's cable to your main power supply. The 1.5m cable includes three wires: Live (Brown), Neutral (Blue), and Earth (Yellow/Green). Ensure correct polarity and secure connections.
Figura 3: posterior view of the floodlight, illustrating the adjustable mounting bracket and the power cable connection point.
- Adjust Sensor Angle: The motion sensor can be rotated 360° horizontally and 270° vertically to cover the desired detection area.
Figura 4: Close-up of the motion sensor showing the TIME and LUX adjustment dials protected by a waterproof soft rubber cover, and illustrations of the sensor's 360° horizontal and 270° vertical rotation capabilities.
- Restaura l'alimentació: Un cop finalitzada la instal·lació i totes les connexions siguin segures, restableix l'alimentació del circuit.
Funcionament
The MEIKEE floodlight features two adjustable settings on the motion sensor: TIME and LUX. These settings are located under a waterproof soft rubber cover on the sensor unit.
Figura 5: Detallada view of the TIME and LUX adjustment dials on the motion sensor.
1. TIME Setting:
This dial controls the duration the light stays on after motion is detected and the sensor is triggered. Rotate the dial to select the desired time:
- 10s: Light stays on for approximately 10 seconds.
- 45s: Light stays on for approximately 45 seconds.
- 120s: Light stays on for approximately 120 seconds (2 minutes).
- 600s: Light stays on for approximately 600 seconds (10 minutes).
2. LUX Setting:
This dial determines the ambient light level at which the sensor will activate the floodlight. Rotate the dial to select the desired mode:
- "SUN" (Daylight Mode): The sensor will work continuously, activating the light both during the day and at night when motion is detected.
- "MOON" (Night Mode): The sensor will only activate the light when motion is detected during low light conditions or at night.
Nota: The detection range defaults to a maximum of 12 meters (39 feet).
Manteniment
- Neteja: Periodically clean the floodlight and sensor lens with a soft, damp cloth to ensure optimal performance. Do not use abrasive cleaners or solvents.
- Inspecció: Regularly inspect the power cable and housing for any signs of damage. If damage is found, disconnect power and have it repaired by a qualified technician.
- Sense peces reparables per l'usuari: The LED light source and sensor unit are not user-replaceable. Do not attempt to open or repair the unit.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | Sense font d'alimentació. LUX setting is too low (Moon mode during day). El sensor està obstruït. Sensor defectuós. | Comproveu les connexions d'alimentació i l'interruptor. Adjust LUX setting to "SUN" for testing, or wait until night. Elimineu qualsevol obstrucció del sensor view. Contacta amb l'assistència al client. |
| La llum es manté encesa contínuament. | Continuous motion in detection area. LUX setting is too high (Sun mode at night). Sensor defectuós. | Ensure no constant movement is triggering the sensor. Adjust LUX setting to "MOON" for night-only operation. Contacta amb l'assistència al client. |
| Light turns on for too short/long a period. | Incorrect TIME setting. | Adjust the TIME dial to the desired duration (10s/45s/120s/600s). |
| Reduced detection range or sensitivity. | La lent del sensor està bruta. Sensor angle is incorrect. Ambient temperature too high (reduces PIR effectiveness). | Netegeu la lent del sensor. Adjust the sensor angle to cover the desired area. This is normal behavior for PIR sensors in very warm conditions. |
Especificacions
| Número de model | FLB020 |
| Wattage | 20W |
| Voltage | 85-265VAC |
| Flux lluminós | 1700 lm |
| Color lluminós | Blanc càlid |
| Angle del feix | 120° |
| Temperatura de treball | -25 °C a 40 °C |
| Angle de detecció del sensor | 180° |
| Distància de detecció | Fins a 12 m |
| Waterproof Rating (Floodlight) | IP66 |
| Classificació d'impermeabilitat (sensor) | IP65 |
| Longitud del cable | 1.5 m |
| Material | Aluminum (body), Nano-material (front cover) |
| Dimensions (aprox.) | 140mm x 98mm x 60mm (excluding bracket) |
Figura 6: Diagram showing the approximate dimensions of the floodlight: 140mm (5.51in) width, 98mm (3.82in) height, and 60mm (2.4in) depth (excluding the sensor and bracket).
For detailed product information and energy efficiency, please refer to the official EPREL database: Fitxa informativa del producte EPREL
Garantia i Suport
MEIKEE products are designed for durability and performance. For warranty information or technical support, please contact your retailer or visit the official MEIKEE weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
