Introducció
Gràcies per la compraasing the Armor 3 NuChamp Wireless Gaming Controller. This manual provides detailed instructions on how to set up, operate, and maintain your new controller, ensuring an optimal gaming experience on your Nintendo Switch® or Nintendo Switch® Lite console.
Contingut del paquet
- 1 x Armor 3 NuChamp Wireless Gaming Controller (White)
- 1 x cable de càrrega USB
- 1 x Manual d'usuari

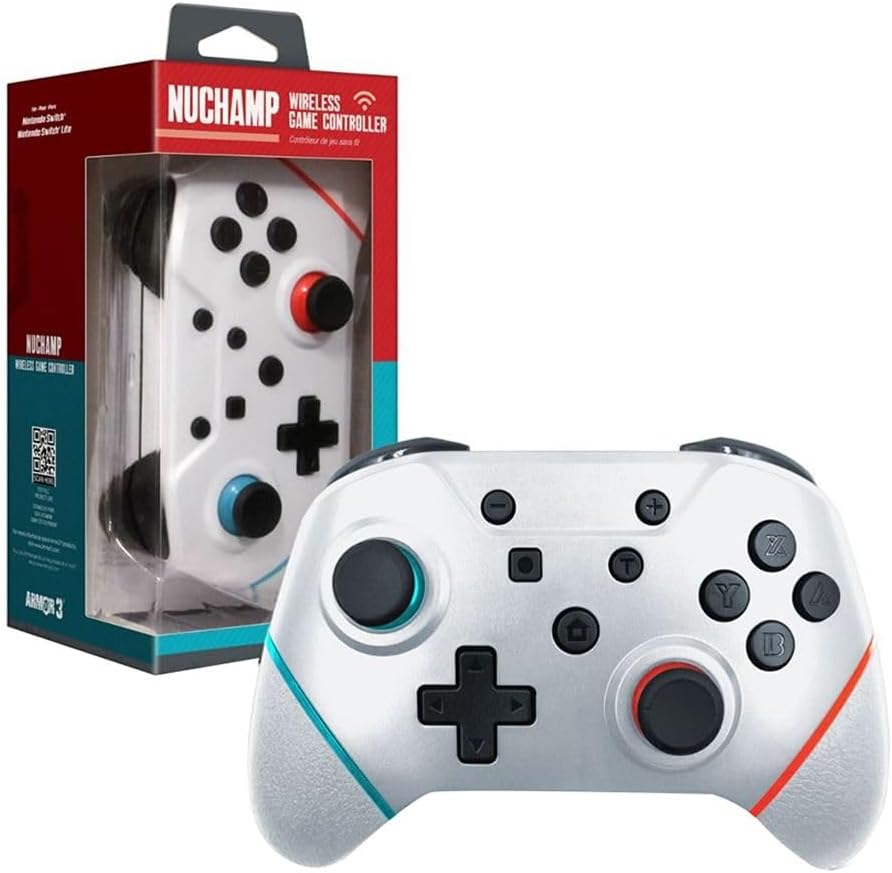

Image: The Armor 3 NuChamp Wireless Gaming Controller displayed next to its retail box, showcasinel producte i el seu embalatge.
Producte acabatview
Familiarize yourself with the various components of your NuChamp Wireless Gaming Controller.

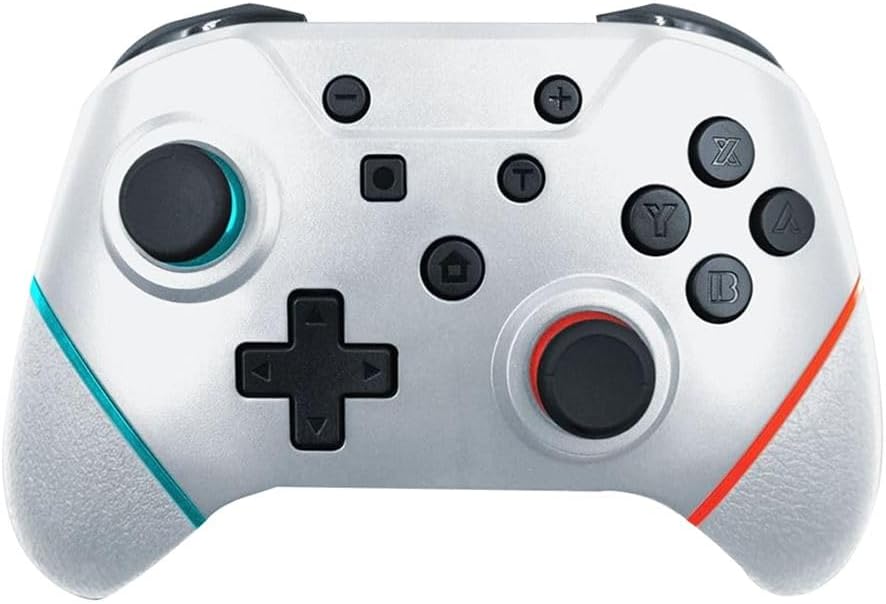

Imatge: Un front directe view of the Armor 3 NuChamp Wireless Gaming Controller, highlighting its buttons, joysticks, and ergonomic design.
- Stick analògic esquerre: Per al moviment i el control de la càmera.
- D-Pad: Entrada direccional.
- Botó Menys (-): System menu access.
- Botó de captura de pantalla: Capture in-game screenshots.
- Botó d'inici: Return to the console's home screen.
- Stick analògic dret: Per al control de la càmera i l'apuntament.
- Botons A/B/X/Y: Botons d'acció.
- Botó més (+): System menu access.
- Botons E/D: Botons a l'espatlla.
- Botons ZL/ZR: Botons de disparador.
- Pro Paddle Buttons: Reassignable buttons on the back of the controller.
- Port USB-C: Per a càrrega i connexió per cable.
Imatge: Un angle view of the Armor 3 NuChamp Wireless Gaming Controller, showing its ergonomic grips and the placement of the shoulder buttons and triggers.
Configuració
1. Càrrega del controlador
Before first use, fully charge the controller. The built-in rechargeable battery lasts approximately 8 to 10 hours on a full charge.
- Connect the supplied USB charging cable to the USB-C port on the controller.
- Connect the other end of the cable to a USB power source (e.g., Nintendo Switch dock, USB wall adapter, computer USB port).
- The indicator lights on the controller will show charging status. They will typically stop blinking or turn solid when fully charged.
2. Pairing with Nintendo Switch® / Switch® Lite
The NuChamp controller uses Bluetooth for wireless connection.
- A la consola Nintendo Switch, vés al menú INICI.
- Seleccioneu "Controladors", doncs "Canviar agafada/ordre".
- On the NuChamp controller, press and hold the Botó d'inici for a few seconds until the indicator lights begin to flash rapidly. This indicates the controller is in pairing mode.
- Once the controller appears on the Switch screen, release the Home button. The indicator lights will become solid, confirming successful pairing.
- If pairing fails, ensure the controller is charged and try again. You may need to restart your Switch console.
Instruccions de funcionament
Controls bàsics
The NuChamp controller functions similarly to official Nintendo Switch Pro Controllers. All standard buttons (A/B/X/Y, D-Pad, Analog Sticks, L/R, ZL/ZR, Plus/Minus, Home, Screenshot) operate as expected in compatible games.
Funció Turbo
The controller features a turbo function for rapid firing of buttons.
- Per activar Turbo: Press and hold the button you wish to set to turbo (e.g., A button), then press the Botó Turbo (usually a dedicated button or a combination, refer to specific controller markings if available). The button will now rapidly input when held down.
- Per desactivar Turbo: Repeat the process: press and hold the turbo-enabled button, then press the Botó Turbo de nou.
Reassignable Pro Paddle Buttons
The controller includes reassignable paddle buttons on the back for advanced customization.
- To assign a paddle button:
- Manteniu premut el botó Botó de programa (often a small button on the back or bottom of the controller) until an indicator light flashes.
- Press the paddle button you wish to assign (e.g., P1).
- Press the button you want to map to the paddle (e.g., A, B, X, Y, L, R, ZL, ZR, D-Pad directions).
- Premeu el botó Botó de programa again to save the assignment. The indicator light will stop flashing.
- To clear a paddle assignment: Repeat the assignment process, but instead of pressing a button to map, press the Botó de programa twice after selecting the paddle.
Motion Controls and Force Feedback (Vibration)
The controller supports motion controls for games that utilize them and provides force feedback (vibration) for immersive gameplay. These features are automatically enabled when connected to the Nintendo Switch.
Manteniment
- Neteja: Feu servir un drap suau i sec per netejar el controlador. No utilitzeu productes químics agressius ni materials abrasius.
- Emmagatzematge: Guardeu el controlador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el controlador regularment, fins i tot si no l'utilitzeu durant períodes prolongats.
Resolució de problemes
| Problema | Possible causa/solució |
|---|---|
| El controlador no s'encén. | Battery may be depleted. Connect the controller to a power source using the USB cable and allow it to charge. |
| El controlador no s'emparella amb l'Switch. |
|
| Els botons o les paletes no responen. |
|
| Vibration (Force Feedback) is not working. |
|
Especificacions
- Número de model: M07467-WH
- Connectivitat: Bluetooth sense fil
- Bateria: 1 ió de liti (inclòs)
- Durada de la bateria: Aproximadament 8-10 hores
- Dimensions: 17.81 x 11.71 x 9.09 cm (7.01 x 4.61 x 3.58 polzades)
- Pes: 317.51 g (0.7 lliures)
- Idioma: Anglès
- País d'origen: Xina
- Data de llançament: 1 de gener de 2023
Garantia i Suport
For warranty information and technical support, please visit the official Armor3 weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
Oficial Weblloc: www.armor3.com
