1. Introducció
Thank you for choosing the MEIKEE Solar Garden Spotlight. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new solar lighting system. Please read this manual thoroughly before use and retain it for future reference.
2. Informació de seguretat
- Ensure all connections are secure and waterproof to prevent electrical hazards.
- No intenteu modificar ni desmuntar el producte. Les modificacions no autoritzades poden anul·lar la garantia i plantejar riscos per a la seguretat.
- Mantingueu el panell solar net per garantir un rendiment de càrrega òptim.
- Avoid placing the solar panel in shaded areas, as this will reduce charging efficiency.
- This product is designed for outdoor use and is IP66 waterproof. However, avoid submerging the unit in water.
- Handle the product with care to prevent damage to the solar panel or LED lights.
3. Contingut del paquet
Si us plau, verifiqueu que tots els components siguin presents al vostre paquet:
- 1 x Panell solar amb estaca de terra
- 4 x LED Spotlights with Ground Stakes
- 1 x Caixa de control
- 1 x comandament a distància
- Maquinari de muntatge (cargols, ancoratges de paret)
- 1 x Manual d'usuari
4. Producte acabatview
The MEIKEE Solar Garden Spotlight system consists of a solar panel, a control box, four LED spotlights, and a remote control. It is designed to provide efficient and versatile outdoor lighting.

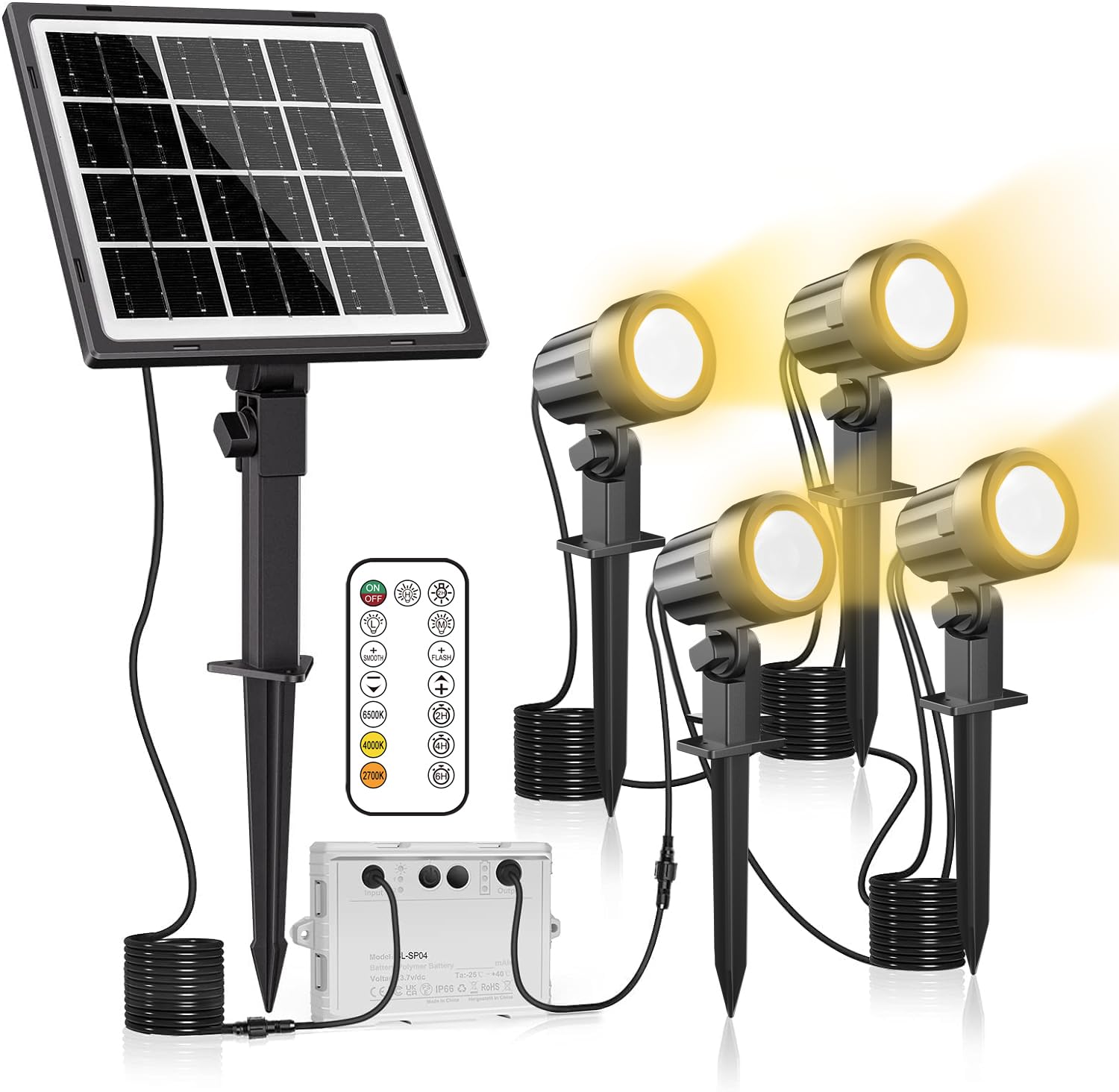

Imatge: Més deview of the MEIKEE Solar Garden Spotlight system, showing the solar panel, control box, four spotlights, and remote control.
Característiques principals:
- Energia solar: Environmentally friendly and energy-saving, with automatic charging during the day.
- Encès/apagat automàtic: Integrated light sensor automatically turns lights on at dusk and off at dawn.
- Impermeable IP66: Designed to withstand various outdoor weather conditions, including rain and snow.
- Temperatura de color ajustable: Offers 3 color options (3000K Warm White, 4000K Neutral White, 6500K Daylight White) to suit different preferences and environments.
- Alt Brillantor: Each spotlight provides up to 800 lumens of illumination.
- Disseny separable: Allows flexible placement of the solar panel and spotlights.
- 2-Way Installation: Can be installed using ground stakes or wall-mounted.
Image: Demonstrates the three available color temperatures (Warm White, Daylight White, Cool White) and highlights the waterproof solar panel and connectors.
Image: Illustrates the focused light projection of the MEIKEE spotlight, offering a projection distance of 5-6 meters, compared to other scattered light types.
5. Configuració i instal·lació
5.1 Col·locació de panells solars
Choose a location for the solar panel that receives direct sunlight for at least 6-8 hours daily. Avoid areas shaded by trees, buildings, or other obstructions. The solar panel can be mounted using its ground stake or attached to a wall.
5.2 Spotlight Placement
Position the four spotlights in desired locations to illuminate pathways, garden features, or security areas. Each spotlight comes with a ground stake for easy insertion into soft ground. They can also be wall-mounted using the provided hardware.
Image: Shows the two installation methods: wall-mounted and ground stake installation for the spotlights.
5.3 Connexió del sistema
- Connect the solar panel cable to the designated input port on the control box.
- Connect each of the four spotlight cables to the output ports on the control box. Ensure all connections are firm and the waterproof caps are securely fastened.
- The maximum movable distance for the spotlights from the control box is approximately 14 meters, allowing for flexible arrangement.
Image: Illustrates the wiring connections between the solar panel, control box, and spotlights, along with the automatic charging during the day and lighting at night.
6. Instruccions de funcionament
6.1 Ús inicial
Before first use, ensure the solar panel is exposed to direct sunlight for a full day (8-10 hours) to fully charge the internal battery. The system will automatically activate at dusk once charged.
6.2 Funcionament automàtic
The MEIKEE Solar Garden Spotlight features an integrated light sensor. It will automatically turn on when it detects low light conditions (dusk) and turn off when it detects sufficient light (dawn), while simultaneously charging the battery.
6.3 Funcions de control remot
Use the provided remote control to adjust settings:
- Botó d'encesa: Turns the lights On or Off manually.
- Ajust de brillantor: Select between High Brightness Mode (approx. 6 hours continuous illumination) or Low Brightness Mode (approx. 12 hours continuous illumination).
- Selecció de temperatura de color: Cycle through 3000K (Warm White), 4000K (Neutral White), and 6500K (Daylight White) options.
- Funció de temporitzador: Set the lights to turn off after a specific duration (e.g., 2H, 4H, 6H).
Image: Displays the high and low brightness modes, indicating approximate illumination durations, and highlights the IP66 waterproof rating and operating temperature range (-25°C to 40°C).
7. Manteniment
- Neteja de panells solars: Netegeu regularment el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia o les restes. Un panell net garanteix la màxima eficiència de càrrega.
- Comprovació de la connexió: Periodically inspect all cables and connections for any signs of wear or damage. Ensure waterproof caps are always securely in place.
- Substitució de la bateria: The internal battery is replaceable. If the lights' performance significantly degrades over time, consult the manufacturer for guidance on battery replacement.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums no s'encenen a la nit. | Insufficient solar charge. Solar panel is in a shaded area. Connections are loose. | Ensure solar panel receives 6-8 hours of direct sunlight daily. Relocate panel if necessary. Check all cable connections. |
| Els llums són tènues o només romanen encesos durant un període curt de temps. | Insufficient solar charge. Dirty solar panel. Battery capacity reduced. | Clean the solar panel surface. Ensure adequate sunlight exposure. If battery is old, consider replacement. |
| El comandament a distància no funciona. | Remote battery depleted. Obstruction between remote and control box. | Replace remote control battery. Ensure clear line of sight to the control box. |
9. Especificacions
| Característica | Detall |
|---|---|
| Marca | MEIKEE |
| Número de model | 62000007.WW20.BK |
| Tipus de font de llum | LED |
| Nombre de llums | 4 |
| Flux lluminós | 800 lumens |
| Temperatura de color | 3000K, 4000K, 6500K (ajustable) |
| Font d'alimentació | Energia solar |
| Voltage | 4 Volts |
| Material | Acrylonitrile Butadiene Styrene, Aluminium, Silicone |
| Classificació impermeable | IP66 |
| Ús interior/exterior | A l'aire lliure |
| Tipus d'instal·lació | Ground Stake / Wall Mount |
| Temperatura de funcionament | -25 °C a 40 °C |
| Piles incloses | Yes (Rechargeable) |
| Pes de l'article | 1 kg 390 g |
10. Garantia i Suport
MEIKEE products are designed for durability and performance. This product typically comes with a standard manufacturer's warranty. For specific warranty details, including duration and coverage, please refer to the product packaging or contact MEIKEE customer support directly.
If you encounter any issues or have questions regarding your MEIKEE Solar Garden Spotlight, please contact our customer support team. Contact information can usually be found on the product packaging or the official MEIKEE weblloc.
